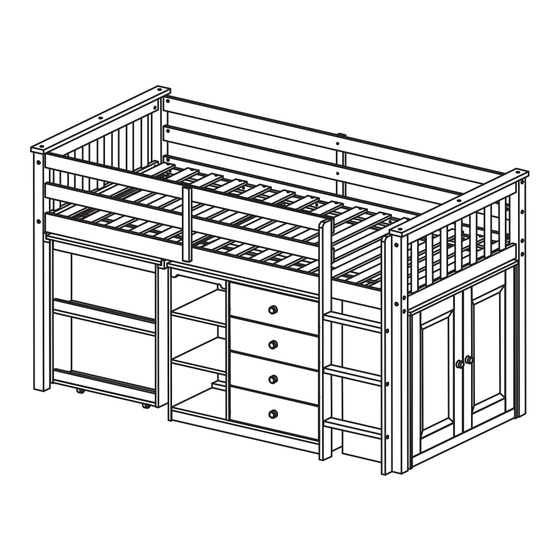

Flair Furnishings Oban Cabin Bed-Single Assembly Instruction Manual

Safety Advice
Please take the time to carefully read through the whole of these instructions before you
commence.
Keep these instructions for future reference.
Unpack, inspect and check off all of the contents.
Please dispose of all packaging safely.
Small component parts could choke a child if swallowed.
We strongly recommend that you keep children well away from the work area.
It would be sensible to lay a sheet or blanket on the floor where you intend to work to
avoid scratching this product and to protect your floor.
This product is heavy. Take extreme care when lifting to avoid personal injury or damage
to the product.
Assemble the product as close to its intended final position in the room as possible.
Please check the contents of boxes before attempting to assemble this product. A full
checklist of parts and fittings is given in page 1&2 of this instruction leaflet.
HANDY HINT : If you keep the hardware in a bowl during assembly you will be less
likely to lose them.
IMPORTANT-READ CAREFULLY-RETAIN FOR FUTURE REFERENCE
WARNING: High beds and the upper bed of bunks beds are not suitable for children
under six years due to the risk of injury from falls
WARNING: Bunk beds and high beds can present a serious risk of injury from
strangulation if not used correctly.
Never attach or hang items to any part of the bed that are not designed to be used
with the bed, for example, but not limited to, ropes, strings, cords, hooks, belts and bags.
WARNING: Children can become trapped between the bed and the wall, a roof pitch,
the ceiling, adjoining pieces of furniture (e.g. cupboards) and the like. To avoid risk of
serious injury, the distance between the top safety barrier and the adjoining structure
shall not exceed 75mm or shall be more than 230mm.
WARNING: Do not use the bunk bed/high bed if any structural part is broken or
missing and always follow the manufacturer's instructions.
The largest size of mattress recommended for safe use is 190cm x 90cm with maximum
thickness of (6 inch). Refer to the maximum thickness marking on the upper bed.
"Please refer to marking headboard" or "Please refer marking upper bunk"
Frequent ventilation of the room is necessary to ensure that humidity is kept low and to
prevent mould forming in and around the bed.
We strongly recommend regular checks on all assembly fastenings to ensure they are
properly tightened.
This bunk complies with BS EN 747-1:2012+A1:2015
Hardware List
A JCBC
M6 x 90mm
M6 x 15mm
B
Barrel Nut
Wood Dowel
C
M10 x 30mm
JCBC
D
M6 x 30mm
JCBC-W
E
M6 x 50mm
Assembly Instructions
Oban Cabin Bed-Single
CSK Screw
F
x 22
M4 x 38mm
JCBC-W
G
x 22
M6 x 30mm
CSK
H
x 28
M4 x 25mm
I
x 6 Sticker Cap
J M4
x 10
Allen Key
EN
x 4 To help prevent serious or fatal injuries from entrapment or falls :
- The top of the Mattress shall be at least 160mm below the upper edge
of the safety barriers.The maximum thickness of the mattress shall be 6".
- Only use mattress that is 1905mm (75") long and 915mm (36") wide
on upper a shall be at least 160mm (6-1/4) below the edge of the
safety barriers.
x 10
- Follow written instructions with this bed.
STRANGULATION HAZARD Never attach or hang item to any part
of the bunk bed that are not designed for use with the bed; for example ,
but not limited to, hook, belt, and jumpropes.
- This upper bed is not suitable for children under six years.
x 26
- EN 747 : 2012 + A1 : 2015
- Made in Malaysia
- Importer by Mattressman Ltd.
DO NOT REMOVE THIS LABEL
x 6
Tool required for assembly :
* Allen Key ( supplied )
x 1
* Phillips Screwdriver
( not supplied )
1/7
