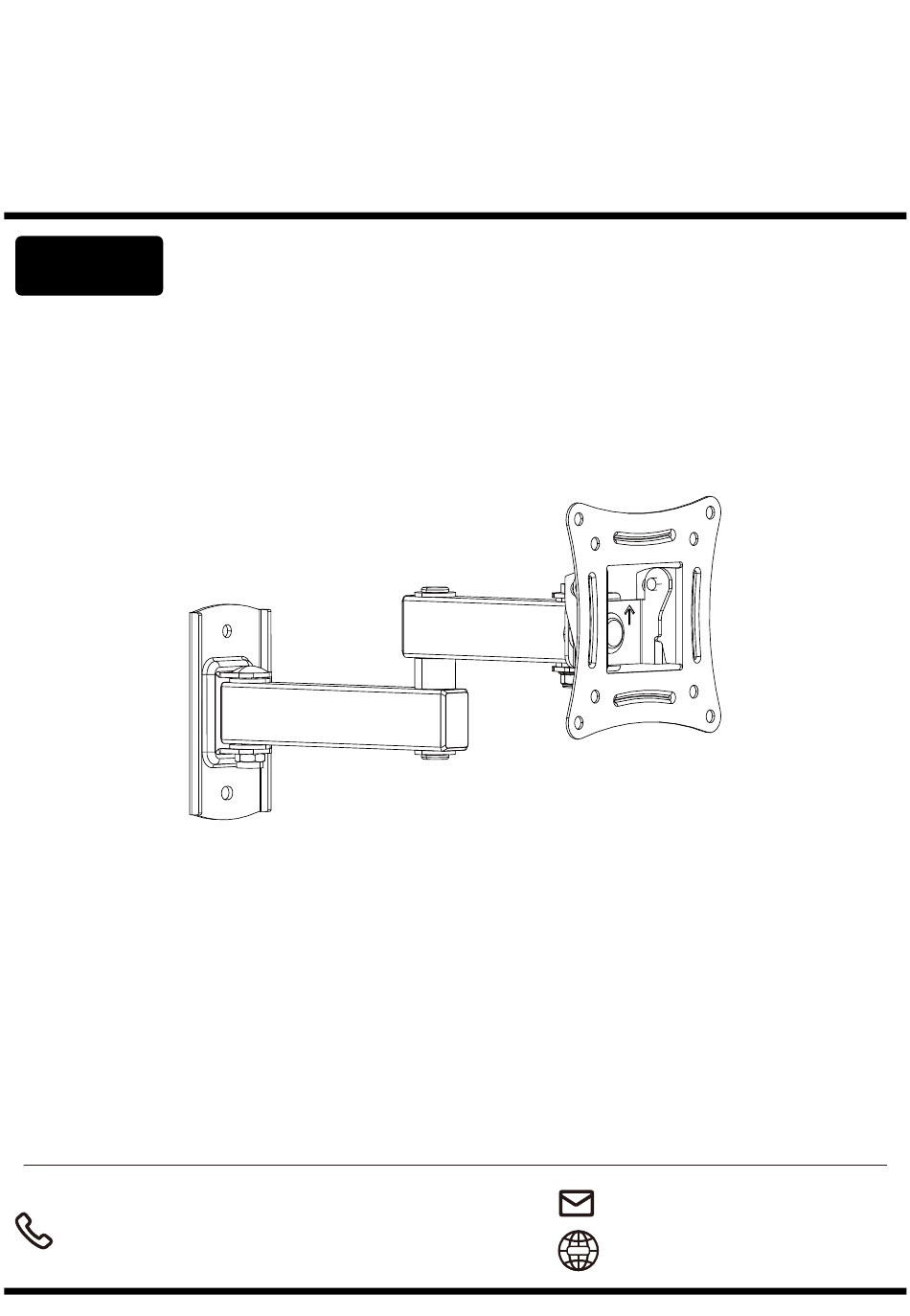

- Page 1 INSTRUCTION MANUAL Rev01(A) PIXSF2 Full-Motion TV Wall Mount support@pipishell.net (US/CA) 1-800-556-9829 (UK) 44-808-196-3885 www.pipishellav.com WWW.
- Page 2 Chech IMPORTANT SAFETY INFORMATION NOTE • Please carefully read all instructions before attempting installation. If you do not understand the instructions or if you have any questions or concerns, please contact our Technical Support line at 1-800-556-9829 (US/CA) / 44-808-196-3385 (UK) or Customer Service at supportus@perlesmith.com.
- Page 3 Before getting started, make sure this mount is compatible. Max: 100 x 100mm (3.9 x 3.9 ″ ) Min: 75 x 75mm (3 x 3 ″ ) VESA Pattern Compatibility 75 x 75mm 100 x 100mm If the TV weighs more than 33 lbs (15kg), 33 lbs...
- Page 4 Contents Contents · Inhalt· Contenu · Contenido · Contenuti · コンテンツ Contents · Inhalt· Contenu · Contenido · Contenuti · コンテンツ Washer Spacer TV Bolt TV Bolt L5mm M4 x 12mm M4 x 16mm [d] x 4 [c] x 4 [a] x 4 [b] x 4 Faceplate...
- Page 5 1-2 Spacer and Bolt Configurations Flat Back TV Curved TV Bump Cables Recessed Holes See Option A See Option B See Option C See Option D See Option E 1-3 Attach the Faceplate to Your TV Ensure the hooks are directed toward the bottom of the TV.
- Page 6 Option B: For Curved TVs Spacers must be tall enough so that the curved back of the TV does not interfere with the mounting plate. Option C: For TVs with a Bump The faceplate must be flush on the bump and leveled by spacers on the gap.
- Page 7 Option D: For TVs with Protruding Cables Use spacers [c] to create extra space between the TV and faceplate. Option E: For TVs with Recessed Holes Spacers [c] need to fill in the recessed holes on the back of the TV, while keeping the faceplate as close to the TV as possible.
- Page 8 Step 2 Mount the Arm Assembly / Wall Plate on the Wall Option A: For Wood Studs, follow Page 08. Option B: For Solid Concrete or Brick Walls, follow Page 09. Use a stud finder (not included) to locate wood studs, or use an awl (not included) to find the edges. Mark the edge and center positions.
- Page 9 3″ (75mm) 3″ (75mm) 3/8″ (10mm) Position the arm assembly / wall plate [02] at your desired height. Level the wall plate and mark the holes. Drill 2 pilot holes using a 3/8″ (10mm) diameter drill bit. Make sure the depth is not less than 3″ (75mm).
- Page 10 Chech Step 3 Verify that the Mount is Firmly Mounted STEP 3 Secure TV on Mount 33 lbs (15kg) Step 4 Hang the TV on the Arm Assembly / Wall Plate STEP 4 Pull Mount to Check if it is Firmly Secured HEAVY! You may need Phillips assistance with this step.
- Page 11 Chech Step 5 Tilt and Level Adjustment STEP 5 Tilt Adjustment Phillips Screwdriver Tilt (Not lncluded) Tighten Tighten Loosen Loosen Directly tilt your TV. If the TV is difficult to tilt, slightly loosen the two bolts [T]. Adjust the TV and retighten the bolts [T1] to secure the TV in place.
- Page 12 FAQs Question: Why is it so hard to adjust the swivel angle of the wall mount? Answer ①: You must attach the TV to the wall mount / arm assembly before adjustment. Only move the TV by gripping the left and/or right TV edges to swivel, push, or pull. Do not press on the screen itself.
