Pipishell PIAT3 Instruction Manual

Tilting tv wall mount
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL
Rev02
PIAT3
Tilting TV Wall Mount
1-800-556-9829 (US/CA)
44-808-196-3885 (UK)
support@pipishell.net
www.pipishellav.com
WWW.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIAT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Pipishell PIAT3

Summary of Contents for Pipishell PIAT3

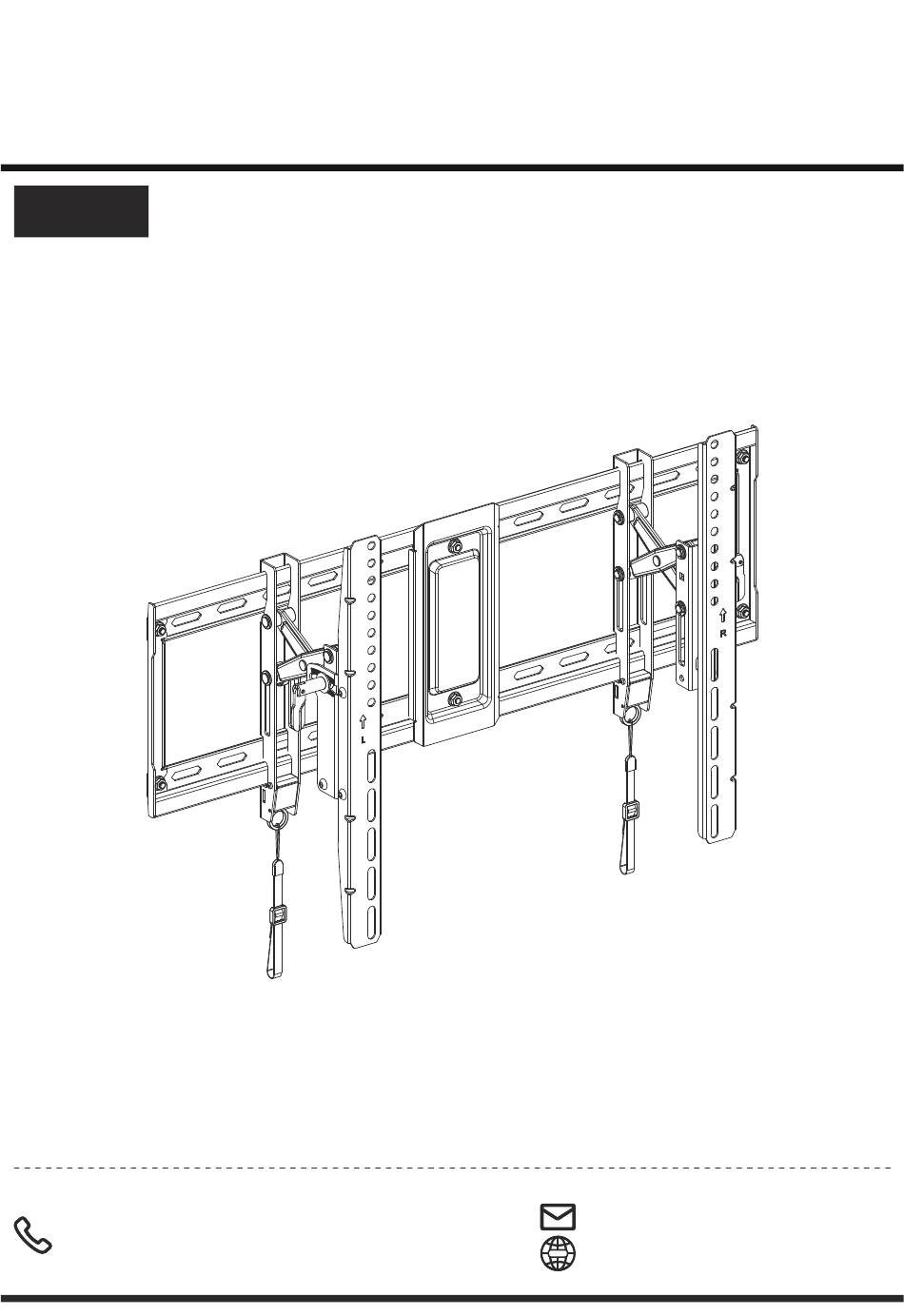

  • Page 1 INSTRUCTION MANUAL Rev02 PIAT3 Tilting TV Wall Mount 1-800-556-9829 (US/CA) support@pipishell.net 44-808-196-3885 (UK) www.pipishellav.com WWW.
  • Page 2 703.8mm (27.7″) 610mm (24″) 406mm (16″)

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION NOTE • Please carefully read all instructions before attempting installation. If you do not understand the instructions or if you have any questions or concerns, please call technical support or email customer service. • Before starting assembly, verify that all parts are included and undamaged. Do not use damaged or defective parts.
  • Page 4 Before getting started, make sure this mount is compatible. VESA Pattern Compatibility 300 x 400mm 200 x 100mm 400 x 200mm 200 x 200mm 400 x 300mm 200 x 300mm 400 x 400mm 200 x 400mm 500 x 400mm 300 x 200mm Max: 600 x 400mm (23.6 x 15.7″) 600 x 400mm 300 x 300mm...
  • Page 5 Supplied Parts and Hardware Washer Washer Spacer Spacer Spacer M4/M5 M6/M8 L2.5mm L10mm L22mm [B1] x 4 [B2] x 4 [F1] x 8 [F2] x 4 [F3] x 4 TV Bolt TV Bolt M4 x 12mm M4 x 30mm [C1] x 4 [C2] x 4 TV Bolt TV Bolt...
  • Page 6 Wall Plate Template Level ST 5/16 x 2 3/4″ Lag Screw This anchor is for Wall Anchor concrete or brick walls ONLY. DO NOT use them CAUTION! in drywall or wood studs. Step 1 Attach TV Brackets to TV 1-1 Select TV Bolts Hand thread bolts into the threaded inserts on the back of your TV to determine which bolt (M4, M6 or M8) to use.
  • Page 7 1-2 Spacer and Bolt Configurations Flat Back TV See Option A Curved Back TV Bump Cables Recessed Holes See Option B See Option C See Option D See Option E 1-3 Attach the TV Brackets to Your TV...
  • Page 8 Option A: For Flat Back TVs C1/D1/E1 B1/B2 (If needed) Add spacers if needed to fit the bolt length and TV back. Option B: For Curved Back TVs C2/D2/E2/E3 B1/B2 F1/F2/F3 Spacers must be tall enough so that the curved back of the TV does not interfere with the mounting plate.
  • Page 9 Option C: For TVs with a Bump C2/D2/E2/E3 B1/B2 F1/F2/F3 C1/D1/E1 B1/B2 (If needed) The TV brackets must be flush on the bump and leveled by spacers on the gap. Option D: For TVs with Protruding Cables C2/D2/E2/E3 F1/F2/F3 B1/B2 Use spacers to create extra space between the TV and TV brackets.
  • Page 10 Option E: For TVs with Recessed Holes F1/F2/F3 C2/D2/E2/E3 B1/B2 Spacers need to fill in the recessed holes on the back of the TV, while keeping the TV brackets as close to the TV as possible. 1-4 Adjust the Length of Cords (Optional) Note: You can adjust the slider buckles of the cords [R] to make them longer or shorter.
  • Page 11 Step 3 Mount the Wall Plate Assembly on the Wall Option A: For Wood Studs, follow Page 11. Option B: For Solid Concrete or Brick Walls, follow Page 12. Mark Center Line Mark Center Line Stud Finder Pencil (NOT Included) (NOT Included) (NOT Included) M A X :...
  • Page 12 3″ (75mm) Electric Drill (NOT Included) 3″ (75mm) Pencil (NOT Included) ø3/8″ (10mm) NOTE: Be sure to use the specified drill bit. 3/8″ 3/8″ (10mm) (10mm) Position the wall plate template [06] at your desired height. Level the wall plate template [06] and mark the holes.
  • Page 13 Step 4 Verify that the Wall Plate is Firmly Mounted 132lbs (60kg) Step 5 Hang the TV on the Wall Plate Hang the TV with brackets [01] and [02] on the wall plate assembly. HEAVY! You may need assistance with this step.

  • Page 14: Step 6 Tilt Adjustment

    Press the bottom of the TV into the wall plate assembly until the safety latches lock on the wall plate. NOTE: Ensure that the safety latches are locked. If needed, slightly pull the cords to secure the safety latches. Press Step 6 Tilt Adjustment Slightly loosen the levers [T].

  • Page 15: Frequently Asked Question

    Step 7 Remove the TV Disconnect all cables. To prevent breaking Lift the TV up and off the wall plate the latch, always pull down and hold the assembly. cords [R] while gently pulling the bottom of the TV away from the wall plate HEAVY! You assembly.
  • Page 16 How can I raise/lower the TV if the TV Wall Mount is already fixed on Question 2 the wall? Answer: 1. Remove the TV from the TV Wall Mount. 2. Remove the TV brackets from the TV and reattach according to instructions A or B in the picture below (A for lifting up the TV or B for lowering the TV).
