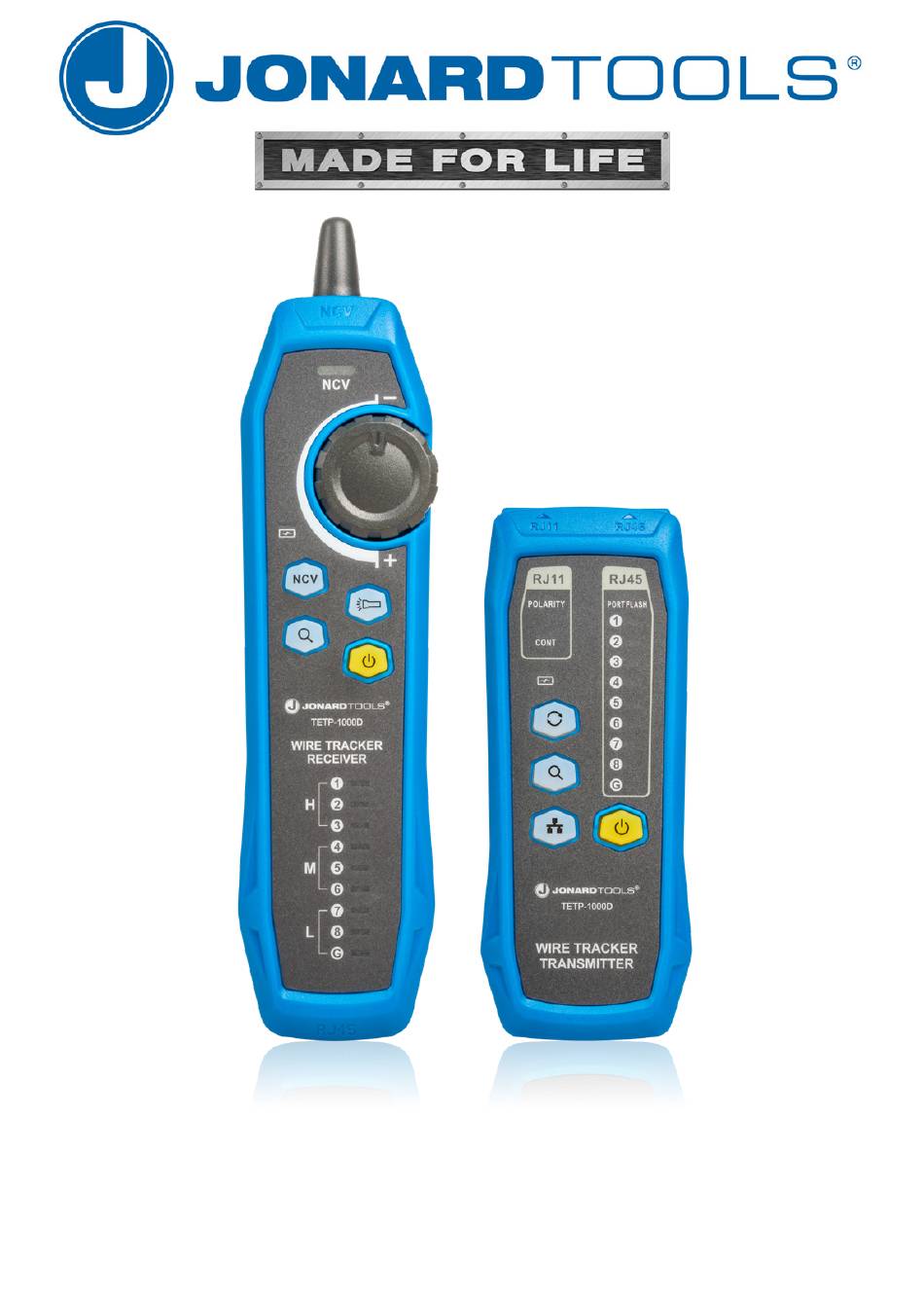

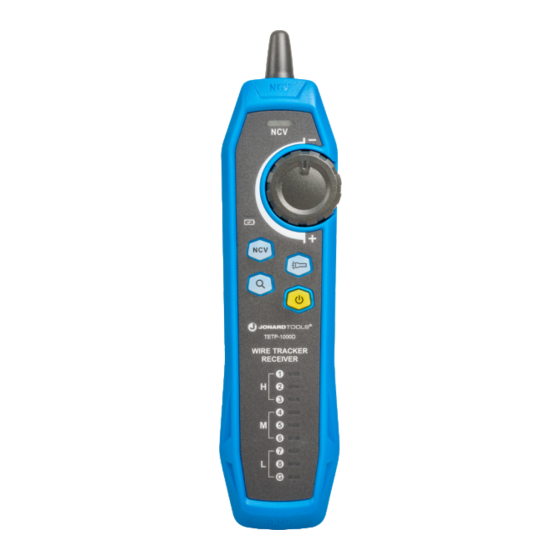

TETP-1000D DIGITAL TONE AND PROBE SET
WITH RECHARGEABLE BATTERY
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TETP-1000D and is the answer not in the manual?

Questions and answers

Related Manuals for JONARD TOOLS TETP-1000D

Summary of Contents for JONARD TOOLS TETP-1000D

  • Page 1 TETP-1000D DIGITAL TONE AND PROBE SET WITH RECHARGEABLE BATTERY INSTRUCTION MANUAL...

  • Page 2: Limited Warranty And Liability

    Limited Warranty and Liability Jonard Tools guarantees that the product is free from any defect in material and workmanship within one year from the purchase date. This warranty does not apply to damage caused by accident, negligence, misuse, modification, contamination or mishandling.

  • Page 3: Safety Information

    TETP-1000D Instruction Manual I. Safety Information This manual includes precautions and safety regulations for safe use of the device. Please read and understand the content carefully before use. 1. Do not use or store this device in dusty, hot or wet environments.
  • Page 4 Ill. Packing List Item Item Transmitter Receiver Micro USB charging cable RJ11 adapter cable RJ11 alligator clip adapter cable RJ45 adapter cable User manual Pouch IV. Network Line Tracking 1. Insert the RJ45 plug of the network line into the RJ45 jack of the transmitter. 2.
  • Page 5 TETP-1000D Instruction Manual VII. Demonstration of Tracking Operation If the target cable are intermixed with massive cables, turn the sensitivity knob to adjust the sensitivity. Louder sound means stronger signal and closer to the target cable. VIII. RJ45 Cable Validating 1.

  • Page 6: Other Functions

    IX. RJ11 Cable Validating 1. Insert the RJ11 plug of the cable under test into the RJ 11 jack of the transmitter, or use the RJ11 alligator clip adapter cable to connect the transmitter and metal cable under test. 2. Press the button, the button flashes, and the validating function is enabled.

  • Page 7: Specifications

    TETP-1000D Instruction Manual XI. Specifications 1. Power supply: 3.7V rechargeable batteries 2. Signal mode: modulation signal (125kHz carrier wave) 3. Tracking distance: 3000m (disconnected mode} 4. Tracking distance of switch: 100m (connected mode}w 5. Operating temperature: -10°C~50°C 6. Storage temperature: -20°C~60°C 7.
