Summary of Contents for JONARD TOOLS OTDR-1500

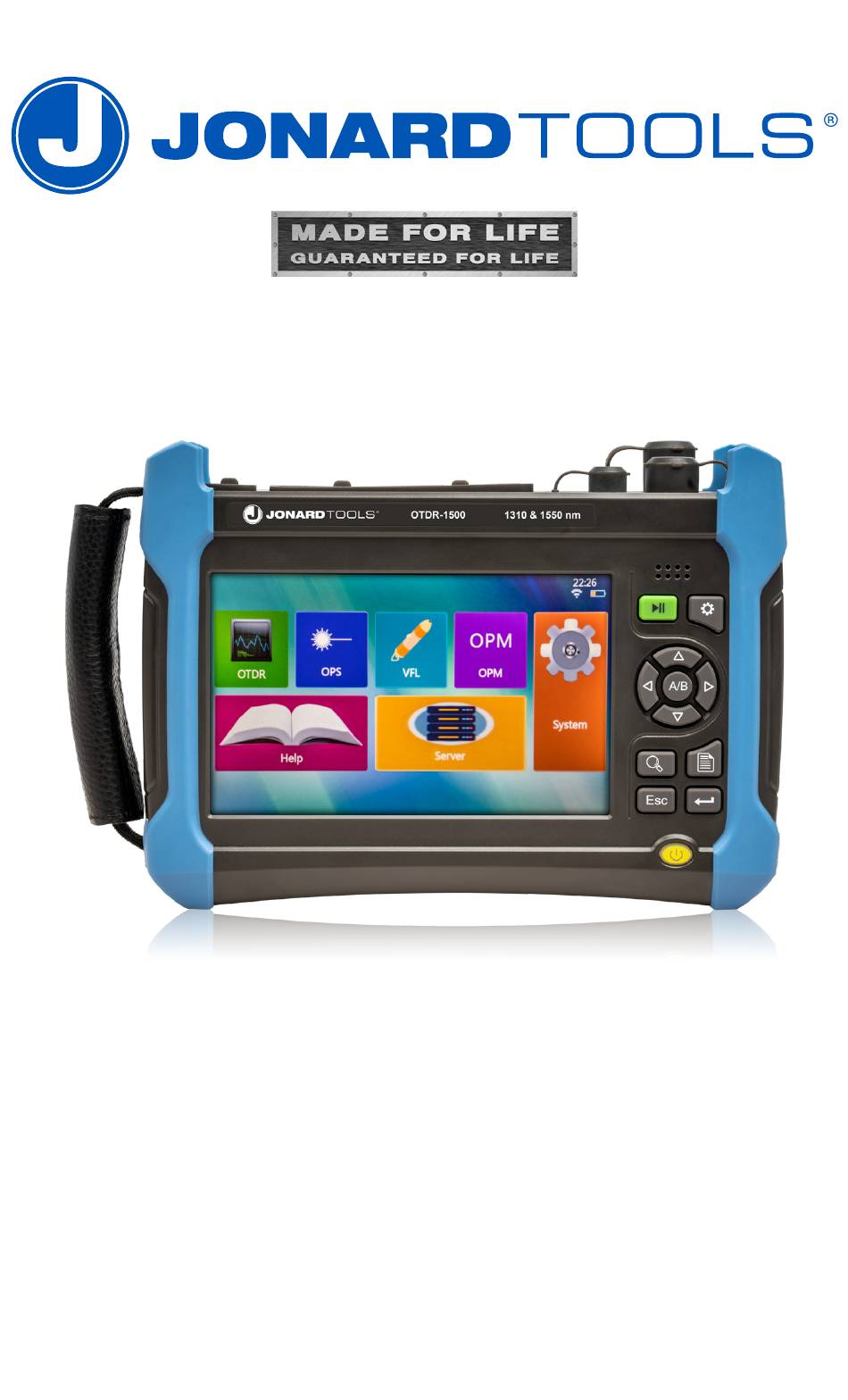

- Page 1 OTDR-1500 PROFESSIONAL MULTI-FUNCTION OTDR 1310/1550 NM INSTRUCTION MANUAL...
- Page 2 Do not disassemble any parts of the device except those parts which are allowed to be replaced by the user as stated in this manual. Replacement parts and internal adjustment can only be carried out by Jonard Tools , or by its authorized ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Contents Warnings Maintenance OTDR Module Optical Power Meter (OPM) Module Optical Light Source (OLS) Module Visual Fault Locator (VFL) Module OTDR Overview How to Interpret Results Main Menu & Fuction Overview Application Method OTDR Module Test Modes Read File Save File FAQ’s &... -
Page 4: Introduction
INTRODUCTION The OTDR-1500 Professional Multi-Function OTDR is a multifunctional test device designed for FTTx networks. It is primarily used to measure the length, transmission loss, joint loss and other physical properties of optical fiber, as well as locate event points or fault points in optical fiber lines. -
Page 5: Contents
| OTDR-1500 Instruction Manual CONTENTS • OTDR Device (8 Gb Storage) • Power Adapter • FC/APC Adapter for OTDR Module • SC/APC Adapter for OTDR Module • LC/UPC Adapter for OPM & OLS Modules • Instruction Manual • Carrying Case... -
Page 6: Warnings
WARNINGS Power Supply • External DC power supply must meet the following requirements: 14V ~ 20V and greater than 1.5A; polarity: center is positive. Using too high voltage will damage the device. Internal Battery • The internal battery is a dedicated lithium-ion battery. The use of other batter- ies will damage the device and endanger the user’s personal safety. - Page 7 | OTDR-1500 Instruction Manual • The charging temperature range of the battery in the device is 5°C ~ 40°C. When the ambient temperature is too high or too low, the charging will auto- matically terminate. LCD Screen • Do not use sharp objects to click on the LCD screen. Do not impact the LCD screen with excessive force;...
-
Page 8: Maintenance
The warranty does not apply to products that have been deemed by Jonard Tools to have been abused, misused, or altered in any way whether intentional or by accident. - Page 9 | OTDR-1500 Instruction Manual DEVICE OVERVIEW...
-
Page 10: Otdr Module
OTDR MODULE The OTDR-1500 is equipped with additional functions such as an optical power meter, light source, and visual fault locator (VFL). To turn on the device, hold the power button for 5-10 seconds and release. Select the main menu under the system menu, and the module selection interface... - Page 11 | OTDR-1500 Instruction Manual General Settings include language settings, screen brightness settings, time settings, system information, and system upgrades, as shown be- low: Network Settings include WIFI scanning and connection, which can be used with Android devices, as shown below:...
-
Page 12: Optical Power Meter (Opm) Module
OPTICAL POWER METER (OPM) MODULE Click the [Optical power meter] button in to enter the operation interface of the power meter module, as shown below: [Wavelength]: Change the test wavelength of the power meter. [Zero]: Zero out the power meter. [Ref]: Set the current test value to the reference value. -
Page 13: Optical Light Source (Ols) Module
| OTDR-1500 Instruction Manual OPTICAL LIGHT SOURCE (OLS) MODULE Click the [Optical light source] button in to enter the operation interface of the optical light source module, as shown below: [Start]: Start or stop the light source. [Wavelength]: Select the test wavelength of the light source. -
Page 14: Visual Fault Locator (Vfl) Module
VISUAL VAULT LOCATOR (VFL) MODULE Click the [VFL] button in to enter the operation interface of the visual fault locator module, as shown below: [Start]: Start or stop the VFL module test. [Mode]: Select the VFL operating mode. [Main Menu]: Exit the VFL module and return to the main operation interface. -
Page 15: Otdr Overview
| OTDR-1500 Instruction Manual OTDR OVERVIEW Click the [OTDR] button in to enter the operation interface of the OTDR module. 1. Displays the current system time, battery power and WiFi connection. 2. Test results display area. The test results are calculated based on the current marker position. - Page 16 9. The filename and saving time of the currently read file. If the current test curve is the one saved in the file read, the file name read and the time saved are shown here. 10. Color indication of current test curve. This icon table shows the line color of the test curve with the current sequence number.
- Page 17 | OTDR-1500 Instruction Manual Each item in the event list is explained as follows (take the distance unit km as an example) : 1. Event type: indicates that this event point may be the starting point of the fiber. indicates that this event point is a descending event point.
-
Page 18: How To Interpret Results
HOW TO INTERPRET RESULTS After selecting graphical analysis, click the [Switch Mode] button to perform graphical analysis of the current trajectory curve and display the graphical analysis interface. The schematic diagram of the graphical analysis window is shown below: Click the [Switch Mode] button again, and the interface state will be switched, as shown below:... - Page 19 | OTDR-1500 Instruction Manual The meaning of each figure in the graphical analysis window is explained as follows: Indicates that this event point may be the starting point of the fiber. Indicates that this event point may be the end of the fiber.
-
Page 20: Main Menu & Fuction Overview
MAIN MENU & FUNCTION OVERVIEW In greater detail: 1. [Average]: This button is used to control the progressive average using the average time set by the OTDR. When the test is finished, the content displayed on this button will automatically change on the display from [Stop] to [Aver- age], and the OTDR will stop testing. -
Page 21: Application Method
| OTDR-1500 Instruction Manual APPLICATION METHOD Before testing the optical fiber, first set the OTDR to test mode and set the various test parameters. Click the [Setup] button, and then click the [test conditions] button to set the test conditions, as shown below:... - Page 22 6. After testing: - If [Auto Test] mode or [Auto Analysis after Sampling] is selected, the OTDR-1500 will automatically analyze the test curve, mark the event points according to the set loss analysis threshold, and give the event list. - Otherwise, click the [Analysis] button in the main menu bar. The OTDR- 1500 will analyze the test curve, mark the event points according to the set loss analysis threshold, and give the event list.
-
Page 23: Otdr Module Test Modes
1. Automatic Testing When the OTDR test mode is set to Automatic Test: After the test key is pressed, OTDR-1500 will automatically adjust the test condi- tions to test the connected fiber link. After the test is completed, curve analysis will be performed automatically, and the test curve and event list will be displayed in the main operation window. - Page 24 1550 checkboxes, and click [Enter]. During the test, the device will test at each selected wavelength in turn until all the selected wavelengths have been tested. 2. Measuring range (km): Measuring Range is used to set the curve range of the test. The range of the optical time domain reflectometer is divided into the following stages: 400m, 800m, 1.6km, 3.2km, 8km, 16km, 32km, 64km, 128km, 256km and 512km (the maximum optional range is related to the selected module).
- Page 25 | OTDR-1500 Instruction Manual 8. High resolution test: When this option is selected, the maximum number of sampling points of the in- strument is increased to 256k, which enhances the resolution of events occurring within a short distance. OTDR TEST RESULTS OTDR test results can be selected as follows: average loss, connection loss and reflection loss.
- Page 26 segment of the fiber curve, before the connection point. Marker A should be set near the join point, and marker B and marker b should be set on the linear segment of the fiber curve after the connection point. When testing the reflection loss, set marker A in front of the reflection peak to be tested and near the take-off point of the reflection peak.
- Page 27 | OTDR-1500 Instruction Manual 4. Read another curve in the file list that requires two-way analysis, using the same steps above (Trace 2); 5. Click the [Analysis] button to get the Two-way analysis results, as shown below. MACRO BENDING ANALYSIS 1.
- Page 28 5.8 ANALYSIS OF UNREAL PEAKS To realize the unreal peak analysis function, the operation steps are as follows: 1. Click [Unreal Peak Analysis] on the link definition setting interface, as shown in Figure 7-7, and click [OK]. 2. Read the curve in the file list that requires unreal peak analysis; 3.
-
Page 29: Read File
| OTDR-1500 Instruction Manual READ FILE Click the [File] button in the main menu to enter the file submenu. Click the [Read] button to enter the file reading operation window, as shown below: 1. File Path: Memory, U Disk and SD card can be selected. -
Page 30: Save File
SAVE FILE Click the [Save] button in the [File] sub-menu to enter the file saving operation window, as shown below. File saving operation window 1. Saving File Path: Memory, U disk and SD card can be selected. 2. File List: The list shows the curve files that conform to the file format stored (EI or SOR) under the current path. -
Page 31: Faq's & Troubleshooting
| OTDR-1500 Instruction Manual FAQ’S & TROUBLESHOOTING The following are the possible failures of the instrument and the solutions: Table 8-1 Failures and troubleshooting CAUSE TROUBLESHOOTING ON button not held Hold the power button for 5 seconds to power on long enough. -
Page 32: Reasons For Failure Of Curve Test & Analysis
REASONS FOR FAILURE OF CURVE TEST & ANALYSIS If the results are quite different from the expected result (or the expected result does not appear), it may be caused by one of the following reasons: 1. The test curve of the fiber was not obtained. If the test curve only has the front-end reflection peak, and there is no linear curve reflecting the characteristics of the fiber, please check: 1. - Page 33 CONNECTING & USING WIFI To connect to Wifi using the OTDR-1500, please follow the below steps: 1. On the main interface, press the [Server] button on the screen. 2. Make sure Port 8010 is entered and press the [Start] and [Hide] buttons.
- Page 34 9. In the network settings of your phone, set the phone’s wifi to the OT- DR-1500’s network, “OW4G_B223F0”, and open the OTDR-1500 app on your phone. 10. Your phone is now paired with the OTDR-1500, and can be used to mirror the screen or transfer files. EVENT POINT TYPES The event points created by the OTDR are either reflective event points and non-re- flective event points.
- Page 35 | OTDR-1500 Instruction Manual Non-reflective events typically include: • Descending event point • Ascending event point • Non-reflective end of optical fiber Non-reflective end of optical fiber Ascending event point Descending event point...
-
Page 36: Technical Features & Specifications
TECHNICAL FEATURES & SPECIFICATIONS 800×480, 7-inch TFT color LCD Display Screen (standard distribution capacity touch screen) USB port, Micro-USB port, SD card interface, and 10M/100M Ether- Electrical Interface net interface AC/DC adapter: allowable range of input voltage: 100V ~ 242V (1.5A), allowable range of frequency: 50/60Hz;... - Page 37 | OTDR-1500 Instruction Manual VFL SPECIFICATIONS NAME CONTENTS Center wavelength (nm) 650nm±20nm ≥2mW (typical) Output power mW Operation mode CW, 1Hz and 2Hz Interface type TOSA POWER METER MODULE SPECIFICATIONS NAME CONTENTS Wavelength range 1200nm ~ 1650nm Power range -60dBm ~ 0dBm Better than 0.22dB...
-
Page 38: Appendix
APPENDIX Because the fiber core is very small, dust and other particles may get stuck to the optical output ports, which may cover part of the fiber core, leading to the subpar performance of the device. Dust and particles may also cause the end face of the output port ferrules to wear, which will reduce the accuracy and repeatability of the device. - Page 39 | OTDR-1500 Instruction Manual...
