Snapper PRO736 Dealer Setup Instructions

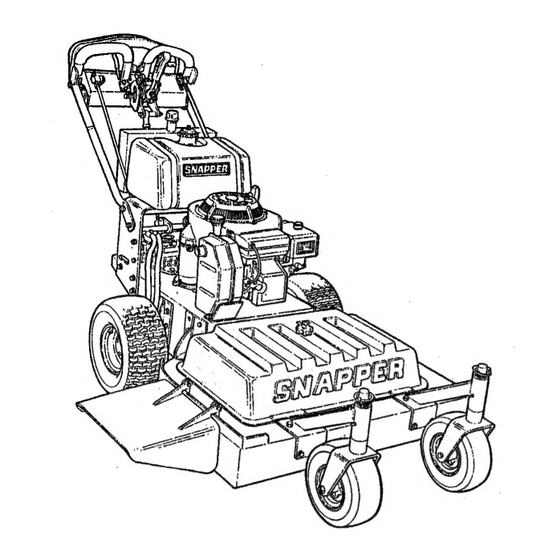

DEALER SET-UP INSTRUCTION for
SNAPPER
PRO736, PRO748 8. PRO752 HYDRO MID-SIZE
| COMMERCIAL MOWERS

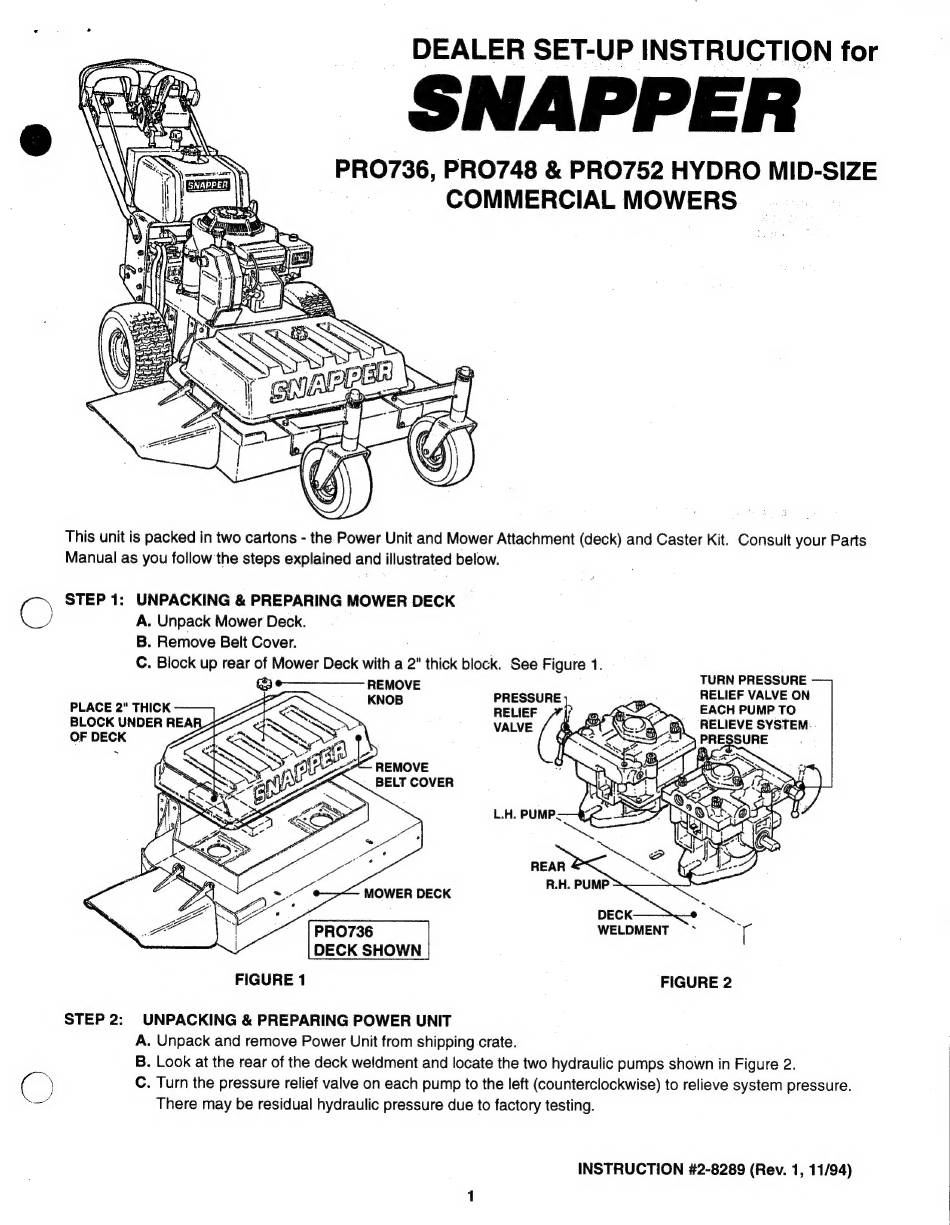

STEP 1: UNPACKING & PREPARING MOWER DECK
Co A. Unpack Mower Deck.
B. Remove Belt Cover.
C. Block up rear of Mower Deck with a 2" thick block. See Figure 1.
TURN PRESSURE
S OE PRESSURE RELIEF VALVE ON
PLACE 2" THICK RELIEF EACH PUMP TO
BLOCK UNDER REAR VALVE RELIEVE SYSTEM: .
OF DECK
REMOVE
BELT COVER
DECK» Na
PRO736 WELDMENT ` >
DECK SHOWN
FIGURE 1
FIGURE 2
STEP 2: UNPACKING & PREPARING POWER UNIT
A. Unpack and remove Power Unit from shipping crate.
B. Look at the rear of the deck weldment and locate the two hydraulic pumps shown in Figure 2.
C. Turn the pressure relief valve on each pump to the left (counterclockwise) to relieve system pressure.
There may be residual hydraulic pressure due to factory testing.
INSTRUCTION #2-8289 (Rev. 1, 11/94)
