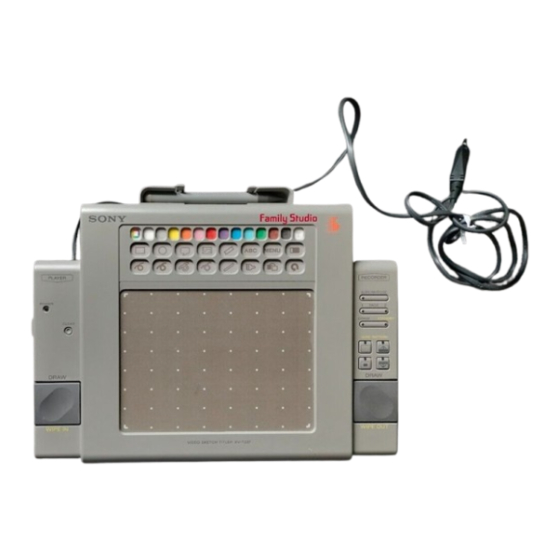

Sony Family Studio XV-T33F Service Manual

Sony Family Studio XV-T33F Service Manual

Video sketch titler

Advertisement

Quick Links

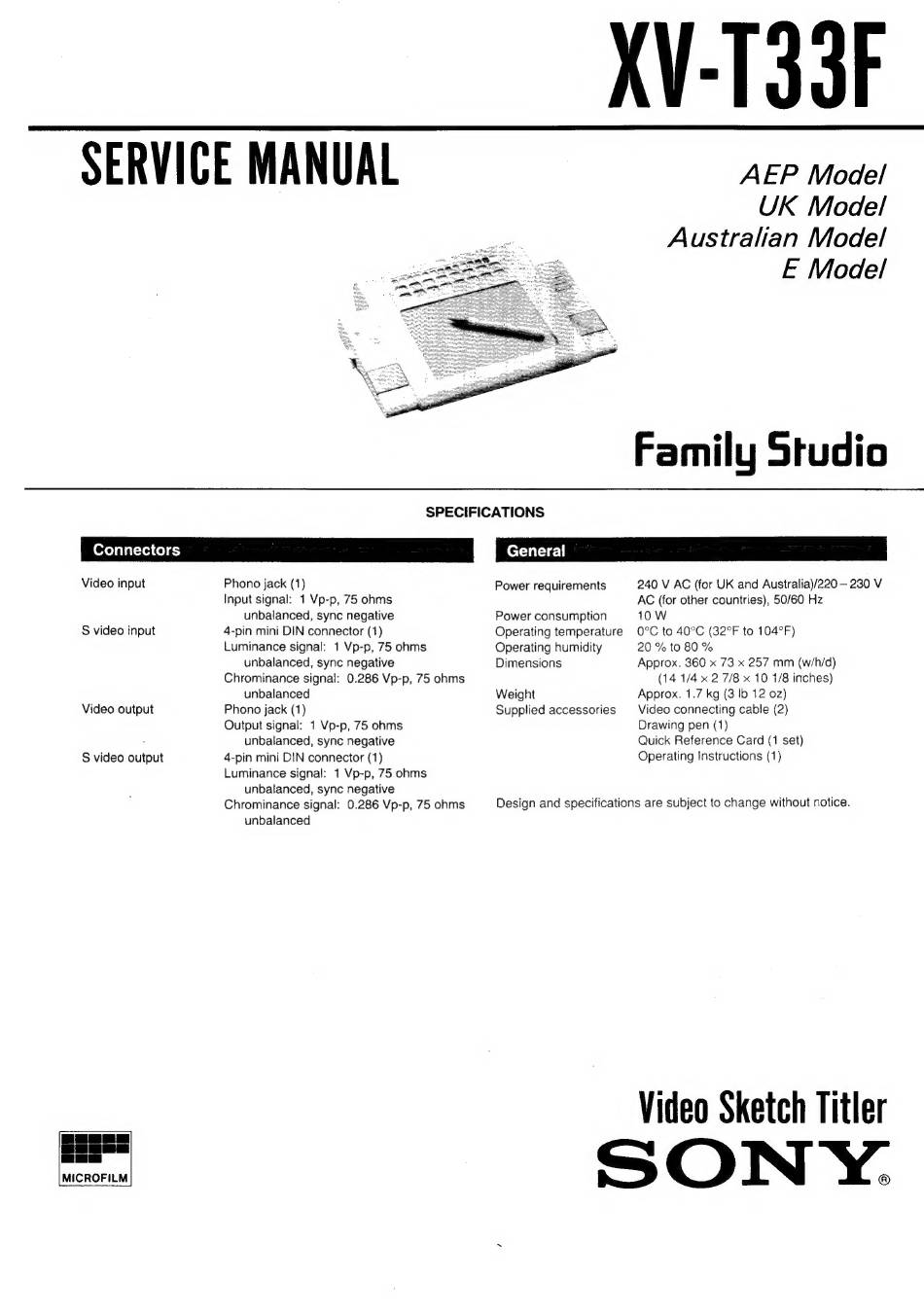

SERVICE MANUAL
Connectors
Video input
S video input
Video output
S video output
XV-T33F
SPECIFICATIONS
Phono jack (1)
Input signal: 1 Vp-p, 75 ohms
unbalanced, sync negative
4-pin mini DIN connector (1)
Luminance signal: 1 Vp-p, 75 ohms
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p, 75 ohms
unbalanced
Phono jack (1)
Output signal: 1 Vp-p, 75 ohms
unbalanced, sync negative
4-pin mini DIN connector (1)
Luminance signal:
1 Vp-p, 75 ohms
unbalanced, sync negative
Chrominance signal: 0.286 Vp-p, 75 ohms
unbalanced
AEP Model
UK Model
Australian Model
E Model
Family Studio
Power requirements
Power consumption
Operating temperature
Operating humidity
Dimensions
Weight
Supplied accessories
240 V AC (for UK and Australia)/220
— 230 V
AC (for other countries), 50/60 Hz
10 W
0°C to 40°C (32°F to 104°F)
20 % to 80 %
Approx. 360 x 73 x 257 mm (w/h/d)
(14 1/4 x 2 7/8 x 10 1/8 inches)
Approx. 1.7 kg (3 Ib 12 oz)
Video connecting cable (2)
Drawing pen (1)
Quick Reference Card (1 set)
Operating Instructions (1)
Design and specifications are subject to change without notice.
Video Sketch Titler
