CHALLENGE

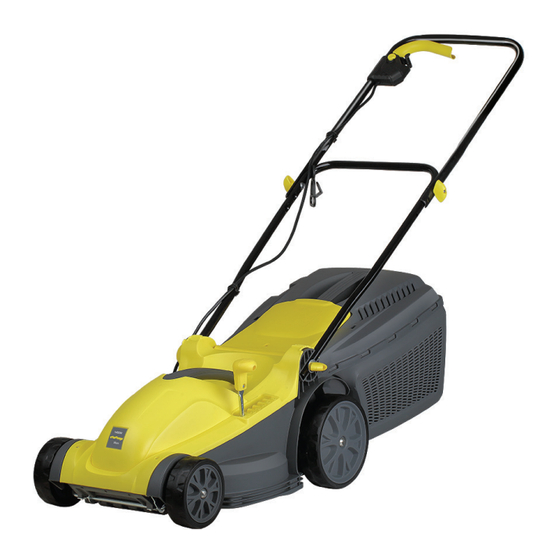

1400W Electric Rotary Mower
Instruction Manual
Important
- Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from
your mower, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline
on 0343 515 1906.
7233306
(Model: MEB1435B)
After Sales Support
UK/Ireland
0343 515 1906
Apr 2017
Advertisement
Table of Contents
Related Manuals for Challenge MEB1435B
Summary of Contents for Challenge MEB1435B
- Page 1 CHALLENGE 1400W Electric Rotary Mower 7233306 (Model: MEB1435B) Instruction Manual After Sales Support UK/Ireland 0343 515 1906 Important - Please read these instructions fully before starting assembly These instructions contain important information that will help you get the best from your mower, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Safety Information ............................3 Warnings Symbols ............................3 General Safety ..............................5 Personal Safety ............................6 Operating and Maintenance Safety ......................11 In the Box ...............................12 Parts ................................12 Assembly ................................13 Step 1 - Bottom Handle Support Assembly .....................13 Step 2 - Top Handle Assembly ........................14 Step 3 - Grass Collector Assembly......................15 Step 4 - Fitting / Removing the Grass Collector ..................15 Operating Instructions &... -
Page 3: Safety Information
Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembly and operating the mower. Take extra care, beware of hazards. Read instruction manual. - Page 4 Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols (continued) Wait until all moving parts have stopped completely before touching them. The blade may continue to rotate after the machine is switched off, a rotating blade can cause injury. Noise level specification Lwa in dB.
-
Page 5: General Safety
Safety Information Important - Please read these instructions fully before starting assembly General Safety Read the instructions carefully. Be familiar with the controls and the correct use of the machine. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. -
Page 6: Personal Safety
Safety Information Important - Please read these instructions fully before starting assembly Personal Safety Note! Only supply power to the equipment through circuit protected by an RCD with a maximum trip current of 30 mA. • Use only plugs or connectors approved for outdoor usage. - Page 7 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) machine safely. Children must always be supervised in order to ensure that they do not play with the machine. • Always check the mower for signs of damage before each usage.
- Page 8 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) • Never run the mower in enclosed or poorly ventilated rooms or if there are inflammable or explosive fluids, vapours or gases nearby. • Switch off the motor and disconnect the mains lead before clearing blockages in the grass ejection area and before you inspect it if the mower has struck a foreign body.
- Page 9 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) • Make sure you keep your feet at a safe distance from the mower blade at all times! Do not stand near the grass ejection chute if the grass collector is not fitted. •...
- Page 10 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) • If the lawn mower begins to vibrate abnormally, switch it off immediately, disconnect the plug immediately and check it carefully. Ensure that all the nuts, bolts and screws are tight and that the mower is in a safe condition for use.
-
Page 11: Operating And Maintenance Safety
Safety Information Important - Please read these instructions fully before starting assembly Operating and Maintenance Safety CAUTION! Read all safety requirements and instructions. Any errors made in following the safety requirements and instruction may result in an electric shock, fi re and serious injury. -
Page 12: In The Box
In the Box Parts Lock-off safety Switch box Grass collector Defl ector guard button housing Cutting height Carrying handle Start / Stop switch Top, curved handle adjuster Housing levers section Lower,curved Back wheels Cable strain-relief Fastening knob x 4 handle section device Front wheels Grass box top... -
Page 13: Assembly
Assembly Step 1 - Bottom Handle Support Assembly • Ensure all the plastic Fastening knob are unfolded. Hold the bottom handle support at the desired angle (2a) for operation. Fix the handle in this position by tightening the Fastening knob (clockwise) and then locking them into position by folding the levers snug against the handle. -
Page 14: Step 2 - Top Handle Assembly
Assembly Step 2 - Top Handle Assembly • The top, curved handle section is assembled to using a on either side. Adjust the height to suite the operator as necessary by inserting the bolt into the required holes on the handle (2c). •... -
Page 15: Step 3 - Grass Collector Assembly
Assembly Step 3 - Grass Collector Assembly 3a. Align the slots and insert lower part of grass box together. 3b. Clip the lower part of grass collector onto the upper part. Step 4- Fitting / Removing the Grass Collector Fitting the grass collector Lift the defl ector guard and hold it up. -
Page 16: Operating Instructions & Tips
Operating Instructions & Tips Grass Full Indicator Your mower may be fi tted with a grass full indicator. This is a small red fl ap on the top side of the grass collector. When this fl ap remains open as you work, it means that the grass collector is not full (air fl owing freely through the grass collector). - Page 17 Operating Instructions & Tips Setting the Cutting Heights (continued) IMPORTANT! Ensure the power cord is disconnected from the mains supply before adjusting the cutting height. To adjust the cutting height, gently pull the height adjustment lever towards you to disengage it from its existing position and move it to the desired cutting height position.
-
Page 18: On/Off Operation
Operating Instructions & Tips ON/OFF Operation 1. Press on the lock-off safety button to unlock the on/off lever 2. Then operate the on/off lever to switch the mower on. Customer Helpline 0343 515 1906... -
Page 19: To Stop The Machine
Operating Instructions & Tips To Stop the Machine Release the on/off lever to stop the motor Always ensure the on/off switch is working correctly. Do not use if you suspect a fault. Ensure that the blade is not rotating and that the power supply is disconnected before examining the switch. -
Page 20: Mowing Advice
Operating Instructions & Tips Mowing Advice We recommend that you mow in overlapping lines. Only mow with sharp blades so that the blades of grass do not fray. This can cause grass to turn yellow. To achieve a good cut, guide the lawn mower in lines that are as straight as possible. -
Page 21: Maintenance
Maintenance Cleaning & Maintenance WARNING: Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Cleaning • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a soft brush or blow it with compressed air at low pressure after usage. -
Page 22: Carbon Brushes
Maintenance Blade Maintenance (continued) If the blade is blunt, it can be sharpened in a specialised workshop. If the blade is damaged or showing signs of imbalance, it must be replaced. IMPORTANT! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only replace the blade with a genuine replacement blade as this will ensure top performance and safety under all conditions. -
Page 23: Troubleshooting
Troubleshooting General Troubleshooting The following table provides solutions to common problems encountered with the mower. Fault Possible Cause Solution Mower does not start No power at mains socket Check the fuse, switch, socket, cable, wire and have any repairs carried out by a qualified electrician Defective on/off switch Repair by a qualified technician... -
Page 24: Technical Data
Technical Data Technical Data Table Specification Value Voltage 220-240 V ~ 50 Hz Power input 1400W Motor speed 3500min Cutting width 35cm Cutting height adjustment 20, 30, 40, 50, 60, 70mm; 6 levels Volume of grass collector 35 liters Wheel size 140/200mm LpA sound pressure level 85 dB(A) K=3dB(A)
