Hand push cylinder mower
Original Manual
GT5614
Important
- Please read these instructions fully before starting assembly.
These instructions contain important information that will help you get the best from your
lawnmower, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727508
prior to returning product to store.
Aug 2017 Rev B
Advertisement
Table of Contents
Related Manuals for Challenge GT5614
Summary of Contents for Challenge GT5614
- Page 1 CHALLENGE Hand push cylinder mower Original Manual GT5614 Important - Please read these instructions fully before starting assembly. These instructions contain important information that will help you get the best from your lawnmower, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Introduction ..............................3 Safety Information .............................3 Parts list ................................7 Assembly................................8 Operation.................................9 Maintenance and Storage..........................10 Troubleshooting...............................14 Technical Data..............................15 Recycling and Disposal............................15 Guarantee................................16 Customer Helpline 01904 727508 www.coreservice.co.uk... -
Page 3: Introduction
Your CHALLENGE hedge trimmer has been designed for trimming light foliage and is intend for DIY use only. The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as well as agriculture and forestry. - Page 4 Safety Information Important - Please read these instructions fully before starting assembly Operation （continued） 9. Never operate the mower with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place. 10. Do not put hands or feet near rotating parts while the mower is being operated.
- Page 5 Safety Information Important - Please read these instructions fully before operation or maintainance Use and care 1. Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
- Page 6 Safety Information Warning Symbols Before any use, refer to the corresponding paragraph in the present manual. Warning! This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the recommendations indicated.
-
Page 7: Parts List

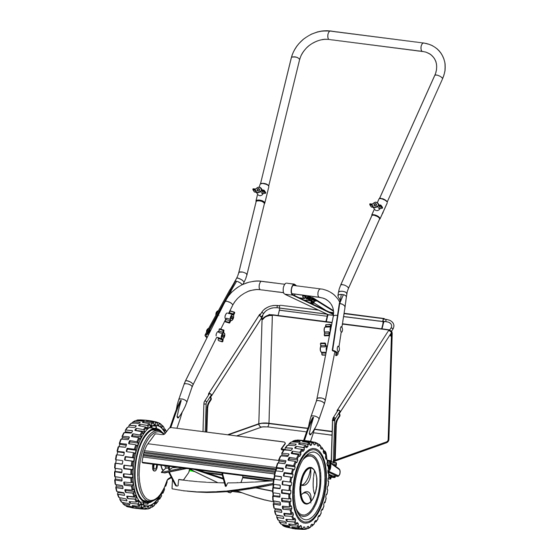

Parts list Parts description Upper handle Extension handle Lower handle Cylinder blade Grass collecting bag Mower body Cutting height adjustment knob Wheels Grass collecting bag support strap Customer Helpline 01904 727508 www.coreservice.co.uk... -
Page 8: Assembly
Assembly Preparing to assemble the cylinder mower WARNING! - Always take care when removing the packaging to prevent damage to you or to the cylinder mower. - Keep the carton in guarantee time. Always recycle the packaging in accordance with local recycling schemes. - Page 9 Assembly Assemble the grass collection bag Warning! The grass collection bag need to be assembled well before use. . Insert the metal frames into the plastic holes. Wrap the metal frames by the plastic hems. Fit the grass collection bag Attach the box to the lawn mower body by sliding the holes in them front of the box over the attachment hooks in front of the cutting height roller, also fit the grass box support strap such that the rear of the box is clear of the ground in normal use.
- Page 10 Assembly Prepare to use cylinder mower Caution! This operation will have to be done whilst carefully turning the cylinder blade. We strongly recommend that thick gardening gloves are worn. The fixed blade must be set correctly in order for the lawnmower to work efficiently. Fix blade setting Carefully tighten the two adjusting knobs by turning them slowly in the clockwise direction.
-
Page 11: Operation
Operation Operating the hand push mower WARNING! - Be sure lawn is clear of stones, sticks, wire or other objects which could damage mower or user. The operation of mower can result in foreign objects being thrown into the eyes, which can damage your eyes severely. -
Page 12: Maintenance And Storage
Maintenance and Storage Maintenance and Repair IMPORTANT! Cylinder mowers have a difficult time with tall weeds such as dandelions which most times will cause the weeds to bend and not cut – cut often to prevent this. Cylinder mowers are relatively low maintenance. For consistent cutting follow the below instructions: Clean Always keep the cutting bar properly adjusted. - Page 13 Maintenance and Storage Blade clearance adjustment The blade reel is adjusted for proper clearance from the cutting bar at the factory. However, after extended periods of mowing or as part of annual maintenance, it is recommended that the blade clearance be readjusted . •...
-
Page 14: Troubleshooting
Troubleshooting Troubleshooting WARNING! - Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Suspected malfunctions, disturbances or damages are often due to causes that the user can fix themself. -
Page 15: Technical Data
Technical data Technical Data Table Model No. GT5614 Cutting width 300mm Variable cutting heights 18-38mm Grass collection box Volume 23litres Weight 6.3kg Recycling and disposal Recycling and disposal 1. Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. -
Page 16: Guarantee
Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase.
