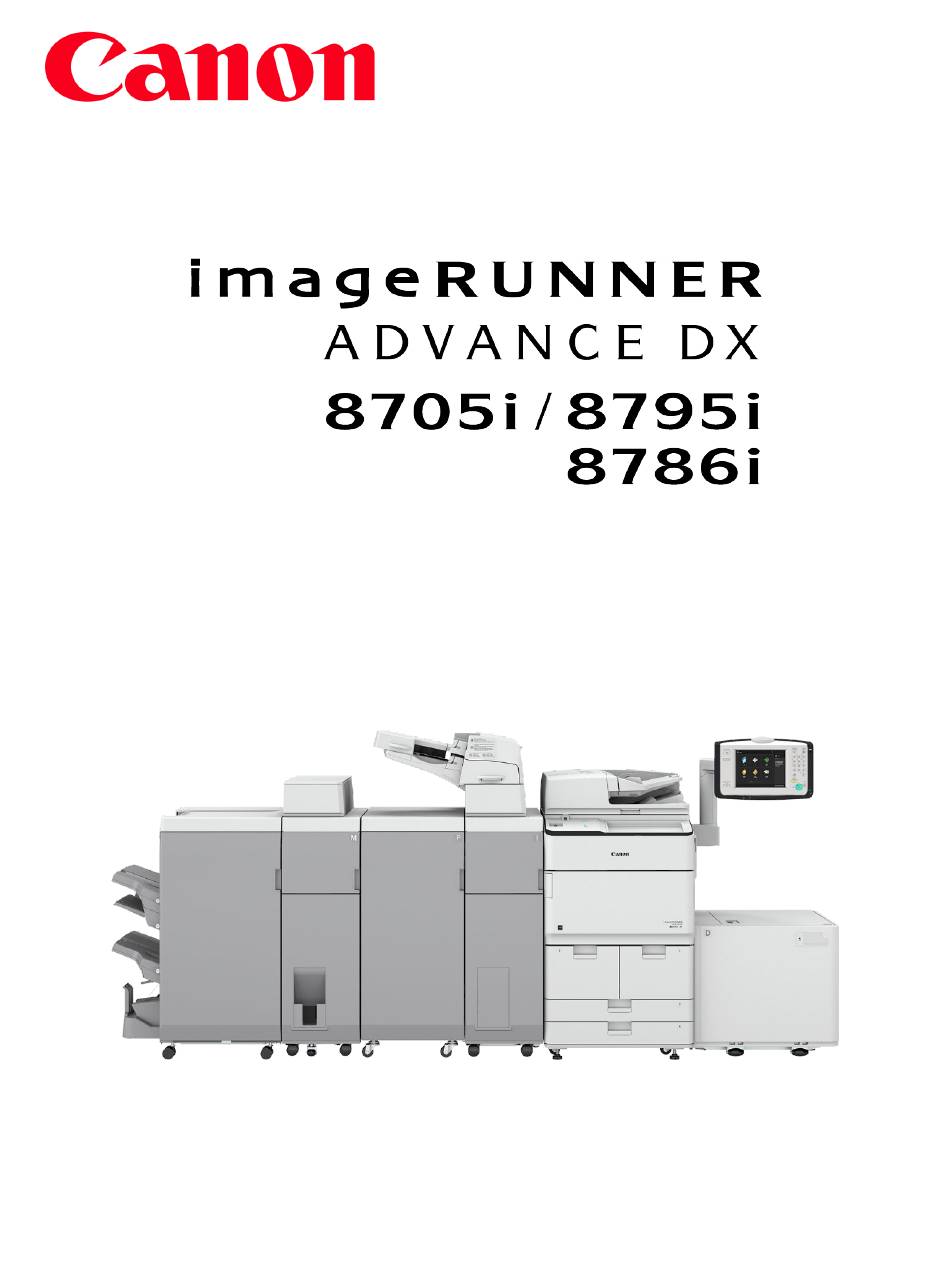

- Page 1 Customer Expectations Document Version 7 Engineering Services and Solutions Business Information Communications Group, Canon U.S.A., Inc.
-
Page 2: Table Of Contents
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Contents 1. Introduction ......................6 2. Product Overview ....................7 Summary of Functions ..................8 High-Resolution Imaging System for Copied and Printed Images ....9 Image Stabilization Control ................10 2.3.1 Automatic Gradation Adjustment ............. - Page 3 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6. Specifications ....................... 41 Main Unit ....................... 41 Feeder ......................43 Paper Deck Unit-E1 ..................44 POD Deck Lite-C1 ..................44 Document Insertion Unit-N1 ................45 Paper Folding Unit-J1 ................... 46 Staple Finisher-AC1, Booklet Finisher-AC1, and 2/3 Hole Puncher Unit-A1 .
- Page 4 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Accessibility Options ..................69 7.6.1 Voice Guidance Kit-G1 ..............69 7.6.2 Voice Operation Kit-D1 ..............69 7.6.3 ADF Access Handle-A1 ..............69 7.6.4 Numeric Keypad-A1 ................. 69 8. Installation Review....................70 Installation Time ....................
- Page 5 ADVANCE DX 8700 Series Customer Expectations Document IMPORTANT The purpose of this Customer Expectations Document is to explain the current features and capabilities of the imageRUNNER ADVANCE DX 8700 Series, and provide customers information about what to expect before purchasing the machine.
-
Page 6: Introduction
The Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document contains information about the features and capabilities of the Canon imageRUNNER ADVANCE DX 8700 Series. This document should be used as part of the presale and pre-installation planning process to help clarify the requirements and responsibilities associated with supporting, owning, and operating the imageRUNNER ADVANCE DX 8700 Series. -
Page 7: Product Overview
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Product Overview The Canon imageRUNNER ADVANCE DX 8700 Series contains these models: imageRUNNER ADVANCE 8705i, 8795i, and 8786i. The imageRUNNER ADVANCE DX 8700 Series machines print in B&W (Black-and-White) only, and bring the following capabilities to users in a high-volume, light-production office environment: •... -
Page 8: Summary Of Functions
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.1 Summary of Functions imageRUNNER ADVANCE DX 8700 Series Function 8705i 8795i 8786i Print Speed (LTR) B&W 105 ppm 95 ppm 86 ppm Approximately 80 ipm B&W Approximately 135 ipm Simplex Approximately 135 ipm B&W... -
Page 9: High-Resolution Imaging System For Copied And Printed Images
ADVANCE DX 8700 Series Customer Expectations Document 2.2 High-Resolution Imaging System for Copied and Printed Images The imageRUNNER ADVANCE DX 8700 Series provides a high-resolution imaging system. This system renders images at a 1,200 x 1,200 dpi print resolution, which delivers the highest level of speed and image quality. -
Page 10: Image Stabilization Control
IMPORTANT Following installation and setup, it is strongly recommended that owners of the imageRUNNER ADVANCE DX 8700 Series print and store samples of the image quality the product is capable of producing. These samples should serve as a benchmark, against which subsequent image quality can be referenced. Samples should be made by using as many applications, media, and paper types the owner intends to use on the imageRUNNER ADVANCE DX 8700 Series. -
Page 11: Customer-Defined Image Quality Adjustments And Recommendations
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.4 Customer-Defined Image Quality Adjustments and Recommendations Customer-defined image quality adjustments enable the customer to enhance the productivity of the machine. There are several user modes, such as the Adjust Image Quality and Paper Type Management Settings modes, which provide adjustment functions, to help maintain the desired image quality for each job. -
Page 12: Unified Firmware Platform
The latest UFP version is 3.13-2, and its features are described on the next page. NOTE The imageRUNNER ADVANCE DX 8700 Series comes standard-equipped with UFP V3.10, and can be updated to UFP V3.13-2. Version 7... -
Page 13: Unified Firmware Platform Improvements
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.6 Unified Firmware Platform Improvements The UFP has been designed for advanced functionality, high-reliability, and ease of operation. The UFP enables digital-business communications, such as imaging technology, cloud connectivity, and mobile solutions to work together. -
Page 14: Data Backup Service
Training is required to allow the servicing dealer to enroll in Data Backup Service and for the service technician to receive support from the Technical Support Center. Refer to the Training Center at Canon USA’s e-Support Center Website Training Center for details. -
Page 15: Input And Output Accessories
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.8 Input and Output Accessories The imageRUNNER ADVANCE DX 8700 Series feature many input and output accessories that enable customers working light-production high-volume office environments to complete large jobs directly from the machine. -
Page 16: Storage Capabilities
• Memory Media IMPORTANT • Canon U.S.A., Inc. is NOT responsible for any damages caused to user data that is stored on the hard disk drive of the machine. It is the customer’s responsibility to create and maintain a data backup plan. Canon U.S.A., Inc. offers several security options to enhance document handling and storage security needs. -
Page 17: Advanced Box
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.9.2 Advanced Box Advanced Box is a storage area in the machine that stores scanned documents and Microsoft Office files that can be used on a computer. There are two types of storage in the Advanced Box: the Shared Space and the Personal Space. -
Page 18: Network
ADVANCE DX 8700 Series Customer Expectations Document 2.9.3 Network The imageRUNNER ADVANCE DX 8700 Series are equipped with a collaboration function that enable them to be connected to other imageRUNNER ADVANCE machines via the SMB/WebDAV protocol. When the machine is... -
Page 19: Security Features
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 2.10 Security Features The imageRUNNER ADVANCE DX 8700 Series include a comprehensive set of security features, such as Device Authentication, Device Security, Data Security, Document Security, and Network Security. 2.10.1 Device Authentication This section describes the standard ways of how users can authenticate to the device. - Page 20 Online only supports TLS V1.2 and earlier. To purchase a license of uniFLOW Online, training is required. Training is required for uniFLOW Online or the uniFLOW Online trial from Canon’s Technical Support Center. For more information on uniFLOW Online training, go to the Training section on the e-Support Center Website.
-
Page 21: Device Security
ADVANCE DX 8700 Series Customer Expectations Document 2.10.2 Device Security The imageRUNNER ADVANCE DX 8700 Series offers several ways to protect and secure the device, as described below. • Verify System at Startup – Verify System at Startup is a process that protects the device’s BIOS, firmware, and MEAP applications from unauthorized... - Page 22 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document • Security Policy Function – The security policy function is used to collectively configure the security-related settings into one security policy. These settings can be protected by a dedicated password to achieve a high-level of security.
-
Page 23: Data Security
• Optional HDD Data Erase Scheduler software • Standard Digital User Signature PDF • Standard Encrypted Secure Print CAUTION Canon U.S.A., Inc. is not liable for any damages resulting from the loss or corruption of data. (See page 5 for further details.) •... - Page 24 IMPORTANT • If the TPM setting is activated and the TPM chip fails, the confidential information stored on the chip can only be recovered if Canon’s service representative replaces the TPM chip and restores the original TPM key to the new chip. Immediately, back up the TPM key on a USB memory stick, after the TPM setting is activated.
- Page 25 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document • HDD Data Encryption Kit – The standard HDD Encryption feature is another security tool available for environments requiring additional data security measures, and can be used in conjunction with the HDD Data Erase feature to provide even greater security for data stored on the internal HDD.
-
Page 26: Document Security
ADVANCE DX 8700 Series Customer Expectations Document 2.10.4 Document Security The imageRUNNER ADVANCE DX 8700 Series offers several document security modes to protect printed and distributed documents. • PDF Visible Digital Signature – The PDF Visible Signatures mode enables the user to view the device signature and user signature on a PDF file. -
Page 27: Network Security
ADVANCE DX 8700 Series Customer Expectations Document 2.10.5 Network Security The imageRUNNER ADVANCE DX 8700 Series secure network communications by using IP Address and MAC (Media Access Control) Address filters, encryption and authentication, and network port and application access control. - Page 28 13 TLS V1.3 is supported by the imageRUNNER ADVANCE DX 8700 Series; however, MEAP applications, uniFLOW, imageWARE Remote, and the CDS only support up to TLS V1.2.
-
Page 29: Machine Dimensions And Space Requirements
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Machine Dimensions and Space Requirements 3.1 Dimensions The following table includes the width, height, and depth dimensions (in inches and millimeters) of the main unit and optional accessories. Unit Width Depth... -
Page 30: Weight
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 3.2 Weight The approximate weights of the main unit, feeder, and finishing options (in pounds and kilograms) are listed in the table below. Unit Weight With the Upright Control Panel 495 lb 224.5 kg... -
Page 31: Installation And Service Space
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 3.3 Installation and Service Space The installation site must provide enough space for unrestricted operation, maintenance work, and proper ventilation. The machine dimensions are in diagrams on the following pages. Every attempt should be made to install the... -
Page 32: Installation Space Diagrams
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 3.3.2 Installation Space Diagrams The approximate installation space requirements may differ, depending on how the machine is configured and the optional accessories attached. The diagrams below show the minimum and large configurations of the imageRUNNER ADVANCE DX 8700 Series machines. - Page 33 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Large Configuration [1] Main Unit [5] Multi Function Professional Puncher-B1 [2] POD Deck Lite-C1 [6] Paper Folding Unit-J1 [3] Upright Control Panel [7] Booklet Finisher-W1 PRO [4] Document Insertion Unit-N1 [8] Booklet Trimmer-G1 IMPORTANT •...
-
Page 34: Recommended Floor Space Requirements
20’ (W) x 9.6’ (D) of level floor space. 20’ (6.1 m) IMPORTANT • The imageRUNNER ADVANCE DX 8700 Series were created to be modular in design. Floor space, budget, monthly copy/print volume, and applications determine which configuration works best. -
Page 35: Potential System Configurations
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 3.6 Potential System Configurations Version 7 imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Page 35... -
Page 36: Power/Electrical Requirements
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Power/Electrical Requirements The imageRUNNER ADVANCE DX 8700 Series require a NEMA 5-20 receptacle for the main unit and a NEMA 5-15 receptacle for the accessories. NEMA 5-20 Receptacle NEMA 5-15 Receptacle 4.1 Power Requirements for the Main Unit and Optional Accessories... - Page 37 • Use only dedicated and properly grounded receptacles for the main unit and imagePASS-Y3 V1.1. • The imageRUNNER ADVANCE DX 8700 Series main unit requires a dedicated single-phase 120V/20 A NEMA 5-20 receptacle for proper operation. Canon U.S.A., Inc. strongly recommends dedicated and properly grounded receptacles be provided for the optional accessories.
-
Page 38: Environmental Factors And Requirements
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Environmental Factors and Requirements This section describes the necessary environmental factors and requirements in which the machine should be operated to achieve the best image quality and print results. NOTE It may be necessary to use a humidifier or dehumidifier to attain the proper humidity levels for optimal machine performance. -
Page 39: Temperature Gradient
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 5.2 Temperature Gradient If a sudden temperature change occurs, this may have an adverse effect on image positioning. Sudden temperature changes may cause the paper to bend or contract, cause the machine to malfunction, and form condensation. Every effort... -
Page 40: Lighting
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 5.5 Lighting We recommend installing the machine in a location with at least 500 lux (29 1/2” (75 cm) above the floor) for normal operation and maintenance. 5.6 Sunlight Avoid installing the machine in direct sunlight. Direct sunlight has adverse effects on toner consistency and image quality. -
Page 41: Specifications
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Specifications This chapter explains the specifications of the main unit and optional accessories. The specifications provided are approximate values, for reference only, and are subject to change without notice for product improvement or future release. - Page 42 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Main Unit Table Continued Specifications Item 8705i 8795i 8786i Top Margin: 1/8” (2.5 mm) Margin Left and Right Margins: 1/8” (2.5 mm) Bottom Margin: 1/8” (2.5 mm) 1,500 sheets x 2 decks (20 lb bond (80 g/m...
-
Page 43: Feeder
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.2 Feeder Item Specifications Original Feeding Mechanism Single-Pass Duplex Automatic Document Feeder 12” x 17”, 11” x 17”, LGL, LTR, Size LTRR, STMT, STMTR, and Custom: 2 3/4” x 5 1/2”... -
Page 44: Paper Deck Unit-E1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.3 Paper Deck Unit-E1 Item Specifications Size Paper Weight 14 lb bond to 140 lb index (52 to 256 g/m Specifications Type Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Bond, and Letterhead... -
Page 45: Document Insertion Unit-N1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.5 Document Insertion Unit-N1 Item Specifications Staple Finisher-X1 or Booklet Finisher-X1 or Required Equipment Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO 13” x 19”, 12 5/8” x 17 11/16”, 12” x 18”, 11” x 17”, LGL, LTR, LTRR, Size EXEC, STMTR, and Custom Size: 7 1/8”... -
Page 46: Paper Folding Unit-J1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.6 Paper Folding Unit-J1 Item Specifications Staple Finisher-X1 or Booklet Finisher-X1 or Required Equipment Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO Z-Fold: LTRR, LGL, 11” x 17” C-Fold: LTRR Size Accordion Z-Fold:... -
Page 47: Staple Finisher-Ac1, Booklet Finisher-Ac1, And 2/3 Hole Puncher Unit-A1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.7 Staple Finisher-AC1, Booklet Finisher-AC1, and 2/3 Hole Puncher Unit-A1 Item Specifications Size Same as the Main Unit. Paper Weight 14 lb bond to 140 lb index (52 to 256 g/m... - Page 48 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Staple Finisher-AC1, Booklet Finisher-AC1, and 2/3 Hole Puncher Unit-A1 Table Continued Item Specifications Corner/Double LTR and EXEC: 65 sheets (14 to 24 lb bond (52 to 90 50 sheets (24.2 to 28 lb bond (91 to 105 g/m 2 sheets (29 lb bond to 140 lb index (106 to 256 g/m 11"...
-
Page 49: Staple Finisher-X1, Booklet Finisher-X1, Inner Trimmer, And Puncher Unit-Bf1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.8 Staple Finisher-X1, Booklet Finisher-X1, Inner Trimmer, and Puncher Unit-BF1 Item Specifications Size Same as the Main Unit. Paper Weight 14 lb bond to 140 lb index (52 to 256 g/m... - Page 50 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Staple Finisher-X1, Booklet Finisher-X1, Inner Trimmer, and Puncher Unit-BF1 Specifications Continued Item Specifications Tray Mode Paper Size No Collating, Collate and LTR: Group Modes Set 2,500 sheets (or 12 3/4” (325 mm) in height)
- Page 51 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Staple Finisher-X1, Booklet Finisher-X1, Inner Trimmer, and Puncher Unit-BF1 Specifications Continued Item Specifications Corner and Double Staple: LTR, EXEC 100 sheets (14 to 20 lb bond (52 to 80 g/m (No Coated Paper): 80 sheets (21.3 to 21.7 lb bond (80.1 to 81.4 g/m...
-
Page 52: Staple Finisher-W1 Pro, Booklet Finisher-W1 Pro, And Puncher Unit-Bs1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.9 Staple Finisher-W1 PRO, Booklet Finisher-W1 PRO, and Puncher Unit-BS1 Item Specifications Size Same as the main unit Paper Weight 14 lb bond to 140 lb index (52 to 256 g/m... - Page 53 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Staple Finisher-W1 PRO, Booklet Finisher-W1 PRO, and Puncher Unit-BS1 Table Continued Item Specifications Tray Mode Paper Size No Collating, Collate, Group, and Offset 1,000 sheets (or 5 3/4” (147 mm) in height)
- Page 54 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Staple Finisher-W1 PRO, Booklet Finisher-W1 PRO, and Puncher Unit-BS1 Table Continued Item Specifications Corner and Double Staple: LTR, EXEC 100 sheets (14 to 20 lb bond (52 to 80 g/m (No Coated Paper): 80 sheets (21.3 to 21.7 lb bond (80.1 to 81.4 g/m...
-
Page 55: Multi Function Professional Puncher-B1
83. 34 Coated paper can only be loaded from the Document Insertion Unit. 50 The imageRUNNER ADVANCE DX 8700 Series require the Multi Function Professional Puncher Attachment Kit- A1 to use the Multi Function Professional Puncher. 51 OHP/transparencies cannot be punched with the Multi Function Professional Puncher-B1. Bypass is supported. -
Page 56: Booklet Trimmer-G1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.11 Booklet Trimmer-G1 Item Specification Required Equipment Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO LTRR, 11”x17”, LGL, 12”x18”, 13”x19”, and Custom size up to Paper Size 12.6" x 17.7" (320 mm x 450 mm) -
Page 57: Copy Tray-R2
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.12 Copy Tray-R2 Item Specifications Paper Specifications Same paper as available for the main unit One Side Up to 250 sheets (20 lb bond (80 g/m Capacity Two Side Up to 100 sheets (20 lb bond (80 g/m When the auxiliary tray is not extended: 9 5/8”... -
Page 58: Imagepass-Y3 V1.1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.14 imagePASS-Y3 V1.1 Item Specifications Network OS Windows 10 IoT Enterprise 2019 LTSB Intel Pentium G4400 3.3 GHz Standard Memory 8 GB (4 GB x 2) 500 GB SATA System Software... -
Page 59: Super G3 Fax Board-As2
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.15 Super G3 FAX Board-AS2 Protocol Specifications Telephone Line Used Public Switched Telephone Network Standard: 8 pels /mm x 3.85 line/mm Scan Line Density Fine: 8 pels /mm x 7.7 line/mm... -
Page 60: Send Function: Push Scan Specifications
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.16 Send Function: Push Scan Specifications Item Specifications File: FTP (TCP/IP), SMB (TCP/IP), WebDAV Communication Protocol E-Mail/I-Fax: SMTP (send) and POP3 (receive) Single Page JPEG TIFF (MMR), PDF (Compact, OCR (Text Searchable), Apply Policy, Optimize Data Format PDF for Web, Format to PDF/A, Trace &... -
Page 61: Network Environment: Wired Lan Specifications
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.19 Network Environment: Wired LAN Specifications Item Specifications Standard: 1,000Base-T, 100Base-TX, 10Base-T (RJ-45) Network Interface Optional: Bluetooth Frame Type Ethernet II TCP/IP Print LPD, Raw, IPP, IPPS, FTP, FTPS, WSD, Mopria, AirPrint, and... -
Page 62: Printer Software Specifications
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 6.21 Printer Software Specifications Item Specifications Operating Modes Auto, PS, PCL, XPS, Imaging, and PDF 93 Scalable fonts, 2 OCR fonts, and Andale Font (Japanese, Korean, Simplified Chinese, and Traditional Chinese) -
Page 63: System Options
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document System Options The functionality of the imageRUNNER ADVANCE DX 8700 Series can be expanded by installing system related optional accessories. This section describes the system related optional accessories and their functions. -
Page 64: Print And Output Management Software
- Cloud-based infrastructure To purchase a license of uniFLOW Online, training is required. Training is required for uniFLOW Online or the uniFLOW Online trial from Canon’s Technical Support Center. For more information on uniFLOW Online training, go to the Training section on the e-Support Center Website. -
Page 65: Fax Options
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 7.3 Fax Options 7.3.1 Super G3 FAX Board-AS2 • Provides a single line to send and receive fax documents. • Documents that have been created in applications can also be sent directly from a computer via a network. -
Page 66: Meap Web Connection Kit
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 7.4 MEAP Web Connection Kit Equips development partners with the ability to create customized applications that connect Canon imageRUNNER ADVANCE DX 8700 machines to business applications and business process workflows via standard Web services and HTML protocols. -
Page 67: Data Security And Wireless Options
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 7.5 Data Security and Wireless Options 7.5.1 iR-ADV Security Kit-AG1 for IEEE 2600 Common Criteria Certification Set • The iR-ADV Security Kit-AG1 enables the user to configure security settings that are required to comply with the IEEE 2600 standard. -
Page 68: Inch/250 Gb Hdd-N1
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 7.5.3 2.5 inch/250 GB HDD-N1 Required to use the Mirroring function of the HDD Mirroring Kit-J1. NOTE • The 2.5 inch/250 GB HDD-N1 does not increase the overall storage capacity of the machine. -
Page 69: Accessibility Options
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 7.6 Accessibility Options 7.6.1 Voice Guidance Kit-G1 • Provides visually impaired users to hear voice navigation instructions when operating the machine. • Requires the optional Numeric Keypad-A1 and Option Attachment Kit for Reader-A1. -
Page 70: Installation Review
8.1 Installation Time The time required to install the imageRUNNER ADVANCE DX 8700 Series, depends on the options and accessories to be installed, and the number of technicians performing the installation. Customers should discuss the time requirements with their servicing dealer and schedule the installation accordingly. - Page 71 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Installation Time Table Continued Item Estimated Time Flat Control Panel 13 minutes Copy Card Reader-F1 Upright Control Panel 9 minutes Copy Card Reader Attachment Kit-A4 5 minutes Super G3 FAX Board-AS2...
-
Page 72: Customer Installation Responsibilities
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 8.2 Customer Installation Responsibilities Item Comment Identify location for equipment. Area meets space and service space requirements. Verify strength of floor and level. Certified by structural engineers. Ensure that the equipment can be Path is clear and unobstructed. -
Page 73: Consumables
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Consumables Consumables are all products and materials that are consumed with regular use and cannot be reused. Such consumables are included but not limited to paper, chemicals, and toner. A number of factors go into the approximate life expectancy of a consumable item, including paper size and the amount of coverage per page. -
Page 74: Toner Bottle Yields
• If the machine is maintained and serviced by a Canon authorized service technician • If only Genuine Canon service and consumable parts are used... -
Page 75: Optimum Monthly Product Performance
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 13. Optimum Monthly Product Performance The table below describes the differences between the optimum PCV (Print Copy Volume), average PCV, maximum PCV, and duty cycle. Please note that the numbers in the table are for reference purposes only, and depend strongly on the type of media selected and environmental conditions. -
Page 76: Machine Productivity
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 14. Machine Productivity This chapter describes the productivity of the imageRUNNER ADVANCE DX 8700 Series. 14.1 Print Speed There is an impact on print speed if the user is printing on paper of different sizes, weights, media, and if the user is printing double-sided jobs. - Page 77 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document imageRUNNER ADVANCE DX 8705i Print Speed Table Productivity (ppm) Paper Type Mode Size Paper Drawers and Multi-Purpose Tray Paper Deck LTR/EXEC/STMTR LTRR 1-Sided 11” x 17” 12 5/8” x 17 11/16”...
- Page 78 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document imageRUNNER ADVANCE DX 8795i Print Speed Table Productivity (ppm) Paper Type Mode Size Paper Drawers and Multi-Purpose Tray Paper Deck LTR/EXEC/STMTR LTRR 1-Sided 11” x 17” 12 5/8” x 17 11/16”...
- Page 79 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document imageRUNNER ADVANCE DX 8786i Print Speed Table Productivity (ppm) Paper Type Mode Size Paper Drawers and Multi-Purpose Tray Paper Deck LTR/EXEC/STMTR LTRR 1-Sided 11” x 17” 12 5/8” x 17 11/16”...
-
Page 80: Mixed Media Productivity
ADVANCE DX 8700 Series Customer Expectations Document 14.2 Mixed Media Productivity The imageRUNNER ADVANCE DX 8700 Series is capable of processing jobs that contain mixed media; however, the machine’s productivity may be reduced if one or more of the following print conditions occur during a job run: •... -
Page 81: Media Usage/Compatibility
ADVANCE DX 8700 Series Customer Expectations Document 15. Media Usage/Compatibility The imageRUNNER ADVANCE DX 8700 Series maintain reliable, predictable, and high-quality output. Consistency of the output is dependent on knowing and compensating for variables of a print job. The imageRUNNER ADVANCE DX 8700 Series incorporate many control systems, which compensate for environmental and print process conditions. -
Page 82: Paper Grain And Curl
15.3 Paper Grain and Curl Paper grain and curl can dramatically affect the reliability of machines utilizing an electrostatic process like the imageRUNNER ADVANCE DX 8700 Series. It is recommended to use paper that is cut for long edge feeding (electrostatic paper). -
Page 83: Note For Customers Who Cut Their Own Paper
15.5 Media Feed Locations As with all Canon copiers, certain feed locations within the device are capable of feeding specific media sizes and weights. When considering media, make sure the media is within the proper size and weight parameters of the feed location. - Page 84 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document The default paper types registered in the machine are shown in the table below. The Paper Deck Unit-E1, POD Deck Lite-C1, and Document Insertion Unit-N1 are optional. : Available : Unavailable —...
- Page 85 Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document Default Paper Types Table Continued : Available : Unavailable — Paper Source Paper Paper Multi- Paper Deck Document Decks Drawers POD Deck Purpose Unit-E1 Insertion 1 and 2 3 and 4...
-
Page 86: Paper Sizes And Feed Location Chart
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 15.6 Paper Sizes and Feed Location Chart The table below represents the available paper sizes and feed locations. The Paper Deck Unit-E1, POD Deck Lite-C1, and Document Insertion Unit-N1 are optional. -
Page 87: Responsibility Matrix
Canon imageRUNNER ADVANCE DX 8700 Series Customer Expectations Document 16. Responsibility Matrix Responsibility Action Customer Dealer Ensure adequate space and power to properly install the machine. Verify floor strength and level. Ensure that the equipment can be delivered to the site, and that the path is clear and unobstructed.
