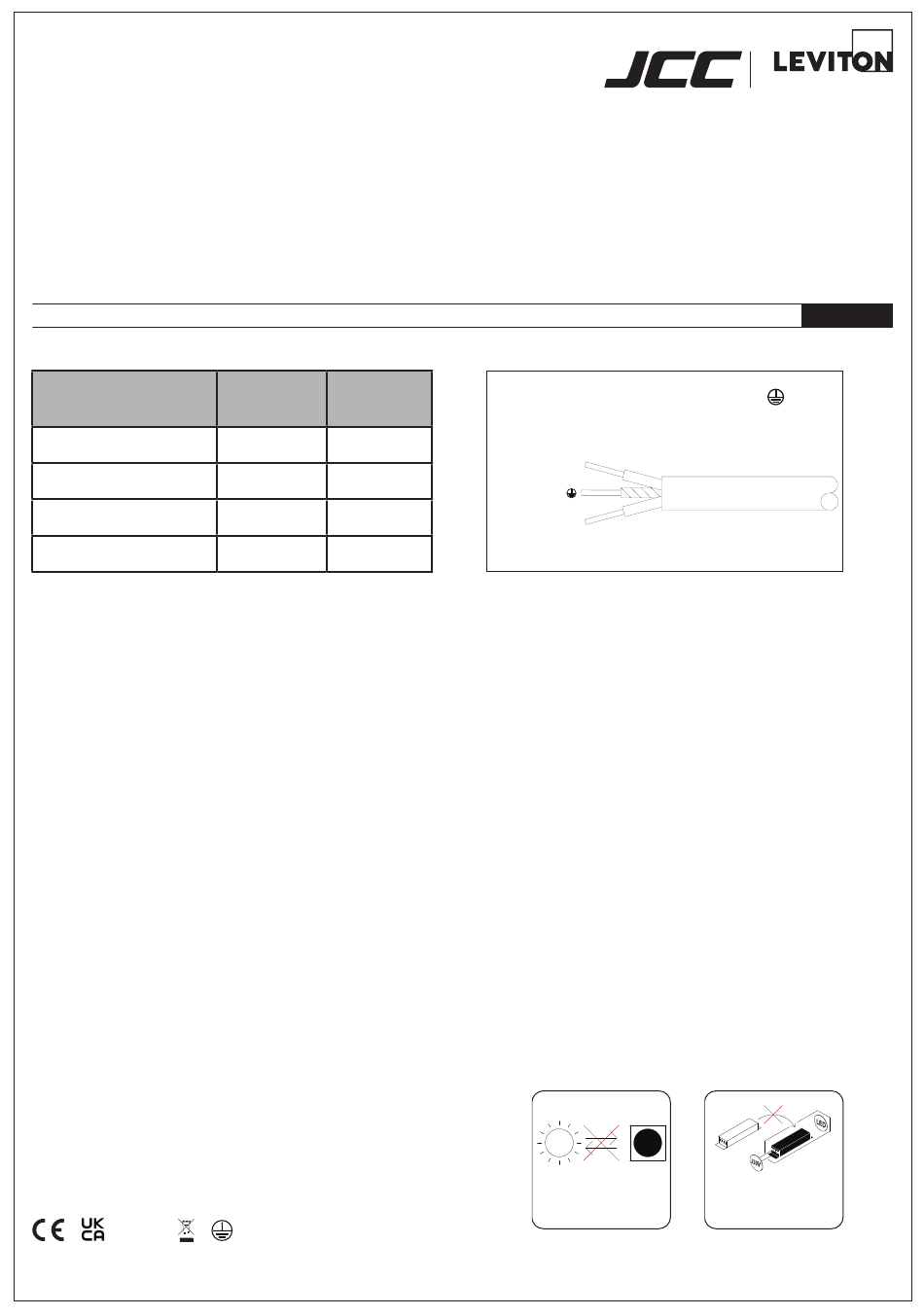

Leviton JCC Niteflood JC091005 Installation Manual

Niteflood
®
Installation guide for LED Floodlights
Warnings & Cautions
• To avoid electric shock, serious injury or property damage,
isolate power before installing, removing or servicing the product.
• It is recommended that luminaires are installed by a qualified
electrician to ensure the installation complies with the local
current wiring regulations.
• Any broken or damaged parts should be replaced as soon as possible.
• JCC will not accept responsibility for claims arising from
sub-standard installations; which will void the warranty.
• These products are designed for connection to a 220-240V~ 50/60Hz.
Specifications
Colour temp: 4000K Ra: 83
Total circuit
wattage
10W
20W
30W
50W
Available finishes: Black or White
• Read instructions and check that you have all of the tools and accessories required to complete the installation correctly.
Isolate power supply before starting the installation.
Installation procedure
1. Prepare the mains input cable for termination. Note that this product is class I and as such must be fitted with an
earth connection.
2. Drill mounting holes and insert suitable wall plugs.
3. Rotate fitting to access screw mounting points on the bracket and secure using suitable fixings.
4. Terminate input wiring to the fitting as per Fig. 1 to the left using a suitable IP rated connector.
5. Check seals, gaskets and the cable gland integrity before testing the luminaire.
6. Turn on power supply and test for correct operation.
General Maintenance Requirements
This product has no user servicable parts. JCC Lighting Products would recommend that the following maintenance is
performed in order to prolong the life of this product: Clean with a damp cloth and dry with a lint free cloth or kitchen
towel. Do not use abrasive cleaners.
Important warranty information
This product is supported by a 2-year standard warranty which will extend to 3 years if registered within the first year of purchase.
Please register at jcc.co.uk/warranty - Terms and conditions apply.
The installer will be asked to provide the following information, which is detailed on a label attached to the luminaire's chassis:
Product Code/Date Code.
RoHS
Compliant
JCC Lighting Products Ltd. Lux Park, Chichester Business Park, City Fields Way, Tangmere, Chichester, West Sussex, PO20 2FT
LED Floodlights
Beam angle: 100°
Lumens LpcW
1000 100
2100 105
3200 107
5600 112
jcc
IP65
.co.uk
ISO9001 - 2015 - Registered Firm Certificate No. GB 1552
Technical Support: +44(0)1243 838986 Customer Services: +44(0)1243 838999
• The light source of this luminaire is not replaceable: When the light source reaches
the end of it's life, the whole of the luminaire must be replaced.
• It may be necessary to upgrade your MCBs to allow for increased inrush current.
• Terminal block not included. Installation may require advice from a qualified person.
• Do not install in areas that are exposed to continual running water or prone
to flooding.
• Ensure that the mounting surface is both flat and stable.
INSTALLATION
220-240V 50/60Hz / Class I
Figure 1. Mains input
Live (+)
brown
Earth
yellow/green
Neutral (-)
blue
Wiring colours are for reference only
Terminal block must comply to EN 60998-2-1
LED
Non-replaceable light source
a
company
ENGLISH
LED
Non-replaceable control gear
V1_AUG_2022_RS
