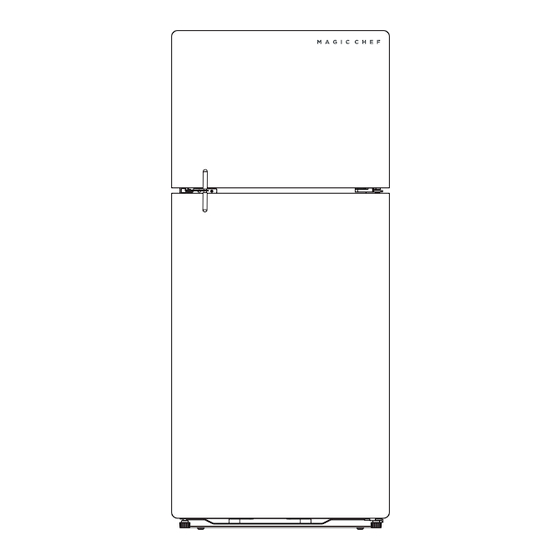

- Page 1 12V DC Refrigerator User's Manual Model MCDCR45G-R / RMCDCR55G-L PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS……………………………………………………… 3 SPECIFICATIONS…………………………………………………………….. IMPORTANT SAFETY INSTRUCTIONS………………………….………… 4-5 INSTALLATION INSTRUCTION BEFORE USING YOUR REFRIGERATOR ………………………... 6 INSTALLING YOUR REFRIGERATOR ………………………..…… 6 ELECTRICAL CONNECTION………………………………………… 7 INSTALLATION......………………………………………… 8 OPERATING YOUR REFRIGERATOR TEMPERATURE CONTROL………………………………………….. 9 THE FREEZER COMPARTMENT……………………………..…….. 9 HOW TO DEFROST ……………………………………………..……. - Page 3 Usage note Do not remove the back panel during installation. 1. In order for normal use, the connection must be reliable. Besides the power source proper connection, the wire of the unit and outer wire must meet the following requirement: Wire size The max length (Feet) 14 AWG...
-
Page 4: Names Of The Parts
NAMES OF THE PARTS MODEL NO. MCDCR45G-R / MCDCR45G-L (1) Wire shelf (2) Lock (3) Temperature Control Dial (4) Temperature Control Box (5) Interior Light Switch (6) Glass Shelves (7) Crisper Cover (8) Crisper (9) Leveling Leg (10) Rack (11) Door Shelf Remark: Image can be reversable depending on door side. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury WARNING follow these basic precautions when using your refrigerator. WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Page 6 D o not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Warning: This appliance can not be used in camping. Warning: This appliance can not be used in public transportations. Warning: The appliance shall be used for indoor only. The refrigerant and insulation blowing gas are flammable.
-
Page 7: Installation Instruction
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, WARNING or injury when using your refrigerator, follow these basic precautions: Read all instructions before using the refrigerator. DANGER or WARNING: Risk of child entrapment. ... -
Page 8: Electrical Connection
Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This refrigerator should be properly grounded for your safety. A 12 volt DC, 15-20-amp fused, grounded electrical supply is required. -
Page 9: Installation
Installation Install the refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door(s) will open without obstruction. Select a space with strong level floor. Allow 1 inches of space between the refrigerator’s side and the wall. The appliance must be correctly connected to the power supply. -
Page 10: Operating Your Refrigerator
OPERATING YOUR REFRIGERATOR Temperature Control Your refrigerator has one control for regulating the temperature. The temperature control is located on the upper right hand corner of the interior compartment. The first time you turn the unit on, adjust the temperature control knob to “7”... -
Page 11: Led Lights And Light Switches
LED lights and light switches NOTE:When the refrigerator door is closed, the refigerator door presses the light switch, so that the light switch is off, and the LED lamp is not bright; When the refrigerator door is open, release the light switch and the LED lighting is on. -
Page 12: Changing The Reversible Door
CARE AND MAINTENANCE Cleaning Your Refrigerator Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. Turn the temperature control knob to “0” and then unplug the unit from the wall outlet. Remove all food content. ... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM POSSIBLE CAUSE Refrigerator does not operate. Not plugged in. - Page 14 part of the refrigerator. The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall. See “Installation Instructions”. Moisture forms on inside refrigerator walls. Weather is hot and humid, which increases internal rate of frost build-up. This is normal. Door is slightly open.
