MESSER SBG60A Operator's Manual

Stump bucket grapple
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

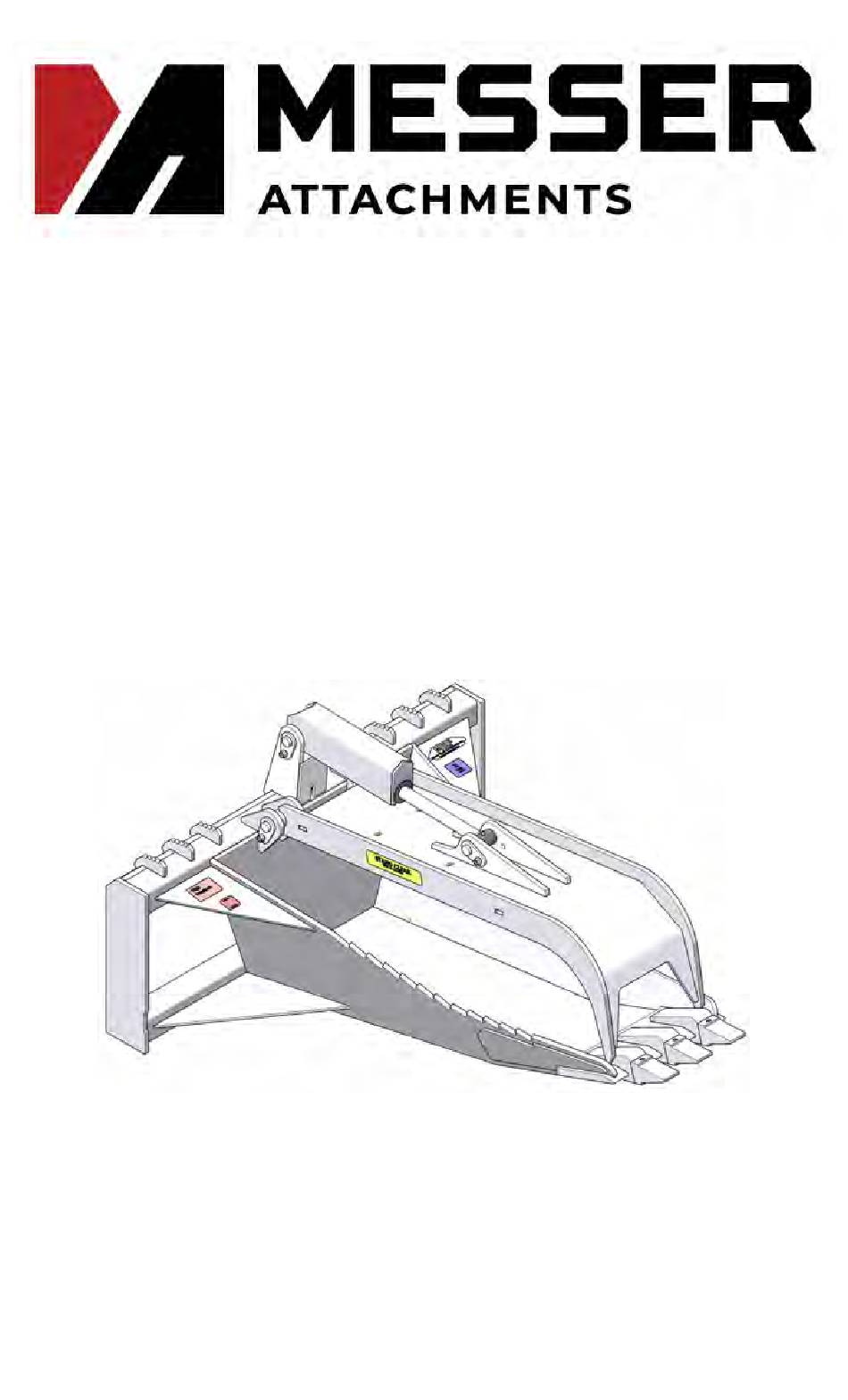

OPERATOR'S MANUAL
Stump Bucket Grapple
Model SBG60A
Serial Number 22053-
Manual# 96629 JUN 2023 ENGLISH
COPYRIGHT © 2024 MESSER
ATTACHMENTS, LLC SAUK
CENTRE, MN PRINTED IN USA
ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBG60A and is the answer not in the manual?

Questions and answers

Related Manuals for MESSER SBG60A

Summary of Contents for MESSER SBG60A

  • Page 1 OPERATOR’S MANUAL Stump Bucket Grapple Model SBG60A Serial Number 22053- Manual# 96629 JUN 2023 ENGLISH COPYRIGHT © 2024 MESSER ATTACHMENTS, LLC SAUK CENTRE, MN PRINTED IN USA ALL RIGHTS RESERVED...

  • Page 2: Using This Manual

    Replacement Manuals Be sure to include this operator’s manual if you sell or transfer owner- ship of the attachment. Contact Messer Attachments LLC for a printed manual, or find a downloadable manual on our website. Using This Attachment The attachment is designed for transporting tree stumps and roots.

  • Page 3: Manufacturer Contact

    Modifications Do not modify the attachment in any way. Manufacturer Contact Call Messer Attachments LLC at (833) 352-3477, or see us at www.messerattach.com.
  • Page 4 Product Identification Identification Numbers Record your product information to provide when you contact the dealer or manufacturer. Stump Bucket Grapple Model SBG60A Serial Number 22053- Serial Number Location Purchase Date Dealer Dealer Phone Model Serial #...

  • Page 5: Specifications

    Specifications Model SBG60A Length x Width x Height 152 x 122 x 69 cm (60 x 48 x 27 in.) Bucket Width at Base 39 cm (15.5 in.) Bucket Width at End 30 cm (12 in.) Weight 259 kg (570 lbs.) Rated Operating (Load) Capacity 1814 kg (4000 lbs.)
  • Page 6 Safety Decals Decal Locations STAND CLEAR DECAL 96138 STAND CLEAR WHILE IN OPERATION WARNING DECAL 96117 HIGH PRESSURE FLUID HAZARD To prevent serious injury or death: • Relieve pressure on system before repairing, adjust- ing or disconnecting. • Wear proper hand and eye protection when search- ing for leaks.

  • Page 7: Parking Safely

    Safety Wear Protective Equipment • Wear gloves to protect hands from burns if hydraulic couplers be- come hot during operation. • Never wear sandals or other light footwear when operating or servic- ing the attachment. Wear protective footwear when handling blades or heavy parts.
  • Page 8 Safety • Before operating, replace any worn or damaged safety decals. • Before operating, thoroughly inspect the attachment to be sure all hardware (bolts, nuts, etc.) is installed and tightened. • Before operating, thoroughly inspect the attachment to be sure it is in working order.

  • Page 9: Safety Decals

    Safety which occurs while the attachment is being serviced. • Before inspecting or servicing the attachment, follow the Parking Safely instructions in this manual. • Always securely block the attachment to prevent accidental release of the lifting mechanism when inspecting or servicing the attach- ment.

  • Page 10: Installing The Attachment

    Installing and Removing Preparing for Installation 1. Check the loader and attachment hydraulic couplers to be sure the surfaces are clean before connecting. 2. Inspect the couplers for damage or wear and replace if needed for proper connection. Installing the Attachment 1.

  • Page 11: Installing And Removing

    Installing and Removing IMPORTANT AVOID DAMAGE! Attaching plate levers may be damaged if they strike the attachment. Be sure the attaching plate levers do not hit the attachment during installation. 4. Tilt the loader attaching plate forward, and drive the loader forward until the top edge of the loader attaching plate is under the top flange (B) of the attachment mounting frame.
  • Page 12 Installing and Removing Picture Note: Wedge on left side of attachment shown. Check the wedges or pins on both sides of the attachment. 9. Check to be sure the loader attaching plate pins or wedges (C) extended into the holes in the bottom of the attachment mounting frame.
  • Page 13 Installing and Removing Removing the Attachment 1. Follow the instructions in the loader operator’s manual to remove the attachment and exit the operator station safely. 2. Fully lower the loader lift arms and the attachment to level ground. 3. Follow instructions in the loader operator’s manual to relieve hydrau- lic pressure in the front auxiliary hydraulic coupler lines.
  • Page 14 Installing and Removing WARNING AVOID INJURY! Loader attaching plate levers which are operated manually may have spring tensioning. Firmly grasp the levers and move the levers slowly. 7. Move the loader attaching plate levers (E) to the unlocked (up) posi- tion as shown either manually or by using the loader controls.

  • Page 15: Pre-Operation Inspection

    Operating Pre-Operation Inspection Before starting operation, inspect the area you will be operating in and inspect the attachment. Inspect the Work Area 1. Confirm the area is clear of bystanders including animals. Establish a safety zone by keeping bystanders and animals beyond a 100 foot radius around the attachment when operating.

  • Page 16: Theory Of Operation

    Operating Theory of Operation The loader’s hydraulic controls are used to raise and tilt the Stump Bucket Grapple to engage and remove stumps using the digger teeth and serrated teeth, and used to secure the stump and other material with the grapple hook for transport.

  • Page 17: Service Intervals

    Servicing Hauling the Attachment Follow all truck or trailer operator’s manual instructions to securely fas- ten the attachment to the truck or trailer with straps or chains. Service Intervals Every 8 hours or daily: • Grease the mount pins. • Inspect the attachment and hoses for damage and wear.
  • Page 18 Servicing Removing the Cylinder Guard WARNING AVOID INJURY! Remove the attachment from the loader before servicing. 1. Remove the attachment from the loader. 2. Park the loader. (See Parking Safely in this manual.) 3. Remove the bolts (A) and mount pin weldments attaching the cylin- der to the attachment.
  • Page 19 Servicing 3. Remove the cylinder guard. 4. Disconnect and remove the hydraulic hose from the cylinder. 5. Remove the hose retainer (A) and remove the hose. 6. Connect the new hose to the cylinder. 7. Install the cylinder guard. 8. Install the retainer with the hose. Replacing the Hydraulic Cylinder WARNING AVOID INJURY!

  • Page 20: Troubleshooting

    Servicing Replacing Digger Teeth 1. Park the loader. (See Parking Safely in this manual.) 2. Remove the slotted spring pin (A) and the tooth. 3. Install the new tooth with the slotted spring pin. Troubleshooting Problem Action Grapple hook won’t raise 1.

  • Page 21: Warranty

    Limited Warranty. 2. Limited Warranty. Messer warrants that for a period of 24 months from the date of purchase, the Equipment will remain free from defects in material and workmanship under normal use and proper maintenance.
  • Page 22 6. Limited Warranty Voidable. The limited warranty herein is void and deemed waived if the purchaser fails to give written notice to Messer of any alleged defect under the limited warranty herein within 20 days of its discovery; or (a) purchaser or parties other than Messer or its authorized representatives attempts to remedy or fix the alleged Equipment defects;...
