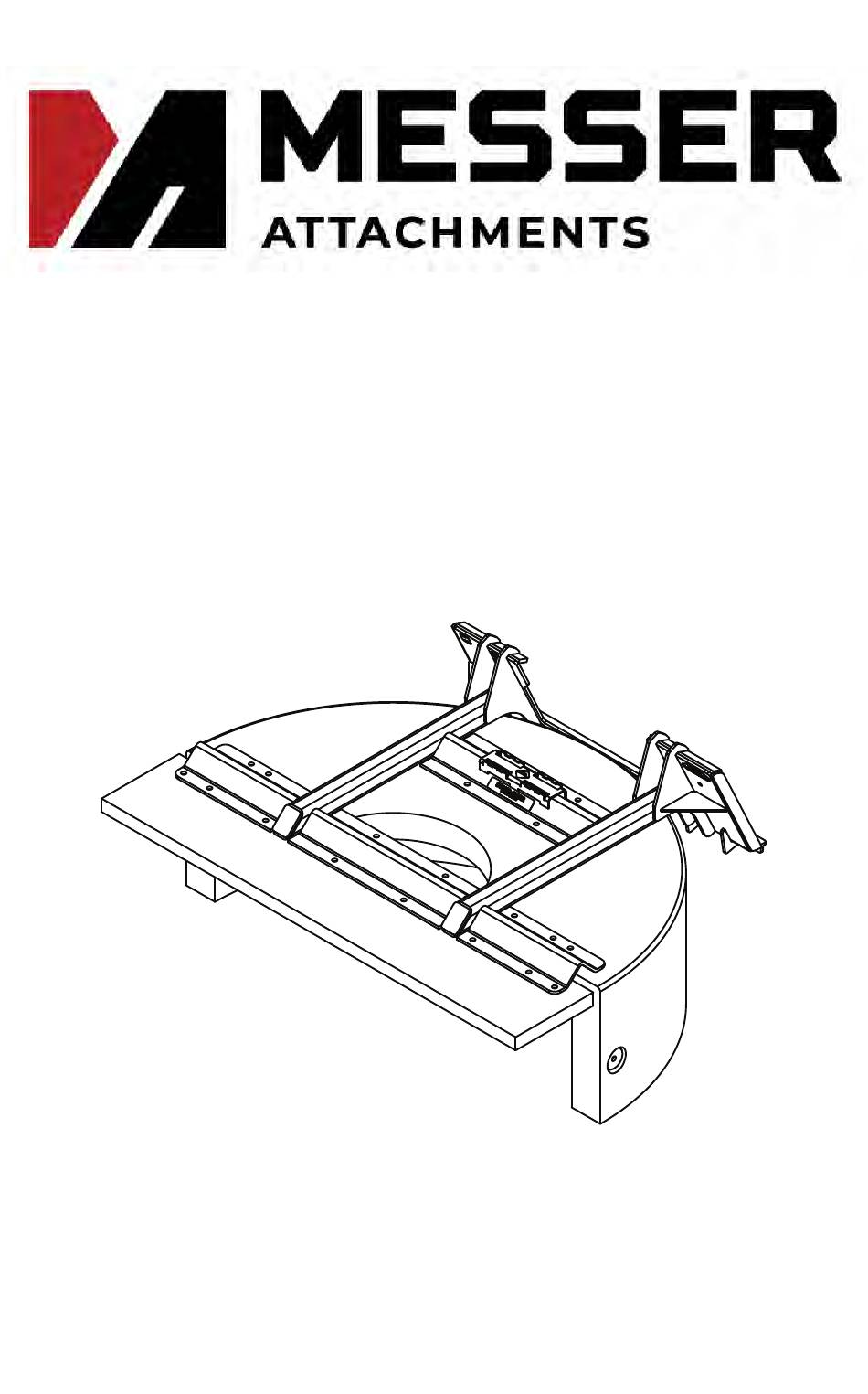

- Page 1 OPERATOR’S MANUAL Manure Scraper Model MS72, MS84, MS96, MS120 Serial Number 14613- Manual# 96376 APR 2021 ENGLISH COPYRIGHT © 2021 MESSER ATTACHMENTS LLC SAUK CENTRE, MN PRINTED IN USA ALL RIGHTS RESERVED...
-
Page 2: Using This Manual
Replacement Manuals Be sure to include this operator’s manual if you sell or transfer owner- ship of the attachment. Contact Messer Attachments LLC for a printed manual, or find a downloadable manual on our website. Using This Attachment The attachment is designed to move manure. -
Page 3: Manufacturer Contact
Modifications Do not modify the attachment in any way. Manufacturer Contact Call Messer Attachments LLC at (833) 352-3477, or see us at www.messeratttach.com. - Page 4 Product Identification Identification Numbers Record your product information to provide when you contact the dealer or manufacturer. Manure Scraper Model MS72, MS84, MS96, MS120 Serial Number 14613- Serial Number Location Purchase Date Dealer Dealer Phone Model Serial #...
-
Page 5: Specifications
Specifications Specifications Model MS72 Length x Width x Height 145 x 183 x 79 cm (57 x 72 x 31 in.) Weight 318 kg (700 lbs.) Model MS84 Length x Width x Height 160 x 213 x 79 cm (63 x 84 x 31 in.) Weight 407 kg (890 lbs.) - Page 6 Safety Decals Decal Locations Location Description Part Number Stand Clear Decal 96138 STAND CLEAR DECAL 96138 STAND CLEAR WHILE IN OPERATION...
- Page 7 Safety Wear Protective Equipment • Wear gloves to protect hands from burns if hydraulic couplers be- come hot during operation. • Never wear sandals or other light footwear when operating or servic- ing the attachment. Wear protective footwear when handling blades or heavy parts.
- Page 8 Safety in working order. If the attachment is damaged or otherwise not in working order, do not operate until it has been repaired by a qualified technician. • Before raising or lowering the attachment be sure the area is clear of bystanders.
-
Page 9: Safety Decals
Safety • Before inspecting or servicing the attachment, follow the Parking Safely instructions in this manual and disconnect the attachment hydraulic hoses from the loader. • Always securely block the attachment to prevent accidental release of the lifting mechanism when inspecting or servicing the attach- ment. - Page 10 Installing and Removing Installing the Attachment 1. Follow the instructions in the loader operator’s manual to install the attachment and exit the operator station safely. 2. Fully lower the loader lift arms. 3. Move the loader attaching plate levers (A) to the unlocked (up) posi- tion either manually or by using the loader controls.
-
Page 11: Installing And Removing
Installing and Removing 7. Move the loader attaching plate levers (A) to the locked (fully down) position either manually or by using the loader controls. 8. Park the loader. (See Parking Safely in this manual.) IMPORTANT AVOID DAMAGE! The attachment may come off the loader if it is not secured to the attaching plate. - Page 12 Installing and Removing 9. Check to be sure the loader attaching plate pins or wedges (C) extended into the holes in the bottom of the attachment mounting frame. If not, move the loader attaching plate levers to the unlocked (up) position and repeat installation. Removing the Attachment 1.
-
Page 13: Pre-Operation Inspection
Operating Pre-Operation Inspection Before starting operation, inspect the area you will be operating in and inspect the attachment. Inspect the Work Area 1. Confirm the area is clear of bystanders including animals. Establish a safety zone by keeping bystanders and animals beyond a 100 foot radius around the attachment when operating. -
Page 14: Transporting The Attachment
Operating 2. Park the loader. (See Parking Safely in this manual.) 3. Perform the pre-operation inspection. Scraping Manure 1. Position the attachment level on the floor. 2. Travel forward to gather manure into the scraper cup and move the load to another area. 3. -
Page 15: Service Intervals
Servicing Service Intervals Every 8 hours or daily: • Check and tighten all hardware. Installing the Replacement Kit 1. Remove the attachment from the loader. 2. Park the loader. (See Parking Safely in this manual.) Note: The square washers come in two different sizes. 3. -
Page 16: Troubleshooting
Servicing 6. Remove the nine 5/8 in. lock nuts, square washers (C) and 5/8 x 5 in. bolts from the scraper cup. 7. Remove the scraper cup. 8. Replace the back scraper rubber and the scraper cup with the replace- ment hardware. -
Page 17: Replacement Parts
Replacement Parts Replacement Parts Contact Messer Attachments LLC for replacement parts. Part numbers may change without notice. Item Qty. Part Number Part Description 10351 Manure Scraper Frame 10349 Scraper Cup 10498-P Bracket 10356-P Scraper Chain Washer, 2 in. 10355 Back Scraper Rubber... - Page 18 Replacement Parts Item Qty. Part Number Part Description 10504-P Washer (two sizes) Chain, 3/8 GR30 PC (80 in.) Bolt, 5/8-11 x 5 Bolt, 5/8-11 x 1-1/2 Bolt, 5/8-11 x 4 Lock nut, 5/8-11 Flat Washer, 5/8 *Part not shown.
-
Page 19: Warranty
Limited Warranty. 2. Limited Warranty. Messer warrants that for a period of 24 months from the date of purchase, the Equipment will remain free from defects in material and workmanship under normal use and proper maintenance. - Page 20 6. Limited Warranty Voidable. The limited warranty herein is void and deemed waived if the purchaser fails to give written notice to Messer of any alleged defect under the limited warranty herein within 20 days of its discovery; or (a) purchaser or parties other than Messer or its authorized representatives attempts to remedy or fix the alleged Equipment defects;...
