Pix-link AC22 Quick Installation Manual

Quick I nstallation G uide

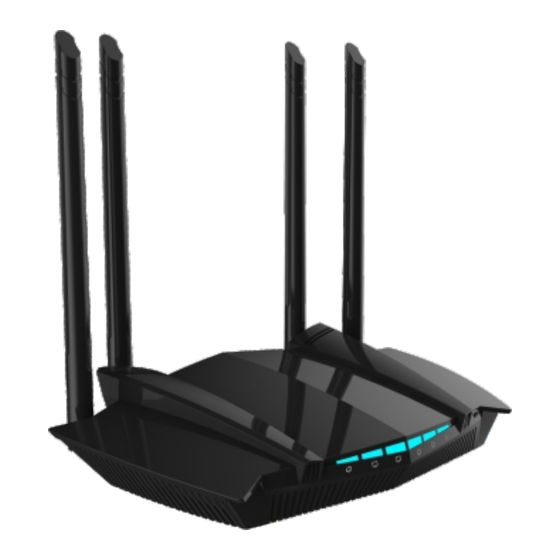

1200M Wireless Dual Band Router
2 Installa on Connec on
Connect the WAN port of the router to the optical
modem or broadband network port, the WAN LED on.
1 Hardware Descrip on
Ports and Buttons:
Connect to power
Power Interface
Press and hold the button more
Reset Button
than 5s system set factory default.
Connect ADSL cat or broadband network port
WAN
Connect PC
LAN
3 Connect Router
Method 1: The wireless devices such as mobile phones
are connected to the wireless network of the router.
The default wireless name can be viewed on the bottom
label of the router.
PIX-LINK- 2.4G
PIX-LINK- 5.8G
LE D E xplanation :
LED
Power
WAN
LAN1
LAN2
LAN3
LAN4
Method 2: Connect the computer to the LAN port
of the router with a cable. The LAN indicator light
is always on.
Status Indication
On Normal power supply
Abnormal power supply or no power supply
Off
On
Cable accessed
Blinking The port is transmitting of receiving data
WAN port abnormal or cable unplugged
Off
On
Cable accessed
Blinking The port is transmitting of receiving data
LAN1 port abnormal or cable unplugged
Off
On Cable accessed
Blinking The port is transmitting of receiving data
LAN2 port abnormal or cable unplugged
Off
On Cable accessed
Blinking The port is transmitting of receiving data
Off LAN3 port abnormal or cable unplugged
On
Cable accessed
.
Blinking The port is transmitting of receiving data
LAN4 port abnormal or cable unplugged
Off
4 Router Internet Se ngs
1、Launch the browser and enter 192.168.7.1 in the address .
2、Enter the login page, enter the password for the device a
dministra on page. The password defaults to admin.
