Wireless Pacific X10DR XLR User Manual

XLR

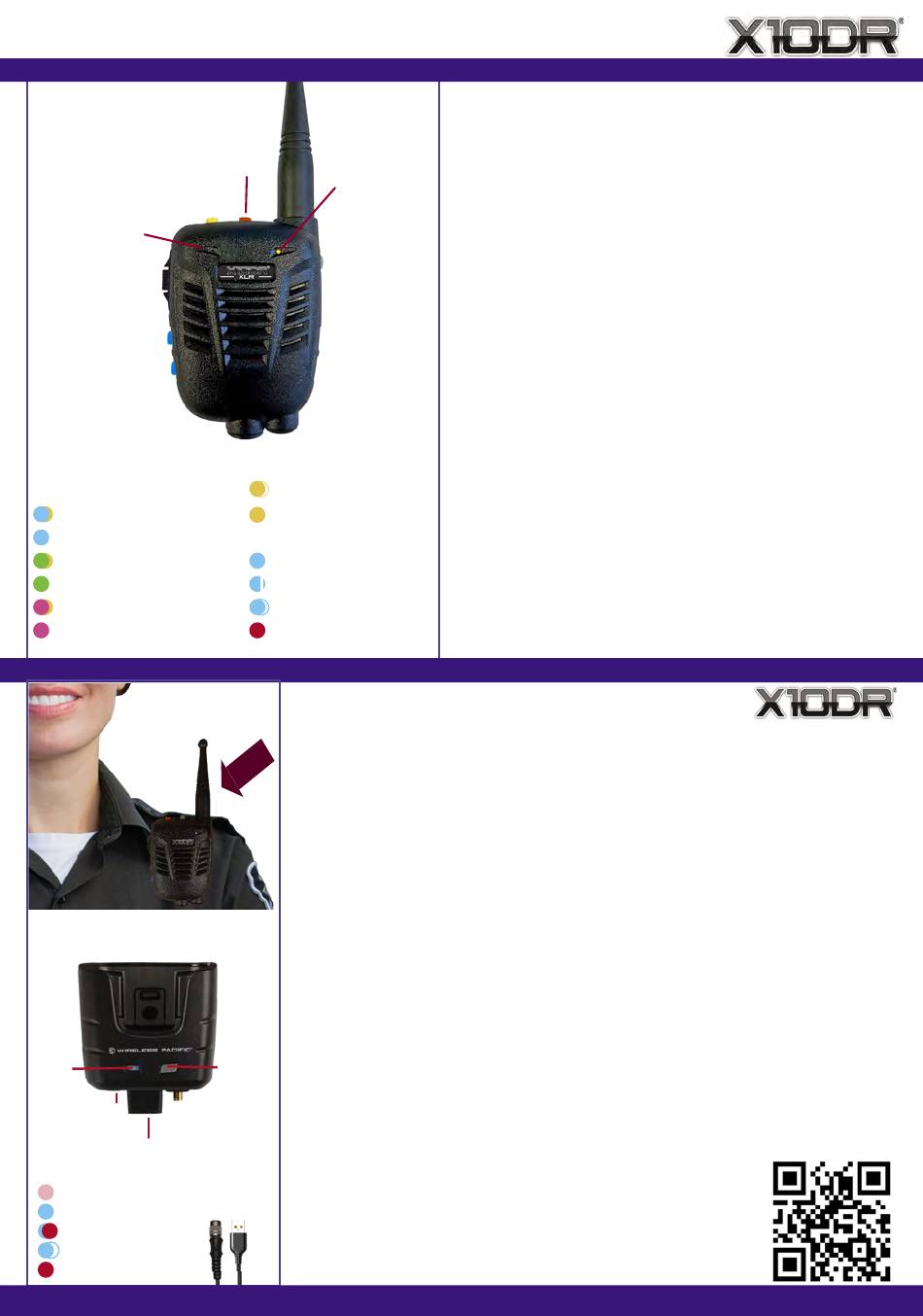

USER CARD
X10DR XLR™
Wireless Speaker Microphone
SP : Short Press = < 500mSec
LP : Long Press = > 2 Secs
* 2
LP: Emergency
LP: Search
Microphone
Radio / TA
PTT
SP: Volume Up
LP: Relay Off/On
SP: Volume Dn
LP: Power Off
Charging
Contacts
Status LED Indicates:
PTT Button = Radio
* - Gateway connected
Transmitting over host radio
PTT Button = Talkaround
*
- Gateway connected
Transmitting locally in Talkaround
Handsfree Active
*
- Gateway connected
Handsfree Active
- No Gateway connection
* No Yellow blink when Relay mode disabled
X10DR-USA
Wear here for best performance
X10DR XLR™
Gateway Charger
Status
LED
Antenna
3.5mm Jack
port
(180mV)
XIC Interface RJ45 connector
Status LED XEBC
Ext battery cable
Off - DC power connected
(use with powerbank)
Connected
Find Me active
Flashing - not connected
Programming Mode
Warning: Product contains Neodymium, rare earth magnets, keep away from credit cards or like items that can be damaged by strong magnetic fields.
Download User Manual:
Status LED
SP: Toggle PTT
Radio <-> Talkaround
LP: Power On
Earpiece
Jack
Headset
Port
Flashing - Handset not paired
Handset to Handset Talkaround only
- Relay Mode Active - No Gateway connection
Battery Fully Charged
(when in charger)
Charging - Short blink
(when in charger)
Flashing - Not connected
Remote PTT active/Program mode
Wireless Speaker Microphone (cont.)
Speaker: Delivers received speaker audio - Normally mutes when inserted into gateway, mobile or
desktop charger or Earpiece is plugged into 3.5mm Earpiece Jack.
Headset Port: Use with X10DR optional headsets/accessories fitted with Hirose HR10 Plus connectors.
Use disable internal speaker. External battery connects here.
DC charging: Handset beeps to notify correct seating when handset first placed in gateway or
charger. The handset's status LED will blink every 10 secs to indicate "charging" status. Solid blue
means complete. Handset sounds 3 short beeps every 5 minutes when charging is required.
Mandown Monitor Mode
the XLR Wireless Mic is removed from its gateway/charger and disabled when placed back in. When
active, if there is no user movement or transmit activity for 2 minutes, quickening alert tones will
sound for 30 seconds. If there is still no user movement, the radio's emergency input will be triggered.
To temporarily disable Mandown operation, power up the XLR Spk Mic while pressing the orange
Emergency button - release as soon as tones sound. A 'gentle reminder beep' will sound every 2
minutes until re-enabled by powering Off/On the XLR Wireless Mic or placing it back into a charger
and then removing.
GATEWAY CHARGER
Function Button:
Long Press front to manually power Off/On.
Fast double press for Find Me™ - Short press to reset.
Function
Fast triple press to enable gateway Touchless pairing.
Button
Status LED:
Glows solid when operational. Flashes when handsets are "out of range" or off. Flashes
blue/Red when Find Me™ is activated.
Antenna Connector:
3.5mm Jack : Provides line level 180mVRMS receive audio out. For use with PA or Recording Systems.
External battery:
Simply plug in a USB cellphone style external battery power
bank via the optional XEBC battery adaptor cable to the headset port. The
handset LED will 'blink' every 10 seconds to indicate it is being re-charged.
You can continue to use the handset as normal.
Pairing Devices:
Refer user manual - www.x10dr-usa.com - Scan QR Code
*See Programming Parameters for configurations. Some tones can be enabled/disabled by programming.
*1 When / If out of range, the unit will sound a low frequency tone alert when button pressed.
*2 Buttons may be re-assigned other functions by use of XFPK field programmer, as desired.
www.x10dr-usa.com
Wireless Speaker Microphone
Power On: 2 Sec press Grey Button to turn ON. Tones sound.
Toggle PTT: Short press side Grey button to assign Radio PTT or Off-network
Local Talkaround PTT to the black PTT button. A confirmation beep will sound
and Status LED will change between Yellow with a periodic Blue flash for
Radio PTTor a Yellow with Green flash for Talkaround PTT. If Auto Relay mode
is disabled, LED will glow either solid Blue or solid Green when connected to
vehicle gateway. or flash if no connection.
Emergency: * 1/2 Long Press Orange button, a confirmation beep will sound
before triggering host radio's emergency function. Hold button pressed as
per mobile radio's emergency operating instructions or as advised.
Search: Long Press Yellow button to connect to in-range gateway/handset.
Relay Off/On: Long Press - Disables/re-enables Automatic Relay Mode.
Volume Up: Short press top Blue button to adjust speaker louder.
Volume Dn: Short press bottom Blue button to adjust speaker softer.
Power Off: 2 Sec press bottom Blue Volume Down button. Tones sound.
OPERATION:
Status LED: Indicates connection status - See Status LED color scheme.
NOTE: If Wireless Mic is operational but the Status LED does NOT glow, it
means the internal Li-Ion battery has "swollen" and needs to be replaced.
Microphone: Talk at your normal voice strength about 1-3cm (~1") from
Microphone port.
: Press To Talk. Out of range tones sound if no connection.
Radio/TA PTT * 1/2
(Grey button assigns either Radio or Talkaround PTT).
Handsfree: double press the side PTT button when it is assigned for
Talkaround PTT. A reminder beep will sound every 30 seconds. Single
press to disable. We highly recommend use with headset or earpiece.
:
When enabled, the Mandown function turns ON automatically whenever
* 1
Connect XMPA for long-range external or XSMA2 for short range requirements.
X10DR-USA
