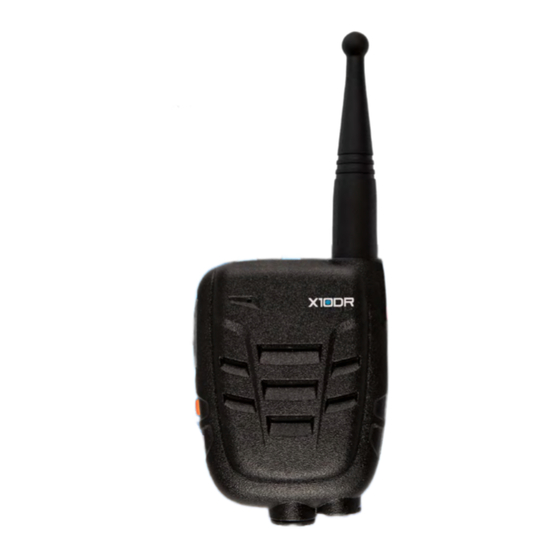

- Page 1 WIRELESS PACIFIC ...WHEN IT MATTERS Radio Speaker Microphone Audio Solutions Just Just Talk Talk and listen User Manual Designed for Peltor Compatibility...
- Page 2 Type Approval Warranty and Service Peltor™ Lite-Com™ 433 LPD compatibility The X10DR UHF Radio Speaker Mic is designed to talk with other X10DR UHF LPD wireless devices. They may also be configured to communicate with Peltor Lite-Com LPD wireless 433MHz headsets.
- Page 3 Maximum Range Performance Attaching the X10DR UHF Radio Speaker Mic high on your shoulder will ensure the maximum communication coverage with others. Radio communications in the 433MHz band is generally line of sight.
- Page 4 Acoustic tube earpiece for WPITRQ-X10. WPEH-TL Black large earpiece for WPITRQ-X10. WPEB-TL Black earbud earpiece for WPITRQ-X10. XDTC-AU Single desktop charger (Australia plug). XSMA3 Replacement X10DR UHF antenna. Peltor CH-3 Series WPSHD-X10 Series CH-3 Headset CH-3 Headset J11 interface cable Peltor...
- Page 5 BATTERY CHARGING The X10DR UHF Radio Speaker Mic should be charged overnight before initial use. Thereafter it may be worn all day and placed back ion charge at the end of the work period. The unit is designed to provide about 12 hours operation between charges even on the busiest radio channels.
- Page 6 PRIVACY SUB CODES The X10DR UHF Radio Speaker Mic can be configured with a number of unique privacy SUB codes. These codes are sent sub-audibly along with your voice and operate such that your X10DR UHF Radio Speaker Mic will only hear transmissions with the same privacy code.
- Page 7 WARNING - To reduce the risks associated with fire and explosion: Do not drop, disassemble, microwave, burn, paint, or insert foreign objects into X10DR UHF. Do not use X10DR UHF if it has been damaged—for example, if X10DR UHF is cracked, punctured, or damaged by water. X10DR UHF contains sensitive components.
- Page 8 Radio Frequency Energy: The unit transmits and receives radio frequency (RF) energy through its antenna. The antenna is located at the top edge of the unit. The X10DR UHF Radio Speaker Mic is designed and manufactured to comply with the limits for exposure to RF energy set by international regulatory agencies, including regulatory authorities in Australia and New Zealand.
- Page 9 8 (eight) hours or 140dB(C) as the peak limit. The X10DR UHF Radio Speaker Mic has the option of 8 volume levels. When set at level 8, the communicator emits approximately 96dB at a distance of 10 cm from the front surface of the speaker, exposing wearers to loud sounds.
- Page 10 WCL representatives. TYPE APPROVAL The X10DR UHF and its accessories are designed for compliance for LPD operations in the globally allocated 433MHz spectrum. It has been tested and is certified to meet the requirements of:...
- Page 11 SERVICE To support your X10DR UHF Radio Speaker Mic in the event of a manufacturing defect or damage under the terms of the WARRANTY, please contact an authorized service partners. Technical support and other after sales service requirements, including equipment repairs whether during warranty or post warranty period will be available during normal Australian business hours.
- Page 12 Designed for use with 3M™Peltor™ Products WIRELESS PACIFIC ...WHEN IT MATTERS All rights reserved Wireless Corporation Limited ©2022 All logos are trademarks or registered trademarks are the property of their respective owners. Manual revision : O...
