Wireless Pacific X10DR XLR Series Programming Parameter Manual
Out of vehicle communications solution
Hide thumbs
Also See for X10DR XLR Series:
- User manual (2 pages) ,
- Programming parameter manual (13 pages)
Related Manuals for Wireless Pacific X10DR XLR Series
Summary of Contents for Wireless Pacific X10DR XLR Series

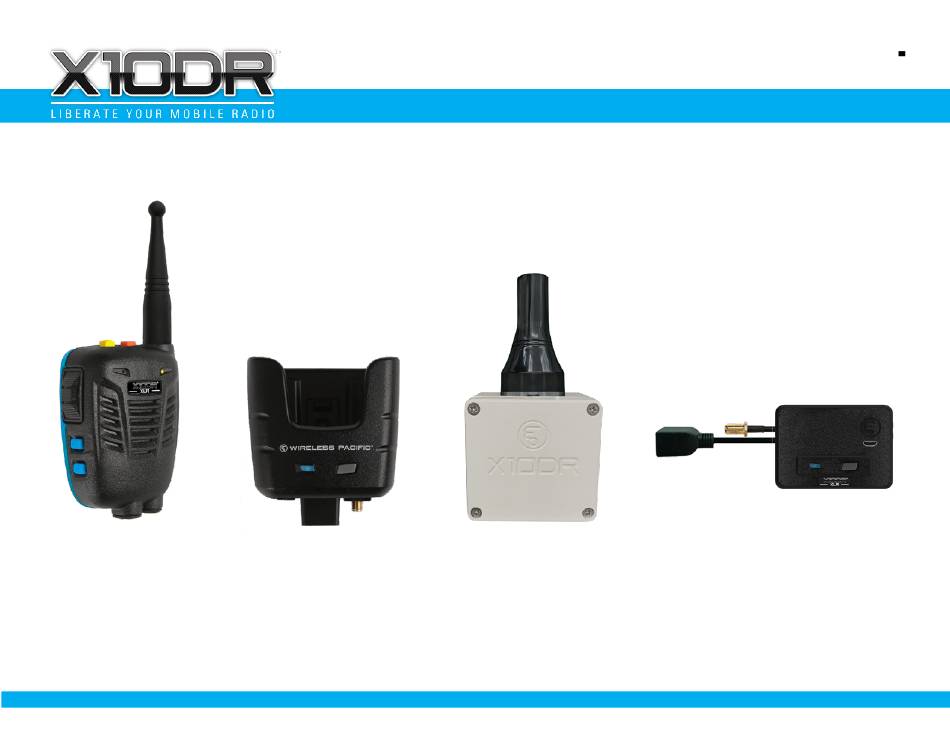

- Page 1 WIRELESS PACIFIC ...WHEN IT MATTERS Out of Vehicle Communications Solution Programming Parameter Guide For X10DR-XLR Models Rev 1...
- Page 2 USB Included with the Programmer download file application are instructions on how to set-up the programmer on your Windows 10/11 PC. Please follow those instructions to install the programmer correctly onto your computer. WIRELESS PACIFIC www.x10dr-usa.com ...WHEN IT MATTERS...
- Page 3 Press to reset with default device parameters Press to lock your desired parameter configuration before undertaking batch fleet programming. This will prevent you errantly changing a Exit parameter unknowingly during reprogramming. Press to exit program. WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 4 Wireless Mic is within range of its gateway. Default - ON * (when fitted) Stealth mode always active Disables all alert tones and LED status light. User can manually enable stealth mode if programmed off. WIRELESS PACIFIC Default - OFF ...WHEN IT MATTERS...
- Page 5 XSJB or similar. Default - ON Charging Contacts Automatic Relay Mode / Command Relay Mode Hirose audio jack 3.5mm earpiece Selects the Relay Mode type in XLR Wireless Mics. Default - Automatic Relay ON WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 6 Wireless Mic. Default - 9 Default - 5 Fixed Alert Tone Volume Limits all user monitored alert tones to level set below rather than being controlled by Wireless Mic volume controls . Default - OFF WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 7 Sets the number of “Live Mic”, Tx and Rx cycles when Advanced Emergency is triggered. Default - 1 Transmit audible emergency tone Causes an audible emergency warble tone to be transmitted over the host mobile radio channel when emergency is activated. Default - Off WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 8 Sets the function of right side button. Re-assigning requires hardware modifications. Default - SP Toggle PTT / LP: Power ON Long Press Duration Sets time button must be pressed to action a Long Press. Default - 2000mSec WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 9 Wireless Mic Programming: Dropdown box button assignment selection XLR Wireless Mic Right 1 Button - Short Press Assignments: Search - Resets connection to its paired gateway, other paired gateways or Relay Mode paired Wireless Mics. LTE RSM - Special Application Aux 1 (or 2) - Special function when used with XFSB/ XSJB Smart boxes.
- Page 10 X10DRMD-XLR base label.pdf 20/1/2023 2:16 PM Hold on power up for programming (LED glows solid RED) ® *We highly recommend use of the XGALA Gateway Audio Level Adjustment tool for setting audio levels. Download here: https://www.x10dr-usa.com/pages/service WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 11 8 (Replaces Remote PTT function) also muted for 500mS to prevent those tones being rebroadcast over talkgroup. For Default - OFF optimum performance set VOX trigger level for 90-100 for fastest response. WIRELESS PACIFIC Default - On ...WHEN IT MATTERS...
- Page 12 Defines the length of time an input must be activated before the function is triggered or alternatively how long an output is activated when the assigned function has been triggered. A value of zero means an input triggers instantly. WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 13 WIRELESS PACIFIC ...WHEN IT MATTERS All rights reserved Wireless Corporation Limited ©2024 Wireless Pacific™, X10DR®, Liberate your mobile™, Find Me™, Powerfully Simple™ and their logos are trademarks or registered trademarks of Wireless Corporation Limited : Manual revision 1...
