Dyna-Lift Assembly Instructions
HF Series
August 2024
Your new HF Series kiln includes our patented Dyna-Lift lid lift assist. The Dyna-Lift connects
directly to the kiln stand and to the kiln lid handle with a single link.
The following instructions will guide you through the process of assembling the stand and
attaching the Dyna-Lift to the stand and kiln lid handle.
If you have any questions or encounter difficulty assembling the stand or attaching the Dyna-
Lift please contact us at 989-856-2281 or info@evenheat-kiln.com. We're here to help.
Step 1:

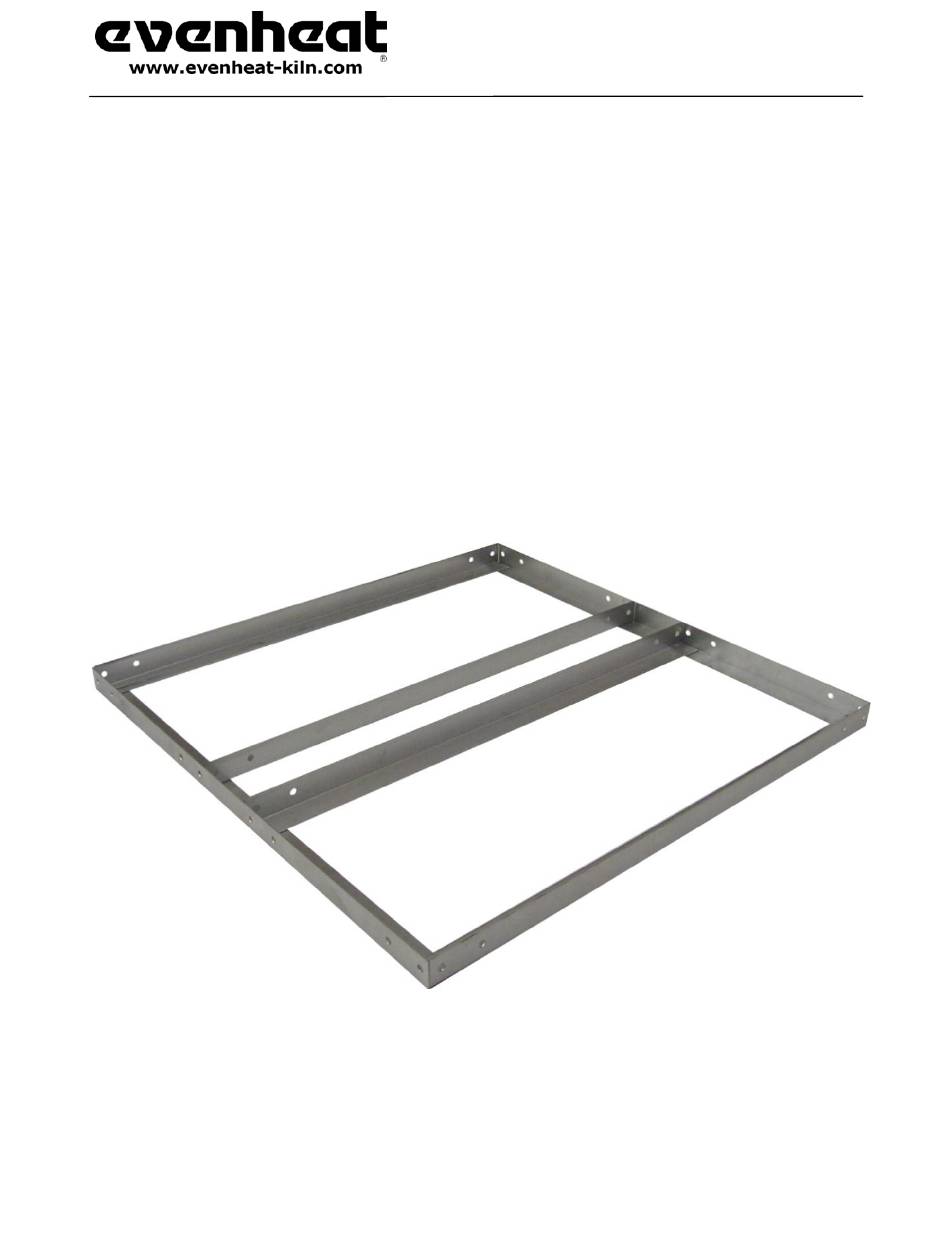

Place all frame angles as shown below.
Advertisement
Related Manuals for Evenheat HF Series
Summary of Contents for Evenheat HF Series
- Page 1 HF Series August 2024 Your new HF Series kiln includes our patented Dyna-Lift lid lift assist. The Dyna-Lift connects directly to the kiln stand and to the kiln lid handle with a single link. The following instructions will guide you through the process of assembling the stand and attaching the Dyna-Lift to the stand and kiln lid handle.
- Page 2 Dyna-Lift Assembly Instructions HF Series August 2024 Step 2: Place all stand legs as shown below. Please note that the 2 Dyna-Lift Ready legs are placed at the center positions as shown. Dyna-Lift Ready legs have extra holes. Position the Dyna-Lift Ready legs so the single square hole is to the inside of the frame. You will be connecting a truss to this point.
- Page 3 Dyna-Lift Assembly Instructions HF Series August 2024 Step 3: Once all stand legs are positioned use the included nuts and bolts to fasten the legs and L- brackets to the stand. Finger tighten nuts and bolts only at this point.
- Page 4 Dyna-Lift Assembly Instructions HF Series August 2024 Step 4: Install the trusses as shown below. Finger tighten nuts and bolts.
- Page 5 Dyna-Lift Assembly Instructions HF Series August 2024 Step 5: Turn the stand over and tighten all bolts using a Phillips screwdriver and 7/16” wrench. Stand Front...
- Page 6 Dyna-Lift Assembly Instructions HF Series August 2024 Step 6: Attach the Dyna-Lift post to the back center of the stand as shown (8 nuts and bolts). You will need to remove and re-install 4 of the nuts and bolts that you previously attached.
- Page 7 Dyna-Lift Assembly Instructions HF Series August 2024 Step 7: Install the Dyna-Lift lift assist springs as shown. Your model will have 2 or 4 springs. Image below shows a model with 2 springs. If you have 4 (HF 2918 and HF 2927) position 2...
- Page 8 Dyna-Lift Assembly Instructions HF Series August 2024 Your stand and Dyna-Lift are now completely built and ready for the kiln to be placed on to it.
- Page 9 Dyna-Lift Assembly Instructions HF Series August 2024 Step 8: Position your stand where you want to place the kiln and place your kiln on the stand. Place the kiln so the back side of the kiln makes contact with the Dyna-Lift post brackets. Center...
- Page 10 Dyna-Lift Assembly Instructions HF Series August 2024 Step 9: Models HF 2327 & HF 2927 are shipped with the lid support bar attached. Models HF 2318 and 2918 are not shipped with the lid support bar attached and must be attached now.
- Page 11 Dyna-Lift Assembly Instructions HF Series August 2024 Step 10: Using the included allen wrench, remove one of the locking collars on the kiln lid handle rod and loosen the 2 locking collars located at the center of the lid handle rod.
- Page 12 Dyna-Lift Assembly Instructions HF Series August 2024 Step 11: Bring the Dyna-Lift lifting arm down and insert the lid handle rod through the holes in the Dyna- Lift lifting arm link as shown. Positioning the locking collars as shown. This operation requires 2 people: 1 to hold the lifting arm down and 1 to insert the rod.
- Page 13 Dyna-Lift Assembly Instructions HF Series August 2024 Step 12: Insert the lid handle rod back through the handle bracket and lifting link. Re-install the locking collar on the lid rod end and tighten.
- Page 14 Dyna-Lift Assembly Instructions HF Series August 2024 Step 13: Center the Dyna-Lift lifting link on the handle rod and move the inner locking collars to the lifting link. Tighten the locking collars.
- Page 15 Dyna-Lift Assembly Instructions HF Series August 2024 Step 14: Open the lid slowly all the way until the lid support bar engages and keeps the lid open. Check for clearance between the lid and Dyna-Lift post. There should be at least 1/4" with the lid in the fully opened position.
