Set-Pro Control Operating Manual
Ceramic version – July 2014
For Use with Set-Pro controlled Ceramic Kilns with a serial number greater than 107718.

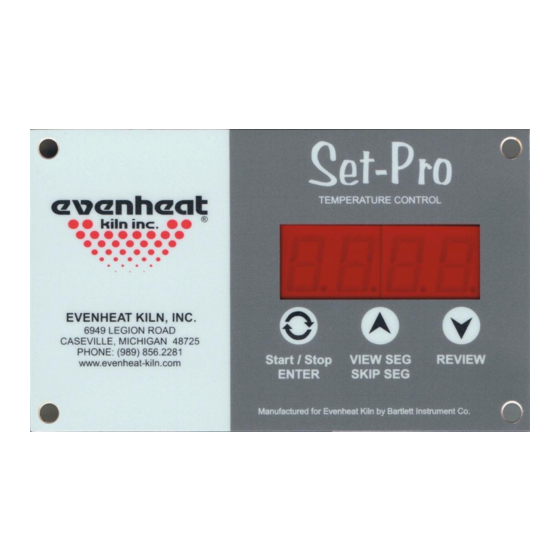

SET-PRO
w/ Express Mode
CERAMIC FIRING
Control Operating Manual
Page 1 of 19
Use your Smart-phone to scan this QR code to watch Set-Pro how-to Programming Videos!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SET-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Evenheat SET-PRO

Summary of Contents for Evenheat SET-PRO

  • Page 1 Set-Pro Control Operating Manual Ceramic version – July 2014 For Use with Set-Pro controlled Ceramic Kilns with a serial number greater than 107718. SET-PRO w/ Express Mode CERAMIC FIRING Control Operating Manual Page 1 of 19 Use your Smart-phone to scan this QR code to watch Set-Pro how-to Programming Videos!

  • Page 2: Table Of Contents

    CAUTION: The Set-Pro is used to control temperature, it is not a safety devise. Never leave the kiln unattended while firing. Check on the kiln at the end of the firing to ensure firing program has completed as planned.

  • Page 3: Quick Steps For Ceramic Express Mode Programming

    5. Use the Up or Down arrow keys to make the display read CEr (Ceramic Express Mode) if it does not already. 6. Press the Enter key. The display will read PrHt. The Set-Pro is asking for any Pre-heat time. See page 11 for details.

  • Page 4: Quick Steps For Custom Mode Programming

    17. Once all remaining segments have been programmed the display will read rEdI (Ready). 18. Press the Enter key to begin the firing. The Set-Pro is now running your Custom Mode program. When the firing is complete the display alternates between CPLt and total firing time. Press the Start/Stop key at this point will cause the display to briefly read StOP and then IdLE.

  • Page 5: Detailed Programming Set-Pro Key Descriptions

    Down Arrow – REVIEW Used to select values when programming and allows for the Review program feature. See the Set-Pro Key Function Table on page 16, for more detailed key information. Page 5 of 19 Use your Smart-phone to scan this QR code to watch Set-Pro how-to Programming Videos!

  • Page 6: Ceramic Express Mode Programming (Detailed)

    Ceramic Express Mode features easy programming that automatically develops your firing program based on your desired cone number and firing speed. Simply tell the Set-Pro what cone you want to go to and how fast to get there and you’re ready to fire. It’s quick, it’s easy and gives reliable, repeatable results fire after fire.
  • Page 7 We have included a cone chart, found on page 18, which identifies each cone along with its final firing temperature used by the Set-Pro. This chart is based on a temperature rate (used at the end of the firing) of 108°F per hour.

  • Page 8: Custom Mode Programming (Detailed)

    10. Press the Enter key. The display will read rA-1 along with some number. The Set-Pro is asking for the desired temperature rate to be used in segment 1. rA stands for Rate and the 1 means you’re programming the rate of temperature change for segment 1.
  • Page 9 14. Press the Enter key. The display will read HLd1 along with some number. The Set-Pro is asking for the amount of time you wish to hold at the set point temperature. HLd stands for Hold (a.k.a. soak or dwell) and the 1 means you’re programming the amount of time you want the temperature to stay at the segment 1 temperature once you reach it.

  • Page 10: On-The-Fly Features

    Adding Time to a Hold During a hold period it’s sometimes necessary to add just a little more time to the programmed hold time. The Set-Pro allows you to add time to a hold in 5 minute increments. It’s a handy little feature that you should really get to know.

  • Page 11: Programming & Use Features

    1. Throw the power switch on the kiln control panel to the On position. 2. The Set-Pro begins its initialization process and the display will illuminate. 3. The Set-Pro will finish its initialization process and then display IdLE (Idle). Idle simply means the Set-Pro is at rest and is not running any programs.

  • Page 12: Pre-Heat

    1828°F. A cone 6 will fire up to 2232°F. That’s a difference of more than 400°F!!!! If you want to fire using a cone 06 and you select cone 6 instead you will have a severe overfire. It won’t be pretty and expect some kiln damage along with it. We will note at this point that Evenheat does not warrant or cover overfire damage, regardless of cause.

  • Page 13: Selecting And Running A Custom Mode Program

    Selecting and Running a Custom Mode Program At some point you are likely to have set all 4 Custom Mode programs set to something you like and want to run again and again. The Set-Pro allows you to quickly select the program you desire.

  • Page 14: Writing Over Data

    Fahrenheit or Celsius Your Set-Pro was set at the factory for use in the Fahrenheit or Celsius temperatures scales. If programmed to the Fahrenheit scale you will see °F when programming your set point temperatures. If set to Celsius you will see °C when programming your set point temperature. You will also note that a small, red dot will be illuminated at the bottom right of the Set-Pro display area to indicate a Celsius temperature.

  • Page 15: Set-Pro Display Conditions

    Indicates the value being displayed is a time value. Dot Displayed to the Right of the 1’s Digit Indicates that a Celsius temperature is being displayed. If no dot is displayed the Set-Pro is displaying in Fahrenheit. Set-Pro Display Messages...

  • Page 16: Key Function Table

    Set-Pro Error Messages The Set-Pro monitors each firing and compares performance to a set of standards. If the firing does not meet performance standards the Set-Pro automatically stops the firing and displays a corresponding Error Code describing the fault. These codes are identified and described below.

  • Page 17: Preset Ceramic Express Mode Data

    200°F 1050°F Cone Temperature Minus 256°F User Defined Pre-Heat Hold Time 30 Min. 0 Min. User Defined Hold (if any) (if any) Page 17 of 19 Use your Smart-phone to scan this QR code to watch Set-Pro how-to Programming Videos!

  • Page 18: Cone Table

    1063°C 1186°C 678°C 875°C 1086°C 1222°C 715°C 903°C 1102°C 1239°C 738°C 920°C 1119°C 1249°C 772°C 942°C 1137°C 1260°C 791°C 976°C 1142°C 1285°C Page 18 of 19 Use your Smart-phone to scan this QR code to watch Set-Pro how-to Programming Videos!

  • Page 19: Kiln Trouble Shooting

    The thermocouple (temperature sensor) circuit is faulty. The thermocouple circuit is broken at some point, usually the thermocouple itself. The thermocouple circuit consists of the thermocouple, any connecting blocks and the thermocouple lead wire connecting to the Set-Pro. Circuit Protection Opens (“Blown” Breaker or Fuse) Circuit protection can open for various reasons.
