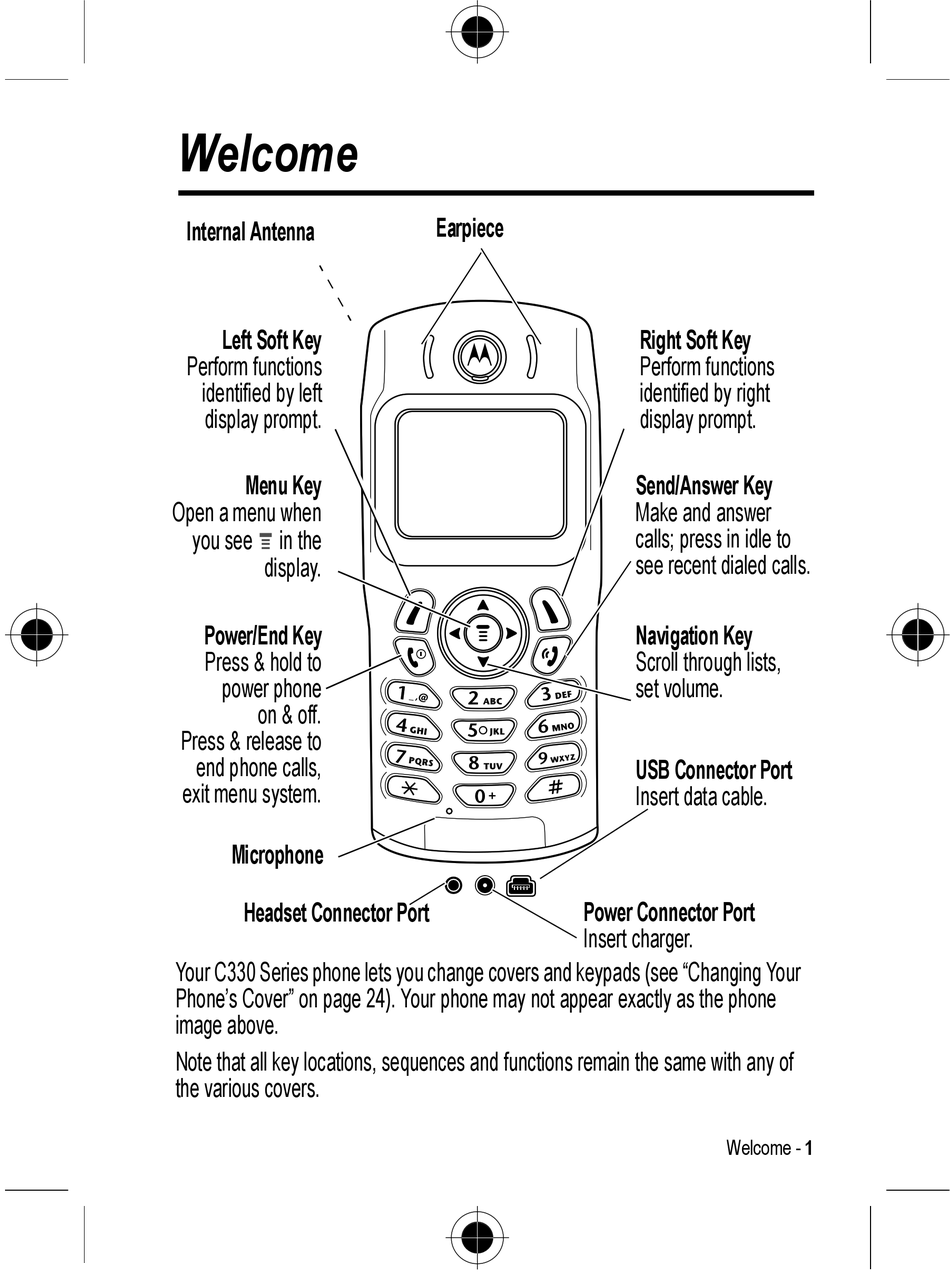

Welcome
Internal Antenna
Left Soft Key
Perform functions
identified by left
display prompt.
Menu Key
Open a menu when
M
you see
in the
display.
Power/End Key
Press & hold to
power phone
on & off.
Press & release to
end phone calls,
exit menu system.
Microphone
Headset Connector Port
Your C330 Series phone lets you change covers and keypads (see "Changing Your
Phone's Cover" on page 24). Your phone may not appear exactly as the phone
image above.
Note that all key locations, sequences and functions remain the same with any of
the various covers.
Earpiece
Power Connector Port
Insert charger.
Right Soft Key
Perform functions
identified by right
display prompt.
Send/Answer Key
Make and answer
calls; press in idle to
see recent dialed calls.
Navigation Key
Scroll through lists,
set volume.
USB Connector Port
Insert data cable.
Welcome - 1
