OWNER'S MANUAL
ProSmart
TEAMBMPRO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProSmart and is the answer not in the manual?

Questions and answers

Related Manuals for BMPRO ProSmart

Summary of Contents for BMPRO ProSmart

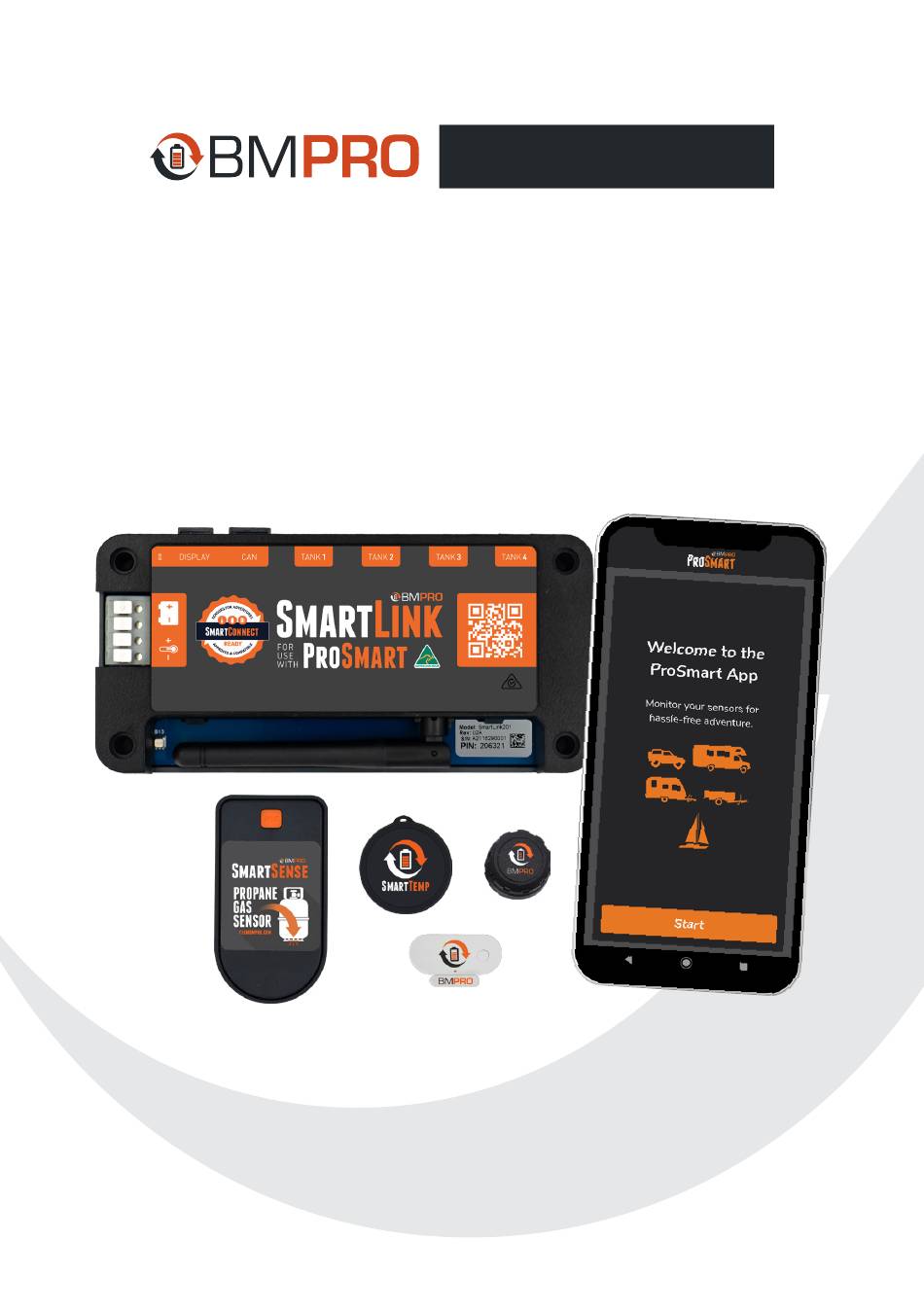

  • Page 1 OWNER’S MANUAL ProSmart TEAMBMPRO.COM...

  • Page 2: Safety Precautions

    REV 5.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified...
  • Page 3 WARNING Ensure the batteries are installed correctly according to polarity (+ and -). Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries. Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.

  • Page 4: Table Of Contents

    SAFETY PRECAUTIONS ..... . 2 ABOUT PROSMART ......6 PROSMART SYSTEM DIAGRAM .
  • Page 5 SMARTSENSE ......27 PAIRING SMARTSENSE SENSORS ....27 INSTALLING SMARTSENSE SENSORS .

  • Page 6: About Prosmart

    Bluetooth sensors in the app without the need for an internet connection! The ProSmart can be used anywhere where you have a 12V power source and a stable, uniterrupted Bluetooth signal. Up to 40 SmartConnect Bluetooth sensors can be paired to the SmartLink and displayed in the official BMPRO ProSmart App, giving you a wealth of information at your fingertips.

  • Page 7: Prosmart System Diagram

    PROSMART SYSTEM DIAGRAM...

  • Page 8: Description Of Parts

    4. WATER TANK SENSOR CONNECTIONS Used to connect water sensors, such as BMPRO Dippers. 5. PRODUCT PAGE QR CODE Scan the QR code to view information about ProSmart, including FAQs and the manual at teambmpro.com 6. SERIAL NUMBER Contains the passkey pin required when pairing the SmartLink to the ProSmart...
  • Page 9 10 seconds, all paired mobile devices will be forgotten by the SmartLink. SmartConnect sensors are not forgotten when holding down the pairing button. They must be unpaired using the ProSmart App. 10. WIRED TEMPERATURE SENSOR CONNECTIONS Used to connect the BMPRO wired temperature sensor.

  • Page 10: Mounting The Smartlink

    MOUNTING THE SMARTLINK The SmartLink is designed to be mounted to the wall directly with screws. You may need to create openings for the cable connections before mounting. If you are mounting the SmartLink in a caravan/RV, mounting it at a high point will ensure it is away from metal chassis and tow bars, which will minimise antenna signal interference and maximise performance.

  • Page 11: Getting Started With The Prosmart App

    Search for BMPRO ProSmart in the Apple App Store or Google Play, or scan the QR code. USING THE PROSMART APP FOR THE FIRST TIME When opening the ProSmart App for the first time, you will be greeted with the Welcome screen. Press Start to begin using the app.
  • Page 12 Your SmartLink will need to be configured to work with the ProSmart App. In the Prepare your SmartLink screen, press Continue. If you are using an Android phone, the ProSmart App requires access to your smartphone’s location services in order to work with your SmartConnect sensors.
  • Page 13 The ProSmart App is now ready to pair with SmartLink. Once the Pair your SmartLink screen displays, press the pairing button on the SmartLink. The LED on the SmartLink will begin flashing blue. The SmartLink will now be available for pairing for 60 seconds.

  • Page 14: The Home Screen

    THE HOME SCREEN Once connected to the SmartLink, the ProSmart App will display the Home screen. The Home screen will display all sensors connected to your SmartLink. Sensors can be rearranged on the screen by pressing and holding on a sensor and dragging it to a new location.

  • Page 15: Displaying Sensor Information

      sensor. WARNING The battery state of charge in the ProSmart app is a voltage-based estimation and will vary under load, temperature and different battery manufacturers and should only be used as a guide. The connection type will also be displayed: 9 Wired sensors will display a wired icon.
  • Page 16 Alerts Notification alerts for sensors can be displayed on your smartphone when your sensor readings drop below or rise above a set value. To set an alert for a selected sensor, press Alerts. Drag the sliders to set your alarm thresholds. If a value falls outside the green zone, a notification will display.

  • Page 17: Low Battery Warning

    LOW BATTERY WARNING If a SmartConnect sensor’s battery becomes too low, a low battery warning will appear on that sensor’s tile on the Home screen. When this warning appears, the battery will need to be replaced. For more information, refer to Battery Replacement. ADJUSTING THE NUMBER OF COLUMNS The number of columns that display on the Home Screen can be adjusted.

  • Page 18: Settings

    SETTINGS Press the Settings button from the Home screen to access ProSmart settings. Use Settings to: 9 Update the firmware on your SmartLink. If an update is available, the Update   button will be orange. Firmware updates may cause your Bluetooth authentication credentials to stop working.

  • Page 19: Smartconnect Sensors

      9 View help.   9 View BMPRO’s privacy policy.   9 View information about the ProSmart App.   SMARTCONNECT SENSORS SmartPressure, SmartSense, SmartTemp and SmartSecure sensors can be paired to the ProSmart App. For more information on how to install and pair SmartConnect sensors, refer to the relevant section in this manual.

  • Page 20: Wired Sensors

    WIRED SENSORS Up to 4 connected water tanks, 1 wired temperature sensor and a battery can be configured in the Wired Sensors screen. Water tanks can be set as Clean or Dirty. Battery chemistry can be set as Lead Acid or LiFePO4 (Lithium). All wired sensors can be toggled to display on the Home screen by ticking or unticking the Show on home screen checkbox.

  • Page 21: Global Smartconnect Alerts

    GLOBAL SMARTCONNECT ALERTS From the Global SmartConnect Alerts screen, you can set notification alerts for all sensors of the same type, which will be displayed on your smartphone when your sensor readings drop below or rise above a set value. Drag the sliders to set your alarm thresholds for each type of SmartConnect sensor.

  • Page 22: Measurement Units

    MEASUREMENT UNITS Measurement units throughout the app for temperature, air pressure and gas can be changed. Temperature can be toggled between °C and °F. Air pressure can be toggled between kPa and PSI. Gas can be toggled between kg and lbs, and Australian or United States bottle size standard.

  • Page 23: Smartpressure

    SMARTPRESSURE The SmartPressure Tyre Pressure Monitoring System (TPMS) allows the monitoring of your tyre pressure through ProSmart. The SmartPressure sensor will transmit every 10 minutes when your RV is stationary and every minute when in motion. INSTALLING SMARTPRESSURE SENSORS To install a SmartPressure sensor: Install the anti-theft nut.

  • Page 24: Pairing Smartpressure Sensors

    PAIRING SMARTPRESSURE SENSORS To pair SmartPressure sensors: Press the Settings button. In the Settings screen, press SmartConnect sensors. Underneath SmartPressure, from the drop-down, choose the location of the SmartPressure sensor you want to pair. Press Add Sensor.

  • Page 25: Unpairing Smartpressure Sensors

    A pop-up will appear with pairing instructions. Press OK. Install the pressure sensor on the same selected tyre. Refer to the section Installing SmartPressure Sensors. Once pairing is successful, the sensor will appear on the Home screen. UNPAIRING SMARTPRESSURE SENSORS To unpair SmartPressure sensors: Press the Settings button.

  • Page 26: Smartpressure Troubleshooting

    SMARTPRESSURE TROUBLESHOOTING SmartPressure Pairing Unsuccessful If pairing was unsuccessful, a message will appear stating “Sensor Not Paired”. Press OK to attempt pairing again. If the sensor fails to pair after several attempts, refer to the Battery Replacement section to check the battery level of the sensor and for instructions on battery replacement.

  • Page 27: Smartsense

    SMARTSENSE The SmartSense propane gas sensor allows you to directly monitor the levels of gas in a gas cylinder with ProSmart. PAIRING SMARTSENSE SENSORS To pair SmartSense sensors: Press the Settings button. In the Settings screen, press SmartConnect sensors. Underneath SmartSense, from the drop-down, choose the location of the...
  • Page 28 Select the bottle size of the gas tank. Press Add Sensor. A pop-up will appear with pairing instructions. Press OK.

  • Page 29: Installing Smartsense Sensors

    If this is the first time this sensor has been synced, press the orange sync button on the SmartSense sensor 6 times. This permanently disables Sleep Mode, which is the factory setting. After the first use, only a single press is required to sync the sensor.

  • Page 30: Unpairing Smartsense Sensors

    WARNING Once the SmartSense sensor is synced to the ProSmart, the sensor will operate continually until the battery is removed or changed. There is no “power off” mode. Once operational, the sensor may be moved, repositioned, or removed as needed, without any special instruction or changes to the sensor.
  • Page 31 If the sensor fails to pair after several attempts, refer to the Battery Replacement section to check the battery level of the sensor and for instructions on battery replacement. Sensor Reading Not Detected If a valid reading is not detected, the sensor icon on the Home screen will turn yellow.

  • Page 32: Smarttemp

    SMARTTEMP The SmartTemp Bluetooth temperature sensors allow you to monitor temperatures throughout your RV using ProSmart. PAIRING SMARTTEMP SENSORS To pair SmartTemp sensors: Press the Settings button. In the Settings screen, press SmartConnect sensors. Underneath SmartTemp, from the drop-down, choose the location of the...
  • Page 33 Press Add Sensor. A pop-up will appear with pairing instructions. Press OK. Turn on the SmartTemp sensor by pressing and holding the sensor power button until the light turns green. If the SmartTemp light turns red, press and hold the sensor power button again until the light turns green.

  • Page 34: Unpairing Smarttemp Sensors

    UNPAIRING SMARTTEMP SENSORS To unpair SmartTemp sensors: Press the Settings button. In the Settings screen, press Unpair sensors. On the SmartTemp sensor you want to unpair, press the bin icon. SmartTemp sensors can be unpaired even if they are out of range. SMARTTEMP TROUBLESHOOTING SmartTemp Pairing Unsuccessful If pairing is unsuccessful, a message will appear stating “Sensor Not Paired”.

  • Page 35: Smartsecure

    SMARTSECURE The SmartSecure sensor allows you to view the current open or close state of a door, hutch or window. The sensor consists of two parts which are attached to either side of a door, hutch or window. When the two parts are close together, the sensor registers as being closed.

  • Page 36: Unpairing Smartsecure Sensors

    Press Add Sensor. On the SmartSecure sensor, press the white circular button to begin the sensor with the app. A blue LED will blink next to the button, indicating pairing has begun. Once pairing is successful, the sensor will appear on the Home screen. The SmartSecure sensor can be paired before or after being installed on a door, hutch or window.

  • Page 37: Smartsecure Troubleshooting

    SMARTSECURE TROUBLESHOOTING Sensor Reading Not Detected If the SmartLink is switched off and on, the SmartLink will temporarily lose sensor data for any paired SmartSecure sensors. When sensor data is not received, the sensor icon on the Home screen will turn yellow. Data will be received after approximately 10 minutes of the SmartLink being turned on, or if the SmartSecure sensor state is changed (i.e the door, hutch or window is opened or closed).

  • Page 38: Wired Water Tank Sensors

    CONNECTING AN ANALOGUE TANK SENSOR TO THE SMARTLINK A ProSmart Analogue Tank Adaptor each of the tanks (part number 039797 for a pack of 2 adaptors) is required in order to connect an analogue dipper to the SmartLink.

  • Page 39: Battery Replacement

    BATTERY REPLACEMENT The monitoring system displays battery level information to help you know when you need to change the batteries of your SmartConnect sensors. When a SmartConnect sensor’s battery is low, a low battery warning will appear on that sensor’s tile on the Home screen. A SmartConnect sensor’s battery status can also be checked by following the below instructions: 9 Go to the Home Screen.

  • Page 40: Replacing Smartsense Sensor Batteries

    Open the outer case of the sensor. Replace the CR1632 battery. If you are replacing multiple SmartPressure batteries at once, take care not to mix them up to avoid installing the wrong sensor. REPLACING SMARTSENSE SENSOR BATTERIES SmartSense sensor batteries can be replaced by following the below instructions: Using a small Carefully lift the board...

  • Page 41: Replacing Smarttemp Sensor Batteries

    REPLACING SMARTTEMP SENSOR BATTERIES SmartTemp sensor batteries can be replaced by following the below instructions: Using a screwdriver, Carefully lift Align the shape Align the button on twist the blade in the the board with of the PCB with the PCB with the pry cavity to separate the electronics.

  • Page 42: Servicing

    SERVICING Do not attempt to service the SmartLink yourself, OR dismantle, modify or repair the SmartLink yourself; this will void your warranty. If your SmartLink requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance.

  • Page 43: Faqs And Troubleshooting

    What is the Bluetooth range of the ProSmart system? The Bluetooth within the ProSmart system has been tested and proven to work up to 20 metres in a direct line of sight. This distance will vary depending upon circumstances and interference such as: 9 The wall of a caravan.
  • Page 44 SmartLink. On Android, press the SmartLink listing and then choose to forget the SmartLink. Once done, configure your ProSmart app to work with the SmartLink again by following the instructions in the Getting Started with the ProSmart App section.
  • Page 45 There can be multiple reasons why newly-paired sensors are not appearing on the home screen: If the ProSmart App is not active when the sensor is paired, once opened it needs to query all 40 possible sensor locations for active devices, as sensor values may have changed while the ProSmart App was not active.

  • Page 46: Specifications

    SPECIFICATIONS SMARTLINK Input Voltage Range 8V to 16V Battery Drain < 20mA Ambient Temperature -20°C to 60°C (-4°F to 140°F) Dimensions (mm) 156 x 76 x 23 WIRED TEMPERATURE SENSOR Temperature Measurement Range -20°C to 60°C (-4°F to 140°F) SMARTPRESSURE SENSOR Maximum Operating Pressure 99 PSI (680 kPA) Frequency Range...

  • Page 48: Warranty Terms And Conditions (Australia)

    The warranty period of the product is one year. If, before the warranty period has ended, a fault occurs with the product and BMPRO finds the product is defective in materials or workmanship, BMPRO at its discretion will subject to further rights accorded by the Australian Consumer Law to either: • ...
  • Page 49 (k) the fault is a result of common wear & tear. LIMITATIONS No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.

  • Page 50: Limited Warranty Terms And Conditions (Usa)

    •  BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product to initiate a warranty claim.

  • Page 51: Compliance

    •  Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modifications not expressly approved by BMPRO could void the user’s authority to operate this equipment. This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
  • Page 52 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
