OWNER'S MANUAL
ProSmart
TEAMBMPRO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProSmart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMPRO ProSmart

Summary of Contents for BMPRO ProSmart

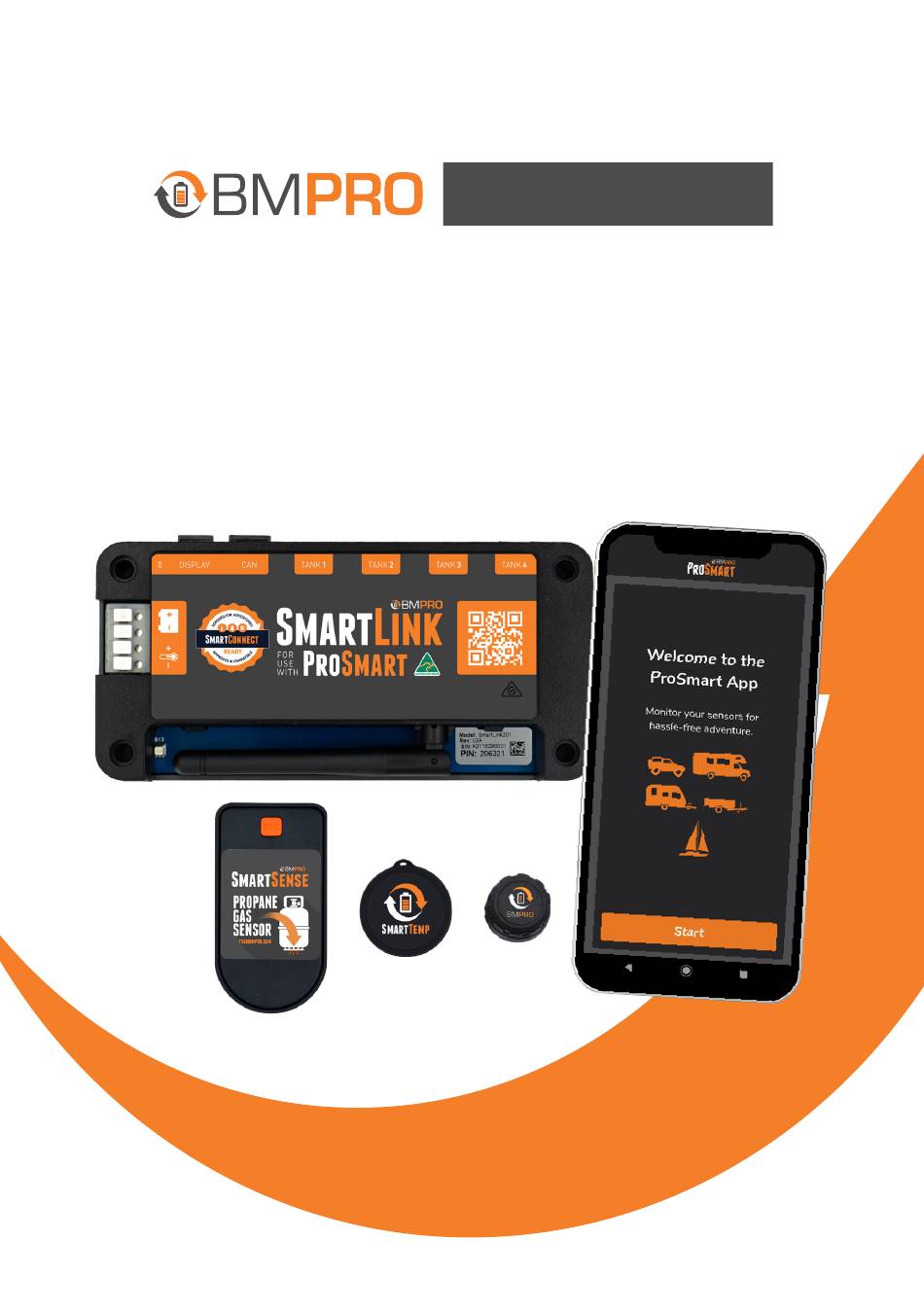

  • Page 1 OWNER’S MANUAL ProSmart TEAMBMPRO.COM...
  • Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read the Safety Precautions before installing or using ProSmart. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in personal damage, or personal injury which depending on the circumstances may be serious.

  • Page 6: Table Of Contents

    SAFETY PRECAUTIONS ..... 4 ABOUT PROSMART ..... . . 8 PROSMART SYSTEM DIAGRAM .
  • Page 7 SMARTTEMP ......27 PAIRING SMARTTEMP SENSORS ....27 SMARTTEMP PAIRING UNSUCCESSFUL .

  • Page 8: About Prosmart

    Bluetooth sensors in the app without the need for an internet connection! The ProSmart can be used anywhere where you have a 12V power source and a stable, uniterrupted Bluetooth signal. Up to 40 SmartConnect Blueooth sensors can be paired to the SmartLink and displayed in the official BMPRO ProSmart App, giving you a wealth of information at your fingertips.

  • Page 9: Prosmart System Diagram

    PROSMART SYSTEM DIAGRAM...

  • Page 10: Description Of Parts

    4. WATER TANK SENSOR CONNECTIONS Used to connect water sensors, such as BMPRO Dippers. 5. PRODUCT PAGE QR CODE Scan the QR code to view information about ProSmart, including FAQs and the manual at teambmpro.com 6. SERIAL NUMBER Contains the passkey pin required when pairing the SmartLink to the ProSmart App.
  • Page 11 10 seconds, all paired mobile devices will be forgotten by the SmartLink. NOTE: SmartConnect sensors are not forgotten when holding down the pairing button. They must be unpaired using the ProSmart App. 10. WIRED TEMPERATURE SENSOR CONNECTIONS Used to connect the BMPRO wired temperature sensor.

  • Page 12: Mounting The Smartlink

    MOUNTING THE SMARTLINK The SmartLink is designed to be mounted to the wall directly with screws. You may need to create openings for the cable connections before mounting. If you are mounting the SmartLink in a caravan/RV, mounting it at a high point will ensure it is away from metal chassis and tow bars, which minimise antenna signal interference and maximise performance.

  • Page 13: The Prosmart App

    Download the ProSmart App and enjoy the freedom to monitor your sensors remotely. COMPATIBLE DEVICES The ProSmart App is compatible with iOS 13 or later and Android 8 or later. Search for ProSmart in the Apple App Store or Google Play. USING THE PROSMART APP FOR THE FIRST TIME When opening the ProSmart App for the first time, you will be greeted with the Welcome screen.
  • Page 14 Your SmartLink will need to be configured to work with the ProSmart App. In the Prepare your SmartLink screen, press Continue. If you are using an Android phone, the ProSmart App requires access to your smartphone’s location services in order to work with your SmartConnect sensors.
  • Page 15 The ProSmart App is now ready to pair with SmartLink. Once the Pair your SmartLink screen displays, press the pairing button on the SmartLink. The LED on the SmartLink will begin flashing blue. The SmartLink will now be available for pairing for 60 seconds.

  • Page 16: Home Screen

    The connected battery will display the battery voltage and its current state of charge. WARNING The battery state of charge in the ProSmart app is a voltage-based estimation and will vary under load, temperature and different battery manufacturers and should only be used as a guide.

  • Page 17: Settings

    9 Change your measurement units for temperature, air pressure and gas   9 Access the ProSmart user manual   9 Go to the store page to buy more SmartConnect sensors   9 View help   9 View BMPRO’s privacy policy   9 View information about the ProSmart App  ...
  • Page 18 Each sensor can be renamed by pressing the edit icon. SmartConnect sensors SmartPressure, SmartSense and SmartTemp sensors can be paired to the ProSmart App. For more information on how to install and pair SmartConnect sensors, refer to the relevant section in this manual.

  • Page 19: Smartpressure

    SMARTPRESSURE The SmartPressure Tyre Pressure Monitoring System (TPMS) allows the monitoring of your tyre pressure through ProSmart. The SmartPressure sensor will transmit every 10 minutes when your RV is stationary and every minute when in motion. The SmartPressure sensor will transmit at a faster rate if a leak in the tyre is detected.

  • Page 20: Pairing Smartpressure Sensors

    PAIRING SMARTPRESSURE SENSORS To pair SmartPressure sensors: Press the Settings button. In the Settings screen, press SmartConnect sensors. Underneath SmartPressure, from the drop-down, choose the location of the SmartPressure sensor you want to pair. Press Add Sensor.

  • Page 21: Smartpressure Pairing Unsuccessful

    A pop-up will appear with pairing instructions. Press OK. Install the pressure sensor on the same selected tyre. Refer to the section Installing SmartPressure Sensors. Once pairing is successful, the sensor, tyre pressure and tyre temperature will appear on the Home screen. SMARTPRESSURE PAIRING UNSUCCESSFUL If pairing was unsuccessful, a message will appear stating “Sensor Not Paired”.

  • Page 22: Pressure Signal Not Detected

    PRESSURE SIGNAL NOT DETECTED If a valid pressure signal is not detected, the pressure will show as 0. In this situation: 9 Wait for the sensor to send the information   9 Check if the sensor is installed on the tyre  ...

  • Page 23: Smartsense

    SMARTSENSE The SmartSense propane gas sensor allows you to directly monitor the levels of gas in a gas cylinder with ProSmart. INSTALLING SMARTSENSE SENSORS SmartSense sensors can be installed by following the below instructions: On the propane gas tank, ensure the base is clean.

  • Page 24: Pairing Smartsense Sensors

    PAIRING SMARTSENSE SENSORS To pair SmartSense sensors: Press the Settings button. In the Settings screen, press SmartConnect sensors. Underneath SmartSense, from the drop-down, choose the location of the SmartSense sensor you want to pair. Select the bottle size of the gas tank.
  • Page 25 Home screen. WARNING Once the SmartSense sensor is synced to the ProSmart, the sensor will operate continually until the battery is removed or changed. There is no “power off” mode. Once operational, the sensor may be moved, repositioned, or removed as needed,...

  • Page 26: Smartsense Pairing Unsuccessful

    SMARTSENSE PAIRING UNSUCCESSFUL If pairing is unsuccessful, a message will appear stating “Sensor Not Paired”. Press OK to attempt pairing again. If the SmartSense sensor continues to fail to pair: 9 Move the propane tank and sensor closer to the SmartLink.  ...

  • Page 27: Smarttemp

    SMARTTEMP The SmartTemp Bluetooth temperature sensors allow you to monitor temperatures throughout your RV using ProSmart. PAIRING SMARTTEMP SENSORS To pair SmartTemp sensors: Press the Settings button. SmartTemp Sensor In the Settings screen, press SmartConnect sensors. Underneath SmartTemp, from the drop-down, choose the location of the...
  • Page 28 Press Add Sensor. A pop-up will appear with pairing instructions. Press OK. Turn on the SmartTemp sensor by pressing and hold the sensor power button until the light turns green. Once pairing is successful, the sensor, temperature and humidity level will appear on the Home screen.

  • Page 29: Smarttemp Pairing Unsuccessful

    SMARTTEMP PAIRING UNSUCCESSFUL If pairing is unsuccessful, a message will appear stating “Sensor Not Paired”. Press OK to attempt paring again. If the sensor fails to pair after several attempts, refer to the Battery Replacement section to check the battery level of the sensor and for instructions on battery replacement.

  • Page 30: Battery Replacement

    BATTERY REPLACEMENT The monitoring system displays battery level information to help you know when you need to change the batteries of your SmartConnect sensors. To check if any SmartConnect sensor batteries need to be changed, check the battery icon on the sensor in the home screen. The icon will indicate if the battery is low or not.

  • Page 31: Replacing Smartsense Sensor Batteries

    REPLACING SMARTSENSE SENSOR BATTERIES SmartSense sensor batteries can be replaced by following the below instructions: Using a small Carefully lift the board Place the lid back into base screwdriver, lift with the electronics. and press down fully to re- the lid which is Replace the CR2032 engage all 4 snap fits.

  • Page 32: Servicing

    SERVICING Do not attempt to service the SmartLink yourself, OR dismantle, modify or repair the SmartLink yourself; this will void your warranty. If your SmartLink requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance. FAQS AND TROUBLESHOOTING Need more help troubleshooting your ProSmart? Refer to our website for more information at teambmpro.com/technical-support...

  • Page 34: Specifications

    SPECIFICATIONS SmartLink Input Voltage Range 8V to 16V Battery Drain < 20mA Ambient Temperature -20°C to 60°C (-4°F to 140°F) Dimensions (mm) 156 x 76 x 23 Wired temperature Sensor Temperature Measurement Range -20°C to 60°C (-4°F to 140°F) SmartPressure Sensor Maximum Operating Pressure 99 PSI (680 kPA) SmartTemp Sensor...

  • Page 36: Compliance

    • Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modifications not expressly approved by BMPRO could void the user’s authority to operate this equipment. This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
  • Page 37 The full text of the UK and EU declaration of conformity is available at teambmpro.com/wp-content/ uploads/eu-and-uk-declaration-of-conformity.pdf For the following equipment: Product Name: SmartPressure Sensor Brand Name: BMPRO Model No.: RVTYR201 Setec BMPRO Pty Ltd Frequency Range: 2402-2480MHz RF Output Power: -34.36dBm (EIRP)

  • Page 38: Warranty Terms And Conditions (Australia)

    5. BMPRO may seek reimbursement of any costs incurred by BMPRO when a product is found to be in proper working order or damaged as a result of any of the warranty exclusions mentioned in point 6.

  • Page 39: Limited Warranty Terms And Conditions (Usa)

    LIMITED WARRANTY TERMS AND CONDITIONS (USA) Registering your BMPRO product is an important step to ensure that you receive all the benefits you are entitled to. Please visit teambmpro.com to complete the online registration form for your new product today.
  • Page 40 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
