1. SCOPE

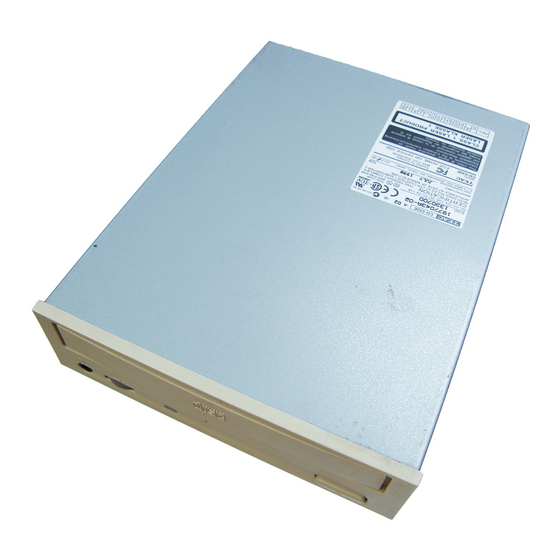

This specification applies to the TEAC CD-532E CD-ROM drive (hereinafter referred to as the unit or
CD-ROM drive).
2. GENERAL

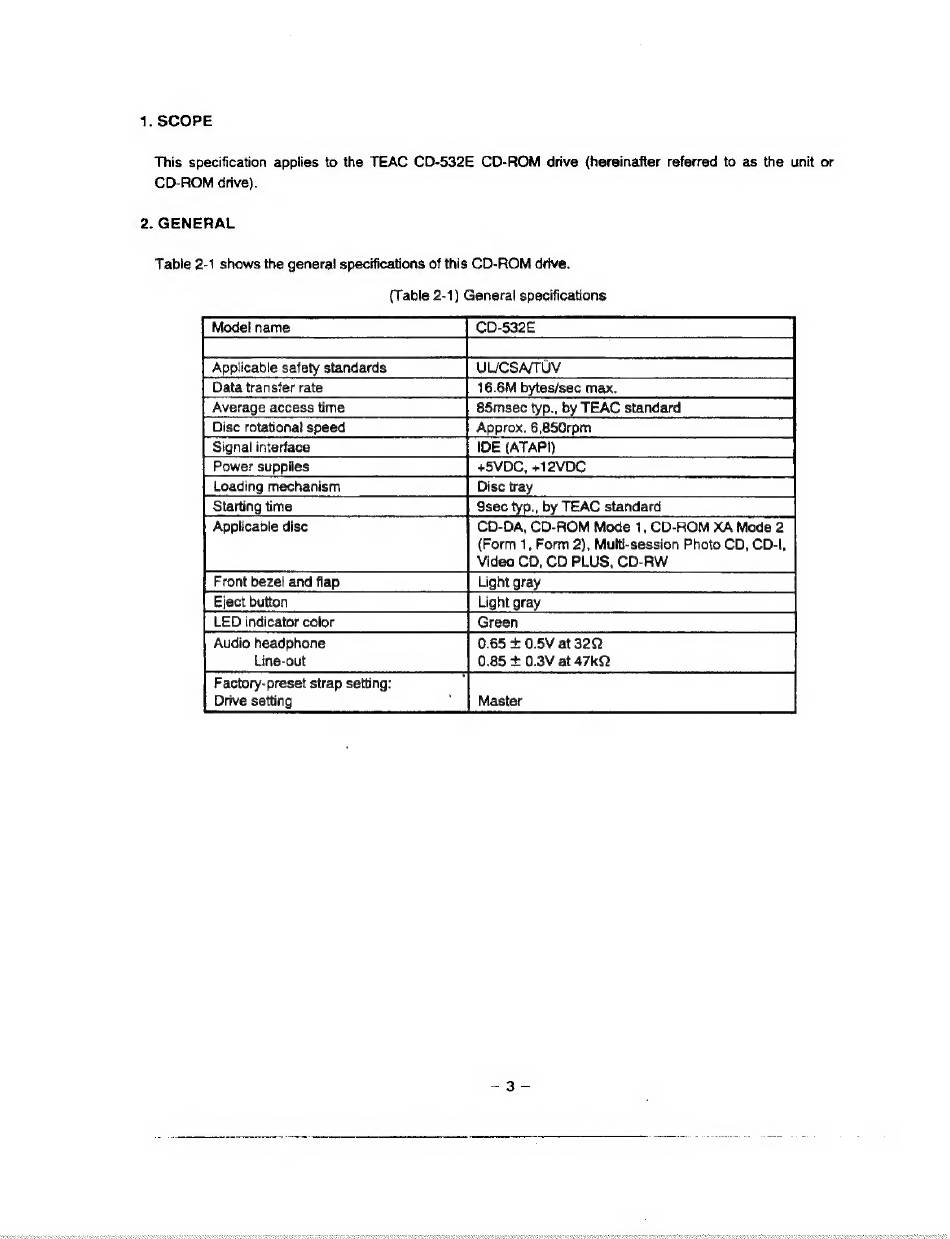

Table 2-1 shows the general specifications of this CD-ROM drive.
(Table 2-1) General specifications
Mode! name
CD-532E
Applicable safety standards
Data transfer rate
16.6M bytes/sec max.
Signal interface
IDE (ATAPI)
Power supplies
Loading mechanism
Disc tray
Starting time
9sec typ., by TEAC standard
Applicable disc
CD-DA, CD-ROM Mode 1, CD-ROM XA Mode 2
(Form 1, Form 2), Multi-session Photo CD, CD-l,
Video CD, CD PLUS, CD-RW
Front bezel and flap
Eject button
LED indicator color
Audio headphone
0.65 + 0.5V at 32Q
Line-out
0.85 + 0.3V at 47kQ
Factory-preset strap setting:
:
Drive setting
'
