Teac CD-516E Manual

1. SCOPE

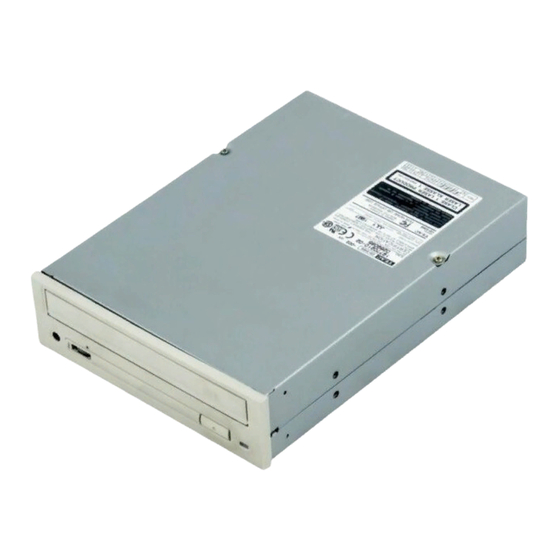

This specification applies to the TEAC CD-516E CD-ROM drive (hereinafter referred to as the unit or
CD-ROM drive).
2. GENERAL
Table 2-1 shows the general specifications of this CD-ROM drive.
(Table 2-1) General specifications
Model name CD-516E
TEAC P/N 19770220-02
Applicable safety standards UL/CSA/TUV
Data transfer rate 16.6M bytes/sec max.
Average access time 150msec typ., by TEAC standard
Disc rotational speed (Z-CLV mode)
3,620rpm (outer tracks)
Power supplies +5VDC, +12VDC
Loading mechanism
Starting time
Applicable disc CD-DA, CD-ROM Mode 1, CD-ROM XA Mode 2
(Form 1, Form 2), Multi-session Photo CD, CD-I,
Video CD, CD PLUS
Front bezel and flap
Eject button
LED indicator color Amber
Audio headphone 0.65 + 0.5V at 322
Line-out 0.85 + 0.3V at 47kQ
Factory-preset strap setting:
Drive setting
Master
