Installation Instructions
ED3200A Series
Rim Type Exit Device
FM368 (05/14)
Single Door
DOOR
Vertical
Centerline
of Active Case
RIM STRIKE

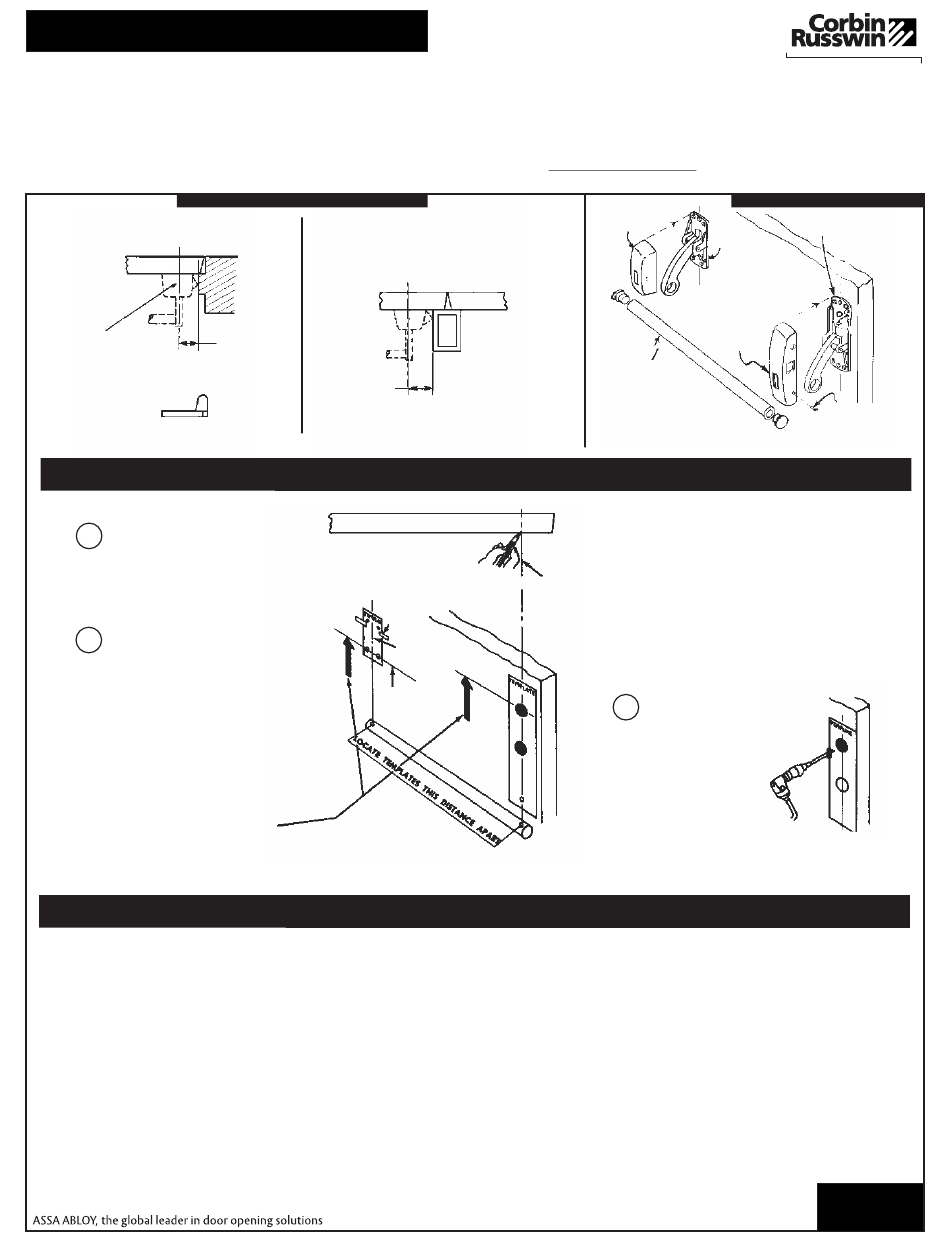

1. Place Template & Drill Holes
Mark vertical centerline
A
on door according to type of
installation and strike used.
See illustrations above.
Locate and place templates
B
as follows:
1. Locate and stick active case template
on door.
2. Using cross bar hole centers for
measuring, locate vertical centerline
of inactive case. (See dimensions on
template to obtain correct height from
finished floor.)
Obtain Dimension To
Finished Floor From
Template
2. Mount Chassis
Remove cover from active case chassis and mount chassis to door.
Note: To remove or install active case cover, depress latch
bolt, cover may now be removed or installed.
FM368 (05/14)
TYPES OF INSTALLATION
Double Doors With
Vertical Centerline
of Active Case
2-1/4"
2-1/4"
USE RIM STRIKE
Inside Face of Door
Tape
Vertical C
of Inactive Case
Horizontal C
of Inactive
Case Holes
In U.S.:
Corbin Russwin, Inc.
225 Episcopal Road
Berlin, CT 06037 USA
www.corbinrusswin.com
Technical Product Support: Phone: 888-607-5703
908A Mullion
Install
Mullion
Before
Installing
Exit Device
Vertical Centerline
of Active Case
L
L
Inside
Face of
Door
Copyright © 2014 Corbin Russwin Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
In Canada:
ASSA ABLOY Door Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario, Canada L4K4T9
www.assaabloy.ca
IDENTIFICATION OF PARTS
Inactive Case
Cover
Inactive
Case
Chassis
Active Case
Cover
Cross Bar
Drill and cut holes
C
as directed on template.
®
ASSA ABLOY
Active Case
Chassis
Cover
Mounting
Screws
1 of 2
