OPERATING INSTRUCTION
Zone-Lux
®
© MECON GmbH BA/ Zone-Lux
/ EN / 23-05
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zone-Lux and is the answer not in the manual?

Questions and answers

Summary of Contents for Mecon Zone-Lux

  • Page 1 OPERATING INSTRUCTION Zone-Lux ® © MECON GmbH BA/ Zone-Lux / EN / 23-05 ®...
  • Page 2 IMPRINT All rights reserved. Without the prior written authorisation of MECON GmbH every form of reproduction of this documentation, regardless of method, including excerpts, is for- bidden. We reserve the right to make changes without prior notice. Copyright 2023 by MECON GmbH - Roentgenstr. 105 - 50169 Kerpen - Germany...
  • Page 3: Table Of Contents

    5.1.2 Main pipe ..........................16 5.1.3 Key switch ..........................17 SERVICE ......................... 18 6.1 Storage ..........................18 6.2 Maintenance ........................18 6.3 Returning the testing system to the manufacturer ..........18 6.4 Disposal ..........................19 6.5 Troubleshooting ......................... 19 6.6 Protection and safety related to electrical equipment..........19 © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 4: Safety Instructions

    If you return testing systems to MECON GmbH, please observe the “form for device returns“ in the Inter- net under www.mecon.de/en/device-returns/. Repairs or inspection by MECON GmbH are not possible without this fully completed form.
  • Page 5: Approvals

    1.4 Safety instructions of the manufacturer The manufacturer is not liable for damages of any kind caused by use of the testing sys- tem, including, but not limited to damage and consequential damage occurring directly, indirectly, and incidentally. For every product purchased from the manufacturer the warranty applies, according to the relevant product documentation and the general terms and conditions. The manufacturer reserves the right to revise the content of the documents, including this disclaimer, without prior notice, and is not liable in any way for possible consequenc- es of such changes. © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 6: Risk Assessment

    To prevent injury to the user or damage to the testing system, it is necessary that you read the information in this manual carefully before starting to use the testing system. This manual is intended for both correct installation as well as for operation and mainte- nance of the testing system. 1.5 Risk assessment When correctly installed and operated as intended the Zone-Lux has no influence on the ® effectiveness of the extinguishing system. Accidental activation of the pump for testing the flow switch can lead to a false alarm.
  • Page 7: Scope Of The Testing System

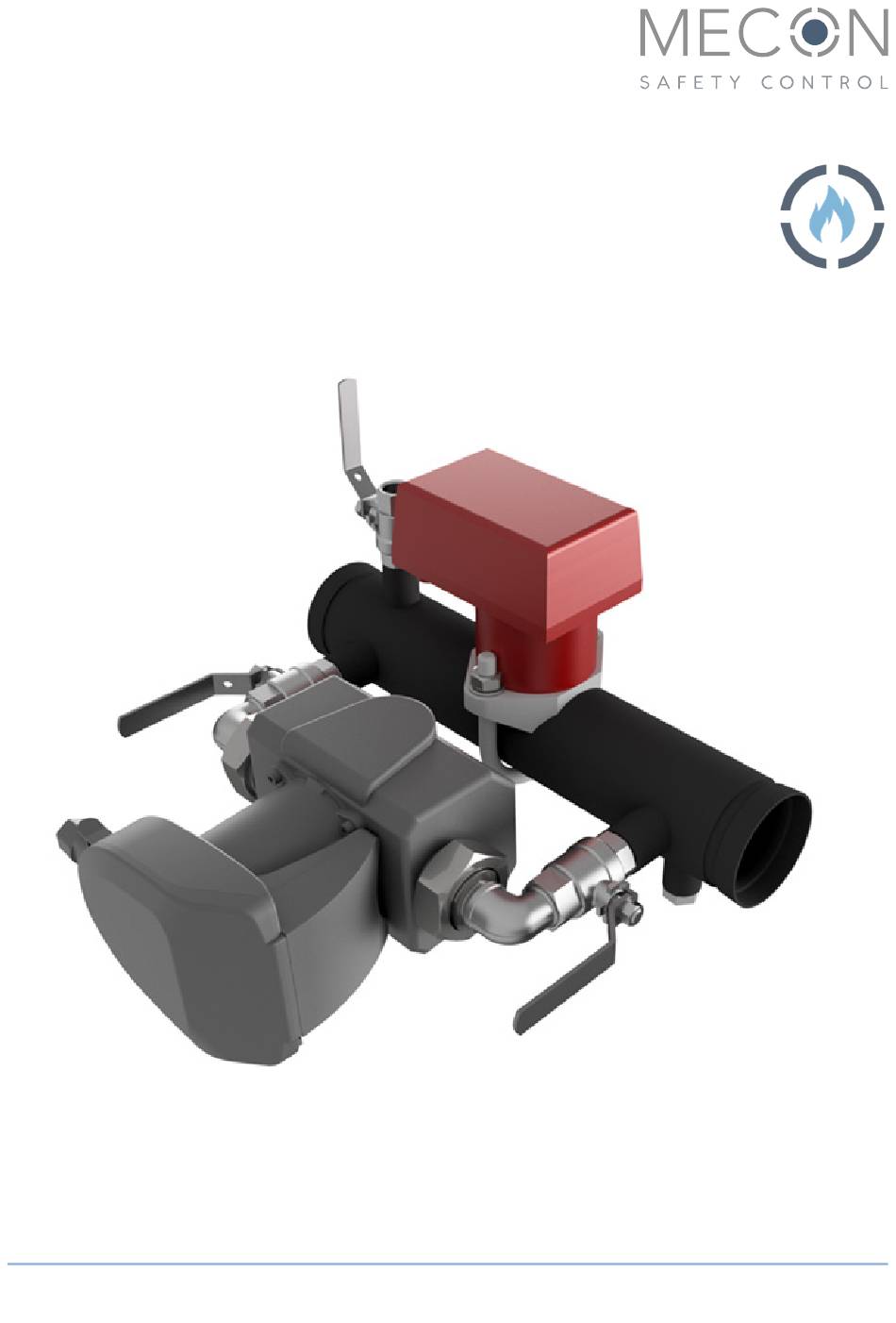

    SCOPE OF THE TESTING SYSTEM 2 SCOPE OF THE TESTING SYSTEM 2.1 Scope of delivery • Zone-Lux (main pipe with flow switch and pump) ® • Operating manuals • Key switches (optional) 2.2 Nameplate Type Serial no. Nominal size and process connection Fig. 1 Name plate © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 8: Installation And Mode Of Operation

    VdS-approved pipe couplings from the manufacturers Anvil (all Gruvlok mechanical grooved pipe couplings), Jinan Meide (casting couplings type 1G), Minimax, Modgal, Tyco (all Grinell Mechanical and G-Fire steel IPS pipe couplings) and Victaulic. © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 9: Installation

    INSTALLATION AND MODE OF OPERATION 3.2 Installation A gap corresponding to the installation dimension must be provided for between the pipe ends of the sprinkler group where the Zone-Lux is installed. The pipe ends must be ® parallel. The additional weight is to be taken into account with the pipe brackets. Installation in the piping of the sprinkler system is done with the help of couplings that are certified for use in sprinkler systems. The certified couplings are to be mounted according to the manufacturer’s instructions. The delay time of the flow switch can be configured with the help of the manufacturer’s data sheet. It may not exceed the maximum delay time specified in the installation guide- lines that are used. For the nominal sizes DN150 and DN200 the pump of the Zone-Lux ® requires a start-up time of approx. 15 seconds; this must be taken into account when configuring the delay...
  • Page 10 » Ball valve, 3/4 internal/external thread » » 90° elbow, 3/4 internal/external thread » » Dummy plug 1/2 » » Ball valve, 1/2 internal/external thread » » Union nut 1 1/2 » » Backflow preventer Tab. 1 Zone-Lux components ® © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 11: Horizontal Mounting

    / right 3.4 Vertical mounting Fig. 5 Vertical mounting, main pipe Fig. 6 Vertical mounting, main pipe piping flow direction right / left piping flow direction left / right © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 12: Electrical Installation

    For work on the electrical installation specialized skills are required. For this reason, such work may only be performed by trained and qualified electricians. 3.5.2 Pump and flow detector/flow switch connection The pump and flow detector/flow switch are to be connected according to the supplied documents. 3.5.3 Connecting the Zone-Lux to the key switch ® Fig. 7 Key switch connection diagram © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 13: Commissioning

    Fig. 8 Overview of main pipe commissioning It is necessary to vent air in the bypass line with the pump. » A suitable hose is to be connected to the air-venting valve (1), to catch any water that escapes. » Open the shut-off valves (2) and (4). » Open the air-venting valve (1) until water escapes, then close it. » Perform test cycle on Zone-Lux ® » If the pump does not run smoothly or if the flow switch does not trigger, vent the air again. © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 14: Performing A Test Cycle With The Zone-Lux

    Air-venting valve (1) closed (pictured open) Water-venting valve (3) closed (pictured open) Shut-off valves (2) and (4) open. » Check the system for leaks. 4.1 Performing a test cycle with the Zone-Lux ® Fig. 9 Cover of key switch Rotate the key switch to the “On” position; the red LED lights up and the pump of the Zone-Lux is switched on. ® Feedback from the flow switch is expected within 2 minutes (closed contact on the orange terminals (see Fig. 7)). Once the flow switch trips, the green LED also lights up. The flow switch is only OK if both LEDs light up simultaneously. Ensure that you check whether the relevant fire alarm arrives at the fire alarm control panel. If this is the case, the test was a success and you can set the key switch to the “Off” position. The key can only be pulled out in position “Off”! © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 15: Technical Specifications

    Two SPDT devices (Form C) » 10.0 A at 125/250 V AC » 2.0 A at 30 V DC resistance » 10 mA min. at 24 V DC Tab. 2 Technical specifications © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 16: Dimensions And Weights

    DN 150 » 168.3 approx. 15.5 » DN 200 » 219.1 approx. 22.0 External diameter info, A, B and C in mm Tab. 3 Dimensions and weights The pipe length of the Zone-Lux is 400 mm (for the nominal sizes DN 50 ... DN 150, ® 50 mm long adapter pieces can optionally be ordered). © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 17: Key Switch

    TECHNICAL SPECIFICATIONS 5.1.3 Key switch Fig. 11 Key switch dimensions Key switch Weight (kg) » Weight » approx. 0.8 © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
  • Page 18: Service

    ® with this manual. Should it be necessary to return the testing system to MECON GmbH despite this, the following must be observed: Attention! For legal reasons related to environmental protection and work safety, and...
  • Page 19: Disposal

    No hazard due to temperature, heat radiation or electric arcs exists. The restrictions for the ambient conditions and conditions of use and the fasteners/ mounts as well as installation of the components/housing assume that no mechanical hazards occur and the electric equipment can withstand the expected loads. If the suitable, specified cable is used, sufficiently safe insulation can be assumed. © MECON GmbH BA/ Zone-Lux® / EN / 23-05...
