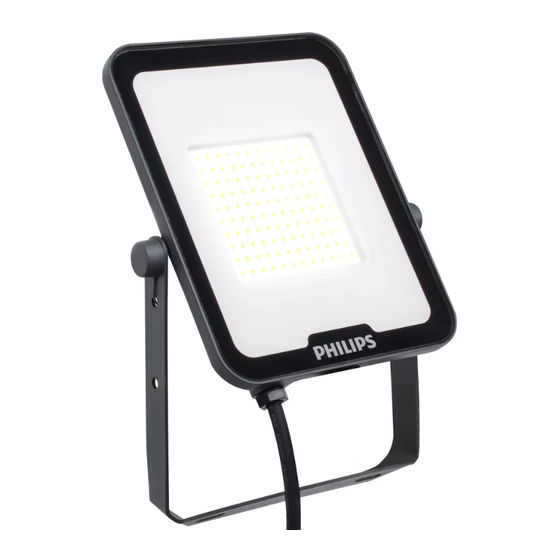

Philips BVP151 LED12/WW PSU 10W SWB MDU G2 GM Mounting Instructions

LED Floodlight
BVP151
Mounting Instructions
IP65
Type / Tipe/ Loại /
ร /Тип/Түрі/‫رﻗﻢ اﻟﻨﻮع‬ น  ุ
BVP151 LED12/WW PSU 10W SWB MDU G2 GM
BVP151 LED12/NW PSU 10W SWB MDU G2 GM
BVP151 LED12/CW PSU 10W SWB MDU G2 GM
BVP151 LED24/WW PSU 20W SWB MDU G2 GM
BVP151 LED24/NW PSU 20W SWB MDU G2 GM
BVP151 LED24/CW PSU 20W SWB MDU G2 GM
BVP151 LED36/WW PSU 30W SWB MDU G2 GM
BVP151 LED36/NW PSU 30W SWB MDU G2 GM
BVP151 LED36/CW PSU 30W SWB MDU G2 GM
BVP151 LED60/WW PSU 50W SWB MDU G2 GM
BVP151 LED60/NW PSU 50W SWB MDU G2 GM
BVP151 LED60/CW PSU 50W SWB MDU G2 GM
BVP151 LED84/WW PSU 70W SWB MDU G2 GM
BVP151 LED84/NW PSU 70W SWB MDU G2 GM
BVP151 LED84/CW PSU 70W SWB MDU G2 GM
A
10W/20W/30W/50W
without buckle
70W with buckle
B
The exposed wire length ：10/20/30/50/70W 1000mm
Panjang kabel yang terekspos: 10/20/30/50/70W 1000mm
e
d
a
b
c
b
a
d
c
e
Run Current (A)
Type
(@230V)
Tipe Produk Arus
BVP151 10W 0.055
BVP151 20W 0.1
BVP151 30W 0.15
BVP151 50W 0.25
BVP151 70W 0.35
The leakage current *(touch current or protective conductor current) of electrical circuit may be greatly dependent upon electrical supply cables used such as its rating and length, proper
connection of electrical supply cables to luminaires and wiring connection topology of luminaires to the supply electrical circuit amongst other site conditions.
* In some cases referred to as Earth Leakage Current.
Kebocoran arus *(arus awal atau arus konduktor pelindung) dari sirkuit listrik sangat bergantung kepada kabel suplai listrik seperti tingkat, panjang, koneksi yang memadai dari kabel suplai listrik ke
rumah lampu dan topologi koneksi kabel dari rumah lampu ke suplai sirkuit listrik diantara keadaan lain.
*dalam beberapa kasus dapat mengacu kepada kebocoran arus dalam tanah.
Fasten the bolt
Torque : Nm
1 0W 20W 30W
Torque(Nm)
3 3 3
Install the luminaire according to the national regulation
and make sure it will not fall off.
Pasang rumah lampu sesuai dengan regulasi standar nasional
dan pastikan lampu tidak jatuh.
Signify Luminaires (Shanghai) Co., Ltd.
Address: 2F, Building 6, No. 1805, Huyi Highway, Malu Town, Jiading
District, Shanghai, P.R. China
Postal code: 201801
Power(W)/Daya/
CCT
Công suất/กํ า ลั ง ไฟฟ า /
LEDs
(K) Мощность/Потужність
/Қуат/‫اﻟﻄﺎﻗﺔ‬
3000K
4000K 10W 36
6500K
3000K
4000K 20W 60
6500K
3000K
4000K 30W 90
6500K
3000K
4000K 50W 120
6500K
3000K
4000K 70W 170
6500K
D
C
Type 10W 20W 30W 50W 70W
4.2 4.2 4.5 6.5 6.5
4.2 4.2 4.5 6.5 6.5
Ø Ø Ø Ø Ø
79 97 133 173 203
35 50 70 90 110
45 60 85 110 130
Start (Inrush) Current(A)
/ Ipeak (A)
Arus Masuk
0.78
1.1
1.22
1.68
3.64
Working mode
0º~360º
Sensor mode
50W 70W
Non-Sensor mode (always "ON")
8 8
1.Turn on the light
2.After 5 seconds, quickly switch "OFF – ON" two cycles
3.Product will go into non-sensor mode.
Back to sensor mode: turn off the light, wait for >10 seconds.
X>0m
0.0m
Lumen Output (lm)/Lumen Dimension / Dimensi
keluaran/Quang thông (lm) /Kích thước /ขนาดโคม
/ลู เ มน/Световой поток
/Размеры/Розміри
/Світловий потік
/Өлшемдері/‫اﻻﺑﻌﺎد‬
/Жарық ағыны/‫ﻃﺎﻗﺔ اﻻﺿﺎﺋﺔ‬
AxBxCxD (mm)
1100lm
63.8x155x52x82.8
1200lm
2200lm
82x172x52x100
2400lm
3300lm
117x220x53x145
3600lm
5500lm
150x263x53x185
6000lm
7700lm
175x293x53x215
8400lm
H05RN-F 3x1.0 mm²
60245IEC57
N: Blue
L : Brown
GND:Yellow-Green
Always use IP65 or higher IP rated junction box/connector for wiring connection.
The Luminaire should never be used in submerged wet conditions e.g. under water, soil, snow etc.
The wiring connection should also never be used in submerged wet conditions e.g. water, soil, snow etc.
OR use IP68 junction box.
The warranty is void, in case any of the instructions / guidelines are not followed as per given mounting instruction.
This product is not supplied with any junction box / connector.
For further clarification, please contact the manufacturer.
* Touch current or
Start Current Duration ( s) /
protective conductor
T(@50% of Ipeak) ( s)
current (mA)
Arus awal atau arus konduktor
Durasi arus masuk
6.48
7.4
7.2
8.2
22.2
The product will light up when people pass by.
Reduction Revolution Pty Ltd
www.reductionrevolution.com.au/LED
Voltage/Tegangan
/Điện áp/โวลต
Напряжение
(m² )
/Напруга/Кернеу
Eng: Projected Area
/‫اﻟﺠﮭﺪ‬
ID: Area Proyeksi
0.005 0.29
0.008 0.38
220-240V~
0.017 0.63
0.028 0.89
0.038 1.09
IP65 Junction Box
Kotak Penghubung IP65
50
The terminal block should be
34
complying with EN60998-2-
8
1/EN60998-2-2
Maximum Number of
Luminaire on MCB 16A
Type B (pcs)
Jumlah maksimal rumah lampu
pelindung
pada MCB 16A tipe B (pcs)
<3.5 218
<3.5 109
<3.5 73
<3.5 44
<3.5 31
Detection range
Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.
Distributed by:
1
Frequency
/Frekuensi
/Tần số Surge rating
/ความถี ่ / Частота
Kisaran lonjakan
/Кернеу/‫اﻟﺘﺮدد‬
50/60Hz 2KV/2KV
Maximum Number of
Luminaire on MCB 16A
Type C (pcs)
Jumlah maksimal rumah lampu
pada MC 16A tipe C (pcs)
254
127
85
51
36
