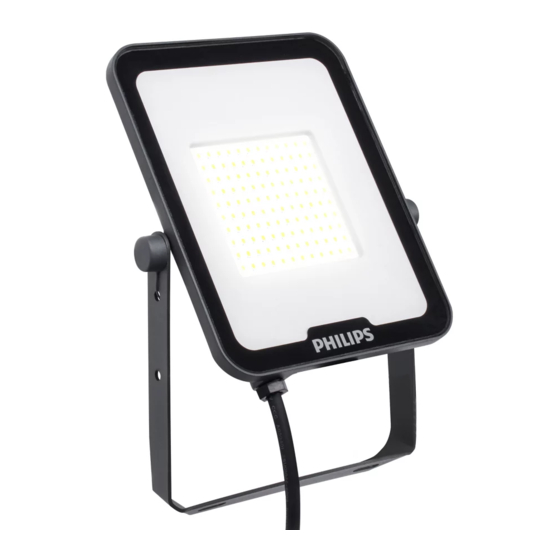

Philips BVP151 10W Mounting Instructions

LED Floodlight / LED 投光灯
BVP151
Mounting Instructions / 安装说明书
IP65
Product Type
/产品型号
BVP151 LED12/WW PSU 10W SWB G3 CN
BVP151 LED12/NW PSU 10W SWB G3 CN
BVP151 LED12/CW PSU 10W SWB G3 CN
BVP151 LED24/WW PSU 20W SWB G3 CN
BVP151 LED24/NW PSU 20W SWB G3 CN
BVP151 LED24/CW PSU 20W SWB G3 CN
BVP151 LED36/WW PSU 30W SWB G3 CN
BVP151 LED36/NW PSU 30W SWB G3 CN
BVP151 LED36/CW PSU 30W SWB G3 CN
BVP151 LED60/WW PSU 50W SWB G3 CN
BVP151 LED60/NW PSU 50W SWB G3 CN
BVP151 LED60/CW PSU 50W SWB G3 CN
BVP151 LED84/WW PSU 70W SWB G3 CN
BVP151 LED84/NW PSU 70W SWB G3 CN
BVP151 LED84/CW PSU 70W SWB G3 CN
BVP151 LED120/WW PSU 100W SWB G3 CN
BVP151 LED120/NW PSU 100W SWB G3 CN
BVP151 LED120/CW PSU 100W SWB G3 CN
BVP151 LED180/WW PSU 150W SWB G3 CN
BVP151 LED180/NW PSU 150W SWB G3 CN
BVP151 LED180/CW PSU 150W SWB G3 CN
BVP151 LED240/WW PSU 200W SWB G3 CN
BVP151 LED240/NW PSU 200W SWB G3 CN
BVP151 LED240/CW PSU 200W SWB G3 CN
This product contains a light source of energy efficiency class: F for 3000K, E for 4000K & 6500K.
A
10W/20W/30W/50W
without buckle
70W/100W/150W/200W
with buckle
B
The exposed wire length ：： 10/20/30/50/70/100/150/200W 1000mm
外露导线长度
b
a
c
d
e
Type 10W 20W 30W 50W
a (mm) 35 50 70
b (mm) 45 60 85 110
c (mm) Ø 4.2 Ø 4.2 Ø 4.5 Ø
d (mm) 4.2 4.2 4.5
e (mm) 79 97 133
Fasten the bolt
/锁紧两侧紧固螺钉
Torque : Nm
扭矩：Nm
10W 20W
Torque(Nm)
2 2
扭矩 (Nm)
Signify Luminaires (Shanghai) Co., Ltd.
Address: 2F, Building 1, No. 2555 Hechuan Road, Minhang District, Shanghai, P.R. China
Postal code: 200233
昕诺飞灯具（上海）有限公司
地址：上海市闵行区合川路2555号1幢二楼
邮编：200233
CCT (K) Power(W)
LEDs
/色温 /功率
3000
4000 10 36
6500
3000
4000 20 60
6500
3000
4000 30 90
6500
3000
4000 50 120
6500
3000
4000 70 170
6500
3000
4000 100 216
6500
3000
4000 150 320
6500
3000
200 440
4000
6500
C
不带卡扣
带卡扣
D
70W 100W 150W 200W
90 110 110 150 210
130 130 180 240
6.5 Ø 6.5 Ø 8.5 Ø 10.5 Ø 10.5
6.5 6.5 8.5 10.5 10.5
173 203 220 282 336
30W 50W 70W 100W 0 150W
2 8 8 15
X>0m
0.0m
Lumen Output (lm)
Dimension(mm) / 尺寸
AxBxCxD(mm)
/流明输出 (lm)
1100
64x110x25.5x82.8
1200
2200
82x130x25.5x100
2400
3300
117x182x25.5x145
3600
5500
150x232x27x185
6000
7700
175x284x29x215
8400
11000
185x311.6x34.7x244
12000
16500
242x408.9x34.2x320
18000
22000
296x482.1x37x380
24000
该产品包含能效等级的光源：3000K是F，4000K和6500K是E。
H05RN-F 3x1.0 mm²
60245IEC57
N: Blue/蓝色
L : Brown/棕色
GND:Yellow-Green/黄色-绿色
Always use min IP65 or higher IP rated junction box/ connector for direct wiring connection with luminaire.
The Luminaire should never be used in submerged wet conditions e.g. under water, soil, snow etc.
The wiring connection should also never be used in submerged wet conditions e.g. water, soil, snow etc.
OR use IP68 junction box.
The warranty is void, in case any of the instructions / guidelines are not followed as per given mounting instruction.
This product is not supplied with any junction box / connector.
For further clarification, please contact the manufacturer.
与灯具直接连接时需要IP65或更高IP等级的接线盒/连接头；
请勿将灯具浸没在潮湿的环境中使用，例如： 水，土壤，雪等；
请勿将接线部位浸没在潮湿的环境中使用，例如： 水，土壤，雪等。如果无法避免，请使用IP68防护；
如果未使用IP65或更高IP等级的接线盒/连接头，本灯具会发生故障，且产品不适用质保政策；
本灯具不提供IP65接线盒/连接头；
如需进一步的说明，请联系制造商。
200W
25 25
Voltage
/电压
(m² )
0.005 0.25
0.008 0.31
0.017 0.54
0.028 0.80
220-240V~
0.038 1.23
0.045 1.79
0.077 2.90
0.112 4.12
IP65 Junction Box
Min IP65 OR
The terminal block should be complying
50
with GB13140.2/GB13140.3
34
/接线端子符合标准：
8
GB13140.2/GB13140.3
Install the luminaire according to the national regulation
and make sure it will not fall off.
按照国家标准安装固定好灯具，确保其不会掉落。
Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.
V1.1
Frequency Surge rating
/频率 /浪涌
2KV/2KV
50/60Hz
4KV/4KV
IP65
/ 接线盒
0º~360º
