Installation Of Module M.2 2242 - techBite ZIN 2 User Manual

© 2020 techBite. ZIN 14.1 -EN

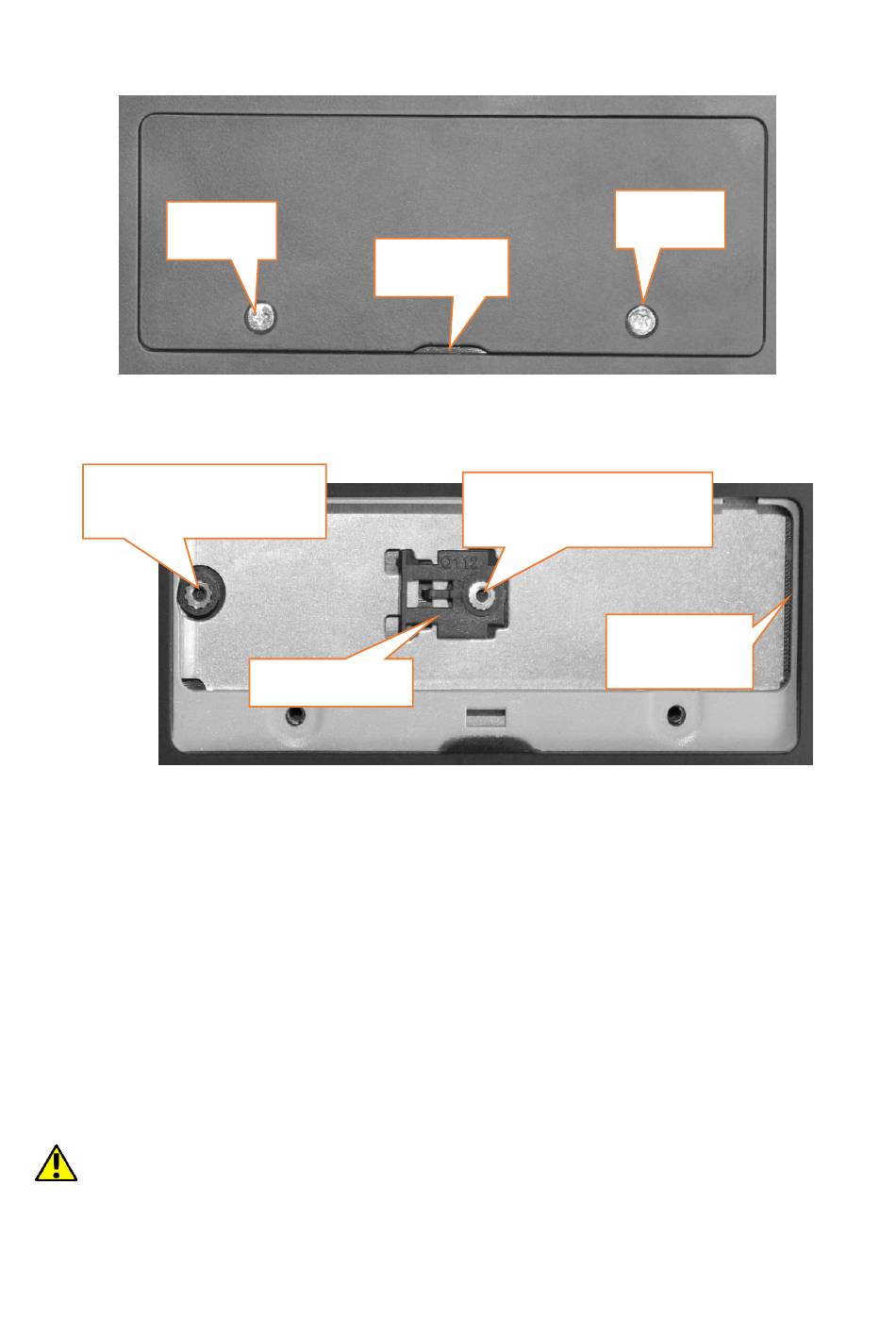

Locate the memory cover. It has two screws.
a Screw
a Screw
Cut-out
Unscrew both screws with a small crosshead screwdriver. Gently raise the cover
at the cut-out location and lift it off.
Protection for
Protection for
module M.2 2280
module M.2 2242
M.2 B
Socket
Limiter

10.1 Installation of module M.2 2242

Loosen the protective screw of the limiter. Slide the M.2 2242 into the connector
gently so that the cut-out in the module fits into the socket. Secure the module
by gently screwing it to the housing. Replace the compartment cover and tighten
the screws that secure it.
With the help of the tool located in:
Control panel \ All elements of the control panel \ Administrative tools \ Computer
management \ Disk management
you can create and delete partitions on the new disc. Once you have set up your
operating system partition, find the new disc and format it according to your
preferences.
We strongly advise against any manipulation of the parameters of " Disc 0 ",
which is a system disc, as any problems caused by interference in its structure may
result in voiding the warranty.
