Summary of Contents for Proton DTP-2208

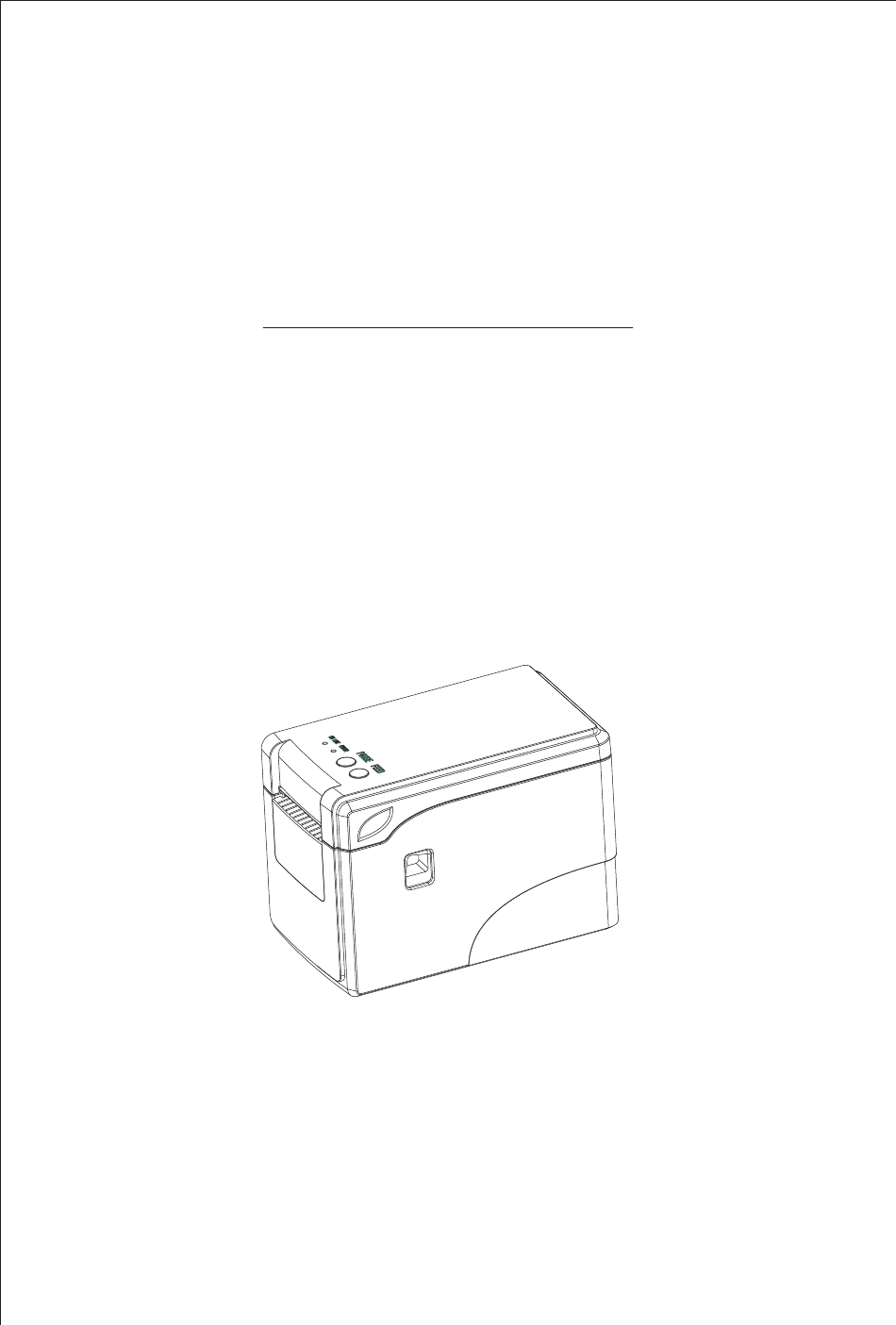

- Page 1 User’s Manual Thermal Barcode Printer DTP-2208...
-
Page 2: Table Of Contents
1. Introduction....................2 1.1 Safety Warning ......................2 1.2 Note ...........................2 2. General Information ................3 2.1 Introduction ........................3 2.2 Main Features ......................3 3. Printer Parts ...................3 4. Paper Roll Installation ................5 5. Specification ...................8 6. Quick Start .....................10 6.1 Unpacking ........................10 6.2 Power Cable Connection ..................10 6.3 Data Cable Connection ....................10 6.4 Media Installation .....................10 7. -
Page 3: Introduction
Thanks for choosing our new thermal label printer DTP-2208. This product provides reliable performance and high printing quality at economic price. With powerful functions and easy operation design, DTP-2208 is your best choice of thermal label printer. CAUTION, NOTE CAUTION: MUST COMPLY, OTHERWISE HUMAN GET HARM AND DEVICES DAMAGE. -
Page 4: General Information
2 、General Information 2.1 Introduction DTP-2208 is designed for real-time and batch label printing, which is applicable in the field of transportation, logistics, post, retail sale, and etc. The printer can be connected with other equipment with various interface cards, such as Serial, USB ,It supports different paper media, including thermal paper roll, thermal label paper and sticker paper. - Page 5 Thermal Barcode Printer...
-
Page 6: Paper Roll Installation
4. Paper Roll Installation (1) Insert the paper roll spindle into paper roll, and put it into printer hollow, then fix it correctly into the spindle slot inside the printer. ② Insert the paper roll spindle into the paper roll, and adjust the spindle position to make it in the center of the paper roll. - Page 7 ③ Fix the paper roll into slot and pay attention that label paper should be facing up as picture showing. Thermal Barcode Printer...
-
Page 8: Specification
SPECIFICATIONS Parameter Printing method Direct Thermal Resolution 203DPI Print width 2inch Print speed Max. 127mm/s; Min. 101mm/s Memory DRAM: 2M FLASH: 2M Print Print head Thermal Sensitive Resistance temperature sensor Print head Microswitch position sensor Paper Presence Photoelectricity sensor sensor (RS-232) Interface Serial... -
Page 9: Quick Start
6 . Quick Start 6.1 Unpacking Open the printer package and check the printer parts according to packing list. If any parts are missing or damaged, please contact the local distributor. 6.2 Power Cable Connection 12V DC 1） Make sure the printer power switch is OFF; 2）The printer power jack is a 3-pin socket and for 12V DC power input. -
Page 10: Gap Sensor Calibration
Self-test Page Sample: VERSION：V1.0..........Firmware version INTERFACE：USB...........Interface type SPEED：5............Print speed DENSITY：7.............Print darkness SIZE： 48 mm ，180 mm ........Paper width GAP： 0 mm ，0 mm ........Gap distance CODE PAGE：437 .........Code page MILAGE（m）：0..........Printed mileage (meter) REFERENCE：0 mm ，0 mm......Reference offset DIRECTION： 0 ， 0.........Print direction SHIFT：0 ............Label print offset OFFSET：0 ............Paper tear-off offset Printer functions ********************************************************... -
Page 11: Skip Auto.bas
This function is to reset the label gap sensor sensitivity when the printer power is turned on. User needs to start the calibration of the gap sensor sensitivity after loading a different type of label roll or the printer is initialized. Please follow the steps below to calibrate the gap sensor: 1. -
Page 12: Printer Initialization
7.5 Printer Initialization Printer initialization is used to clear DRAM and restore printer settings to defaults. Please do the gap sensor sensitivity calibration after the printer initialization. Please follow the steps below to initialize the printer: 1. Turn off the printer power. 2. -
Page 13: Maintenance
9. Maintenance 9.1 Printer Cleaning To ensure the printing quality, please proceed this maintenance section to keep your printer in good conditions and extend its life. Please use one of following material to clean the printer: Cotton swab Lint-free cloth Vacuum / Blower brush 100% ethanol The cleaning process is described as following...
