Oryx sca1200th Repair Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

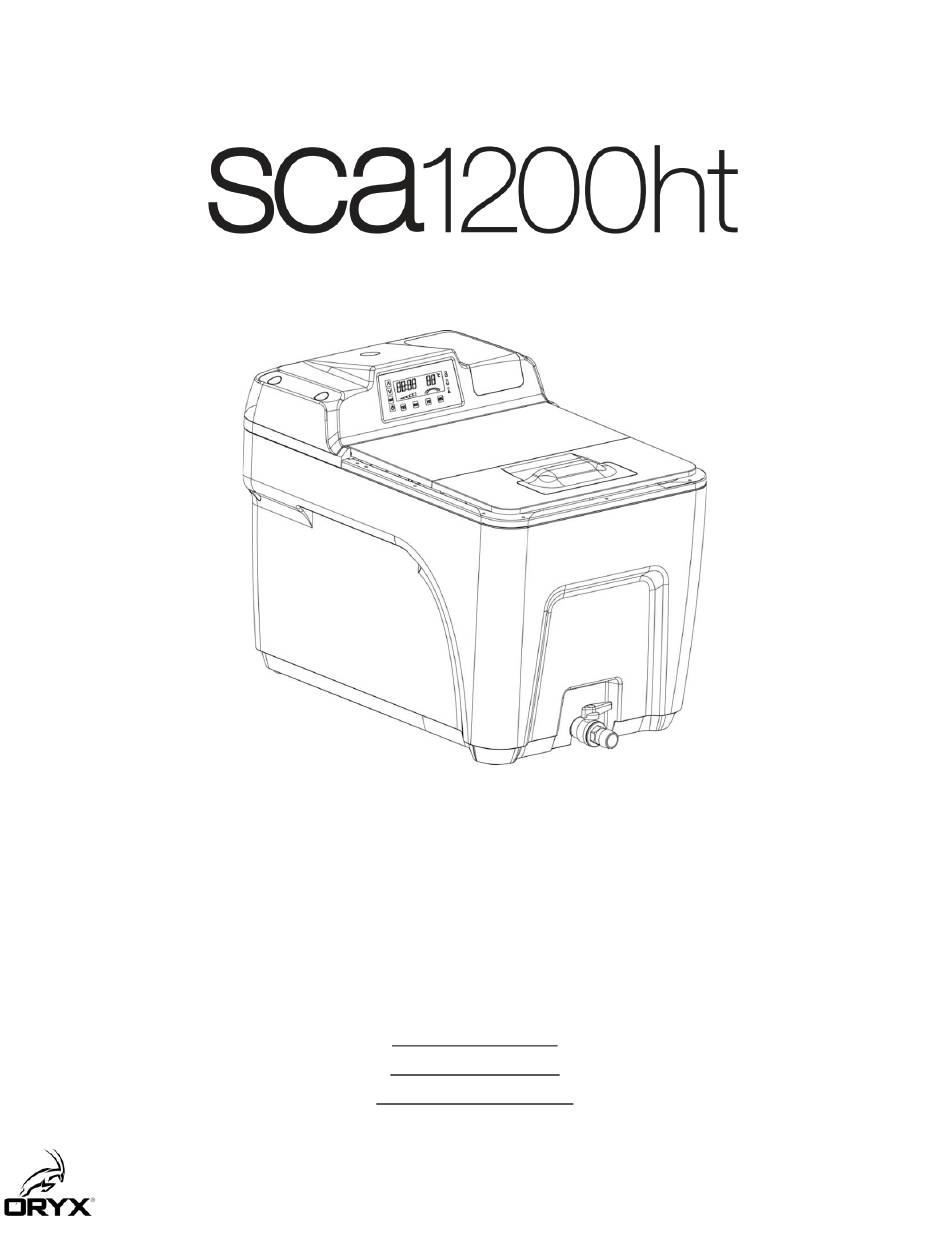

Repair Manual
Oryx Additive Inc.
7755 S. Research Drive Ste. 120
Tempe, AZ 85284
1.833.817.3533
www.OryxAdditive.com
info@OryxAdditive.com
support@OryxAdditive.com
Rev 3.0
August 16, 2024
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sca1200th and is the answer not in the manual?

Questions and answers

Related Manuals for Oryx sca1200th

Summary of Contents for Oryx sca1200th

  • Page 1 Repair Manual Oryx Additive Inc. 7755 S. Research Drive Ste. 120 Tempe, AZ 85284 1.833.817.3533 www.OryxAdditive.com info@OryxAdditive.com support@OryxAdditive.com Rev 3.0 August 16, 2024 - 1 -...
  • Page 2 This page intentionally left blank - 2 -...

  • Page 3: Table Of Contents

    Table of Contents I. PRELIMINARY STEPS ..................... - 5 - II. QUICK TROUBLESHOOTING ................. - 6 - III. REMOVING TOP COVER AND BACK PANEL ............- 9 - A. H ......................- 9 - OW TO EMOVE THE OVER B. H .....................
  • Page 4 B. H F2 2-A 250V F ..................- 23 - OW TO EPLACE THE XII. RESEAT THE CONNECTORS ................- 24 - A. H ............. - 24 - OW TO ESEAT UNPLUG AND PLUG BACK IN ABLE ONNECTORS XIII. TROUBLESHOOTING STEPS ................- 25 - A.

  • Page 5: Preliminary Steps

    I. PRELIMINARY STEPS Follow these steps before attempting to service the SCA Power off and disconnect the SCA from the main power. Allow the SCA to cool completely. Attach a hose to the front valve and drain the tank completely Always disconnect the SCA from the main power and drain the tank completely before servicing.

  • Page 6: Quick Troubleshooting

    II. QUICK TROUBLESHOOTING The SCA has been designed to allow the end user to resolve most operating problems. When a problem is encountered, please read through this troubleshooting section below. The 1200ht Repair Manual can be found on our website at www.oryxadditive.com/products/sca1200ht.
  • Page 7 Problem Possible Causes What to Do Pump will not start PCB Inverter Error, Remove the back panel. Check if the red LED is lit constantly or flashing. If the LED is Defective PCB flashing (See Pump and Transformer Troubleshooting Section XIII A). Transformer is Check the resistance of the Transformer (See Pump and Transformer defective...
  • Page 8 Problem Possible Causes What to Do Bath heats up but Heater Element is Check the resistance of the Heater Element (See Heating Element Troubleshooting does not reach the defective Section XIII B). Set Temperature or Temperature Sensor The Control Panel detects the current temperature of the bath through the takes a long time to defective Temperature Sensor and displays it on the panel.

  • Page 9: Removing Top Cover And Back Panel

    III. REMOVING TOP COVER AND BACK PANEL A. How to Remove the Top Cover 1. Remove the Top Cover Unplug the SCA from power and pry out the rubber plugs from the Top Cover (See Figure 1). b. Remove the six M5 Phillips head screws holding the Top Cover. Figure 1 –...

  • Page 10: How To Remove The Back Panel

    B. How to Remove the Back Panel 1. Remove the Back Panel Unplug the SCA from power and remove the two M5 screws holding the Back Panel. b. Pull down on the Back Panel and remove (See Figure 3). Figure 3 – Remove Back Panel - 10 -...

  • Page 11: Pump Assembly Replacement

    IV. PUMP ASSEMBLY REPLACEMENT A. How to Remove the Pump Assembly 1. Remove The Top Cover Unplug the SCA from power and remove the Top Cover (See How to Remove the Top Cover Section III A). 2. Remove the Back Panel Remove the Back Panel (See How to Remove the Back Panel Section III B).

  • Page 12: How To Install The Pump Assembly

    NOTE The tray gasket may cause the Pump Assembly to stick to the Bridge. If this happens, loosen the gasket by gently rocking the Pump Assembly back and forth. Figure 6 – Remove the Pump Assembly B. How to Install the Pump Assembly 1.

  • Page 13: Sensor Assembly Replacement

    V. SENSOR ASSEMBLY REPLACEMENT A. How to Remove the Sensor Assembly 1. Remove Top Cover Unplug the Power Cord and remove the top cover (See How to Remove the Top Cover Section III A). 2. Remove the Sensor Assembly Connectors Unplug the three white two-wire connectors for the sensors that are attached to the Connector PCB.

  • Page 14: Spray Nozzle Replacement

    VI. SPRAY NOZZLE REPLACEMENT A. How to Replace the Nozzle 1. Replace the Nozzle The 1200ht has an old-style and a new-style nozzle. b. The old-style nozzle (threaded style [04809-01 Rev A]) was present on SCAs from Serial Numbers HT00001 – HT01974. SCAs after SN HT01974 and new Pumps now have the Bayonet Nozzles included and are not compatible with the older Threaded Nozzles.

  • Page 15: Heater Assembly Replacement

    VII. HEATER ASSEMBLY REPLACEMENT A. How to Remove the Heater Assembly 1. Remove the Top Cover Unplug the SCA from power and remove the top cover (See How to Remove the Top Cover Section III A). 2. Remove the Back Panel Remove the Back Panel (See How to Remove the Back Panel Section III B).

  • Page 16: How To Install The Heater Assembly

    Bridge Cover Hole M5 Screws (4 places) Figure 11 – Top View of SCA with the Top Cover Removed Figure 12 – Remove the Heater Assembly B. How to Install the Heater Assembly 1. Mount the Heater Assembly a. Carefully guide the Heater Assembly through the hole in the Bridge until the plate is seated on the gasket on top of the Bridge.

  • Page 17: Control Panel Replacement

    VIII. CONTROL PANEL REPLACEMENT A. How to Remove the Control Panel 1. Remove the Top Cover Remove the Top Cover (See How to Remove the Top Cover Section III A). 2. Remove the Display Control Panel Turn the cover over and remove the four screws holding the ribbon cable. Tabs Figure 13 –...

  • Page 18: How To Install The Control Panel

    B. How to Install the Control Panel 1. Install the Control Panel a. Thread the ribbon cable through the hole on the front of the top cover where the Control Panel will be mounted. b. Check the orientation of the display and proceed to press the Control Panel into the Top Cover. The Control Panel should snap into place.

  • Page 19: Pcb Assembly Replacement

    IX. PCB ASSEMBLY REPLACEMENT A. How to Remove the PCB Assembly 1. Remove the Back Panel a. Remove the Back Panel (See How to Remove the Back Panel Section III B). 2. Remove the PCB Connectors a. Check to make sure the labels are on the wires connected to the PCB. b.

  • Page 20: How To Install The Pcb Assembly

    B. How to Install the PCB Assembly 1. Mount the PCB Assembly a. Slide the PCB in at an angle and guide the board onto the supports at the bottom. Make sure not to damage any wires as the board is placed. Make sure no wires get behind the board before securing the screws. b.

  • Page 21: Power Switch Replacement

    X. POWER SWITCH REPLACEMENT A. How to Remove the Power Switch (Power Entry Module (PEM)) 1. Remove the Back Panel a. Ensure the power is unplugged from the SCA. b. Remove the Back Panel (See How to Remove the Back Panel Section III B). 2.

  • Page 22: Fuse Replacement

    XI. FUSE REPLACEMENT A. How to Replace the F1 15A 250V Fuse 1. Remove the Back Panel a. Ensure the power is unplugged from the SCA. b. Remove the Back Panel (See How to Remove the Back Panel Section III B). 2.

  • Page 23: How To Replace The F2 2-Amp 250V Fuse

    B. How to Replace the F2 2-Amp 250V Fuse 1. Remove the Back Panel a. Ensure the power is unplugged from the SCA. b. Remove the Back Panel (See How to Remove the Back Panel Section III B). 2. Replace the Fuse a.

  • Page 24: Reseat The Connectors

    XII. RESEAT THE CONNECTORS A. How to Reseat (unplug and plug back in) the Cable Connectors 1. Remove the Top Cover a. Ensure the power is unplugged from the SCA. b. Remove the Top Cover (See How to Remove the Top Cover Section III A). 2.

  • Page 25: Troubleshooting Steps

    XIII. TROUBLESHOOTING STEPS NOTE: The symbol “ ” prefixing the measured value denotes “approximate”. Most measurements will not be completely accurate with the values represented in this manual, but the SCA will function normally. Usually, measurements that are extremely different from the indicated measurements will represent a possible failure in the component.

  • Page 26: Pump And Transformer Troubleshooting

    A. Pump and Transformer Troubleshooting Symptom Pump Inoperable, EP Error, Blowing F2 Fuse, Inverter Error, Low Circulation Theory: The Water Pump uses a 115VAC motor that circulates the water from the intake at the bottom of the Pump out through the Nozzle using an impeller attached to the Motor Shaft. The Transformer is used to isolate the Pump from the rest of the circuitry and to reduce Electro Magnetic Interference (EMI).
  • Page 27 Figure 24 – Pump Screen and Nozzle 3. Reseat the Connectors a. Reseat the connectors (See How to Reseat the Cable Connectors Section XII). 4. Measure Pump Motor Resistance a. Ensure the SCA is unplugged from power. Remove the connector for the Pump from the “PUMP IN” pins on the PCB and measure the resistance of the Pump using the .7mm Test Probes.
  • Page 28 b. Check the resistance of the Pump between the wires on pins 2 & 4 on the cable connector (See Figure 26). Ω Figure 26 – Water Pump Resistance Measurement (pins 2 and 4) If the Multimeter reads ~ Ω, continue to the next section (Section 5). If the Multimeter reads Ω...
  • Page 29 Ω Figure 28 – Transformer Resistance Measurement (black wires) If the Multimeter reads ~ Ω, continue to the next section (Section 6). If the Multimeter reads Ω or , replace the Transformer. Verify initial measurement. 6. Check the Mechanical Rotation of the Pump Motor Shaft a.
  • Page 30 7. Quick Check the Run Capacitor a. With all connectors plugged in and the SCA powered up, press the Start Button . Roll a finger across the Pump Motor Shaft as in the previous test to rotate the shaft. If the Pump Motor starts up, this is an indicator that the Run Capacitor is defective.
  • Page 31 Warning High Voltage May Be Present on These Pins! Only qualified personnel should attempt this measurement Figure 31 – Pump Output Voltage (pins 1 and 3) c. Measure the AC Voltage across pins 2 & 4 (See Figure 32). If the Multimeter reads ~ VAC (~ VAC EU), the PCB, Transformer and Control Panel are operating correctly.
  • Page 32 10. Check the Transformer Input Voltage a. Set the Multimeter to the AC Voltage Selection . With the power unplugged, and the Transformer disconnected from the PCB, attach the Multimeter Test Hooks to pins 1 & 2 on the “TRAN” pins on the PCB (See Figure 33).

  • Page 33: Heating Element Troubleshooting

    B. Heating Element Troubleshooting Symptom: Not Heating, Over Heating, Under Heating Theory: The Heating Element has an internal resistance that creates heat when current flows through. When submerged in water, the heat is transferred to the water. It should take approximately 3 minutes per degree to heat up the bath.
  • Page 34 3. Check the Thermal Cutoff Switch (TCO) a. The Thermal Cutoff Switch, found on the back wall of the tank by the Main Power Switch, removes voltage from the Heater Relay if the temperature of the bath exceeds 90°C. If the switch is tripped (open), allow the temperature of the bath to drop below 80°C.
  • Page 35 4. Heater Element Resistance Test a. Unplug the SCA from power. b. Remove the top cover (See How to Remove the Top Cover Section III A). c. Set the Multimeter to the Resistance Selection Ω. Check the resistance of the Heating Element (See Figure 38). Ω...
  • Page 36 On 120V AC (US) Systems, if the Multimeter reads ~ VAC between H-N and H-L1, the Control Panel and the PCB are operating correctly. On 230V AC (EU) Systems, if the Multimeter reads ~ VAC between H-N and H-L2, the Control Panel and the PCB are operating correctly.

  • Page 37: Temperature Sensor Troubleshooting

    Connector C. Temperature Sensor Troubleshooting Symptom Not Heating at all, Over Heating, Under Heating, r1 Error Theory: The Temperature Sensor changes resistance according to the temperature of the bath. As the temperature increases, the resistance Temperature of the sensor decreases (See Figure 41). The Temperature Sensor Sensor resistance is evaluated by the Control Panel to regulate when power Connector...
  • Page 38 NTC Connector kΩ Figure 42 – NTC Connector @ 50°C 3. Set the SCA to 50°C and press the Start Button . When the bath heats up and the Control Panel displays 50°C, turn off the SCA and unplug the power cord. Unplug the NTC connector and measure the resistance across both wires.

  • Page 39: Water Level Sensor Troubleshooting

    Water Level Sensor D. Water Level Sensor Troubleshooting WLS-H Float WLS-L Connectors Symptom SCA beeping, High or Low Water LED flashing on Control Panel, r2, r3 error. Theory: The Water Level Sensor uses two internal switches within a hollow rod straddled by a watertight Stainless-Steel float that slides along the rod as the water level changes.

  • Page 40: N Opower To Sca Troubleshooting

    E. No Power to SCA Troubleshooting Symptom SCA Appears to have no power, there are no audible clicks when toggling the power switch, the LED on the PCB is not lit. Theory: The SCA requires 110-120VAC (US) or 220-230VAC (Europe). The SCA chooses the correct configuration automatically according to the input power via an Evaluation Relay.
  • Page 41 ii. If the fuse does not blow, with the Transformer and Pump disconnected from the PCB, the PCB is probably still good. The Pump and associated components should be checked to determine which component is defective (See Pump and Transformer Troubleshooting Section XIII A). It is possible multiple components can be defective, so the entire Pump and Transformer Troubleshooting section should be checked.
  • Page 42 b. With the Power Cord plugged into the outlet measure the voltage at the female end of the Power Cord (See Figure 50). i. If voltage is present, continue to the next step (Step c). ii. If voltage is not present, check the continuity of the Power Cord and replace as needed. Figure 50 –...
  • Page 43 d. Unplug the power cord from the SCA. Set the Multimeter to the Diode Test Mode . Connect one probe of the Multimeter to the AC-L (red wire) terminal of the PEM and the other probe to the L male post (right prong) at the input receptacle (See Figure 52).

  • Page 44: N Opower To Display Troubleshooting Or Es Error

    F. No Power to Display Troubleshooting or ES Error Symptom : The SCA Control Panel appears to have no power and is not lit up when powering on the SCA. Upon plugging in to power and toggling the power switch, there are audible clicking sounds and the LED is lit on the PCB.

  • Page 45: Documentation

    XIV. DOCUMENTATION A. Error Codes Pump Motor (See Pump and Transformer Troubleshooting Section XIII A). malfunction/pump motor current fault. Heater current fault (See Heater Element Troubleshooting Section XIII B). 12VDC out of range, (See No Power to Display Troubleshooting Section XIII F). power supply error for the display Over temperature...

  • Page 46: Schematics

    B. Schematics Power Circuit - 46 -...
  • Page 47 Heating Elements Driver / Buzzer Circuit - 47 -...
  • Page 48 Black Pump Motor Driver - 48 -...
  • Page 49 Main board and Connector board to panel connection diagram - 49 -...

  • Page 50: Pcb Layout

    C. PCB Layout 220V 110V Heater J1 Connector Heater Pump Motor Run Capacitor Transformer Element (Control Panel) Element 110 V Heater Relay 220V Heater Relay Heater Element Neutral Pump Motor Inverter Card Relay Input Voltage Evaluation Relay Inverter Status Thermal Cutoff Switch (TCO) Speaker F1 Fuse...

  • Page 51: Control Panel Cable Connectors (J1)

    D. Control Panel Cable Connectors (J1) • Low → ~0V DC • High → ~12V DC J1 Connector (PCB) Description High 12V DC Power off Power On Heating tube fault detection input No Fault Fault Heating tube fault detection input No Fault Fault Heating tube control signal input...

  • Page 52: Control Panel Cable Connectors (J2)

    E. Control Panel Cable Connectors (J2) • Low → ~0V DC • High → ~12V DC J2 Connector (Connector Board) Description High 110V and 220V recognition detection input 110V AC Applied DC Ground Buzzer control signal output Buzzer Off Buzzer On Pump Motor control signal output Pump Enable Off Pump Enable On...

  • Page 53: Control Panel Cable Connectors (J3)

    F. Control Panel Cable Connectors (J3) • Low → ~0V DC • High → ~12V DC J3 Connector (Connector Board) Description High Water Level High Sensing Water Level Low Sensing Temperature Sensing Display VCC ~12V DC Power Off Power On 110V and 220V recognition detection input 110VAC Heater Malfunction Sensing...

  • Page 54: Commonly Used Parts

    G. Commonly Used Parts Part Description Part Number Large Basket 04812-01 Small Parts Basket 04098-01 Pump Assembly w/nozzle 04803-01 Heater Assembly 04805-01 Sensor Assembly 04810-01 100039 Display Control Panel PCB Assembly 04807-01 Power Switch (PEM)w/wiring harness 04813-01 Spray Nozzle (Threaded) 04809-01 Rev A Spray Nozzle (Bayonet) 04809-01 Rev B...

  • Page 55: Specifications

    H. Specifications Item Specification Model Number SCA 1200ht Power Cord 110 North American 220 International Power Requirements 100-120V~ 50/60 Hz 12A 220-240V~ 50/60 Hz 9A Main Supply Voltage Fluctuation +/- 10% Electrical Protection 15A/250VAC Fuse Heater Power 1,200 Watts 1,700 Watts Regulatory Compliance CE / cTUVus/ RoHS / WEEE Tank Capacity...

  • Page 56: Technical Support

    I. Technical Support Technical support for this product is provided by Oryx Additive, Inc. Before contacting Technical Support, please do the following: 1. Try the Quick Troubleshooting table at the beginning of this manual. 2. View the Troubleshooting Steps in this manual. This manual can also be found at www.oryxadditive.com/support.

  • Page 57: Supplemental Information

    Limited Warranty Period SCA 1200ht Support Cleaning Apparatus 1 year All new Support Cleaning Apparatus (SCA) systems are warranted exclusively by Oryx Additive, Inc.’s (“Manufacturer”) limited warranty as follows: Each Support Cleaning Apparatus system (“System”) and its components (“Components”), except those listed below under limits and exclusions, is warranted against defects in the materials and workmanship for a period of one (1) year from the date of installation at the end user’s (“Customer”) facility.
