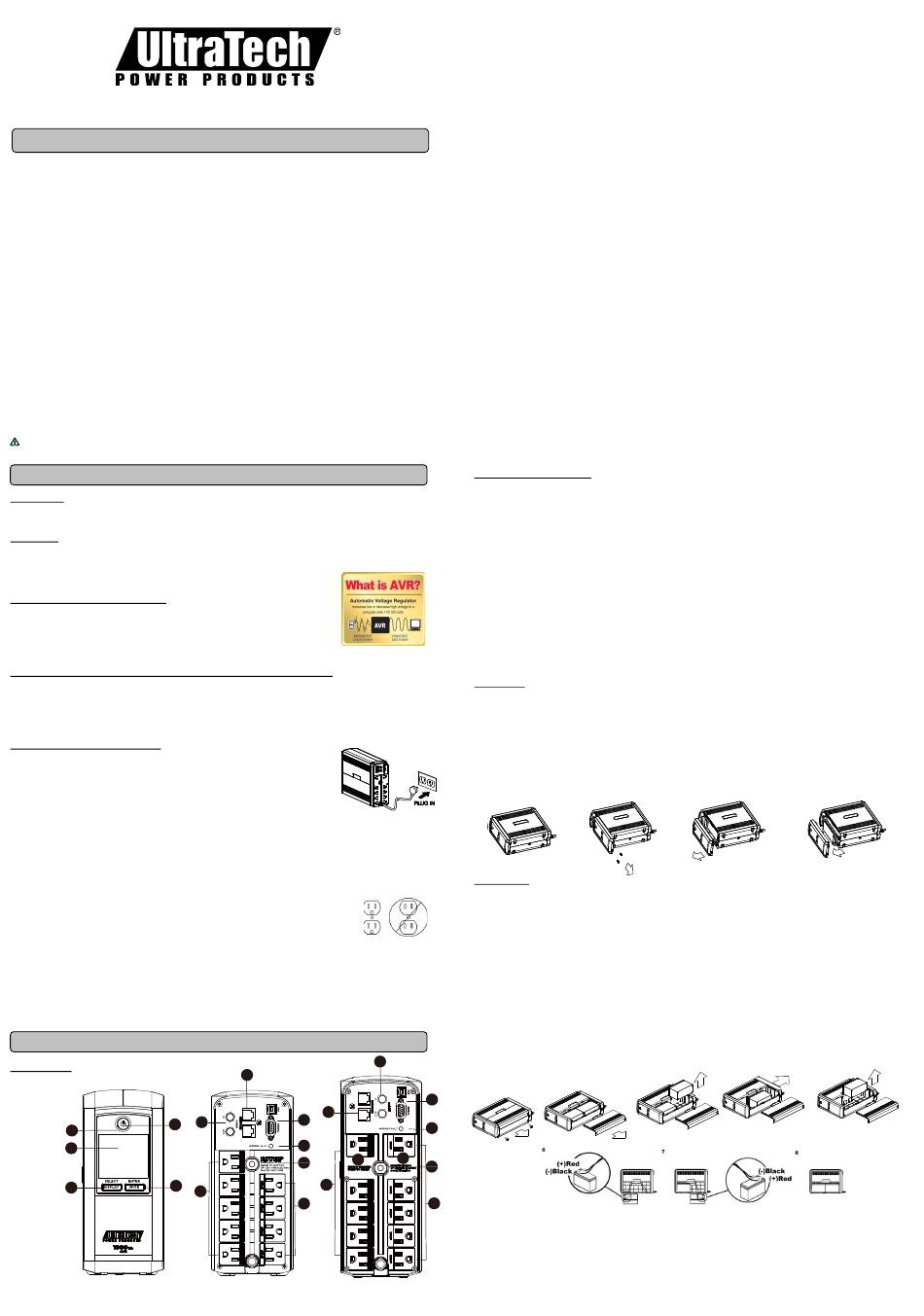

Ultratech 0E-1000V9RD User Manual

0E-1000V9RD/0E-1500V10RD
USER'S MANUAL
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This Manual Contains Important Instructions that should be followed during Installation
and Maintenance of the UPS and batteries.
install, or operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of
conductive contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover except to service the battery. Turn off and unplug the
unit before servicing the batteries. There are no user serviceable parts inside except for the battery.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into an
outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the unit.
To avoid electric shock, turn off the unit and unplug it from the AC power source
CAUTION!
before servicing the battery.
CAUTION! Not for use in a computer room as defined in the Standard for the Protection of information Technology
Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current
protection in accordance with the National Electric Code, ANSI/NFPA 70.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! ADI does not sell products for life support or medical
applications. DO NOT use in any circumstance that would affect operation and safety of life support equipment, any medical
applications or patient care.
Intended for installation in a temperature controlled, indoor area free of
CAUTION!
conductive contaminants.
DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use with or near an
aquarium. Condensation from the aquarium can cause the unit to short out.
DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not use the unit on any
transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the damp environment can
cause the unit to short out.
WARNING! This product can expose you to chemicals including Styrene, and Bisphenol-A, which is known to the State of
California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should contain the following: (a) UPS (b) User's manual (c) USB A+B type cable (d)
Function Setup Guide (e) Software download card.
OVERVIEW
The UPS provides complete power protection from utility power that is not always consistent. The 0E-1000V9RD features 1080
Joules and the 0E-1500V10RD features 1500 Joules of surge protection. The unit
provides long lasting battery backup during power outages with maintenance free
batteries.
AUTOMATIC VOLTAGE REGULATOR
The 0E-1000V9RD and 0E-1500V10RD stabilizes inconsistent utility power voltage to
nominal levels that are safe for equipment. Inconsistent incoming utility power may be
damaging to important data files and hardware, but with Automatic Voltage Regulation
(AVR), damaging voltage levels are corrected to safe levels. AVR automatically increases
low utility power or decreases high utility power to a consistent and safe 110/120 volts.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the outlet does not exceed the UPS's rated capacity (1000VA/600W for 0E-
1000V9RD and 1500VA/900W for 0E-1500V10RD). If the rated capacity of the unit is exceeded, an overload condition may
occur and cause the UPS to shut down or the circuit breaker to trip.
2. There are many factors that can affect the amount of power that your computer system will require. It is suggested that the
load placed on the battery outlets not exceed 80% of the unit's capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, after receiving a new
UPS, to ensure the battery's maximum charge capacity, it is recommended that you
charge the battery for at least 8 hours. Your UPS is equipped with an auto-charge feature.
When the UPS is plugged into an AC outlet, the battery will automatically charge whether
the UPS is turned on or turned off. Note: This UPS is designed with a safety feature to
keep the system from being turned on during shipment. The first time you turn the UPS
on, you will need to have it connected to AC power or it will not power up.
2. With the UPS unit turned off and unplugged, connect your computer, monitor, and any other peripherals requiring battery
backup into the battery power supplied outlets. Plug the other peripheral equipment (eg. Printer, scanner, speaker, etc.) into
the full-time surge protection outlets. DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum clear,
sump pump or other large electrical devices into the "Battery and Surge Protected Outlets". The power demands of
these devices will overload and possibly damage the UPS.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse
or circuit breaker and does not service equipment with large electrical demands (e.g. air
conditioner, refrigerator, copier, etc...).
The warranty prohibits the use of extension cords, outlet strips, and surge strips in conjunction
with the UPS unit.
4. Press the power switch to turn the unit on. The Power On indicator light will illuminate and the unit will "beep" once.
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off
and unplug at least one piece of equipment from the battery power supplied outlets. Make sure the circuit breaker is
depressed and then turn the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store the UPS for an extended period, cover it and store with the battery fully charged. While in storage, recharge the
battery every three months to ensure battery life.
8. Ensure the wall outlet and UPS are located near the equipment being attached for proper accessibility
BASIC OPERATION
DESCRIPTION
2
1
3
5
4
K01-1101057-03
Read this manual thoroughly before attempting to unpack,
10
10
9
12
11
13
8
6
6
7
0E-1000V9RD
0E-1500V10RD
1. Power Switch
Used as the master on/off switch for equipment connected to the battery power supplied outlets. (Please refer to the
Function Setup Guide for more information.)
2. Power On Indicator
This LED is illuminated when the utility power is normal and the UPS outlets are providing power.
3. LCD module display
The LCD display shows all the UPS information using icons and messages. For more information please review the
"Definitions for Illuminated LCD Indicators" section below.
4. Display/Select Button
The button can be used to select the LCD display contents including Input Voltage, Output Voltage, and Estimated Run
Time. Short press the button to scroll down the function menu. Pressing the button for 3 seconds will keep the LCD display
always on or turn the LCD display off while in AC/Utility power mode. For more information, please refer to the Function
Setup Guide.
5. Mute/Enter Button
Holding the button for more than 3 seconds will silence the alarm. Short press the ENTER button to confirm the setting.
After the setting has been confirmed, the LCD screen will stop flashing. For more information, please refer to the Function
Setup Guide
6. Battery backup and Surge Protected Outlets
The UPS has battery powered/surge suppression outlets for connected equipment to ensure temporary uninterrupted
operation of your equipment during a power failure. (DO NOT plug a laser printer, paper shredder, copier, space
heater, vacuum, sump pump or other large electrical devices into the "Battery and Surge Protected Outlets". The
power demands of these devices may overload and damage the unit.)
7. Full-Time Surge Protection Outlets
The UPS has 4/5 surge suppression outlets without battery backup.
8. Circuit Breaker
Located on the back of the UPS, the circuit breaker serves to provide overload and fault protection.
9. USB Port to PC/DB9 Port
The USB port allows connection and communication between the computer and the UPS unit.
10. Communication Protection Ports
Communication protection ports, bi-directional, will protect a 10/100/1000 Ethernet connection (RJ45).
11. Wiring Fault Indicator (red)
This LED indicator will illuminate to warn the user that a wiring problem exists, such as bad ground, missing ground or
reversed wiring. If this is illuminated, disconnect all electrical equipment from the outlet and have an electrician verify the
outlet is properly wired. The UPS will not provide surge protection without being plugged into a grounded and properly
wired wall outlet.
12. Coax/Cable/DSS Surge Protection
The Coax/Cable/DSS protection ports will protect any cable modem, CATV converter, or DSS receiver.
13. Widely Space Outlets Designed for AC Adapters
The unit has two widely spaced outlets spaced to allow AC power adapter blocks to be plugged into the UPS without
blocking adjacent outlets
REPLACING THE BATTERY
Replacement of batteries located in an OPERATOR ACCESS AREA.
1. When replacing batteries, replace with the same number of the following battery: CyberPower/RB1290 for 0E-
1000V9RD, CyberPower/RB1290X2 for 0E-1500V10RD
2. CAUTION! Risk of Energy Hazard, 12 V, maximum 9 Ampere-hour battery for 0E-1000V9RD; 24 V, maximum 9
Ampere-hour battery for 0E-1500V10RD. Before replacing batteries, remove conductive jewelry such as chains, wrist
watches, and rings. High energy conducted through these materials could cause severe burns.
3. CAUTION! Do not dispose of batteries in a fire. The batteries may explode.
4. CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin and eyes. It may be toxic.
5. CAUTION: A battery can present a risk of electrical shock and high short circuit current. The following precautions
should be observed when working on batteries:
1) Remove watches rings, or other metal objects.
2) Use tools with insulated handles.
CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO LOCAL REGULATIONS.
BATTERY REPLACEMENT PROCEDURE:
0E-1000V9RD
1. Turn off and unplug all connected equipment.
2. Turn the UPS off and unplug it from the AC power source.
3. Turn the UPS on its side.
4. Remove the front panel retaining screws located on the bottom of the UPS.
5. Slide the battery compartment cover (front panel) completely off of the unit.
6. Disconnect the battery wires from the batteries.
7. Remove the batteries from the compartment.
8. Install the replacement batteries by connecting the red wire (+) and black wire (-) to the same color connectors.
9. Put the batteries back into the compartment.
10. Slide back the battery compartment cover and tighten the retaining screws.
11.
Recharge the UPS for 8-16 hours to fully charge the battery
0E-1500V10RD
1. Turn off and unplug all connected equipment.
2. Turn the UPS off and unplug it from the AC power source.
3. Turn the UPS on its side.
4. Remove two retaining screws located on the bottom of the UPS.
5. Slide the battery compartment cover completely off of the unit.
6. Remove the battery which is located on the right side from the compartment.
7. Disconnect the battery wires from the right side of the battery.
8. Slide the remaining battery from left to right and remove it from the compartment.
9. Disconnect the battery wires from the remaining battery.
10. Install the "left side" replacement battery by connecting the yellow wire (+) to the red connector from the battery and the
black wire (-) to the black connector from the battery. Place the battery into the left side of the compartment.
11. Install the "right side" replacement battery by connecting the red wire (+) to the red connector from the battery and yellow
wire (-) to the black connector from the battery. Place the battery into the right side of the compartment. Note: Only new
batteries should be used for replacement and both batteries should be replaced at the same time to insure maximum life
.
span.
12. Slide back the battery compartment cover and tighten the retaining screws.
13. Recharge the UPS for 8-16 hours to fully charge the battery.
12
1 2
9
11
13
8
7
Yellow Wire to (+)Red Connector
Black Wire to (-)Black Connector
REMINDER:
Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell
lead-acid batteries collect used batteries for recycling, as required by local regulations.
.
.
3 4 5
Red Wire to (+)Red Connector
Yellow Wire to (-)Black Connector
