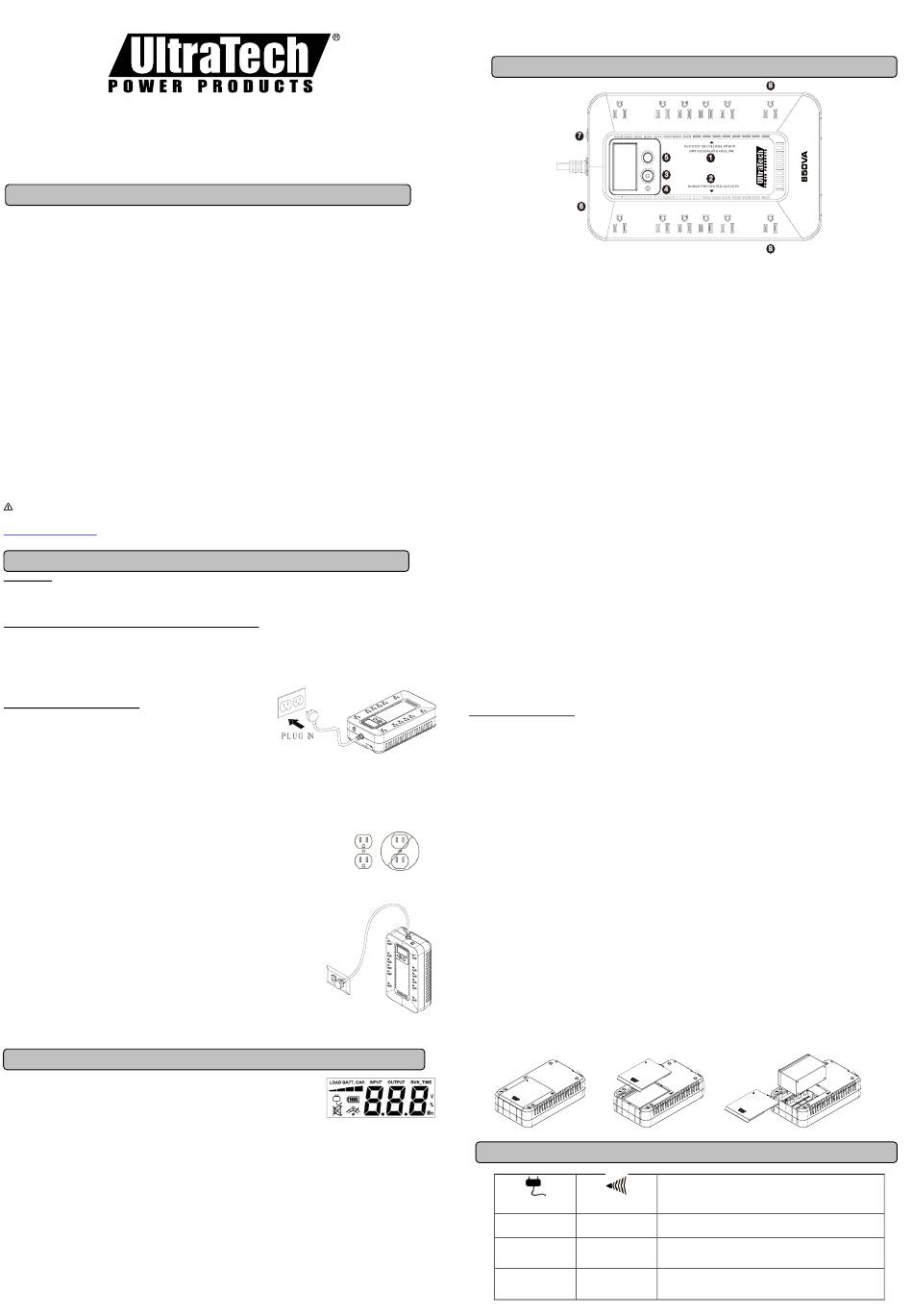

Ultratech 0E-850V8LCD User Manual

0E-850V8LCD
User's Manual
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock,
and/or injury to persons including the following. This Manual Contains Important Instructions that should be followed during
installation and maintenance of the UPS and batteries.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of
conductive contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover except to service the battery. Turn off and unplug
the unit before servicing the batteries. There are no user serviceable parts inside except for the battery.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into an
outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before servicing the battery.
CAUTION! Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current
protection in accordance with the National Electric Code, ANSI/NFPA 70.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! ADI does not sell products for life support or medical
applications.
DO NOT use in any circumstance that would affect the operation and safety of life support equipment, medical applications,
or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
aquarium. Condensation from the aquarium can cause the unit to short out.
DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not use the unit on
any transportation such as airplanes or ships. The effect of shock or vibration caused during transit and the damp
environment can cause the unit to short out.
WARNING! This product can expose you to chemicals including styrene, and bisphenol A (BPA), which is known to
the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should contain the following:
(a) UPS unit (b) User's manual (c) USB device cable (d) Software download card
DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the UPS does not exceed the UPS unit's rated capacity. If the rated capacities
of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to
trip.
2. There are many factors that can affect the amount of power that your electronic equipment will require. For optimal
system performance keep the load below 80% of the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, after
receiving a new UPS, to ensure the battery's maximum charge
capacity, it is recommended that you charge the battery for at least 8
hours. Your UPS is equipped with an auto-charge feature. When the
UPS is plugged into an AC outlet, the battery will automatically charge when it's turned on or turned off.
2. With the UPS unit turned off and unplugged, connect your computer, monitor, and any other peripherals requiring battery
backup from the SURGE/BATTERY outlets. Plug the other peripheral equipment (e.g. printer, scanner, speakers, etc.)
into the full-time surge protection outlets. DO NOT plug a laser printer, paper shredder, copier, space heater,
vacuum cleaner, sump pump, or other large electrical device into the "Battery and Surge Protected Outlets".
The power demands of these devices will overload and possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall
branch outlet is protected by a fuse or circuit breaker and does not service equipment
with large electrical demands (e.g. air conditioner, refrigerator, copier, etc.). The warranty
prohibits the use of extension cords, outlet strips, and surge strips in conjunction with the
UPS unit.
4. Press the power switch to turn the unit on. The Power On indicator light will illuminate green and the unit will "beep"
twice.
5. If an overload is detected, an audible alarm will sound and the unit will emit one
long beep. To correct this, turn the UPS off and unplug at least one piece of
equipment from the battery power supplied outlets. Make sure the circuit breaker is
depressed and then turn the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all
times.
7. To store the UPS for an extended period of time, cover it and store with the battery
fully charged. While in storage, recharge the battery every three months to ensure
optimal battery life.
8. Ensure the wall outlet and UPS are located near the equipment being attached for
proper accessibility.
9. Lay the UPS on desktop or use the key-hole mounting slots to affix the UPS to the wall in proper orientation.
DEFINITIONS FOR ILLUMINATED LCD INDICATORS
INPUT voltage meter: This meter measures the AC voltage that the UPS system is
receiving from the utility wall outlet. The UPS is designed to continuously supply
connected equipment with stable output voltage. In the event of a complete power loss,
severe brownout, or over-voltage, the UPS relies on its internal battery to supply
consistent 110/120 output voltage. The INPUT voltage meter can be used as a
diagnostic tool to identify poor-quality input power.
OUTPUT voltage meter: This meter measures, in real time, the AC voltage that the
UPS system is providing to the computer during normal AC/Utility Power mode, and
battery backup mode.
ESTIMATED RUNTIME: This displays the run time estimate of the UPS with the current battery capacity and load.
NORMAL icon: This icon appears when the UPS is working under normal conditions.
BATTERY icon: During a severe brownout or blackout, this icon appears and an alarm sounds (two short beeps followed by
a pause) to indicate the UPS is operating from its internal batteries. During a prolonged brownout or blackout, the alarm will
sound continuously to indicate the UPS's batteries are nearly out of power. You should save files and turn off your equipment
immediately or allow the software to shut the system down.
OVERLOAD icon: This icon appears and an alarm sounds to indicate the battery-supplied outlets are overloaded. To clear
the overload, unplug some of your equipment from the battery-supplied outlets until the icon turns off and the alarm stops.
BATT. CAPACITY meter: This meter displays the approximate charge level of the UPS's internal battery in 20% increments.
During a blackout or severe brownout, the UPS switches to battery power (the BATTERY icon appears) and the battery
charge level decreases.
To reduce the risk of fire or electric shock, do not use with or near an
The LCD display indicates a variety
of UPS operational conditions. All
descriptions apply when the UPS is
plugged into an AC outlet and
turned on or when the UPS is on
battery.
LOAD CAPACITY meter: This meter displays the approximate output load level of the UPS battery outlets in 20%
increments.
K01-1101124-00
Battery Backup and Surge Protected Outlets
1.
The unit has battery backup/surge suppression outlets to ensure temporary uninterrupted operation of your equipment
during a power failure. (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner,
sump pump, or other large electrical device into the "Battery and Surge Protected Outlets." The power
demands of these devices will overload and possibly damage the unit.)
Full-Time Surge Protection Outlets
2.
The unit has surge suppression outlets to provide surge and line noise protection.
Power Switch
3.
To turn the UPS ON, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) -
and release after a short beep.
To turn the UPS OFF, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) -
and release after two short beeps.
Alarm setting: The audible alarm can be turned Off or On by quickly pressing the POWER button twice. The default
setting is for the Alarm On. To turn the Alarm Off, quickly press the power button twice. You will hear two short beeps
when the Alarm is turned Off. To turn the Alarm back On, quickly press the power button twice. You will hear a single
short beep when the Alarm is turned On. *When the Alarm is turned Off, there will be no audible notification when the
UPS reaches a low battery state.
Power On Indicator (green)
4.
This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and
spikes.
Mode Switch
5.
Press the Mode Switch for approximately 3 seconds to enter setup mode to select three functions: Utility High Voltage
Range, Utility Low Voltage Range, and LCD sleep ON/OFF. When a function is selected, press Mode Switch for 3
seconds to view options. When an option is selected, wait for 8 seconds for the setting to be confirmed. After the
setting has been confirmed the LCD screen will leave setup mode and go back to status display. If there is no action
for 8 seconds during setup, the LCD will also leave setup mode and go back to the status display.
a. Utility High Voltage Range: Adjust the value of high voltage range.
b. Utility Low Voltage Range: Adjust the value of low voltage range.
c. LCD: L1/L0 (ON/OFF):
* When LCD is set to L1, LCD will be always ON. When LCD is set to L0, LCD will dim if untouched for 1 minute.
* In battery mode, LCD is always on regardless if the setting is L1 or L0.
USB Port to PC
6.
The USB port allows connection and communication between the USB port on the computer and the UPS unit. The
UPS communicates its status to the power management software.
Circuit Breaker
7.
Located on the side of the UPS, the circuit breaker serves to provide overload and fault protection.
8. Outlets Designed for AC Adapters
The UPS unit has 2 widely-spaced outlets so AC power adapters can be plugged into the UPS without overlapping or
blocking adjacent outlets.
REPLACING THE BATTERY
Replacement of batteries located in a SERVICE ACCESS AREA.
Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required
precautions.
When replacing batteries, replace with the same number of the following battery: LEOCH/DJW12-7.2 or RITAR
1.
RT1272 for 0E-850V8LCD
CAUTION! Risk of Energy Hazard, 12V, maximum 9 Ampere-hour battery. Before replacing batteries, remove
2.
conductive jewelry such as chains, wrist watches, and rings. High energy through conductive materials could cause
severe burns.
3. CAUTION! Do not dispose of batteries in a fire. The batteries may explode.
4. CAUTION! Do not open or mutilate batteries. Released material is electrolyte to the skin and eyes. It may be toxic.
5. CAUTION: A battery can present a risk of electrical shock and high short circuit current. Contact with any part of a
grounded battery can result in electrical shock. The following precautions should be observed when working on
battery:
a) Remove watches rings, or other metal objects.
b) Use tools with insulated handles.
c) Wear rubber gloves and boots.
d) Do not lay tools or metal parts on top of batteries.
e) Disconnect charging source and load prior to installing or maintaining the battery.
f) Remove battery grounds during installation and maintenance to reduce likelihood of shock. Remove the
connection from ground if any part of the battery is determined to be grounded.
BATTERY REPLACEMENT PROCEDURE:
1. Turn off the UPS, unplug all connected equipment and unplug the UPS from AC power source.
2. Place the UPS on its top and remove the retaining screw on the battery compartment cover.
3. Slide the battery compartment cover completely off the unit.
4. Remove the battery from the compartment and disconnect the battery wires from the battery.
5. Install the replacement battery by connecting the red wire to the positive (+) terminal and the black wire to the
negative (-) terminal of the battery.
6. Slide the battery compartment cover over the battery and tighten the retaining screw.
7. Charge the unit for 8 hours to ensure the UPS performs expected runtime.
Power
On
On
On
BASIC OPERATION
DEFINITIONS FOR AUDIBLE ALARMS
Alarm
Off Normal
Beeps twice Utility Failure: The UPS is providing power to battery power-
every 30 seconds
supplied outlets from its battery.
Rapid Beeping Utility Failure: The UPS is providing battery power. Rapid
every 1/2 second beeping indicates the unit will run out of power shortly.
CONDITION
