Summary of Contents for JUNO JKG5470

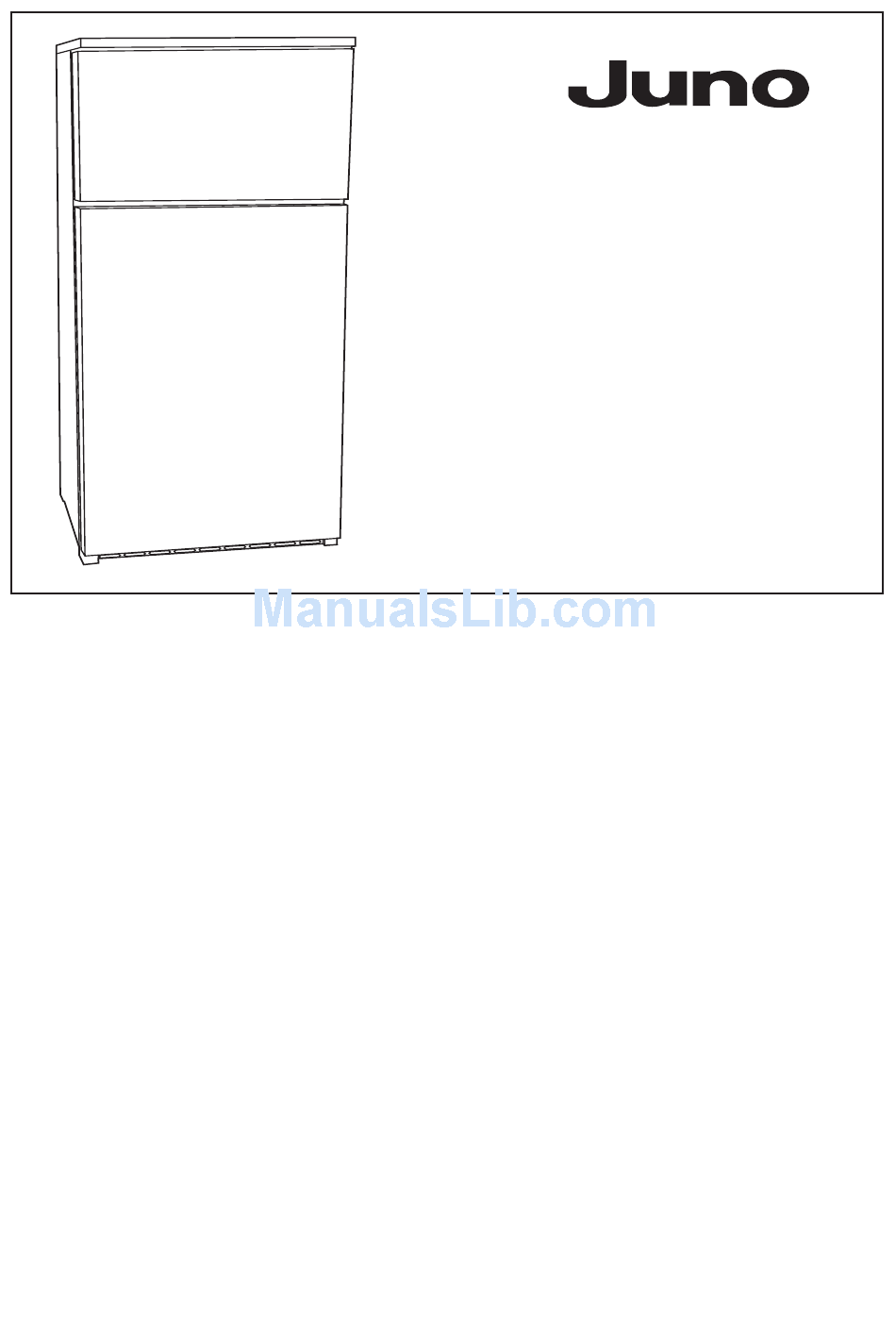

- Page 1 JKG 5470 GEBRAUCHSANWEISUNG OPERATING INSTRUCTIONS 2222 046-12...
-
Page 2: Warnings
If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child. -
Page 3: Table Of Contents
Avoid damaging wait at least two hours before connecting the the cooling unit, especially at the rear near the appliance to allow the oil to flow back in the heat exchanger. Information on your local compressor. -
Page 4: Use
In this case the dial must be set to a higher Small pieces may even be cooked still frozen, directly temperature to allow automatic defrosting and from the freezer: in this case, cooking will take longer. -
Page 5: Movable Shelves
For safety, store in this way only one or two days ¥ prepare food in small portions to enable it to be at the most. -
Page 6: Hints For Storage Of Frozen Food
- unscrew the light cover securing screw. - unhook the moving part as shown in the figure. If the light does not come on when the door is open, check that it is screwed into place properly. If it still does not light up, change the bulb. -
Page 7: Technical Specifications
D037 compartment proceed as follows: 1. pull out the plug from the wall socket or turn the thermostat knob to the ÇOÈ setting; 2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;... -
Page 8: Door Reversibility
Left opening Remove (P) from both sides and the door. Remove the pins (P) and (P1) Remove the middle hinge (A) and refit it on the opposite side. Refit the door and (P) on the left side. Remove (P1) from the right side. -
Page 9: Building-In Instructions
D567 For safety reasons, minimum ventilation must be as shown in Fig. Attention: keep ventilation openings clear of obstruction. It is necessary that the niche is provided with a conduct of ventilation having the following dimensions: Depth 50 mm Width... - Page 10 D265 holes. D726 Position the runners (A) at the top and bottom of the inside of the kitchen unit as shown in Fig. and mark the position of the external holes. After preparing the holes, screw the runners to the kitchen unit door using 3.5x16 mm screws.
