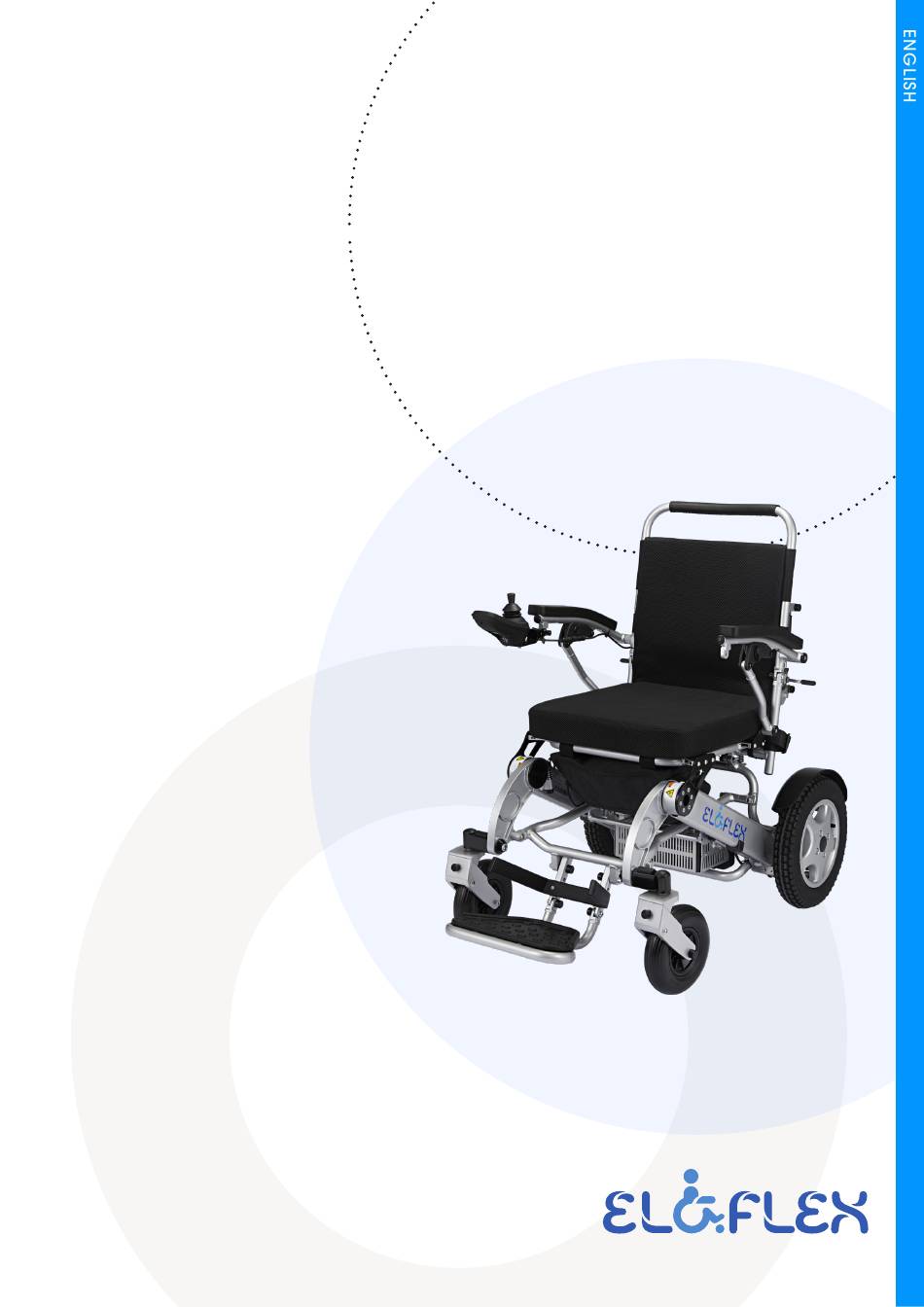

INSTRUCTION MANUAL
ELOFLEX D2
Read this documentation before using your Eloflex
to make sure that you use it in a manner that is safe,
and which does not harm you, your environment or
your power wheelchair.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2 and is the answer not in the manual?

Questions and answers

Related Manuals for Eloflex D2

Summary of Contents for Eloflex D2

  • Page 1 INSTRUCTION MANUAL ELOFLEX D2 Read this documentation before using your Eloflex to make sure that you use it in a manner that is safe, and which does not harm you, your environment or your power wheelchair.

  • Page 2: Table Of Contents

    Thanks and good luck! Thank you for choosing an Eloflex as your power wheelchair. It means a lot to us because our vision is to make people’s everyday life a little easier and to give people with disabilities a greater freedom. We hope you experience both with the help of your Eloflex.
  • Page 3 • If there is a need to leave the home to get out or to visit managed. An Eloflex can have a much longer life if you take places that are normally visited in order to carry out care of it in a good way and only use it in line with the everyday affairs.

  • Page 4: Folding

    Folding Fold up Step 1 Place the folded chair on the ground as shown on the right. Grasp the backrest and pull upwards to open the chair. Hold on with one hand on the seat cushion. Step 2 Close the lock - this is very important! It is very important ”Klick”...

  • Page 5: Disassemble And Assemble

    Disassemble and assemble Dissemble Step 1 Fold the chair and put it upright. Make sure that the anti-tip devices are facing forward when you raise the chair so that the lower part can stand on its own. Step 2 Push down the handle of the locking mechanism while lifting the upper part off the lower part.

  • Page 6: Install The Joystick

    Charging instructions This is how you charge Start by turning off your Eloflex (all lights on the joystick should be off). Connect the charger to the socket on the front of the joystick. Make sure that the contacts’...

  • Page 7: Change The Seat Width

    Fit the widening sleeve between the chair and the armrest. Reinstall the armrests. You buy the widening kit where you bought your Eloflex. Manual driving Turn off the power wheelchair with the PÅ joystick. Then push the red levers on the motors (see picture) to disconnect the magnetic brakes.

  • Page 8: Joystick

    When the batteries are fully Power on and off: Press to reduce the chair’s charged, all bars are white. Press to turn your Eloflex on maximum speed. As the batteries run down, and off. the lines go out in turn.

  • Page 9: Navigate The Menus

    Navigera i menyerna Change settings You can change the chair's settings such as language, horn volume and measurement units. 1. To enter the settings, press the right multifunction button. A list of multiple choice options will then open. 2. In the multi-choice list, scroll up and down with the speed buttons.

  • Page 10: Backrest

    Backrest Adjust the backrest Adjust the inclination of the back by pushing down the levers on the sides and position the backrest in an angled position that feels comfortable. Then release the levers to lock the position. You can choose between 2-22 degree angle.

  • Page 11: Footrest

    Footrest For easier entry and exit, the footrest can be folded up as shown down below. Adjust the footrest You can change the height of the footrest in two fixed positions. Remove the black plastic cover from the four nuts. Tighten the retaining screws while holding the nut.

  • Page 12: Transport And Storage

    • When transporting by bus or by handicap transportation, the Eloflex must be attached to the fastening points shown in the pictures at the bottom. Note that Eloflex is not tested as a car seat. We therefore always recommend that the user moves over to the car’s own seats.

  • Page 13: Driving Instructions

    • Always place your feet in the middle of the footrest while driving • Always use anti-tippers when traveling with Eloflex • Driving downhill should always be done at a lower speed Risk of injury if you collide with other objects in narrow passages.
  • Page 14 Eloflex is tested and approved for obstacles up to a maximum Move forward by moving the joystick slowly forward. of 6 cm.
  • Page 15 SAFETY General safety instructions There is a risk of personal injury if the power • Drive as close to the new seat as possible when wheelchair is used for purposes other than those transferring to another seat. There is a risk of described in this document.
  • Page 16 Never clean your Eloflex with running water. Only wipe it with obliquely from the side. Never cross the railway tracks alone, a damp cloth. If your Eloflex is slow to fold up and together, always have someone with you who can help you.

  • Page 17: Technical Details

    If you want direct contact with us, you written permission of Eloflex. Eloflex is reserved for any will find contact information on our website, www.eloflex.eu.
