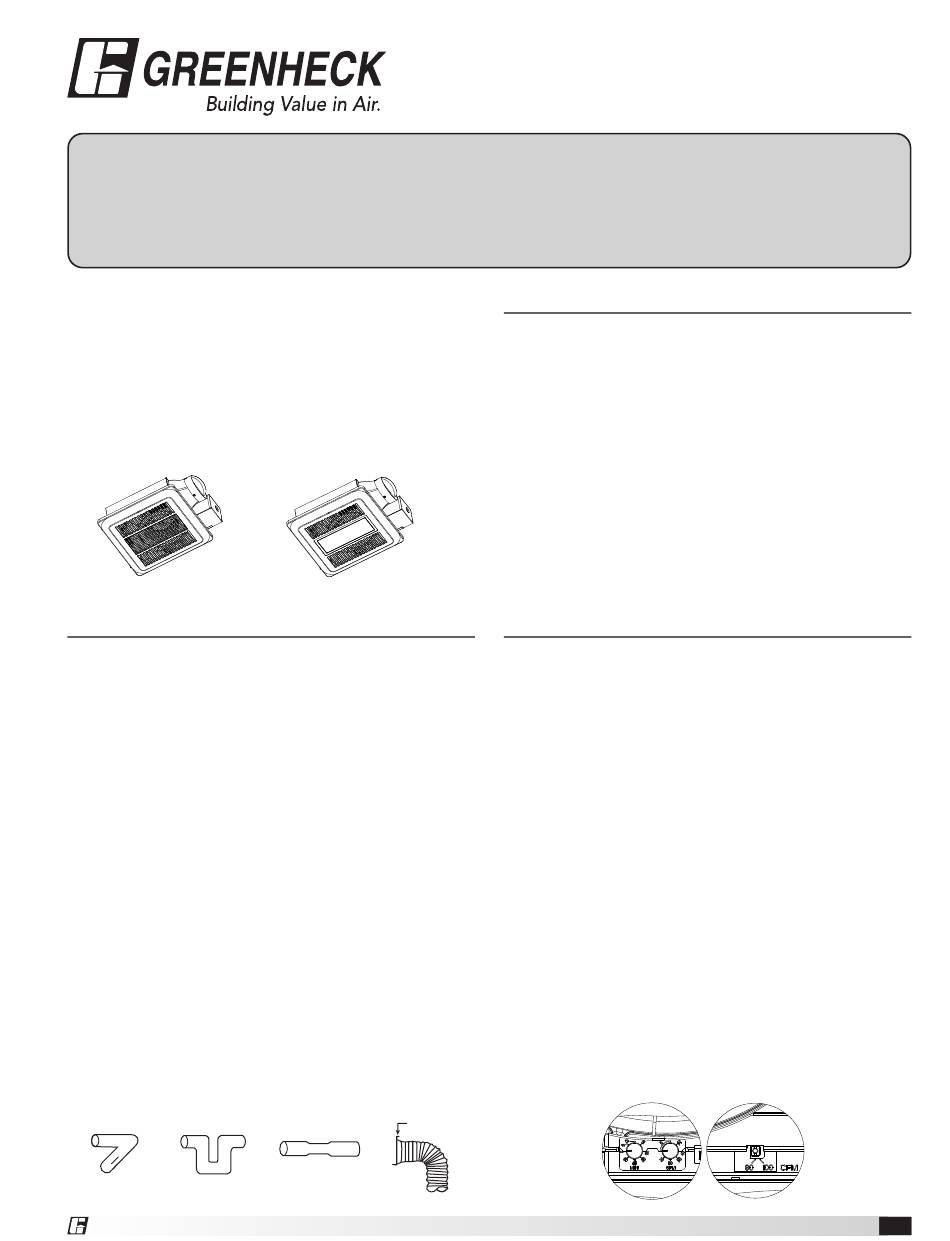

Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
Ceiling Exhaust Fan

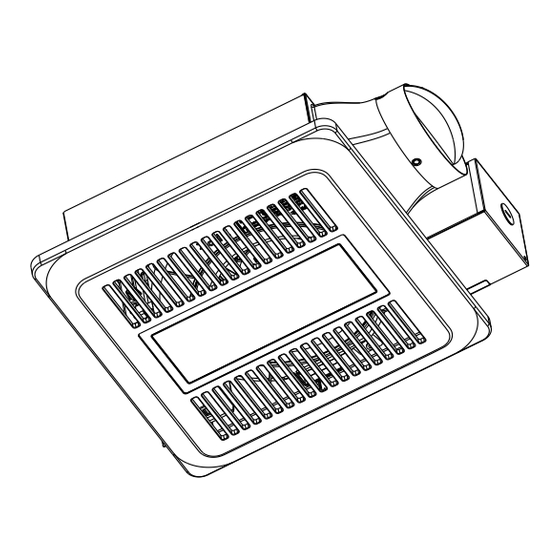

Model SP-LP0810W/L is a low-profile, direct drive
wall/ceiling exhaust fan featuring standard two-speed
operation (commonly known as whole house) to help
comply with ASHRAE 62.2, WSEC, and CAL Title 24
requirements. Additional accessories and features
include lights, flow selection, and constant airflow.
These models are UL listed and certified by Home
Ventilating Institute (HVI) and ENERGY STAR
SP-LP0810W
General Safety Information
Only qualified personnel should install this fan.
Personnel should have a clear understanding of these
instructions and should be aware of general safety
precautions. Improper installation can result in electric
shock, possible injury due to coming in contact with
moving parts, as well as other potential hazards.
1. Do not install this ventilation fan where interior room
temperature may exceed 104°F (40°C).
2. Make sure that the electric service supply voltage is
AC 120V, 60Hz.
3. Follow all local electrical and safety codes, as well as
the National Electrical Code (NEC) and the National
Fire Protection Agency (NFPA), where applicable.
Follow the Canadian Electric Code (CEC) in Canada.
4. Always disconnect the power source before working
on or near the fan, motor, light fixture, or junction
box.
5. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other objects.
6 Do not kink the power cord.
7. Do not install the unit where ducts are configured as
shown in Fig. 1.
8. Provide make up air for proper ventilation
Fig. 1
Duct
Adaptor
®
.
®
SP-LP0810WL
Duct
Adaptor
Duct
Adaptor
Models SP-LP0810W and SP-LP0810WL

Table of Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . 1
Supplied Accessories . . . . . . . . . . . . . . . . . 2
Dimensional Data . . . . . . . . . . . . . . . . . . . 2
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . 3
Installation for Joist Mounting . . . . . . . . . . . . . 4
Installation for Wall Mounting . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . 7
Typical Installation . . . . . . . . . . . . . . . . . . . 8
Replacement Parts List . . . . . . . . . . . . . . . . 8

Features

High Energy Efficiency: The fan uses a brushless DC
motor to ensure a high energy efficiency.
Multi-Speed: The switch allows the fan to run
continuously at low speed. The factory setting is 30
CFM for low speed. When initially turned on, the unit will
perform a high-speed test cycle.
Example: Flow Selection setting is 100 CFM, Multi-
Speed can be chosen 0, 30, 40, 50, 60 or 70 CFM as a
low speed. See Fig. 2.
Time Delay: This sets the time required to return to
low speed after high speed input is completed. Setting
range is 0, 5, 10, 15, 20, 30, 45 or 60 minutes. See Fig.
2.
Constant Air Flow: Duct length, elbows and other
factors increase static pressure and negatively impact
the performance of most ventilation fans. This fan
utilizes adaptive Constant CFM technology that
monitors the static pressure in the system and adjusts
the speed of the motor.
Flow Selection: Fans are supplied with a flow selection
switch which can be set to 80 or 100 CFM. The factory
setting is 100 CFM for high speed. See Fig. 3.
Fig. 2
Document 486340
Ceiling Exhaust Fans
Fig. 3
Ceiling Exhaust Fans 1
