Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.

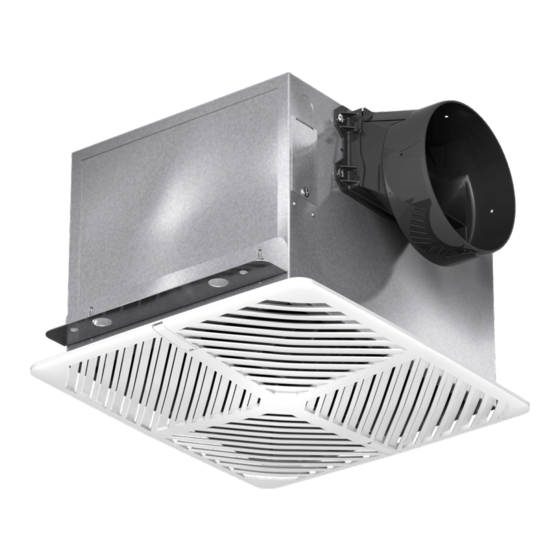

Direct Drive
Ceiling Exhaust Fan
Designed for clean air applications where
low sound levels are required. Many
options and accessories are available
such as lights, motion detectors, ceiling
radiation dampers and speed controls.
WARNING!
To reduce the risk of fire, electric shock, or injury to persons,
observe the following:
• Suitable for use with solid state speed controls.
• Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer.
• Before servicing or cleaning unit, switch power off at service panel
and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
• Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local code authorities.
• When cutting or drilling into wall or ceiling, do not damage
electrical wiring or other hidden utilities.
• Select models are acceptable for use over a bathtub or shower
when installed in a GFCI protected branch circuit. (Up through
size SP-A390)
• Never place a switch where it can be reached from a tub or
shower.
• Ducted fans must always be vented to the outdoors.
• These fans are not recommended for cooking exhaust
applications. They are designed primarily for low temperature,
clean air applications only. The diagram shows the minimum
distance these fans should be placed in relation to cooking
equipment.
• Fan/Light combination not to be installed in a ceiling thermally
insulated to a value greater than R40.
CAUTION!
• For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
®
Ceiling Exhaust and Inline Fans
Direct Drive
Inline Exhaust Fan
Designed for clean air
applications where low
sound levels are required.
AVERTISSEMENT
Pour réduire le risque d'incendie, de choc électrique ou de
blessure corporelle, respecter cd qui suit:
• Appareil pouvant être utilisé avec un régulateur de vitesse à semi-
conducteurs.
• Utiliser cet appareil exclusivement comme prévu par le fabricant. En
cas de questions, communiquer avec le fabricant à l'adresse ou au
numéro de téléphone figurant dans la garantie.
• Avant tout entretien ou nettoyage de l'appareil, couper l'alimentation
sur le tableau électrique et verrouiller le dispositif de sectionnement
pour empêcher toute mise sous tension accidentelle. Si le dispositif
de sectionnement ne peut pas être verrouillé, attacher un moyen
de mise en garde bien visible, tel qu'un panonceau, au tableau
électrique.
• La pose et le câblage électrique doivent être effectués par des
personnes qualifiées en conformité avec les codes et normes en
vigueur, y compris pour la résistance au feu du bâtiment.
• Une quantité d'air suffisante est nécessaire pour la bonne
combustion et l'extraction des gaz brûlés par le conduit d'évacuation
(cheminée) d'appareils à combustible afin d'éviter le refoulement.
Veiller à suivre les indications du fabricant du matériel de chauffe,
les normes de sécurité telles que celles publiées par la National Fire
Protection Association (NFPA) et l'American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE) et la
réglementation en vigueur.
• Lors de la découpe ou du perçage de murs ou plafonds, ne pas
endommager les câbles électriques et autres conduites masquées.
• Certains modèles (jusqu'au modèle SP-A390 inclus) sont approuvés
pour une installation au-dessus d'une baignoire ou d'une douche
sous réserve d'être raccordés à un circuit de dérivation protégé par
un DDFT.
• Ne jamais placer d'interrupteur à un emplacement à portée d'une
baignoire ou d'une douche.
• Les caissons d'extraction à gaine doivent toujours être évacués vers
l'extérieur.
• Ces caissons ne sont pas conseillés pour les applications
d'aspiration de vapeurs de cuisson. Ils sont conçus essentiellement
pour l'aspiration d'air propre à basse température. Le schéma
indique la distance minimale de placement de ces caissons par
rapport à l'équipement de cuisson.
• Le combiné ventilateur/luminaire ne devra pas être installé dans un
plafond ayant une isolation thermique d'une valeur supérieure à R40.
ATTENTION!
• À utiliser pour la ventilation générale uniquement. Ne pas utiliser pour
l'aspiration de matières et vapeurs dangereuses ou explosives.
Ceiling Exhaust and Inline Fans
Document 474680
Model SP and CSP
!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenheck SP Series

  • Page 1 Document 474680 Model SP and CSP Ceiling Exhaust and Inline Fans ® Installation, Operation and Maintenance Manual Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with these instructions will result in voiding of the product warranty and may result in personal injury and/or property damage.
  • Page 2: Typical Installation

    Typical Installation The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended.
  • Page 3 Prepare the Fan Remove Wiring Knockout Power Assembly Remove either top or side wiring knockout, If power assembly (motor, wheel, and scroll) is not depending on wiring installed in housing, insert the electrical plug into fan direction, by socket, then slide scroll end of power assembly into bending it back fan housing.
  • Page 4 Ceiling Radiation Damper (CRD) To mount the ceiling radiation damper to fan, make sure grille attachment tabs are facing down. Then place the inlet If fan is to be used in a fire resistive membrane part of the fan into the ceiling radiation damper collar, and ceiling, a ceiling radiation damper must be used.
  • Page 5 Discharge Installation for Ceiling and Inline Exhaust Models Sizes B50-200 Insert box scroll tab into box scroll slots. Rotate plastic duct adapter (PN 474433) until the two mounting tabs fully engage into the two box mounting slots. Box Scroll Tabs Box Mounting Slots Box Scroll Slots Box Mounting Tabs...
  • Page 6: Install The Fan

    Install the Fan For Frame Construction: Brackets can be used in either Position unit between position to adapt to most mounting 1. For best situations Slots in the joists. Position brackets Bottom Mount brackets performance, allow fine such that bottom Do not install adjustment for flush...
  • Page 7 WHITE WIRE WHITE WIRE RED WIRE WHITE WIRE L2 CONSTANT POWER NEUTRAL WIRE RED WIRE SOLID STATE Wiring Diagram - Continuous Ventilation GREEN WIRE 1. L1 Switched Power: Black Wire - Customer connection for switched power to the fan motor for high speed to be landed in lever nut connector. BLACK WIRE BLACK WIRE 2.
  • Page 8: Our Commitment

    A few drops of all purpose oil (SAE 20) will be sufficient. Our Commitment As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Specific Greenheck product warranties are located on greenheck.com within the product area tabs and in the Library under Warranties.
