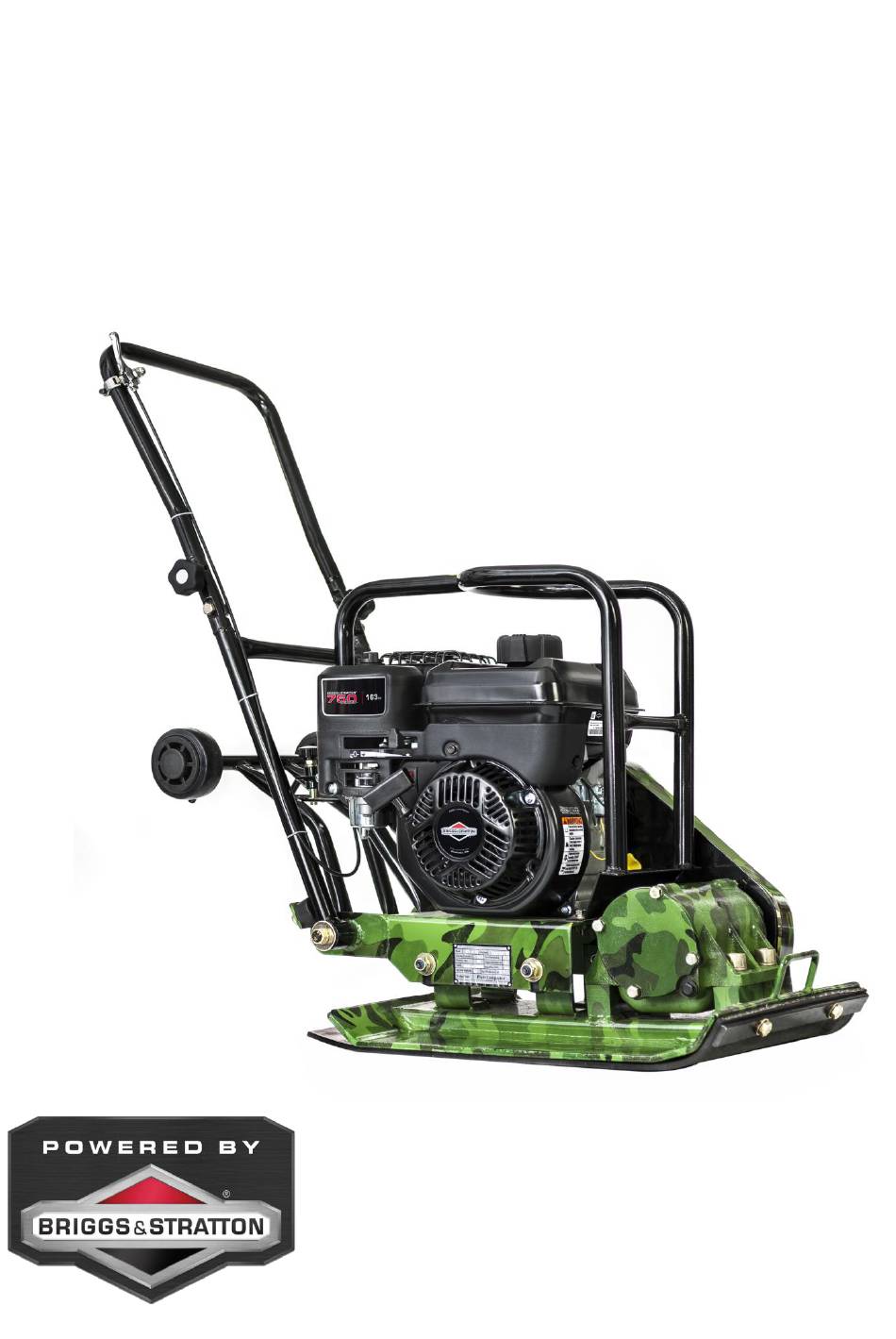

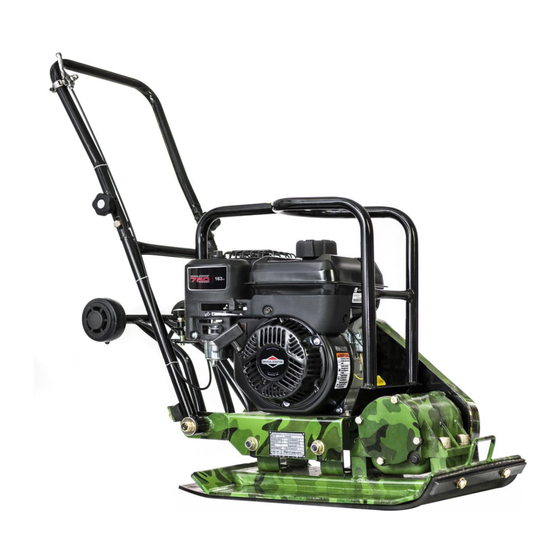

EARTHQUAKE PLATE COMPACTOR
MODEL GFX-Jr.-HD
OPERATORS MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFX-Jr.-HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Briggs & Stratton GFX-Jr.-HD

  • Page 1 EARTHQUAKE PLATE COMPACTOR MODEL GFX-Jr.-HD OPERATORS MANUAL...
  • Page 2: Table Of Contents

    WARNING To reduce the risk of injury, all operators and maintenance personnel must read and understand these instructions before operating, changing accessories, or performing maintenance on our EARTHQUAKE PLATE COMPACTORS. All possible situations cannot be covered in these instructions. Care must be exercised by everyone using, maintaining or working near this equipment. CONTENTS Brick paving Driveway repair...
  • Page 3: Operation

    EXERCISE CARE when operating unit. Exposure to vibration The following Pre-start-up inspection must be performed before or repetitive work actions may be harmful to hands and arms. the start of each work session or after every four hours of use. NEVER stand on the unit while it is operating.
  • Page 4: Care And Preventive Maintenance

    commencing compaction. To make sure your plate compactor is always in good working For more information of starting and correct operating condition before using, carry out the maintenance inspection in procedures of the motor, refer to the motor operation manual accordance with Tables 1 through 3.
  • Page 5: Specifications

    Checking and Replacing the V-belt and Clutch Material 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm After 200 hours of operation, remove the upper belt cover to 1100 1400 2000 check the V-belt tension (Figure 2).Tension is proper if the belt 6-8T 100 250 1300 2000 2700...
  • Page 6: Transportation

    Frequency—--------93HZ Centrifugal force—10.5KN Travel speed--------1.21Km/h Operation Mass----65kgs Bearings: The following bearing are sealed; Centrifugal clutch-grease lubricated; Vibrator-oil bath lubricated Acoustic Noise (According to 2000/14/EC) GFX -Jr.-HD Model No.: Measured Sound power level 105.48dB(A) Guaranteed sound power level 105dB Uncertainty 2.5dB Hand-Arm-Vibration (as per ISO8662, part 1, m/s ):4-9 TRANSPORTATION...
  • Page 7: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES SOLUTION Travel Speed too low, and Engine speed too low? Set engine speed to correct RPM. vibration is weak Clutch slips? Check or replace clutch V-belt slips? Adjust or replace V-belt Excessive oil in vibration? Drain excess oil and fill to proper level Malfunction in vibrator housing? Check eccentric, gears and counter weights...
  • Page 8 Dirty spark plug? Clean or replace spark plug Ignition coil defective? Replace ignition coil, Engine overheats Spark plug heat value improper? Replace with correct type of spark plug Correct type of fuel? Replace with correct type of fuel Cooling fins dirty? Clean cooling fins Rotational speed fluctuates, Governor adjusted correctly?
  • Page 9: Explosive Diagram & Part List

    GFX -Jr.-HD PLATE COMPACTOR DIAGRAM & PART LIST 2...
  • Page 10 GFX -Jr.-HD PART LIST 1 PLATE COMPACTOR DIAGRAM &...
  • Page 11 ITEM NO. PART NO. DESCRIPTION QUANTITY 600001 CHINESE PETROL ENGINE 600002 HANDLE-UPPER 600003 NUT M10-GB6184 600004 FLAT WASHER 10-GB97.1 600005 SPRING WASHER 10-GB93 600006 BOLT M10X35-GB5782 600007 KNOB 600008 HANDLE-DOWM 600009 RUBBER COLLAR 600010 STEEL COLLAR 600011 FLAT WASHER 12-GB97.1 600012 BOLT M12X55 GB5782 600013...
  • Page 12 600036 SPRING WASHER 12-GB93 600037 BOLT M10X40-GB5780 600038 FLAT WASHER 10-GB97.1 600039 FLAT WASHER 16-GB95 600040 SPRING WASHER 16-GB93 600041 BOLT M16X40-GB5781 600042 NUT M10-GB6184 600043 FLAT WASHER 8-GB97.1 600044 SPRING WASHER 8-GB93 600045 BOLT M8X30-GB5781 600046 BOLT M6X30-GB5781 600047 FLAT WASHER 6-GB97.1 600048 NUT M6-GB6184...
  • Page 13: Warranty

    ITEM NO. PART NO. DESCRIPTION Invoice Number. Type of Machine: 600026 VIBRATOR ASSEMBLY 600026-1 CASE COVER(L) 600026-2 OIL SEAL 35 X48 X10-GB9877 600026-3 O-RING 100-GB3452.1 600026-4 BOLT M8 X 25-GB5783 600026-5 SPRING WASHER 8-GB93 600026-6 FLAT WAHSER 8-GB95 600026-7 PULLEY 600026-8 KEY C8-GB1096 600026-9...
  • Page 14 Date Purchased: Dealer Name: Serial Number: Dealer Phone: REPLACEMENT PARTS USED MAINTENANCE LOG ITEM NO. DESCRIPTION QUANTITY COST DATE DATE...
