DOGA BST-8W LCD User Manual

Wi-fi bit socket tray for bm/bmt tools

Advertisement

Quick Links

User manual
BST-8W LCD WI-FI
BIT SOCKET TRAY for BM/BMT TOOLS
EN
60510-09/24
www.dogassembly.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BST-8W LCD and is the answer not in the manual?

Questions and answers

Summary of Contents for DOGA BST-8W LCD

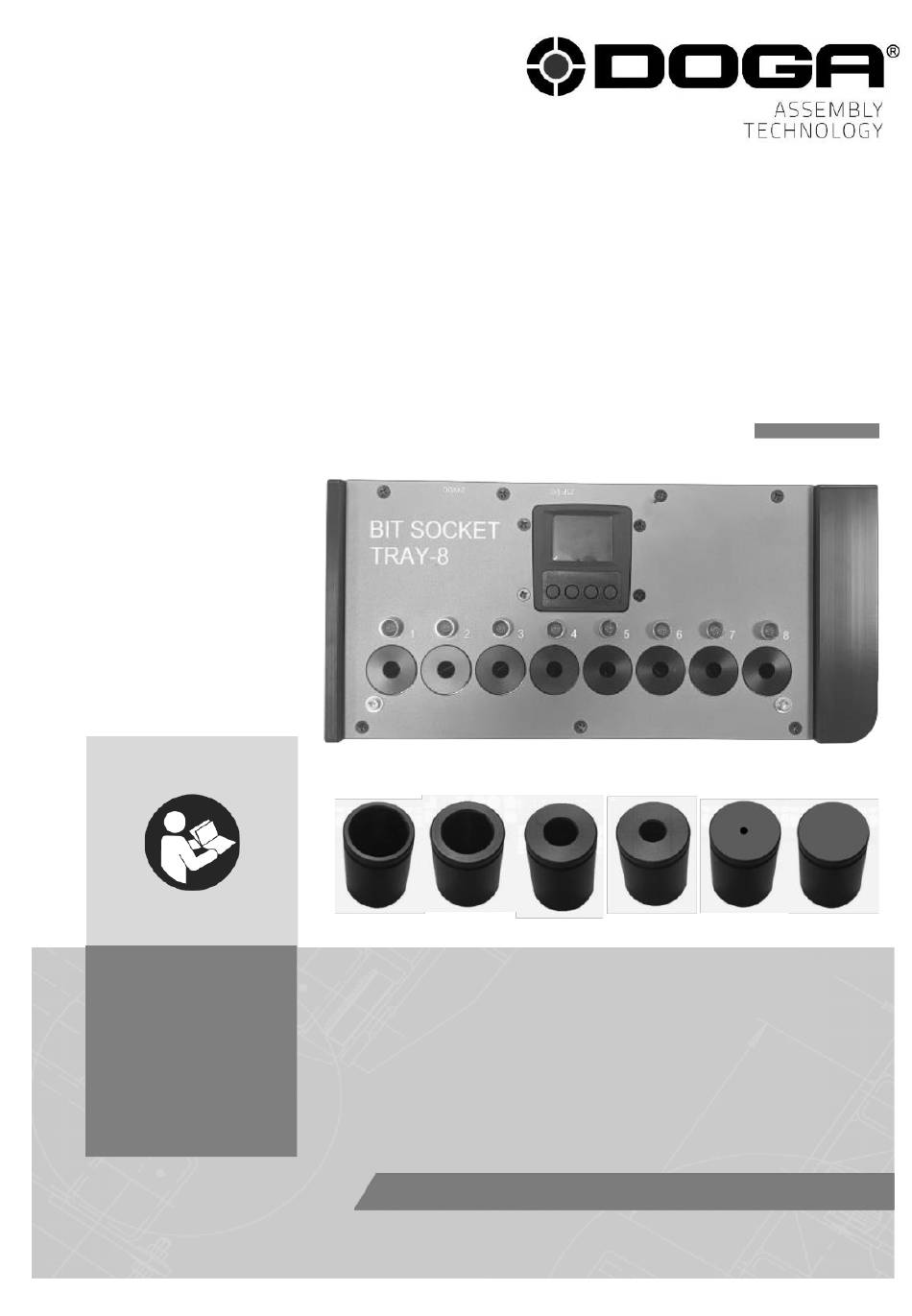

  • Page 1 User manual BST-8W LCD WI-FI BIT SOCKET TRAY for BM/BMT TOOLS 60510-09/24 www.dogassembly.com...
  • Page 2: Table Of Contents

    CONTENTS Symbols ................................4 INFORMATION..........................5 IMPORTANT ............................. 5 Product refere nce ............................. 5 Standard packing items ..........................5 Optional items ............................5 Main features.............................. 6 System layout ............................. 7 Battery ................................ 8 Battery charger ............................9 OPERATION ...........................10 Master mode ............................10 Slave mode ..............................
  • Page 3 Battery recycling and end of service life ....................34 10. APPENDICES - MODBUS TCP PROTOCOL..................35 10.1 Modbus TCP ............................35 10.2 Driver control and status monitoring addresses ..................36 10.3 Read ................................. 36 10.4 Write ................................. 38 10.5 Error Message ............................39 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 4: Symbols

    This warning statement indicates a low risk that may lead to minor or moderate injuries if not avoided. Wear personal protection equipment This symbol indicates the need to wear protective gloves. Warning This warning statement indicates a moderate risk that may lead to severe or fatal injuries if not avoided. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 5: Information

    If this is the case, when ordering a replacement or spare parts, please indicate the bit socket tray item code and serial number written on shipping note or contact DOGA at +33 1 30 66 41 41 indicating the approximate delivery date.
  • Page 6: Main Features

    LED for bit selection Information To mount or remove a bit holder, loosen the 2 screws by 5 turns to release the internal locking rail. (flat bar with half-round locking). Bit holder sold separately. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 7: System Layout

    System layout One BM(T) tool assigned to one BST-8W via an Access Point WiFi WiFi User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 8: Battery

    Do not dispose of battery into household waste, fire or water. Batteries should be collected, recycled or disposed of an environmentally friendly manner. Call the authorized warranty centers for places to dispose of damaged or inoperable batteries. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 9: Battery Charger

    Only indoor use: do not expose charger to rain, or wet conditions. ⚫ ⚫ Do not operate charger if it has been damaged in any way. ⚫ Do not disassemble, take it to a qualified service center for repair. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 10: Operation

    Number of active 2) Tool disable output sensors ≤ 1 3) Selection output signal 1) Indicating LED is continuously turned ON. 2) Provide the output signal of the selected socket position for preset# selection User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 11: Slave Mode

    - Selection LED keeps blinking socket is - Selected socket LED is turned ON selected - Alarm output (tool disable) - BIT alarm message - Corresponding LED continuously ON - Selection output signal - Tool enable output User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 12: Master Sensor To Detect Steel Bits

    The sensor activates with the steel material. The sensor cannot be activated with too much thin bit or socket. The bit should be located at the closest to the sensor. Bit (steel) Bit holder Magnet sensor User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 13: Display

    Parameter resume Press F1 followed by F3 or F4 for an overview of the main current settings. F1: main settings F4: network settings F4: more network settings Return to the operation menu by pressing F1. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 14: Setting

    LCD off time Time to switch off LCD 0 ~ 60 (min) Password For setting change 0000 ~ 9999 0000 Network Wi-Fi network settings Information Values can be modified continuously by holding down the button. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 15: Main Settings 1 To 10

    Parameters can be return to the factory setting. If you set value 77, all parameters except network are initialized. Set value 7777: all parameters including network are initialized. Selected digit F2 SHIF: to select value digit User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 16 Sensor num (select number of slots to be used) 4.2.5 Select number of sockets to be used. Always starting from the first bit holder and contiguous positions. Bit holder not used can remain empty Protocol 4.2.6 Wi-Fi communication protocol: Modbus (not changeable) User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 17 Assignment of Socket no. and screwdriver Preset # can be 1:1 direct single matching connection or flexible multiple matching connection as below examples. Ex 1 Master mode a preset can be used with several bits Ex 2 Slave mode Use one bit in multiple presets User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 18 Password O → Parameter setting window Password X → Operation window If you lose your password, it will be initialized if you press the F4 key more than 30 times in the [SETTING] screen. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 19: Network Setting

    82 à 97 Wi-Fi security password BITSOCKET Security Security protocol None 99 à 102 Target IP IP address of the linked BM/BMT screwdriver 192.168.1.101 Target Port TCP port of the linked BM/BMT screwdriver 5000 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 20 IP1.IP2.IP3.IP4: fixed IP address of the BST. subnet1.subnet2. subnet3.subnet4: IP address subnet mask gateway1.gateway2. gateway3.gateway4: network gateway address Port (65) 4.3.4 Communication port for BST TCP connection. Must be identical to the screwdriver's Target Port (103). User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 21 Each character must be entered using its ASCII code in decimal according to the table below. Select character using down/up keys The character is displayed in plain text to the right of the ASCII code - e.g. 68 D User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 22 Target IP (99 à 102) 4.3.7 targetIP1.targetIP2. targetIP3.targetIP4 IP address of the screwdriver associated with the BST. Target Port (103) 4.3.8 Communication port for screwdriver TCP connection. Must be identical to BST port (65). User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 23: Wi-Fi Access Point (Option)

    C. Launch a web browser and type http://tplinkwifi.net in the address bar, or the router's IP address if given. Username: admin Password: admin D. Click Log in to open the web console. Access Point setup Information Each setting must be saved before proceeding to the next page. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 24 Operation mode 5.2.1 LAN settings 5.2.2 Wireless settings (2.4Ghz) 5.2.3 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 25 Wireless security settings 5.2.4 DHCP settings 5.2.5 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 26: Bm & Bmt Settings

    It is not possible to connect a BM screwdriver with ParaMon software when the screwdriver is connected to a Wi-Fi BST. Not compatible with ParaMon Pro X controllers. 6.2 BM and BMT Network settings On BM Display menu: confirmation that BM tool is assigned to BST. BM/BMT controller settings User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 27: Maintenance

    During manufacturing the proper functioning of the unit is checked multiple times. However, if the unit malfunctions, troubleshoot it using this list: Warming All troubleshooting tasks requiring the opening of the box must be performed by DOGA or a company authorized by DOGA. Problem...
  • Page 28: Spare Parts

    For any spare parts order, contact your DOGA technical sales representative. My client area on www.doga.fr Go to your client area on www.doga.fr,, click “Your contacts”, then select your specific Technical Salespeople depending on the device type. Hotline For any information regarding the use of the tool 7.4.1...
  • Page 29: After-Sales Returns

    Following this procedure allows you to quickly take charge of your request and reduce the troubleshooting costs. DOGA reserve the right to apply a trade-in discount and to invoice, if applicable, the costs of repairing and packaging. Download the after-sales return form 7.5.1...
  • Page 30: On-Site Repair

    Our services will organize the intervention. Warranty DOGA guarantee all his products against any defect in parts or fabrication for a period of 12 months. To benefit from the parts and labor warranty, the following conditions must be respected: ⚫...
  • Page 31: Safety

    • Replace damaged cords immediately. Damaged cords increase the risk of electric shock. • Protect battery contacts when battery is not used • Refer to specific battery safety instructions in chapter 1 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 32: Residual Risks

    • Do not expose to dusty environments. • Do not use near a heat source. • Do not expose to explosive atmospheres (flammable liquids, gases or dusts). • Never use oil sprays on electrical parts. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 33: Standards

    Clean the tool according to the instruction manual (Maintenance Chapter). ⚫ ⚫ Store it in a suitable container to protect it from dust and direct sunlight. ⚫ Store it in a dry place at an ambient temperature, below 40°C. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 34: Weee Recycling And End Of Service Life

    9.4.1 In compliance with the French Environmental Code covering professional Waste Electric and Electronic Equipment (WEEE) (art. R543-195 et seq.), DOGA is a member of ECOSYSTEM, an eco-organization approved by public authorities under the conditions defined by art R543-197. You can also benefit from collection and recycling system proposed by ECOSYSTEM for WEEE originating from the professional equipment marketed by DOGA.
  • Page 35: Appendices - Modbus Tcp Protocol

    Protocol Protocol Length Length Slave Function ID (High) ID (Low) ID (High) ID (Low) (High) (Low) address Code Data byte Data Data length (High) (Low) Data byte length: Byte number of data Data: value. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 36: Driver Control And Status Monitoring Addresses

    If data no.1 bit is 0, the bit 1 is not used. If data no.1 bit is 1, the bit 1 is used. In case of 0x04(0000 0000 0000 0100) only bit 3 is used. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 37 Transaction Transaction Protocol Protocol Length Length Slave Function ID (High) ID (Low) ID(High) ID (Low) (High) (Low) address Code Data Length Data Length Address (High) Address (Low) (High) (Low) Address: 3203, Data length: 1. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 38: Write

    Slave Function ID (High) ID (Low) ID(High) ID (Low) (High) (Low) address Code Address Address Data (High) Data (Low) (High) (Low) When the request is applied, the same message is returned as a response. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 39: Error Message

    Data range is wrong. Response Transaction Transaction Protocol Protocol Length Length Error ID (High) ID (Low) ID(High) ID (Low) (High) (Low) Code Slave Function Error address Code Code 0x80 is added to the requested function code. User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
  • Page 40 © DOGA | DOC.60510-09/24 User manual BST-8W LCD Wi-Fi DOC.60510-09/24...
