INSTRUCTION MANUAL
Cordless Hole Puncher
PP001G
Read before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP001G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Makita PP001G

Summary of Contents for Makita PP001G

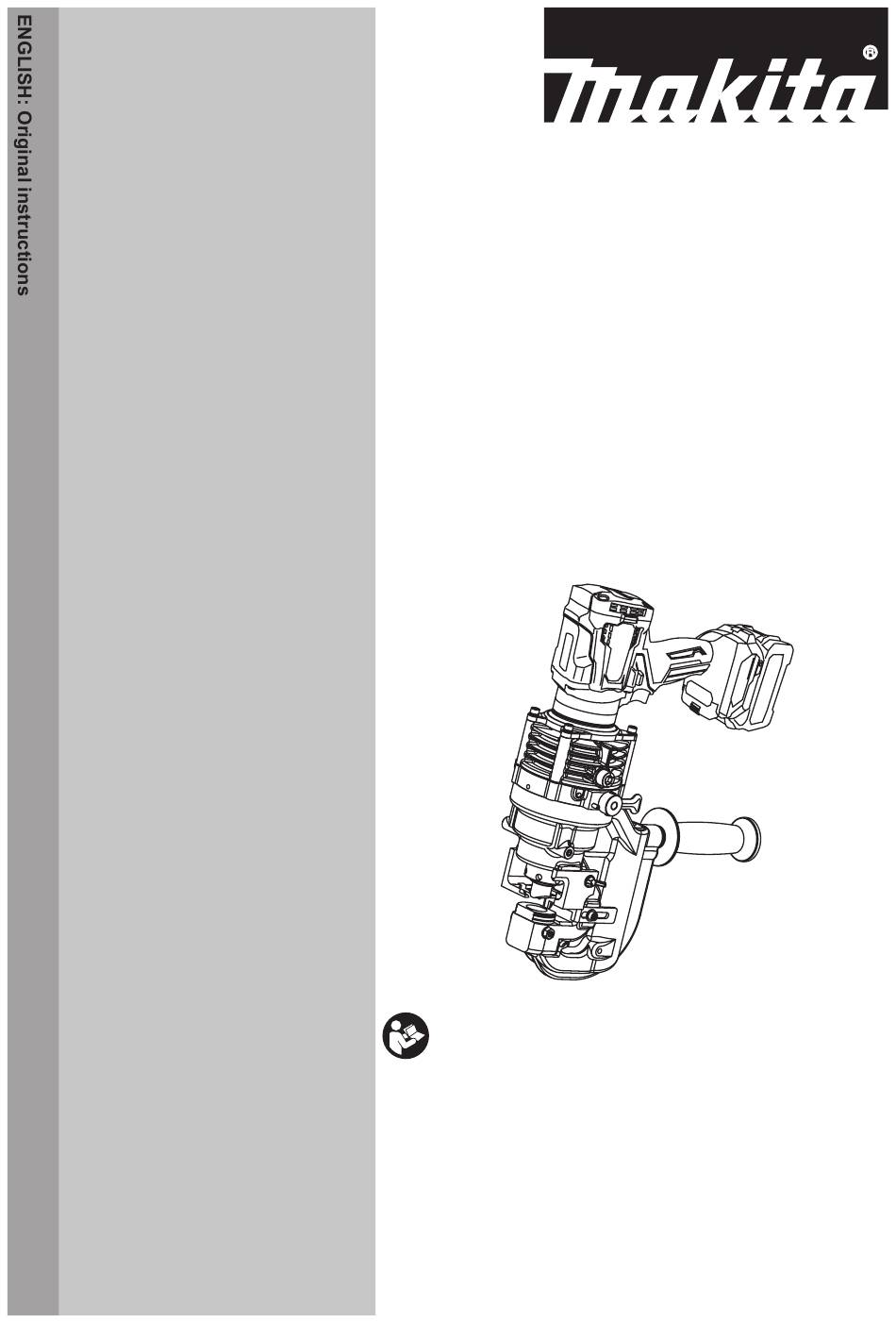

  • Page 1 INSTRUCTION MANUAL Cordless Hole Puncher PP001G Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model: PP001G Max. throat depth 40 mm Shape of holes Round / Oblong Max. hole size and thickness For mild steel of 65,000 psi Diameter : 20 mm tensile strength Thickness : 9 mm For stainless steel of 89,000 psi...
  • Page 3 Combination of punch and die Round punching Punch Workpiece Capacity Flat bar Max: 80 mm x t9 (Center punching) Angle Min: 40 mm x 40 mm x t3 Max: 80 mm x 80 mm x t9 Channel Min: 75 mm x 40 mm Max: 125 mm x 65 mm (Flange punching) H-steel...
  • Page 4 Oblong punching Punch Workpiece Capacity Flat bar Max: 80 mm x t9 (Center punching) Angle Min: 40 mm x 40 mm x t3 Max: 80 mm x 80 mm x t9 Channel Min: 75 mm x 40 mm Max: 125 mm x 65 mm (Flange punching) H-steel Min: 100 mm x 100 mm...

  • Page 5: Intended Use

    Vertical oblong punching Punch Workpiece Capacity Flat bar Max: 80 mm x t9 (Center punching) Angle Min: 40 mm x 40 mm x t3 Max: 80 mm x 80 mm x t9 Channel Min: 75 mm x 40 mm Max: 125 mm x 65 mm (Flange punching) H-steel Min: 100 mm x 100 mm...

  • Page 6: General Power Tool Safety Warnings

    medication. A moment of inattention while oper- SAFETY WARNINGS ating power tools may result in serious personal injury. Use personal protective equipment. Always General power tool safety warnings wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or WARNING Read all safety warnings, instruc- hearing protection used for appropriate conditions tions, illustrations and specifications provided with will reduce personal injuries.
  • Page 7 Replace them immediately with Under abusive conditions, liquid may be new ones supplied from Makita. ejected from the battery; avoid contact. If con- When punching stainless steel, the punch tact accidentally occurs, flush with water. If...
  • Page 8 Do not touch the terminals with any con- CAUTION: Only use genuine Makita batteries. ductive material. Use of non-genuine Makita batteries, or batteries that Avoid storing battery cartridge in a con- have been altered, may result in the battery bursting tainer with other metal objects such as causing fires, personal injury and damage. It will nails, coins, etc.

  • Page 9: Parts Description

    PARTS DESCRIPTION A: 10 mm B: 40 mm C: 15 mm D: 72.5 mm E: 100 mm F: 44 mm Fig.1 Motor Pump case Punch retaining nut Punch Stripper Slide stopper C frame Return lever Switch trigger Battery cartridge Work stand (Optional accessory) Slide stopper (Max.

  • Page 10: Battery Protection System

    Let the tool and battery(ies) cool down. switch trigger actuates properly and returns to the "OFF" position when released. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. CAUTION: Always lock the switch trigger when not in use. Indicating the remaining battery When punching a workpiece, continue to pull the switch...
  • Page 11 Place the punch in the punch retaining nut. Insert Rotatable grip the punch with the nut into the punch piston and hand tighten the nut. The grip can be rotated though 360 degrees, in either NOTICE: direction, during operation. This feature is particularly When installing a punch with a stepped useful when working in awkward or narrow areas as it edge (anti rotation), make sure the orientation allows the operator to position the tool in the best posi-...

  • Page 12: Operation

    The punch must be removed first and then the die. OPERATION Unscrew the punch retaining nut to remove the punch and remove the set bolt and the nut to remove the die. Correct use of the tool NOTICE: When replacing the punch and the die, make sure that the correct size, thickness and hole shape is selected.
  • Page 13 The punch rod will extend and push the punch through Punching a hole the workpiece. NOTE: To aid accurate and easy positioning of the CAUTION: Before punching, always make punch, pull the switch trigger intermittently to jog the sure that the proper punch and die are installed punch down to the workpiece. If the position is not correctly.

  • Page 14: Regular Maintenance

    ► 1 . Air hole NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality...

  • Page 15: Optional Accessories

    Any attempt by unauthorized personnel to service the internal components of the pump area will void the warranty. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
  • Page 16 Makita Corporation 3-11-8, Sumiyoshi-cho, PP001G- Anjo, Aichi 446-8502 Japan ENAU-2309 www.makita.com 20240307...
