Sealey LED240 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. ELECTRICAL SAFETY
USE ONLY THE SUPPLIED USB CABLE FOR CONNECTING FLOODLIGHT TO THE POWER SUPPLY.
WARNING! It is the user's responsibility to read, understand and comply with the following electrical instructions:
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB (Residual Current
Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD (Residual Current Device) is
used with all electrical products, particularly portable equipment which is plugged into an electrical supply not protected by an RCCB.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT).
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
Inspect the USB cable and connector for wear and damage to ensure items are safe before connecting to a power supply. If worn or
damaged DO NOT use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery.
8
DO NOT expose to temperatures above 60°C (140°F).
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
1.3. GENERAL SAFETY
Ensure the floodlight is correctly charged before initial use.
9
DO NOT cover or block the lens during use.
8
DO NOT turn the floodlight on when it is being charged.
8
DO NOT shine directly into your, other person's or animal's eyes.
8
DO NOT allow children to use the floodlight.
8
DO NOT handle or move the floodlight whilst it is being charged.
8
DO NOT use the floodlight if you suspect that the battery or the spotlight casing is damaged.
8
DO NOT immerse the floodlight in water.
8
Use tripod on a stable surface.
9
Ensure the floodlight is allowed to cool before attempting any cleaning or storage.
9
When not in use, store the floodlight in a safe, dry, childproof location.
9
2. INTRODUCTION

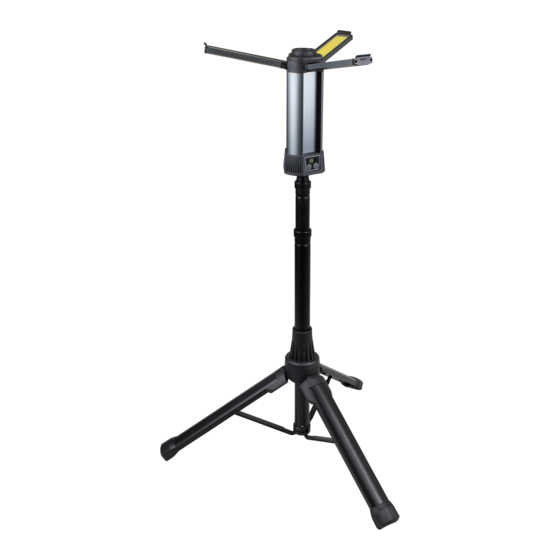

Three super bright 8W COB LED panels produce up to 2000 lumens and a smaller 5W SMD LED spotlight produces 400 lumens. Folding LED
panels create a 360° spread of light or rotate and tilt to create a focused beam of light. Mounted on a 1.1m tripod for simple positioning of light
and hands-free operation. Built-in power bank with 5V⎓1A USB output for providing power on the go. Features a magnetic base and hook which
provide more mounting options. 3.7V 4Ah lithium-ion battery for extended battery life with a long run time of 4hr. Easy to read charge indicator
displays the current battery level during use and while charging. Charges via USB-C cable
3. SPECIFICATION
Model No: ................................................................. LED240
Battery: ................................................. 3.7V Lithium-ion 4Ah
Charging Time: ..................................................................6hr
Colour Temperature: ..................................... 3000K & 6000K
IP Rating: ....................................................................... IPX3
LED Type: ...........................................COB LED + SMD LED
Lumen Output: ........................................................... 2000lm
Weight: ........................................................................ 1.78kg
Operating Time: .......................Side(High/Low)/Top: (2/4) 8hr
Power: ................................................................... 24W + 5W
USB Output: ................................................................ 5V⎓1A
© Jack Sealey Limited
RECHARGEABLE FLEXIBLE FLOODLIGHT WITH
TRIPOD, 24W COB LED & 5W SMD LED, 2000LM, BUILT-
IN POWER BANK
LED240
MODEL NO:
,
The battery fitted to this lamp is considered to be a consumable item
and its ability to accept a charge will reduce over time. We will provide
warranty against mechanical and electrical defect for a period of one
year - this does not cover fair wear and tear. If the battery is not properly
charged before first use, or regularly conditioned, its capacity will
diminish. Under these circumstances we will not replace the battery
regardless of whether it is less than one year old.
Note:
The lithium battery does not suffer from memory effect and once fully
charged may be stored for up to six months without another charge.
Original Language Version
LED240 Issue:1 29/08/24
