Club 3D CSV-1583 Quick Installation Manual

Thank you for purchasing our CSV-1583.
After unpacking the product, please make sure you have all the items provided and checked
for any damages. In case of any missing damaged parts please inform your supplier immediately.
You should have:
• CSV-1583 Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
• Power Adapter 21V(150Watt)
• TB4™ Cable 0.8m / 2.62 ft M/M(for connection to host)
• QR code for the QIG(Quick Installation Guide)
The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution
available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output
max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max,
M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45
supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it
supports smart power function which enables to distribute power according to the power
consumption of the connected device, making full use of external power supply. It is
designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.
How does it work?
1
Please install the DisplayLink Driver which is
available under downloads in the product page at
www.club-3d.com - search item CSV-1583
2
Connect the Power Supply to the 21V DC jack
3
Connect the host with the provided TBT4 cable
4
Connect your Displays to the respective
DisplayPort™ and/or HDMI™ ports
5
Connect your 2.5Gbps connection to the Rj-45 jack
6
You can connect your other
peripherals to the respective ports
Warning Safe Usage: Only to be used at altitude 2000 meters/6562 feet and below.
Disclaimer: While we endeavour to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Products might obtain a certification during their lifetime. This doesn't change
or alter the product specifications and/or performance in any way. Club 3D will provide the updated information on their website www. Club-3d.com at her discretion. Therefore Club 3D does not accept any rights claimed on the content of this document. Please refer to a full
overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
CSV-1583 QIG July 2024
22,5 cm/ 8,86"

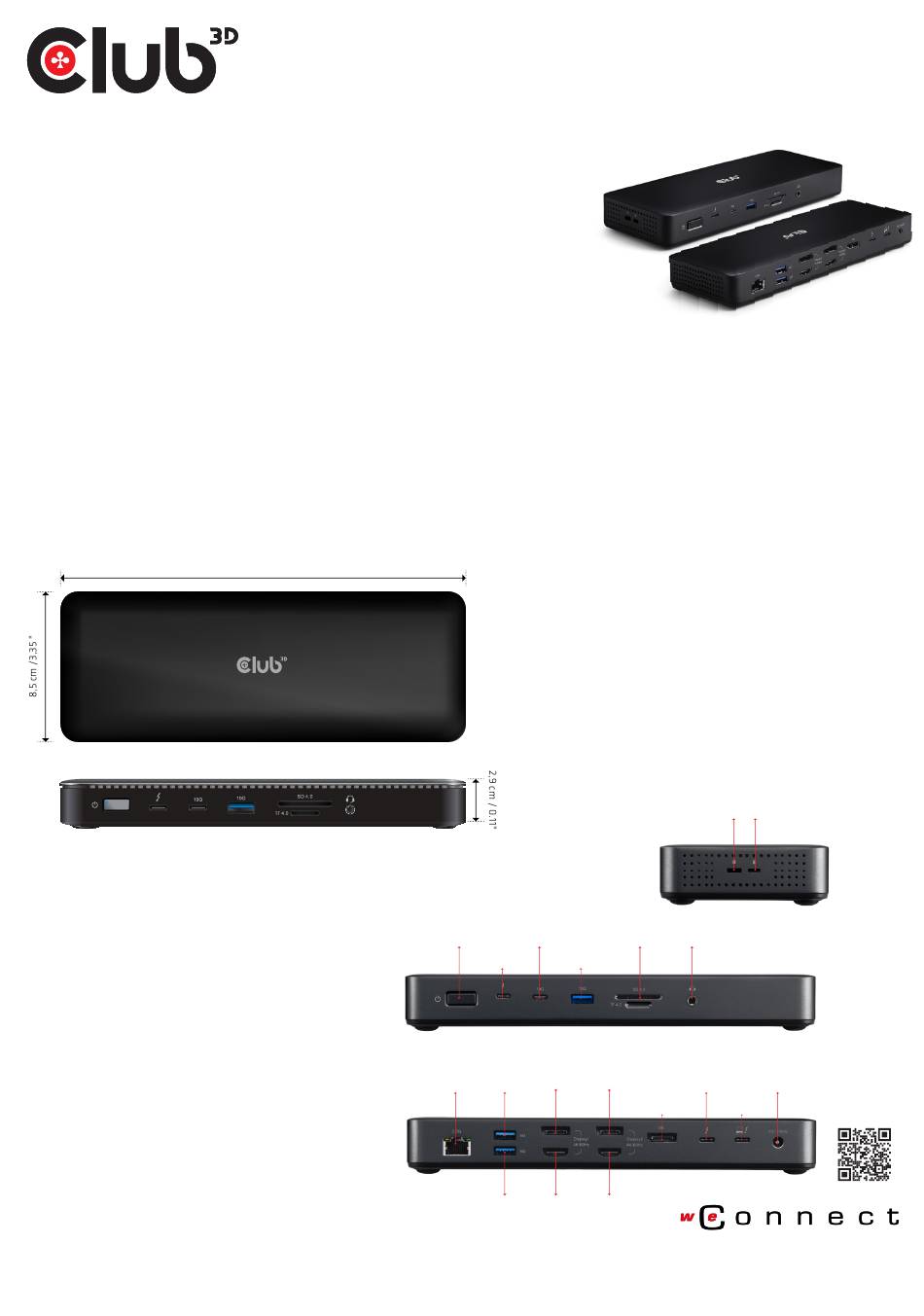

CSV-1583 QUICK INSTALLATION GUIDE
Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station
ALL connectors on the CSV-1582 are FEMALE
Power Switch USB Type-C
ON/OFF 10G
Thunderbolt4 USB Type-A
8K 10G
Ethernet USB Type-A DisplayPort DisplayPort
RJ45 2.5G 5G 4K 4K
USB Type-A HDMI HDMI
5G 4K 4K
In this document you can find:
Avalible interfaces
How does it work
Meassurements are approx.
Kensington Nano
Anti-theft lock Anti-theft lock
SD/TF Audio
Card Reader In/OUT
Thunderbolt 4 DC Power Jack
8K
DisplayPort Thunderbolt4
8K to host
Copyright © 2024 Club 3D B.V. Copyright © 2024 Club 3D B.V.
Measurements
Operation Notes
Measurements
