Peavey TRACER II Operating Manual

aA

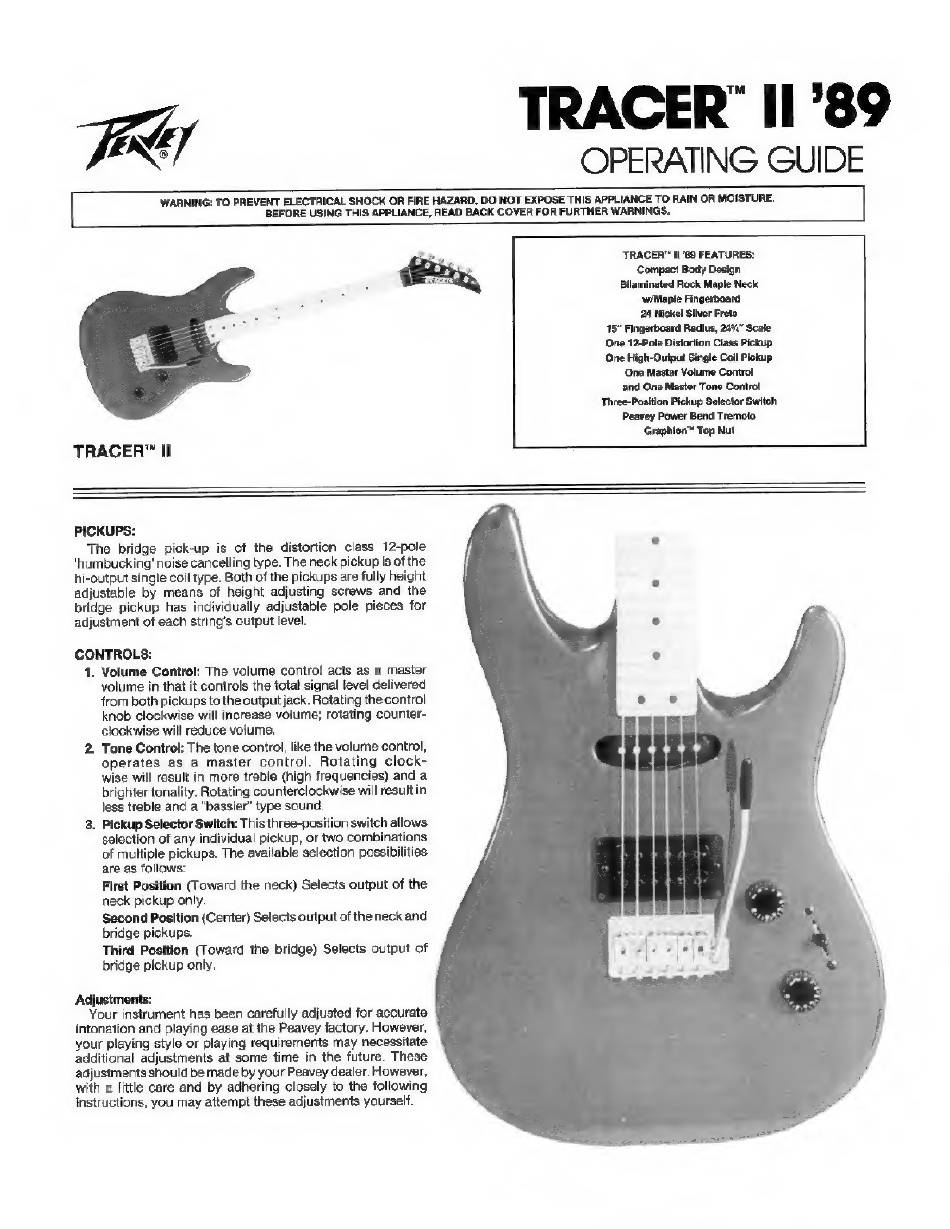

OPERATING GUIDE

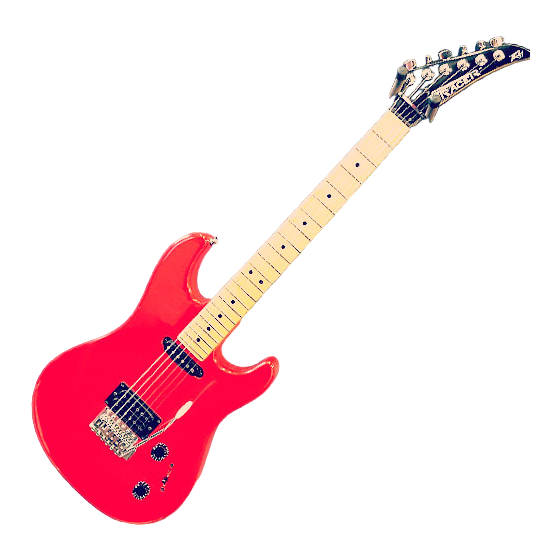

TRACER™ II
TRACER" Il 89 FEATURES:
'Compact Body Design
Bilaminated Rock Maple Neck
'w/Maple Fingerboard
24 Nickel Silver Frets
15" Fingerboard Radius, 24%." Scale
One 12-Pole Distortion Class Pickup
One High-Output Single Coil Pickup
'One Master Volume Control
and One Master Tone Control
Three-Position Pickup Selector Switch
Peavey Power Bend Tremolo
Graphion™ Top Nut
PICKUPS:
The bridge pick-up is of the distortion class 12-pole
'humbucking' noise cancelling type. The neck pickup is of the
hi-output single coil type. Both of the pickups are fully height
adjustable by means of height adjusting screws and the
bridge pickup has individually adjustable pole pieces for
adjustment of each string's output level.
CONTROLS:
4. Volume Control: The volume control acts as a master
volume in that it controls the total signal level delivered
from both pickups to the output jack. Rotating the control
knob clockwise will increase volume; rotating counter-
clockwise will reduce volume,
3. Pickup Selector Switch: This three-position switch allows.
selection of any individual pickup, or two combinations
of multiple pickups. The available selection possibilities
are as follows:
Third Position (Toward the bridge) Selects output of
bridge pickup only.
Adjustments:
Your instrument has been carefully adjusted for accurate
intonation and playing ease at the Peavey factory. However,
your playing style or playing requirements may necessitate
additional adjustments at some time in the future. These
adjustments should be made by your Peavey dealer. However,
with a little care and by adhering closely to the following
instructions, you may attempt these adjustments yourself
