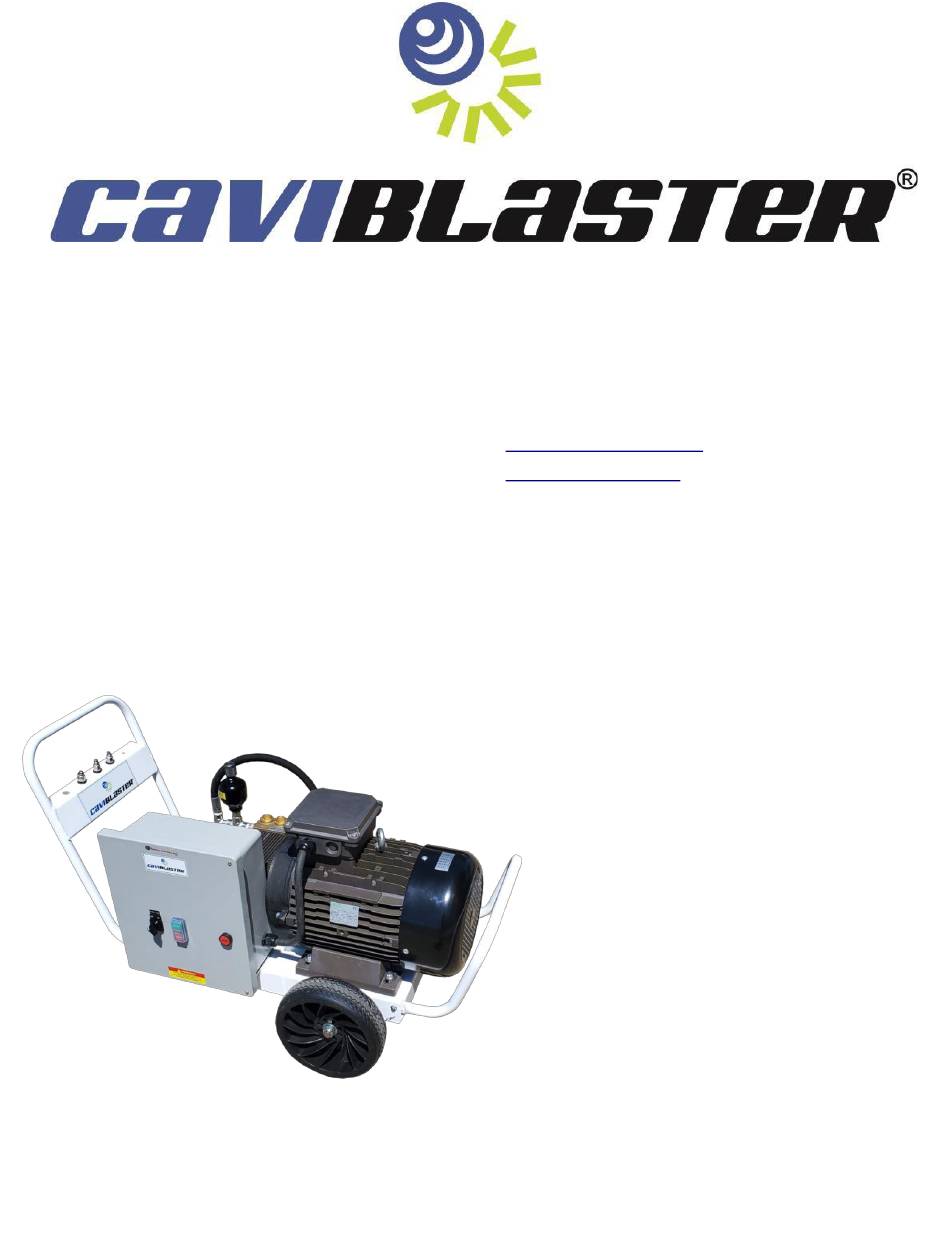

- Page 1 CAVIDYNE LLC 5077 Fruitville Road Suite 109 - 157 Sarasota, FL 34232 USA Phone: (352) 275-5319 www.caviblaster.com www.caviblaster.cl Operation & Maintenance Manual Model 1222-E...
-
Page 2: Table Of Contents
VII. Routine Maintenance for the CaviBlaster System …………………... 10 VIII. Oil Change of the CaviBlaster System …………………………..11 Summarizing Daily Operation Instructions ………………………... Figures ……….……………………………………………………… 13 Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 3: Preparing The System Before Operation
(Figure # 11), This feed hose has the feed pump on one end and a cam-lock socket on the other end. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... - Page 4 Connect the water source to the inlet of the pressure pump (Figure # 11), make sure the feed hose is connected to the pressure pump and water is present prior to starting the unit. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
-
Page 5: Starting The Caviblaster
7.- Let the diver get ready and in position to start cleaning. 8.- Once the diver is ready Restart the feed pump and the unit again. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 6: Shooting Down The Caviblaster
5.- If it’s the end of the day, flush and rinse the unit with fresh water for 5 minutes to clean all hoses and the complete system. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 7: Recommendations For Safety Operation Of The System
If the diver is not wearing a helmet, hearing protection is recommended. CaviDyne recommends “Doc’s Pro-plugs” vented earplugs or equivalent for diver hearing protection. 3.- To activate the cleaning cavitation stream squeeze the trigger to the open or “ON” position,... -
Page 8: Recommendations For Better Results
(up to 2,200-psi) water stream, which can cause injury when the gun is out of the water. ALWAYS keep the gun submerged when the pressure pump is engaged. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 9: Adjusting The System For Maximum Performance
3. Without a pressure gauge, close the pressure-regulating unloader until there is just a trickle of water (less than ¼ gallon per minute) coming out of the bypass with the gun trigger in the open or “ON” position. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 10: Routine Maintenance For The Caviblaster System
Use single-weight lubricating oil (SAE 30 weight non-detergent) 5. Change the spring for the gun trigger every 12 months or less if required. (Figure # 18) Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 11: Oil Change Of The Caviblaster System
6. Put in one ¼ Non-Detergent SAE 30 ISO100. 7. Place oil cap again and check the level in the pump, the middle is perfect. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 12: Summarizing Daily Operation Instructions
11. Remove the gun from the water. 12. Flush the system and rinse the outside of the power unit with fresh water. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... -
Page 13: Figures
Figure # 3 – Non-Detergent Pump Oil Figure # 4 – Fill Port in Pump Figure # 5 – Red Rubber By-Pass Hose Figure # 6 – By-Pass Hose connection Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319... - Page 14 Figure # 9 – Zero Thrust GUN Figure # 10 – Feed hose with bilge pump Figure # 11 – Feed Hose Connection Figure # 12 – Feed pump connection Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 15 Figure # 15 – Red Stop Button Figure # 16 – Gun position for better results Figure # 17 – Pressure Gauge Figure # 18 – Gun Trigger - Spring Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 16 Figure # 19 – Pressure Regulator Unloader Figure # 20 – Additional calibration gauge (not provided). Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 17 CaviBlaster 1222-E Complete System Assembled Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
- Page 18 CaviDyne, LLC at (352) 275-5319 with any questions. CAUTION: DO NOT USE IT TO CLEAN SENSITIVE SURFACES as LED-Lights, Underwater Lights, Electronic Equipment, Etc. Page - CaviBlaster 1222-E Operations Manual For More information please email sales@cavidyne.com or all 1-(352)275-5319...
