Summary of Contents for CAVIDYNE CaviBlaster 1430-E Series

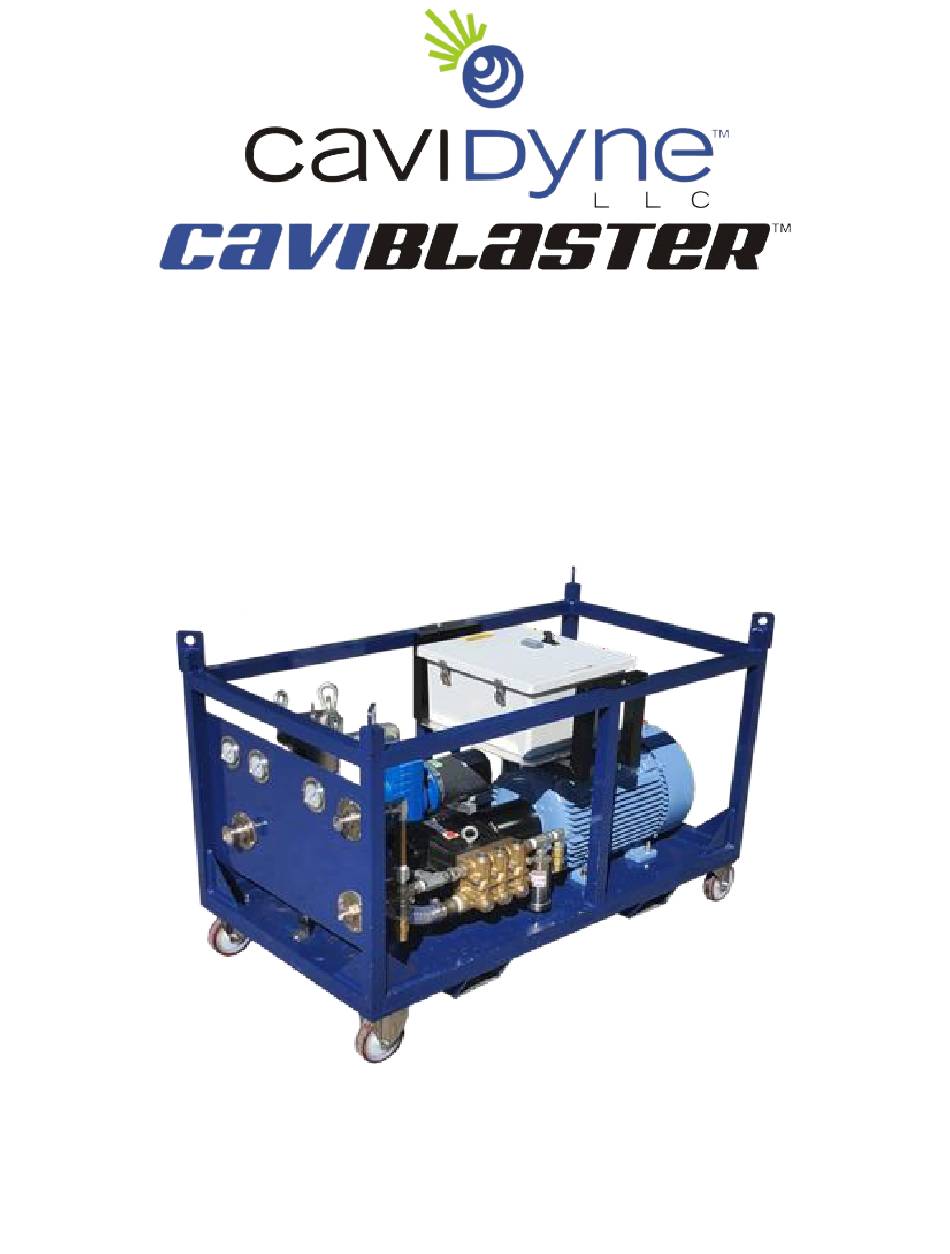

  • Page 1 CaviBlaster 1430-E Operation & Maintenance Manual sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 2 SYSTEM BEFORE CONNECTING POWER SUPPLY. USE DEDICATED CIRCUIT INSTALLED BY A LICENSED ELECTRICIAN. CIRCUIT SHOULD SUPPLY ADEQUATE VOLTAGE AND AMPERAGE UNDER LOAD. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 3: Unit Specifications

    Power Unit Weight (Dry) 815 LBS (370 KG) Zero-Thrust Gun Weight 11 LBS (5 KG) Figure 1.2 – CaviBlaster 1430-E50 Specifications sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 4: General Description

    The unit is equipped with many features to maintain operator safety while operating at pressures of 3,000-PSI (206 BAR). Figure 2.1 – CaviBlaster 1430-E General Features sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 5: Using This Manual

    Refer to the applicable section in this manual for the correct procedures prior to any installation, setup, or maintenance work. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 6: Personal Safety

    The gloves will also protect operators’ hands from the initial shock wave when the Z/T-Gun / CaviDome is activated. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 7: Installation

    Section 1.0 UNIT SPECIFICATIONS and that the unit is stable before lifting. Figure 4.1 – Lifting Guidelines sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 8: Installation Location

    Take note of frequently serviced areas such as the in-line strainers and motor couplings. Figure 4.2 – Installation Guidelines sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 9: Initial Setup

    2. Gravity feeding water source (See Figure 4.3). Use a hose with a diameter of at least 1- 1/4” to connect the water tank to the power unit water inlet. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 10 3. Connect the cam-lock socket on the 1-1/4” clear PVC feed hose to the water inlet connection on the control panel (See Figure 2.2). Place the other end of the hose in the water supply. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 11: Preparing The Unit For Operation

    Review the safety requirements found in Section 3.0 before operating. Preparing the Unit for Operation: sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 12 “soft start” starter and may take 3-4 seconds for the motor to get to full RPM after being turned “ON”. 10. The system is now ready to operate. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 13: Normal Operation

    Figure 5.3) while under water. Revert to step 5.2 of the operating instructions when the diver or replacement is ready to continue cleaning. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 14 3,000-PSI (206 BAR) on the calibration gauge. Turning the knob clockwise will increase the pressure and turning it counterclockwise will decrease the pressure. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 15 HOSE LINES ARE RATED FOR 2,500 PSI. PRESSURES ABOVE 2,500 PSI COULD RESULT IN HOSE FAILURE. Figure 5.2 – Zero-Thrust Gun Pressure Calibration sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 16 Figure 5.3 – Zero-Thrust Gun Position for Best Results sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 17: Maintenance

    SYSTEM FROM PRODUCING THE CORRECT OPERATING PRESSURE. THE CAVIBLASTER 1430-E MUST BE FLUSHED AND RINSED AFTER EACH USE IN SEA WATER. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 18: Pump Service

    5. Push strainer back into housing and push the bowl back onto filter housing. 6. Thread the bowl clockwise onto the housing nut to hand tighten. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 19 Figure 6.1 – Inspection / Cleaning Water Strainer Figure 6.1 – Inspection / Cleaning Main Filter sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 20 7. Stop the unit and disconnect all hoses. Following this procedure will ensure that all the critical system components exposed to water have been flushed with antifreeze. sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 21: Troubleshooting

    Ensure that the power unit is not located too far above the water level, exceeding the draw capacity of the feed pump • Check that feed pump and inlet water strainers are clear sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
  • Page 22: Replacement Parts

    Pump Plunger Rod O-Ring Kit UD-123 Pressure Regulating Unloader Repair Kit UB 502 / K Trigger Valve Repair Kit – Large Gun 203300490 sales@cavidyne.com | +1 (941) 413-5431 | cavidyne.com | 1747 Independence Blvd. Ste. E1, Sarasota, FL 34234 | Year 2025...
