Summary of Contents for MIOFIVE S1 Ultra

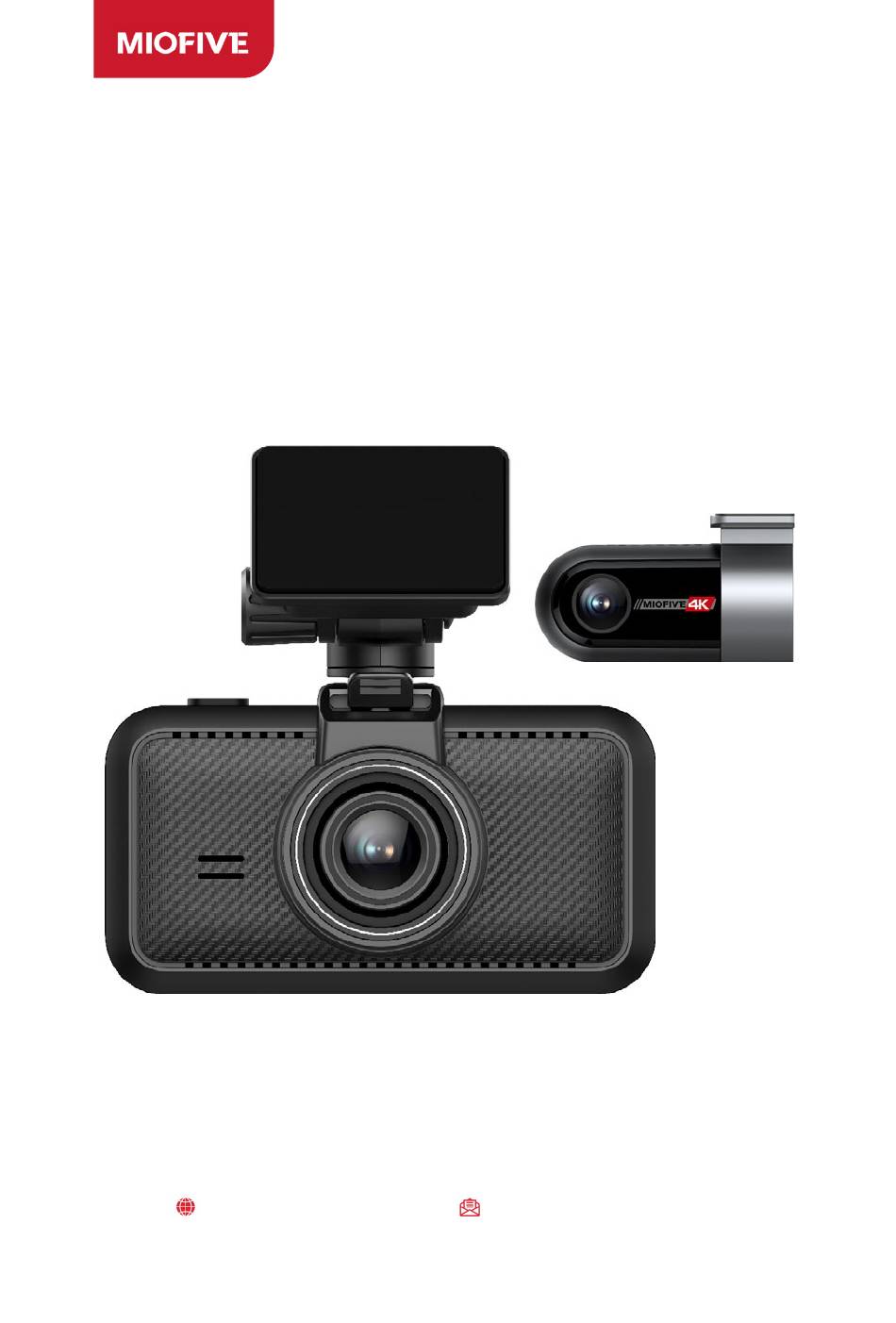

- Page 1 Please read this manual before operating your device and keep it for future reference. Distractions can lead to accidents and the risk of injury or death. Always keep your eyes on the road, and keep aware of your surroundings. www.miofive.com support@miofive.com...
-
Page 2: Table Of Contents
Unboxing and Installation----------------01 What’s in the box Contents Product Diagram Miofive SD Cards Installation Miofive Dash Cam App--------------------15 Miofive Dash Cam App Download Systems Supported Using Your Miofive App Operation and Settings--------------------18 Al Algorithm LED Indicator Information See it，Believe it... -
Page 3: What's In The Box
What’s in the box Product Diagram S1 Ultra Dash Cam x 1 Rear Cam Cable x 1 64G MicroSD Card x 1 Car Charger x 1 Data Cable x 1 Charging Cable x 1 Camera Lens Speaker Static Sticker x 4... - Page 4 Adjustment Bolt Power Port Album/Previous Button Power Button Setting/Back Button Vents Emergency Video/Next Button Microphone OK (Confirm) Button Reset Screen Status Indicator LED...
- Page 5 Regularly format your memory card to ensure optimal performance. Always backup your data first! Note Miofive S1 Ultra Dash Cam is High Bit-Rate 4K Video recording device, which requires High Speed Rating SPECIFIC MicroSD Cards. Miofive does not guarantee compatibility with memory cards from all manufacturers.
- Page 6 Ensure that you have backed up important files before proceeding with the formatting process. CPL Filter The Miofive Dash Cam CPL (Circular Polarizing Lens) enhances your driving recordings by reducing glare on the windscreen, ensuring clear footage of the road. It protects the front camera lens from fingerprints and scratches, while also improving color and contrast levels.
-
Page 7: Installation
Installation 2.Connect the power supply Connect the USB cable to the USB Type-C port of the ① Dash Cam. 1.Install the electrostatic sticker Run the cable along the edge of the windshield, tucking it away in Park your car in a safe area, and turn off the car engine. Take out the seams (With the Crowbar), and extend it all the way to the USB the electrostatic sticker from the packing box and install it in the port of the ②... - Page 8 3.Camera Calibration 4.Attach the Dash Cam You need to find a good position and angle to install the dash cam. Remove the protective sticker on the Dash Cam bracket and attach Start the car engine (DO NOT install under driving) to power on and the Dash Cam to the center of the electrostatic sticker (the sweet spot start from pressing the Setting Button in the middle on the right side, in step 3), as shown in the figure below.
- Page 9 6.Mount Attachment 7.Rear Camera Installation To attach the mount, align the pins on the mount with the holes on Select an installation location where the camera can record the the adhesive attachment and slide firmly down until you hear the complete rear view.
-
Page 10: Miofive Dash Cam App Download
Bluetooth Connection: Open the app and go to “Devices.” Miofive Dash Cam App Download Please scan the QR code below or search [Miofive] in App Store or Google Play to download the App. Note In order to connect to Dash Cam Wi-Fi, please list the APP in your trust application list and make sure the Dash Cam Wi-Fi is on. -
Page 11: Al Algorithm
Use your phone to scan the QR Code on the dash cam to connect. (within 2 meters). Go to Phone Wi-Fi Setting and turn Wi-Fi on. Choose your Miofive network name (SSID) from the Wi-Fi network list. Input the password to connect.(ex.“Miofive_xxxx”, default password: 1234567890) Return to Miofive APP once the connection is complete. -
Page 12: Led Indicator Information
LED Indicator Information 4 5 6 7 8 LED Indicator Dash Cam Status Blue LED light solid on Working, loop recording Blue LED light blinks Stop recording, user operating Blue and red alternating flashes MicroSD card abnormal Red LED light solid on Emergency recording Red LED light blinks Firmware updating... - Page 13 4 5 6 7 8 4 5 6 Rear cam connected Rear cam disconnected Time-lapse Recording Setting: Enable Time-lapse Recording Setting: Disable Front cam recording with 2K resolution Front cam recording with HD (1080P) resolution GPS signal detected No GPS signal Parking Monitoring Setting: Enable Parking Monitoring Setting: Disable A mobile phone connects to the dashcam via Bluetooth...
-
Page 14: Features
US Amazon Web Service. Not all features are listed in this manual. Accessories - Hardwire Kit Miofive USB Type-C Hardwire Kit is NOT Included in the packaging. Parking Mode Purchase separately. When your car is not running, i.e. the engine is turned off, the Dash... -
Page 15: Troubleshooting
Troubleshooting Start up Unable to start 1. Make sure the car cha- rger indicator light is on, if not please reinstall the car charger. Malfunction Scenario Root cause/Solution 2. The built-in battery symptom might be low, please con- nect the USB cable to a Installation Image blur 1. - Page 16 Dash Cam set- Cannot connect to 1. Make sure your phone up menu. dash cam via Wi- Wi-Fi is turn on (For iOS users, select Miofive’s Wi-Fi Connecting to Cannot connect 1. Check Bluetooth Range SSID under Wi-Fi settings). the App...
-
Page 17: Specifications
Specifications Cannot playback Might be related to player the recorded video or mobile phone’s system, on the mobile please try to playback on Image Resolution Front - 4K UHD (3840x2160) @30fps phone your PC. Rear - 4K UHD (3840x2160) @24fps Take too long to 1. -
Page 18: Precautions
Cam is in compliance with Directive 2014/53/EU. available in your area. RF Exposure Information (MPE) 2. The correct disposal of your Miofive dash cam will help prevent This device meets the EU requirements and the International potential negative consequences for the environment and human Commission on Non-Ionising Radiation Protection (ICNIRP) on the health. -
Page 19: Fcc Statement
Class B digital device, pursuant to Part 15 of the 18-month Limited Warranty FCC Rules. These limits are designed to provide reasonable E-mail: support@miofive.com protection against harmful interference in a residential installation. This equipment generates uses and can radiate... -
Page 20: Community Promotion Program
Miofive has a Community Promotion Program to aid you in extend- ing the warranty by 6 months. Please join Miofive Community ( Scan the QR Code below ) and share videos caught on the Miofive dash cam to extend your warranty pe- riod from 18 months to 24 months. - Page 21 us...
