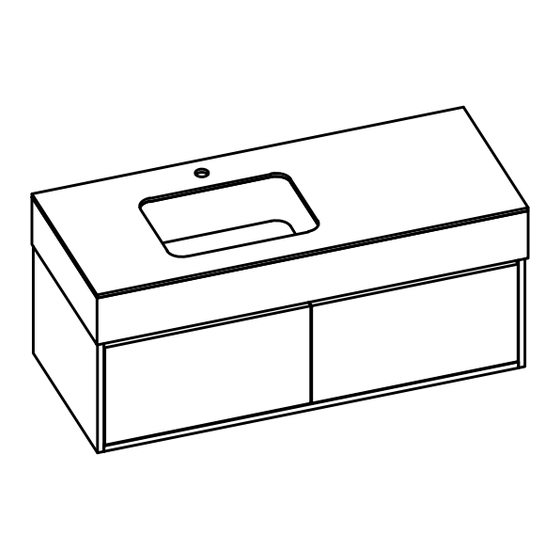

POVISON BV8003WW120 Assembly Instructions

1. Place the cabinet in a suitable position on the wall, mark the holes to be installed on the wall with a marker, and
then drill the holes in the wall with an electric drill.
wall
2. After the drilling is completed, the expansion plug is inserted into the wall hole, the cabinet is placed, and the
self-tapping screws are inserted into the position where the wall hole is connected with the cabinet. Tighten the screws
with a screwdriver.
Mark the two circles with a marker
The drilling depth is roughly 2.6 inches
（1）
wall hole
expansion plug
（2-1）
Decorative
cover base
screw
（M8*65mm）
Assembly instructions
The number of people needed for installation：2
①
Please read the manual carefully before
installing this product. And strictly
follow the installation process
② Please take good care of this manual
for your next installation
③ Note: Before installation, screw all
the screws to 1/2 of the length of
the installation. After all screws
are half screwed in, tighten them all
together.
Parts list
（2-3）
Serial
Shape
number
A
B
Screw into the
decorative cover
C
（2-2）
D
E
F
G
BV8003WW120 Installation
On a red ribbon are furniture
installation accessories
Quantity
Spare
Name required for
quantity
installation
screw
4 0
（M8*65mm）
4 0
expansion plug
4 0
non-slip mat
Bolt decorative
4 0
cover
TotaL 2 page; page 1
