Summary of Contents for Golden Technologies COMPANION GC340

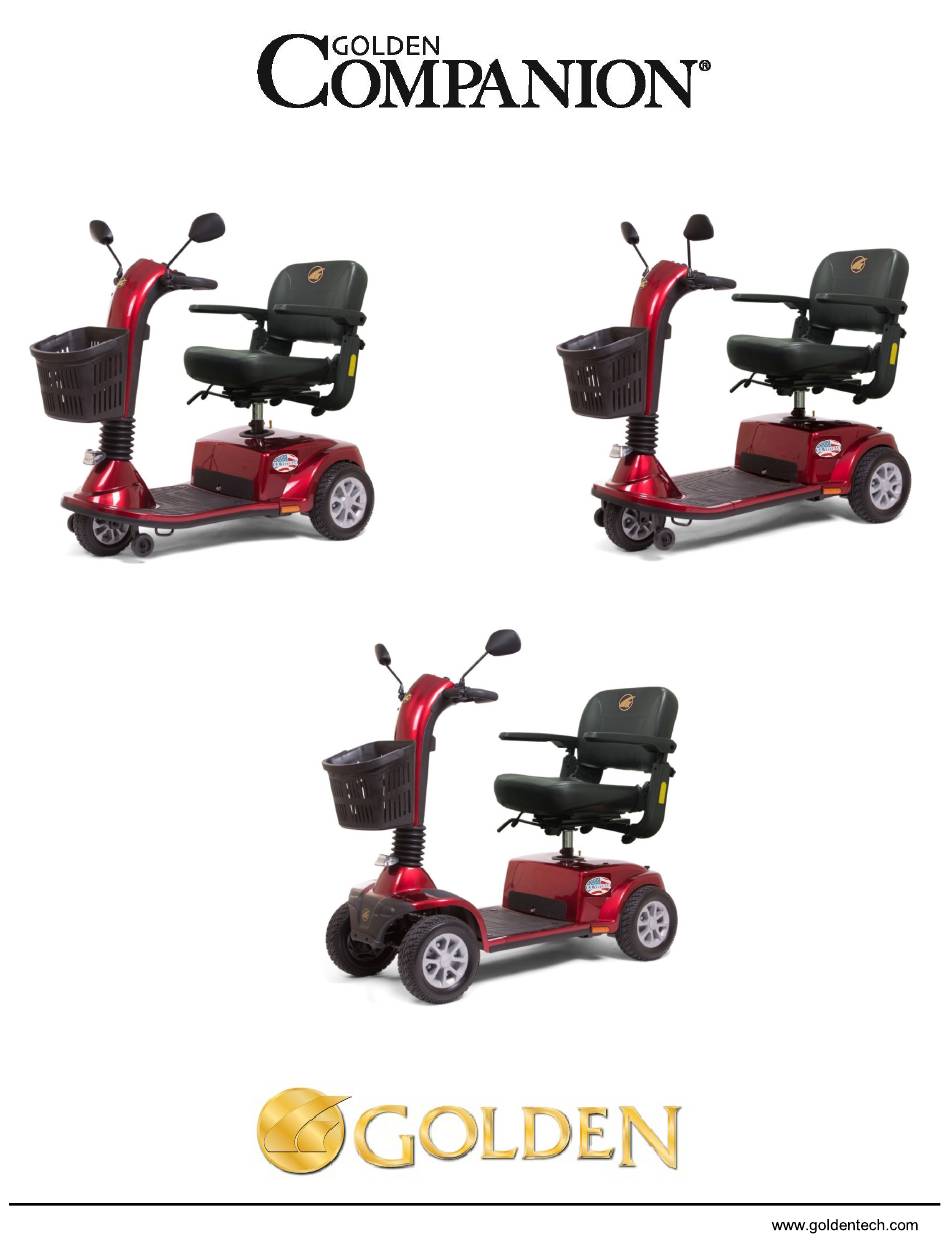

- Page 1 Owner’s Manual Model: GC240 Model: GC340 Model: GC440 Golden Technologies · 401 Bridge Street · Old Forge, PA 18518 · Tel: 800-624-6374 · Fax: 800-628-5165 ·...
- Page 2 Thank you for purchasing your Companion Scooter. We are honored you have chosen ® Golden Technologies for your mobility needs. Please note, unless otherwise specified, the term Companion refers to each of the models listed below: ® Companion – 3 wheel ®...
-
Page 3: Table Of Contents
Intended Use: The intended use of the Companion is to provide mobility to ® persons limited to a seated position that are capable of operating an electric scooter. CONTENTS I. INTRODUCTION........................4 Features and Benefits......................5 ® Accessories for the Companion Scooter..............6 II. -
Page 4: Introduction
We at Golden Technologies, Inc. know that you have chosen a scooter that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. -
Page 5: Features And Benefits
I. INTRODUCTION Features and Please read the Owner's Manual in its entirety for complete safety and operating instructions. Control Panel: Easy to read Delta Tiller handle: Offers Slide Seat Mechanism: A standard ® display features backlit battery cushioned hand rests for feature, every Companion scooter gauge;... -
Page 6: Accessories For The Companion Scooter
ACCESSORIES FOR THE COMPANION SCOOTER: ® A variety of accessories are available for your Golden Companion Scooter*. Please ® contact your Authorized Golden Technologies Provider for more information or to order. Rear Basket Oxygen Tank Holder Cane Holder Tube Power Elevating Seat ... -
Page 7: Safety
® and the more satisfied we at Golden Technologies, Inc. will be! But as with all things, especially motor operated vehicles, observing a few rules and safety considerations will help ensure safe scooter operation. So please follow the rules below. - Page 8 II. SAFETY Your Golden Companion is a battery-operated personal mobility vehicle. Please exercise caution ® and consideration when you are operating it. Driving your Companion carefully and thoughtfully ® will help ensure your personal safety and the safety of other people. Before learning to operate your Companion , have your authorized Golden ®...
- Page 9 Whenever it is safely possible, drive forward down any ramp, low rise, or incline. Golden Technologies, Inc. does not recommend that you drive your scooter in reverse down any incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous situation.
- Page 10 II. SAFETY If it is necessary to back down a slope follow one of two procedures. When using either of the following procedures to back down a slope, Golden Technologies, Inc. strongly advises that you have the assistance of another person. Procedure 1 - Under 1.
-
Page 11: Emi/Rfi
If unintended movement or brake release occurs, turn your scooter off as soon as it is safe to do so. Report all incidents of unintended movement or brake failure to Golden Technologies, Inc. Technical Service at (800) 624-6374. Turn off your scooter as soon as it is safely possible if unintended... -
Page 12: Your Golden Companion
FOR YOUR Please fill in your Companion ’s information below. This information will be useful in the event ® that you ever need to contact Golden Technologies, Inc. concerning your scooter. Your Companion ® Model Serial Number (under carpet—right rear)________________________... -
Page 13: Specifications
® IV. YOUR GOLDEN COMPANION Specifications GC240 GC340 GC440 Medicare Code K0807 K0807 K0807 Weight Capacity 350 lbs. 400 lbs. 400 lbs. Drive Wheels Rear Rear Rear Maximum Speed 5.3 mph 5.3 mph 5.3 mph Operating Range 15.1 miles 16.5 miles 15.5 miles Ground Clearance under deck 3.75”... - Page 14 1. Battery range will vary due to rider weight, drive surface, terrain, and battery type. 2. Electronics warranty excludes batteries. Literature is current at time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time.
-
Page 15: Operation
V. OPERATION SPEED ADJUSTMENT DIAL DC VOLTAGE METER POWER INDICATOR LED KEY SWITCH LIGHT HORN HORN THROTTLE THROTTLE CONTROL LEVER CONTROL LEVER FIGURE 5. CONTROL PANEL Speed Adjustment The speed adjustment dial allows you to select the maximum top speed of your Golden Companion . - Page 16 V. OPERATION Power Indicator When the power to your Companion is turned on, the Power Indicator LED (Light Emitting ® Diode) will light up. See figure 5 on page15. This LED is used for diagnosing operational problems that may arise. Please see the Diagnostics section of this manual. Horn Press this button to sound the horn.
-
Page 17: Control Options
Release the tiller adjustment lever. It will automatically lock the tiller at the selected angle. CONTROL O Golden Technologies, Inc. has made provision for the individual needs and abilities of the operators of the Golden Companion ® Your authorized Golden Technologies, Inc. provider can reverse the throttle control lever... - Page 18 V. OPERATION Seat Height To adjust the seat height: 1. Unlock the seat by lifting the seat rotate lever. See figure 4 on page 12. 2. Remove the seat by lifting the seat straight up. Armrest Width Adjustment Knob 3. Set the seat aside. 4.
-
Page 19: Power Elevating Seat (Optional)
V. OPERATION POWER ELEVATING SEAT ADJUSTMENT - OPTIONAL EQUIPMENT Your Companion may be equipped with a power elevating seat. The power elevating seat ® actuator is designed to raise or lower the seat with minimal effort by the user. The power elevating seat switch is located on the tiller below the throttle lever. -
Page 20: Freewheel Mode
V. OPERATION Your Golden Companion is equipped with ® a freewheel lever that can set your scooter in or out of freewheel mode. The freewheel lever engages your park brake. To engage the brake and take your scooter out of freewheel mode: Push the brake handle in the direction of “engage”... -
Page 21: Riding Your Companion
® VI. RIDING YOUR COMPANION For your first driving sessions, make certain that your Companion starts out on a level surface and that you will continue driving a level ® To Get on Your Companion ® 1. Stand behind your Companion ®... -
Page 22: Basic Driving
® VI. RIDING YOUR COMPANION Steering your Golden Companion is easy and logical. ® 1. With both hands on the handgrips of the tiller (see figure 4 on page 12), turn the tiller to the right to travel to the right. 2. - Page 23 ® VI. RIDING YOUR COMPANION CONTROL THROUGH TIGHT S O S As you use your Golden Companion to greatly increase your mobility, you will undoubtedly ® encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your scooter. Listed with those obstacles are some driving tips that should help you conquer those obstacles.
-
Page 24: Disassembly
VII. DISASSEMBLY REMOVING THE S Pinchless seat hinges standard on all Golden Companion ® 1. Remove the key. 2. Make sure that the scooter brake is engaged. 3. (Optional) Loosen the arm width adjustment knobs, and slide the arms off the scooter. This will reduce the seat weight, if you are not able to carry the seat with the armrests attached. -
Page 25: Assembly
VII. DISASSEMBLY 2. Squeeze the locking ear on the connector and disconnect the batteries from the frame. See Figure 18. 3. Remove the batteries one at a time. 4. Lower the tiller, which will automatically lock into place once lowered. The key must be removed from the key switch to fully lower the tiller. - Page 26 The Companion scooters are easy to assemble. ® Make sure the key is out of the key switch before assembling your scooter. WARNING! Pinch/Crush Hazard! ALIGN CONNECTING THE F R A M E SECTIONS 1. Position the front and rear sections of the frame as shown in figure 21 so that they align properly.
- Page 27 Do not sit o n or attempt to move your Companion unless frame and ® rear carriage is securely engaged. separation the frame from the rear carriage may occur and cause injury or REINSTALL THE S 1. Make certain that the seat post is mounted in the seat post pedestal and adjusted to the desired height.
-
Page 28: Transporting Your Companion
® YOUR COMPANION FIGURE 25. GC240 FIGURE 26. GC340 FIGURE 27. FOUR-WHEEL GC440 All Golden Companion scooters shown above can be equipped with docking ® devices for loading onto a vehicle by means of a mechanical lift or hoist. Contact your Golden Technologies, Inc. -
Page 29: Care And Maintenance
X. CARE AND MAINTENANCE ROUTINE MAINTENANCE Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you can schedule an inspection and maintenance with your provider. ... -
Page 30: Batteries And Charging
X. CARE AND MAINTENANCE IMPORTANT! New batteries MUST be fully charged prior to the initial use of your scooter. Charge new batteries for 12 hours even if the battery gauge already shows a full charge. This is to condition your new batteries for maximum performance. WARNING! Corrosive chemicals contained inside the battery. -
Page 31: If Your Companion ® Does Not Operate
’s batteries. See “Charger and Batteries” in this section ® of this manual. If the problem continues, have your authorized Golden Technologies, Inc. provider load test the batteries. If the batteries are good, the charger may be the problem. Consult your... -
Page 32: Diagnostics
4. Press in on the main circuit breaker reset button. See figure 30 on page 31. If the main circuit breaker continues to trip, there is probably underlying fault that needs Contact your authorized Golden Technologies, Inc. provider. Do not keep the main circuit breaker without The diagnostics feature of your Golden Companion ’s microprocessor based motor control... - Page 33 ’s key switch and allow the scooter to sit for 10 minutes. ® Check the tire pressure. Have your authorized Golden Technologies, Inc. provider perform a battery load test. s/Beeps Indicates a brake problem. The freewheel lever may be in the disengaged position. See page 20.
- Page 34 Indicates a motor voltage problem. Your scooter will not operate until the problem is corrected. Remedy: Contact your authorized Golden Technologies, Inc. provider. s/Beeps • Indicates other internal errors or faults. • Your scooter will not operate until the problem is corrected.
-
Page 35: Warranty
Seat Swivel Mechanism Armrests Items not listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit. REV.1017... - Page 36 Companion® GC240, GC340, and GC440 (continued) Warranty Exclusions: Golden Technologies does not provide warranty on any of the following items which may require replacement due to the normal wear and tear of day to day usage: Tires and Tubes ...
- Page 38 Fold Here First Place Stamp Here Golden Technologies 401 Bridge St. Old Forge, PA 18518 Fold Here Second...
- Page 40 Model: GC240 Model: GC340 Model: GC440 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5165 www.goldentech.com Companion _OM_VA_08.11.2021 ®...
