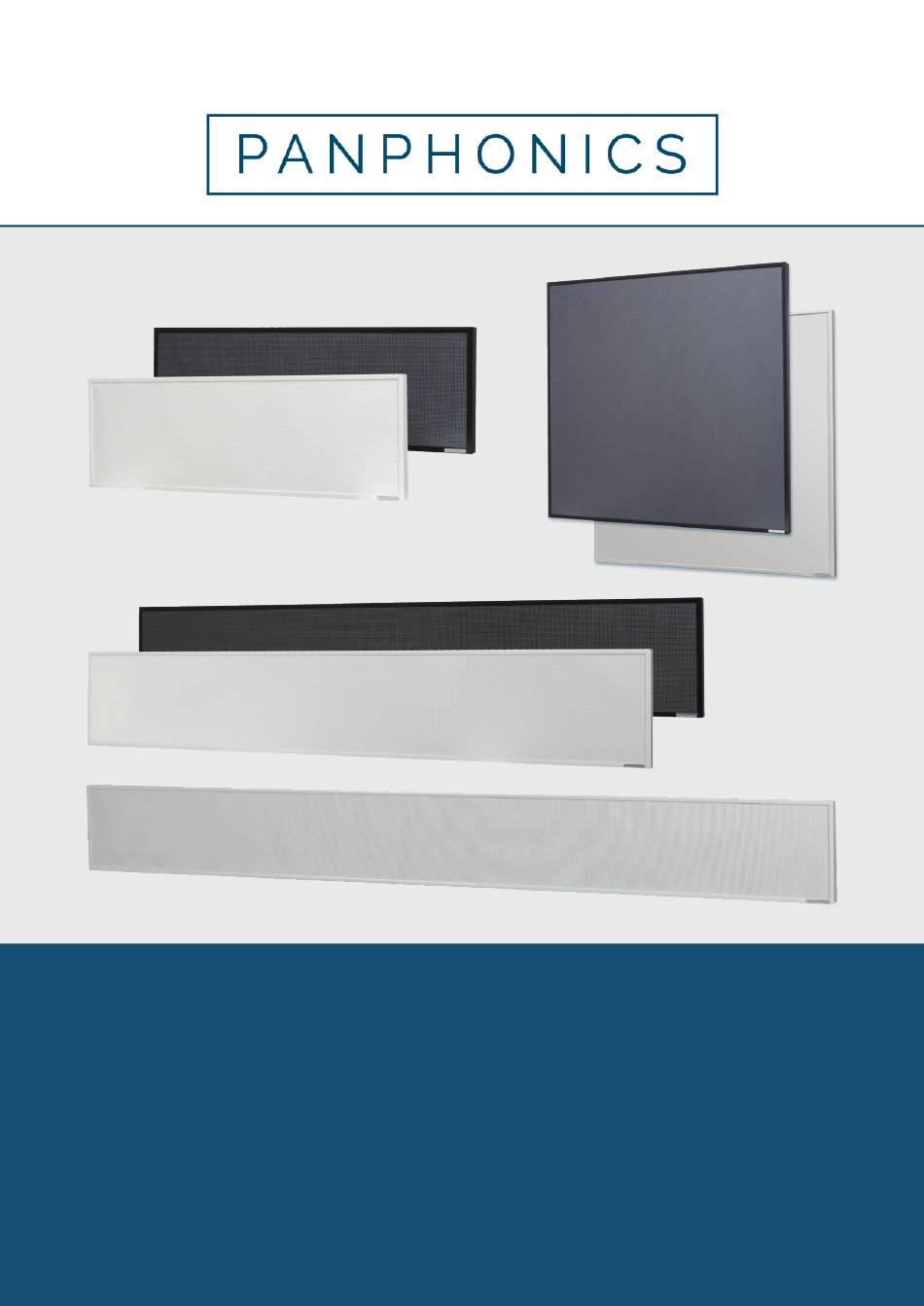

- Page 1 Manual Sound Shower Passive ® Sound Shower® Passive (SSHP) (SSHP) www.panphonics.com...
-
Page 2: Table Of Contents
Manual Table of contents 1. PRODUCT DESCRIPTION ................3 2. DIMENSIONS AND COLOURS ............... 4 3. SPECIFICATIONS ................... 6 3.1. Audio footprints ..................6 3.2. Electrical specifications ................8 4. PRODUCT LABELS ..................8 5. TROUBLESHOOTING ..................9 6. MAINTENANCE ....................9 7. -
Page 3: Product Description

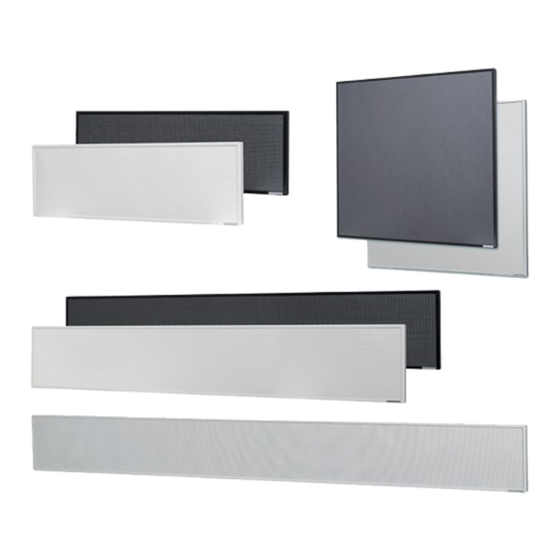

1. PRODUCT DESCRIPTION The Panphonics Sound Shower™ Passive (SSHP) is a mono loudspeaker with alu- minum framing and in order to operate it will need external Panphonics ADX amplifier. Panphonics Sound Showers™ are ideal for applications where a certain audio footprint is needed. -
Page 4: Dimensions And Colours
Manual 2. DIMENSIONS AND COLOURS MODEL SIZE (L X W X H) WEIGHT INCH SSHP 60X20 601 X 204 X 34 23.6 X 8.0 X 1.3 SSHP 60X60 601 X 601 X 34 23.6 X 23.6 X 1.3 SSHP 120X20 1195 X 204 X 34 47.0 X 8.0 X 1.3 SSHP 180X20... - Page 5 Manual V2/04-24...
-
Page 6: Specifications
Manual 3. SPECIFICATIONS 3. SPECIFICATIONS 3.1 Audio footprints IN UNECHOIC CONDITIONS, FOOTPRINT AREAS (-10DB AT 3M), OPENING ANGLES AND WEIGHTS 3.1. Audio footprints SIZE FOOTPRINT AREA OPENING ANGLE WEIGHT (KG/LBS) 60x20 1.2m x 2.3m 1,4/3.1 60x60 1.3mx1.3m Aprox. 4° each side 3,0/6.6 120x20 1.4m x 2.3m... - Page 7 Manual 1200 X 200 HORIZONTAL 1200 X 200 HORIZONTAL Notice the wide area of equal SPL caused by short measurement distance. Octave (Hz) -10 dB angle 1000 2000 4000 8000 16000 1200 X 200 VERTICAL Octave (Hz) -10 dB angle 1000 123.5 2000...
-
Page 8: Electrical Specifications
Manual 3.2 Electrical specifications 3.2. Electrical specifications Amplifier 9-pin D-sub Connector connector 4. PRODUCT LABELS 4. PRODUCT LABELS V2/04-24... -
Page 9: Troubleshooting
Do not bleach. Do not use any detergent when wiping. 7. AUDIO ELEMENT All Sound Showers are based on the Panphonics Audio Element. The Element is an electrostatic transducer. The way it is manufactured, however, places it to entirely differ- ent category compared to traditional electrostatic loudspeakers. - Page 10 Manual The maximum power handling capacity is frequency dependent. The table below shows the maximum signal voltage that can be applied to the element. Note that this voltage may damage the element. An adequate safety margin should be applied. FREQUENCY (HZ) MAX DRIVING VOLTAGE (V, PEAK TO PEAK) 1000 5000...
-
Page 11: Acoustic Properties
Manual 7.2. Acoustic properties The Panphonics Audio Elements are extremely directive. The directivity is a function of the frequency. At frequencies above 2 kHz, the standard S60 size Panphonics audio elements have directivity of 4 degrees. Because of the directivity and the phase coher- ence of the produced wave field, the output sound pressure stays at equal level even to long distances. -
Page 12: Environmental
The element as such has ingress protection classification IP30. It has survived oper- ational in very demanding environmental test sequence following the standard SAEJ- 1885kJ. For more details, please contact Panphonics technical support. 7.5. Patents The product is protected by one or more of the following patents or patent applications: EP 0883972, JP 4138004, JP 4312821, US 6483924, CN ZL200880005581.0,... -
Page 13: Declaration Of Conformity
Manual 8. DECLARATION OF CONFORMITY V2/04-24... -
Page 14: Terms Of Warranty
2012/19/EU (WEEE), 2011/65/EU (RoHS) 2012/19/EU (WEEE): Panphonics Oy is a member of the ICT Producer Co-operative -TY as of January 24th 2007. Panphonics Oy has been registered in the producer co-operative’s member- ship register under the number 2306. Company’s membership information has been forwarded to the Finnish Authorities. - Page 15 The Product having been in on an accident or been exposed to the elements or spilled over with food or liquid, or been affected by chemical substances or other events beyond the scope of influence of Panphonics Oy, including but without limitation to labour dispute and every other event Panphonics Oy...
- Page 16 Product are limited to this Limited Warranty. This Limited Warranty will supersede all ther oral, written, statutory (unless mandatory), contractual and other warranties and liabilities. In no event will Panphonics Oy be liable for unforeseen, incidental, consequential or indirect damages or expenses. Should the purchaser be a company or other legal person, Panphonics Oy will not be liable for direct damages or expenses.
-
Page 17: Warnings And Disclaimers
Manual 10. WARNINGS AND DISCLAIMERS This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock. Only suitable for use at areas with altitude less than 2000m Only suitable for use at non-tropic climate areas This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling... -
Page 18: Important Safety Information
Manual 11. IMPORTANT SAFETY INFORMATION Panphonics speakers are designed to be used with Panphonics amplifiers only. Disconnect the amplifier from main voltage before making connections to speakers. Read all documentation before operating your equipment. Do not use the SSHP speakers near high heat or moisture-producing devices. -
Page 19: Contact Information
Logistics: sales@panphonics.fi Panphonics Oy +358 40 5390 600 Nuutisarankatu 15, nosto-ovi 27 33900 TAMPERE, Finland tel. +358(0)405390600 © Panphonics Oy, SSHP manual V2/04-24. Panphonics reserves the right to change this manual or the related products without any prior notice. V2/04-24... - Page 20 www.panphonics.com...
